HIK VISION 2 MP Series Manuale utente

2 MP Series Turret Camera

User Manual

Thank you for purchasing our product. If there are any

questions, or requests, do not hesitate to contact the

dealer.

This manual applies to the models below:

Model

DS-2CE70D0T-ITMF

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

0100001081123

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

FCC compliance: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection

against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new

equipment, or dispose of it at designated collection

points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a

battery that cannot be disposed of as

unsorted municipal waste in the European

Union. See the product documentation for

specific battery information. The battery is

marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery

to your supplier or to a designated collection point. For

more information, see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

Safety Instruction

These instructions are intended to ensure that user can

use the product correctly to avoid danger or property

loss.

The precaution measure is divided into “Warnings” and

“Cautions”.

Warnings: Serious injury or death may occur if any of

the warnings are neglected.

Cautions: Injury or equipment damage may occur if any

of the cautions are neglected.

Warnings

In the use of the device, you must be in strict

compliance with the electrical safety regulations of

the nation and region.

Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12

VDC according to the IEC60950-1 standard. Refer to

technical specifications for detailed information.

Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused

by overload.

Make sure that the plug is firmly connected to the

power socket.

Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and

then contact the service center.

Never attempt to disassemble the camera by

unprofessional personal.

Cautions

Do not drop the camera or subject it to physical

shock.

Do not touch senor modules with fingers.

If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

Do not aim the camera at the sun or extra bright

places.

The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that

the surface of sensor will not be exposed to the laser

beam.

Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp

environment.

To avoid heat accumulation, good ventilation is

required for the operating environment.

Keep the camera away from liquid while in use for

non-water-proof device.

While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Warnings Follow

these safeguards to

prevent serious injury

or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Mark Description

Table 0-1 Mark Description

Mark

Description

DC Voltage

1Introduction

1.1 Main Features

High performance CMOS sensor

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR

IR cut filter

OSD menu with configurable parameters

Auto white balance

Switchable TVI/AHD/CVI/CVBS video output

SMART IR

3-axis adjustment

1.2 Overview

1.2.1 Overview of the Camera

DC12VIN

Mounting Base

Main Body

Enclosure

Stopper Screw

Switch Button

Power Cord

12 VDC

Video Cable

Figure 1-1 Overview of the Camera

Note:

Press and hold the switch button for 5 seconds to

switch the video output. Four kinds of video outputs

are available: TVI, AHD, CVI, and CVBS.

2Installation

Before you start:

Make sure that the device in the package is in good

condition and all the assembly parts are included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your power output to avoid the damage.

Make sure the wall is strong enough to withstand

three times the weight of the camera and the

bracket.

If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use

self-tapping screws to secure the camera.

If the product does not function properly, contact

your dealer or the nearest service center. DO NOT

disassemble the camera for repair or maintenance by

yourself.

2.1 Installation of the Camera

Steps:

1. Paste the drill template to the place where you want

to install the camera.

2. Drill the screw holes and the cable hole (optional)

on the ceiling according to the drill template.

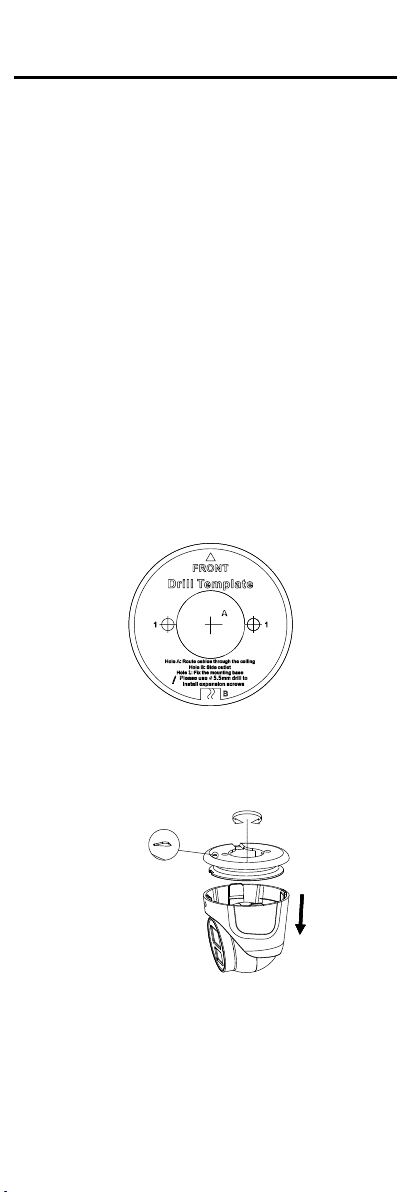

Figure 2-1 Drill Template

3. Loosen screws.

4. Disassemble the camera by rotating the camera to

align the notch to the triangle mark to remove the

main body.

Triangle Mark

Figure 2-2 Disassemble the Camera

5. Paste the drill template to ceiling, then you have

two ways to install the mounting base according to

different types of ceiling.

1). Install the mounting base to wooden ceiling

with two PA4 × 25 screws.

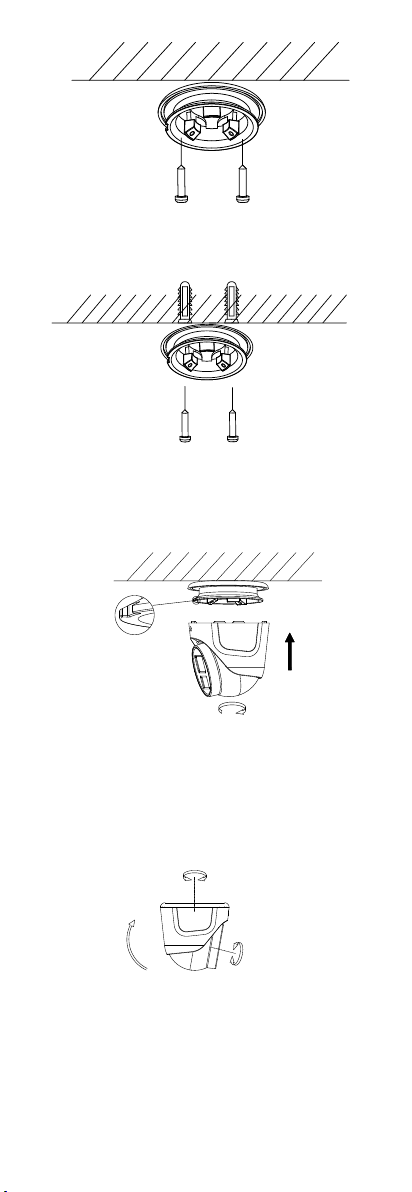

Figure 2-3 Install the Mounting Base to Wooden Ceiling

2). Drill holes for installing expansion bolts at first,

then install the mounting base to cement ceiling

with two PA4 × 25 screws.

Figure 2-4 Install the Mounting Base to Cement Ceiling

Note:

The supplied screw package contains self-tapping

screws, and expansion bolts.

6. Align the screw hole on the main body to the notch,

and press it.

Notch

Figure 2-5 Align the screw hole to the Notch

7. Connect the corresponding cables.

8. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If

not, adjust the camera according to the figure below

to get an optimum angle.

Pan Position

[0°to 360° ]

Tilt Position

[0°to 80° ] Rotation Position

[0°to 360° ]

Figure 2-6 3-Axis Adjustment

9. Secure the camera with a screw to finish the

installation.

3Menu Description

Please follow the steps below to call the menu.

NOTE:

The menu description part is for your reference only. It

might have some differences due to the specific model

that you have.

Steps:

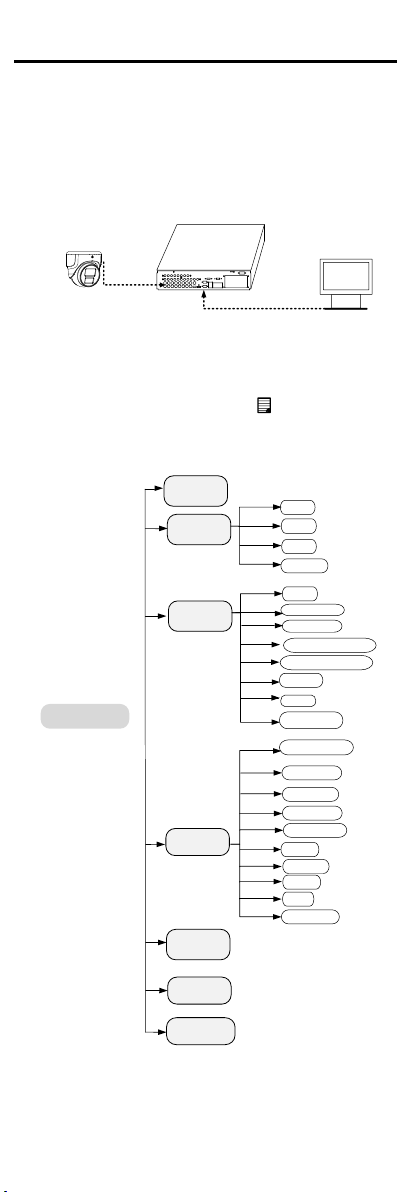

1. Connect the camera with the TVI DVR, and the

monitor, shown as the figure 3-1.

Camera

TVI DVR

Monitor

Figure 3-1 Connection

2. Power on the camera, TVI DVR, and the monitor to

view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

EXPOSURE

MODE

BLC

MAIN MENU

VIDEO

SETTINGS

EXIT

SAVE & EXIT

HLC

GLOBAL

CONTRAST

SHARPNESS

SATURATION

MIRROR

BACK

VIDEO

FORMAT

FACTORY

DEFAULT

BRIGHTNESS

EXIT

SAVE & EXIT

DAY/NIGHT

BACK

EXIT

SAVE & EXIT

IR LIGHT

Smart IR

D->N THRESHOLD

N->D THRESHOLD

IMAGE MODE

MODE

DWDR

AGC

Figure 3-2 Main Menu Overview

5. Click the direction arrow to control the camera.

1) Click up/down direction button to select the

item.

2) Click Iris + to confirm the selection.

3) Click left/right direction button to adjust the

value of the selected item.

3.1 VIDEO FORMAT

You can select the video format as 2MP @ 25fps or 2MP

@ 30fps.

3.2 EXPOSURE

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, HLC,

or DWDR.

GLOBAL

GLOBAL refers to the normal exposure mode which

adjusts lighting distribution, variations, and

non-standard processing.

BLC (Backlight Compensation)

The BLC (backlight compensation) function can

compensate light to the object in the front to make it

clear, but this causes the over-exposure of the

background where the light is strong.

HLC (Highlight Compensation)

HLC stands for highlight compensation. The camera

detects the strong spots (the over-exposure portion of

image), then reduce the brightness of the strong spots

to improve the overall images.

DWDR (Digital Wide Dynamic Range)

Digital wide dynamic range gives the camera the ability

to view dark areas of the given image as well as

extremely lighted portions of the image, or areas of

high contrast.

3.3 DAY/NIGHT

COLOR, B/W (Black/White), and AUTO are selectable

for DAY/NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and it is

better to turn the IR LIGHT on in poor light conditions.

IR LIGHT

You can turn on/off the IR LIGHT to meet the

requirements of different circumstances.

SMART IR

The Smart IR function is used to adjust the light to its

most suitable intensity, and prevent the image from

over exposure. The SMART IR value can be adjusted

from 0 to 3. The greater the value is, the more obvious

effects are.

AUTO

You can turn on/off the IR LIGHT, and set the value of

SMART IR in this menu.

DAY NIGHT

MODE

IR LIGHT

SMART IR

D-N THRESHOLD

N-D THRESHOLD

BACK

EXIT

SAVE&EXIT

AU TO



Figure 3-3 DAY/NIGHT

IR LIGHT

You can turn on/off the infrared to meet the

requirements of different circumstances.

SMART IR

The Smart IR function is used to adjust the light to its

most suitable intensity, and prevent the image from

over exposure. The SMART IR value can be adjusted

from 0 to 3. The greater the value is, the more obvious

effects are.

DN THRESHOLD (Day to Night Threshold)

Day to Night Threshold is used to control the sensitivity

of switching the day mode to the night mode. You can

set the value from 1 to 9. The larger the value is, the

more sensitive the camera is.

ND THRESHOLD (Night to Day Threshold)

Night to Day Threshold is used to control the sensitivity

of switching the night mode to the day mode. You can

set the value from 1 to 9. The larger the value is, the

more sensitive the camera is.

3.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to

enter the submenu. IMAGE MODE, BRIGHTNESS,

CONTRAST, SHARPNESS, SATURATION, AGC, and

MIRROR are adjustable.

VIDEO SETTINGS

IMAGE MODE

BRIGHTNESS

CONTRAST

SHARPNESS

SATURATION

AGC

MIRROR

BACK

EXIT

SAVE & EXIT

HIGH

OFF













STD

Figure 3-4 VIDEO SETTINGS

IMAGE MODE

IMAGE MODE is used to adjust the image saturation,

and you can set it as STD (Standard), or HIGH-SAT (High

Saturation).

BRIGHTNESS

Brightness refers to the brightness of the image. You

can set the brightness value from 1 to 9 to darken or

brighten the image. The greater the value is, the

brighter the image is.

CONTRAST

This feature enhances the difference in color and light

between parts of an image. You can set the CONTRAST

value from 1 to 9.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 9.

SATURATION

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 9.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light

conditions. The AGC level can be set as HIGH, MEDIUM,

or LOW.

Note:

The noise will be amplified when setting the AGC level.

MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror function is disabled.

H: The image flips 180° horizontally.

V: The image flips 180° vertically.

HV: The image flips 180° both horizontally and

vertically.

3.5 FACTORY DEFAULT

Reset all the settings to the factory default.

3.6 EXIT

Move the cursor to EXIT and click Iris+ to exit the menu.

3.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save

the settings, and exit the menu.

UD12361B

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Macchina fotografica digitale

HIK VISION

HIK VISION DS-2CE10DF8T-F Manuale utente

HIK VISION

HIK VISION DS-K1T606MF Manuale utente

HIK VISION

HIK VISION HF-VS409 Manuale utente

HIK VISION

HIK VISION Wiegand iDS-2CD7A26G0/P-IZHSY Manuale utente

HIK VISION

HIK VISION DS-2CE78H0T-IT3F Manuale utente

HIK VISION

HIK VISION HiLook Series Manuale utente

HIK VISION

HIK VISION DS-2CE16K0T-LFS Manuale utente

HIK VISION

HIK VISION ColorVu DS-2CE DFT-F Series Manuale utente

HIK VISION

HIK VISION DS-MCW405 Manuale utente

HIK VISION

HIK VISION DS-2CD6825G0/C-I(V)(S) Manuale utente

HIK VISION

HIK VISION TURBO HD U0T Series Manuale utente

HIK VISION

HIK VISION TandemVu SE4C Series Manuale utente

HIK VISION

HIK VISION DS-2CE78D0T-IT3FS Manuale utente

HIK VISION

HIK VISION TurboHD H0T Series Manuale utente

HIK VISION

HIK VISION DS-MH2111 Series Manuale utente

HIK VISION

HIK VISION DS-MH2311 Series Manuale utente

HIK VISION

HIK VISION DS-MCW406 Manuale utente

HIK VISION

HIK VISION DS-7204HQHI-K1 Manuale utente

HIK VISION

HIK VISION Wiegand DS-2CD4A26FWD-IZS/P-WG Manuale utente

HIK VISION

HIK VISION UD02783B Manuale utente

HIK VISION

HIK VISION TURBO HD 4K Series Manuale utente

HIK VISION

HIK VISION DS-MCW405 Manuale utente

HIK VISION

HIK VISION DS-K1T643 Series Manuale utente

HIK VISION

HIK VISION DS-TCP045-B Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
