DS-7204HVI-S/M Series Net DVR

Technical Manual

Notices

The information in this documentation is subject to change without notice and

does not represent any commitment on behalf of HIKVISION. HIKVISION disclaims

any liability whatsoever for incorrect data that may appear in this documentation.

The product(s) described in this documentation are furnished subject to a license

and may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for

the purposes for which it is supplied. It may not be reproduced in whole or in

part, in any form, or by any means or be used for any other purpose without prio

written consent of HIKVISION and then only on the condition that this notice is

included in any such reproduction. No information as to the contents or subject

matter of this documentation, or any part thereof, or arising directly or indirectly

therefrom, shall be given orally or in writing or shall be communicated in any

manner whatsoever to any third party being an individual, firm, or company or any

employee thereof without the prior written consent of HIKVISION. Use of this

product is subject to acceptance of the HIKVISION agreement required to use this

product. HIKVISION reserves the right to make changes to its products as

circumstances may warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

[email protected]

Find out more about HIKVISION at www.hikvision.com

Contents

1. Overview

2. Model Description

3. Features

4. Specifications

1. Overview

DS-7204HVI-S/M series network digital video recorder is a digital surveillance

product applies an embedded MCU and Linux OS, along with the most advanced

technology in the information industry, such as video and audio encoding/decoding

hard disk recording and TCP/IP. The firmware is burned into the flash, making the

product more stable and reliable.

DS-7204HVI-S/M series devices combine the advantages of both a digital video

recorder (DVR) and a digital video server (DVS). It can be used as a standalone

video surveillance product, as well as to build up a powerful surveillance network.

DS-7204HVI-S/M Net DVR can be widely used in the verticals of banking,

telecommunications, transportation sectors, and manufacturing.

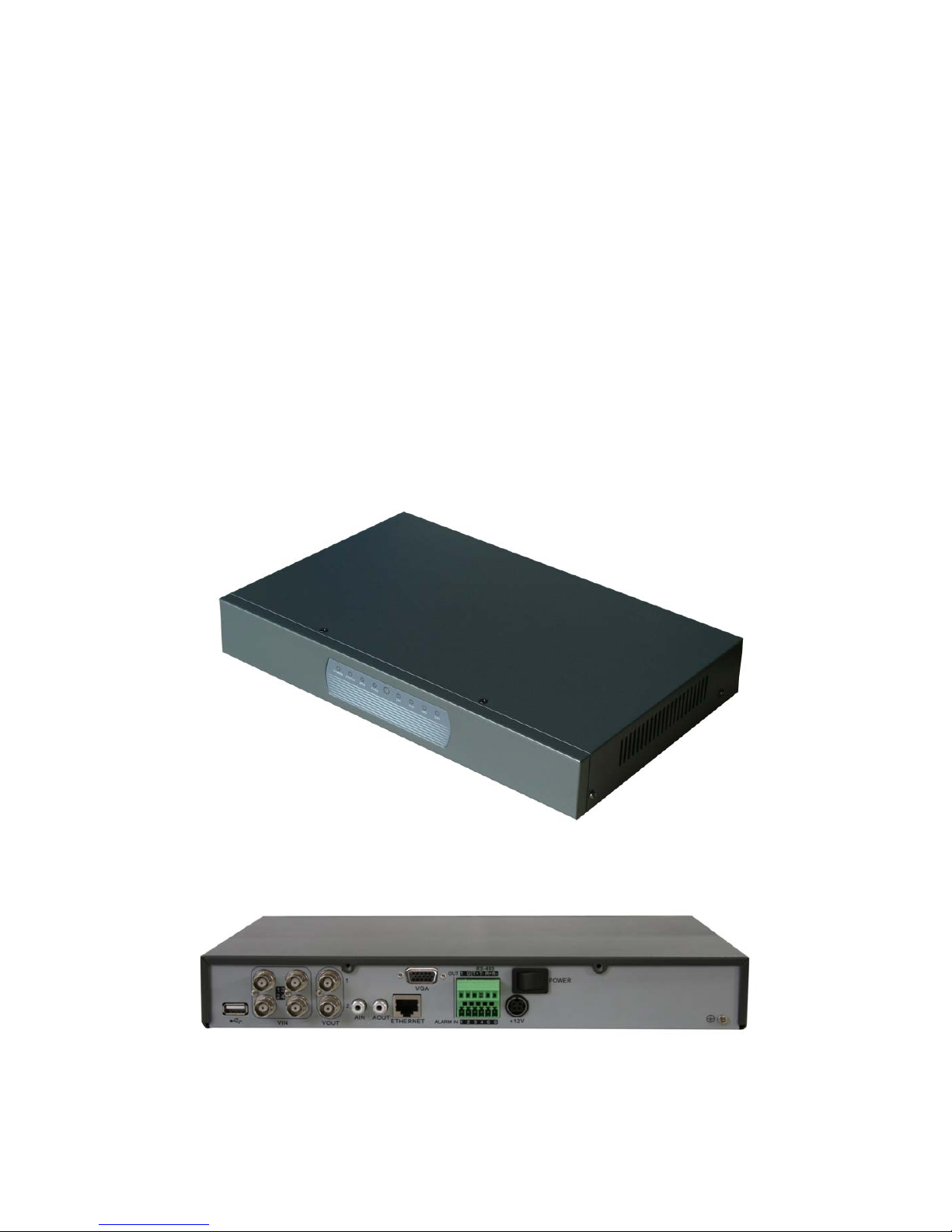

DS-7204HVI-S/M Front Panel

DS-7204HVI-S/M Rear Panel

1. Model Description

DS-7204HVI-S/M: 4-ch video input and 1-ch audio input. One VGA output.

SATA HDD supported. 1-ch composited video output and 1-ch spot video output.

Note: The default DVRs are without HDD.

1. Features

3.1 Compression

ٛ.H.264 video compression algorithm and each channel can be CIF

real-time, 4CIF, DCIF, and 2CIF can be selected as well.

ٛ.One channel audio input and output. Each channel is independent

with OggVorbis compression at a bit rate of 16Kbps.

ٛ.Multi-area motion detection.

ٛ.On-screen display (OSD) and changeable OSD position.

ٛ.Support both variable bit rate and frame rate.

ٛ.Support dual-stream, and the sub stream can support CIF/QCIF

resolution.

ٛ.2 stream types, including video & audio and video only. Either

composited stream or video-only stream can be selected.

3.2 Local Functions

3.2.1 Recording

ٛ.Support SATA HDD which can support up to 2000GB

memory.

ٛ.HDD S.M.A.R.T. technology

ٛ.Support FAT32 files system

ٛ.Multiple record types, including schedule recording,

manual recording, all time, motion detection, alarm, motion &

alarm, motion or alarm, command.

ٛ.Cycle and none cycle recording mode.

ٛ.Backup recorded files and clips with USB flash disk or USB

hard disk.

3.2.2 Preview & Playback

Support one composited video output and one spot video output

DS-7204HVI-S/M can support one VGA output with 1204*768

resolution

Support VGA and VOUT output, VGA has precedence over VOUT,

and can not output at the same time.

Support Privacy Mask

View tampering alert

Support video signal loss alert

Support play forward, backward, pause, frame-by-frame, etc

User-defined preview layout

Support one playback channel, and playback by files or by time

Display local recording status

3.2.3 PTZ

ٛ.Several PTZ protocols supported

ٛ.Preset, sequence and cruise

3.2.4 Alarms

ٛ.Exception alarm, motion detection alarm, external alarm,

etc.

3.3 Network

ٛ.Support RTP, TCP, UTP, Multicast, DHCP, etc

ٛ.PPPoE for ADSL dialup

ٛ.Remote parameters setup

ٛ.Remote download and playback the recorded files in DVR

ٛ.Remote upgrade the DVR firmware

ٛ.Network PTZ control

ٛ.IE to preview and configure DVR

ٛ.Support remote log query

3.4 Others

ٛ.Support network voice talk

ٛ.IR remote control

ٛ.Multi-level user management

ٛ.Automatically recovery from abnormal conditions

ٛ.Network SDK and client demo source code available

1. Specifications

Model DS-7204HVI-S/M

Video compression H.264

Preview resolution PAL: 704×576 ; NTSC:

704×480

VGA: 1024*768

Playback resolution QCIF/CIF/2CIF/DCIF/4CIF

Video input 4 channels, BNC (1.0Vp-p, 75Ω)

Video output 1 channel, BNC (1.0Vp-p, 75Ω)

Video spot output 1 channel, BNC (1.0Vp-p, 75Ω)

Frame rate (per

channel)

4CIF: 6fps

DCIF: 12fps

2CIF: 15fps

CIF: 25(P)/30(N) fps

Audio compression OggVorbis, 16Kbps

Audio input 1 channel, RCA (2.0~2.4Vp-p, 1KΩ)

Audio output 1 channel, RCA (2.0~2.4Vp-p, 600Ω)

Stream type Video/Video&Audio

Support dual stream Yes

Bit rate 32Kbps ~ 2Mbps, user-defined

HDD interface 1 SATA interface can support 1 SATA HDD up to2000GB

Communication

interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

1 RS-485 interface

USB interface 1 USB interface can support USB disk, USB HDD, USB

CD-RW & DVD-RW.

VGA interface 1 VGA interface can support resolution:

1024*768/60Hz

External alarm in 4

Relay output 1

Voice talk 1 channel,(Using Audio IN)

Support Buzzer Yes

Power supply 12VDC

Power consumption ≤40W (without HDD or DVD-R/W)

Operating temperature

-10℃~ +55℃

Relative humidity 10% ~ 90%

Size 315(W)*230(D)*45 mm(H)

Weight ≤2.8Kg (without HDD or DVD-R/W)

PAL: 176×144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF);

NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF).
