HIK VISION DS-8104 Manuale utente

Thank you for purchasing our product.

Please read this User’s Manual before

using the product. Change without Notice

4 / 8 CH DVR

User’s Manual

CAUTION

zPlease read this user manual carefully to ensure that you can use the device correctly and safely

zWe do not warrant all the content is correct. The contents of this manual are subject to change without notice

zThis device should be operated only from the type of power source indicated on the marking label. The voltage

of the power must be verified before using. If not in use for a long time, pull out the plug from the socket

zDo not install this device near any heat sources such as radiators, heat registers, stoves or other device that

produce heat

zDo not install this device near water. Clean only with a dry cloth

zDo not block any ventilation openings. And ensure well ventilation around the machine

zDo not power off the DVR at normal recording condition! The correct operation to shut off DVR is to stop

recording firstly, and then select “shut-down” button at the right of the menu bar to exit, and finally to cut off the

power.

zThis machine is indoor using equipment. Do not expose the machine in rain or moist environment. In case any

solid or liquid get into the machine’s case, please cut off the power supply immediately, and ask for qualified

technicians to check the machine before restart

zRefer all servicing to qualified service personnel. No any parts repaired by yourself without technical aid or

approval.

zThis manual is suitable for 4/8-channel digital video recorders.

1.1 Main Features

•Real-time surveillance

•High resolution VGA output (Default)

•2 way audio

•3G Mobile surveillance(iPhone/ iPad/ Android/ Windows Mobile/ BlackBerry/ Symbian)

•Compression

With latest H.264 video compression, better video quality and lower compression rate.

•Storage

Support 1 SATA HDD（FAT32 file system）

•Data Backup

With USB thumb drive or USB external DVD burner. Each backup file size is 128MB.

•Adjustable record resolution, frame rate and quality

•CIF real-time record or partial channel D1 real-time record

•Multi-record mode: manual, schedule, sensor and motion record.

•HDD recycle record.

•Single or Multi channel playback

•Record file lock protection

•4/8 sensor input and 1 relay output

•Motion detection

•Pre and Post event record

•Channel related trigger record

•PTZ control

Multi PTZ protocol support

Programmable 128 Preset points and 8 cruises

Related trigger preset point control

•Authority account setup (1 admin and 15 users account)

•USB mouse control

To use USB mouse to control on friendly GUI

•Playback search mode: by time or event

•Event log and search

•Support network function

Multi connection type: STATIC(Fixed IP)、DHCP、PPPoE

Support DDNS

Support event trigger to send E-mail

Remote connection limitation

Auto bandwidth adjustment by network status

•Support network remote control

Remote record

Remote playback

Remote PTZ control

Remote configuration

Remote IE surveillance

Remote CMS control

Remote EMAP control

Remote camera color adjustment

Remote snapshot

1.2 Front Panel Instructions

Notice: The pictures are only for reference; please make the object as the standard.

1. The Front Panel interface for 4/8ch DVR is shown as below:

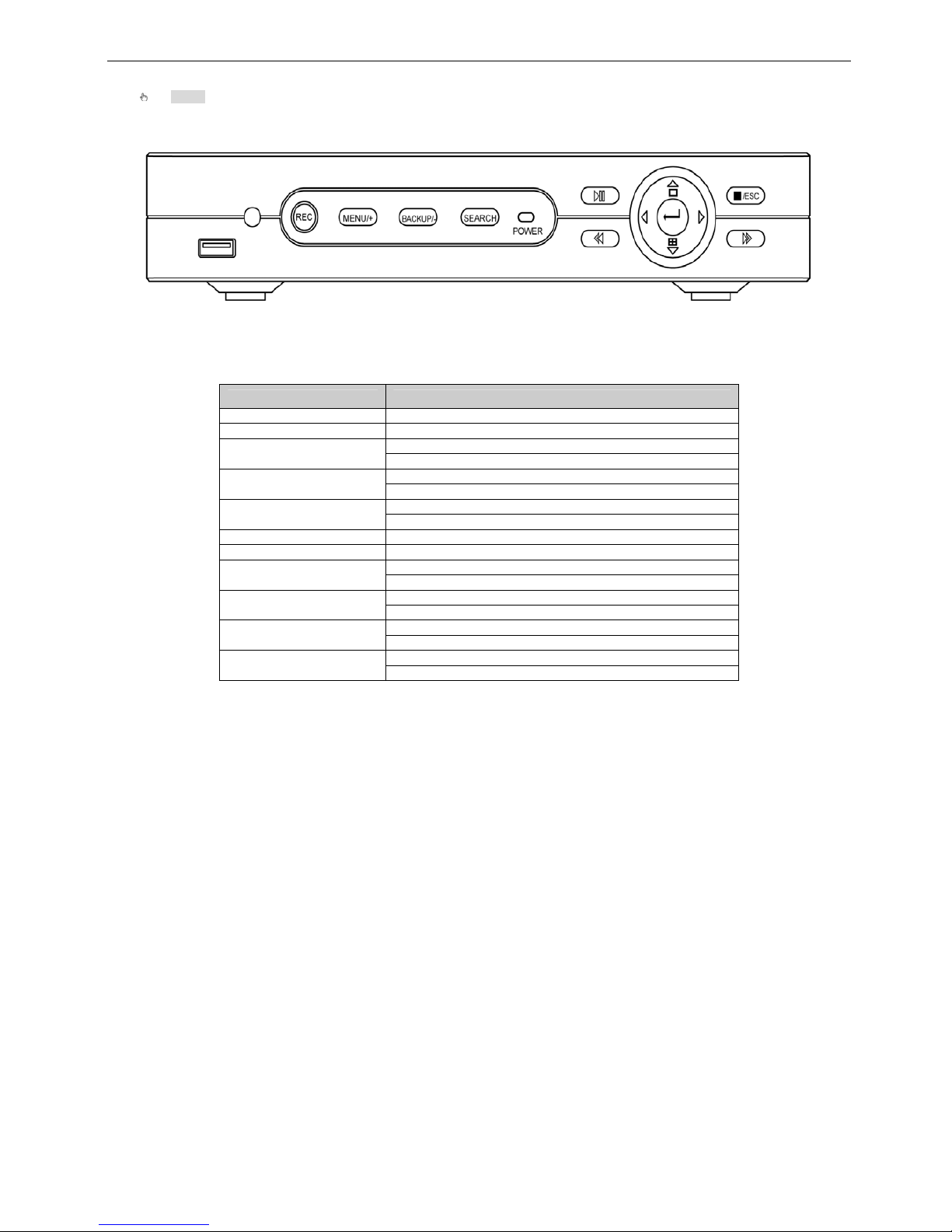

Fig 2.5 Front Panel for 4/8-ch DVR

Name Description

REC 1. Record manually

Search 1. Enter search mode

1. Increase the value in setup

+/Menu button 1. Enter menu from live view

1. Decrease the value in setup

-/Backup 1. Enter backup mode from live view

1. Quit play mode

STOP/ESC 1. Exit the current menu or status

IR Receiver 1. For remote control

Enter button 1. To confirm the choice or setup

1. Direction up

Direction up/CH 1. single channel switch

1. Direction down

Direction down/Split 1. Change screen display, single, 4, 9 screens

1. Direction left

Direction left/Rew 1. playback rewind

1. Direction right

Direction right/FF 1. playback forward

Tab 2.1 Definitions of Front Panel Buttons

1.3 Rear Panel Instructions

1.3.1 Rear Panel Interface

The rear Panel interface for 4-ch is shown as Fig 2.8:

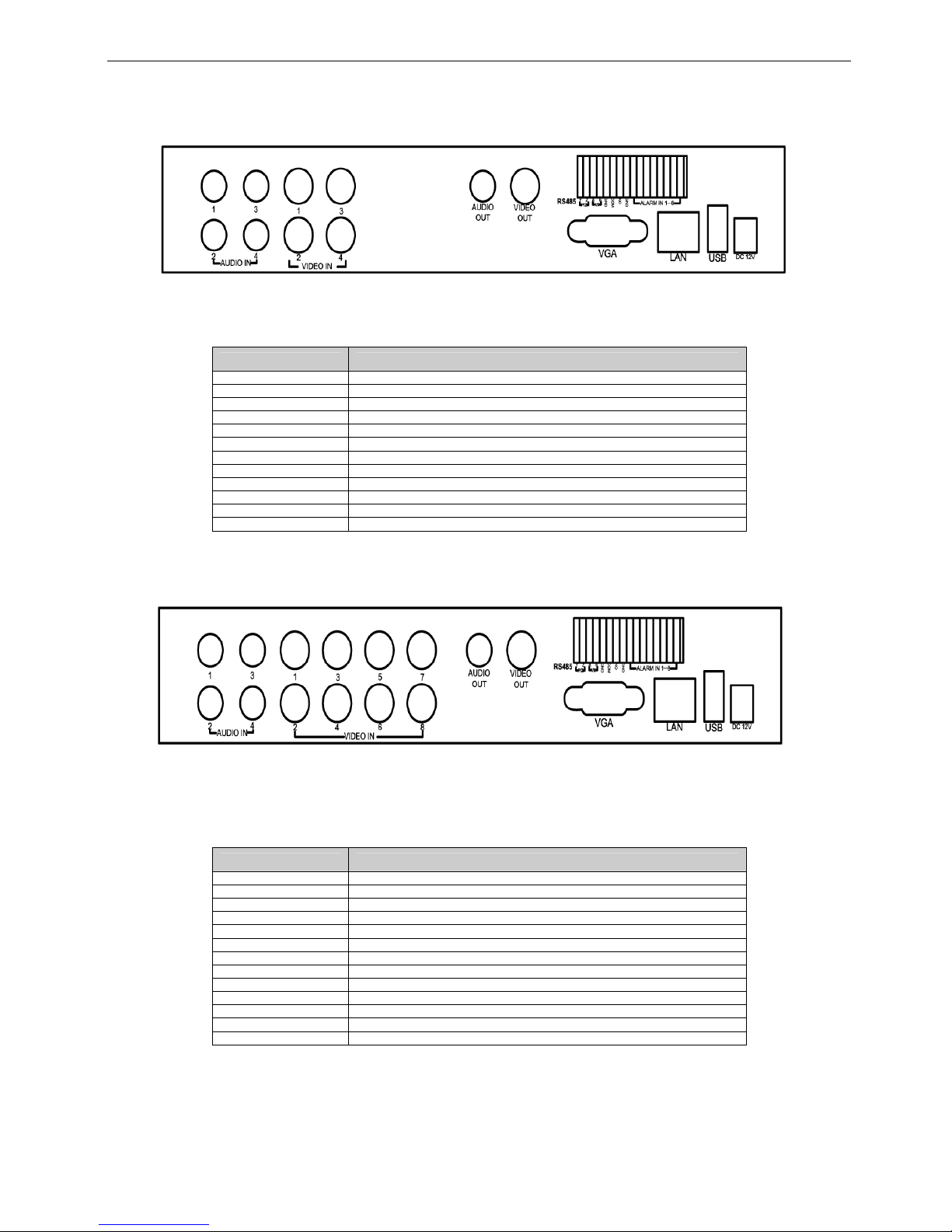

Fig 2.8 Rear Panel for 4-ch

Name Description

Video out Connect to monitor

Audio out Audio output, connect to the sound box

P/Z Connect to speed dome

K/B Connect to keyboard

ALARM IN Connect to external sensor1-4

Video in Video input channels from 1-4

VGA port VGA output, connect to monitor

LAN Network port

USB For mouse and pan driver

Com and GND Com and Grounding

Audio in 4 CH Audio input

POWER INPUT DC12V

Tab 2.4 Definitions of Front Panel Buttons

The rear Panel interface for 8-ch is shown as Fig 2.9:

Fig 2.9 Rear Panel for 8-ch

Name Description

Video out Connect to monitor

Audio out Audio output, connect to the sound box

Video in Video input channels from 1-8

POWER INPUT DC12V

FAN For cooling the device

VGA port VGA output, connect to monitor

LAN Network port

USB For mouse and pan driver

P/Z Connect to speed dome

K/B Connect to keyboard

Com and GND Com and Grounding

ALARM IN Connect to external sensor1-4

Audio in 4 CH Audio input

Tab 2.5 Definitions of Front Panel Buttons

1.4 Remote Controller (Optional)

It uses two AAA size batteries and works after loading batteries as following:

Step1: Open the battery cover of the Remote Controller

Step2: Place batteries. Please take care the poles (+ and -)

Step3: Replace the battery cover

Notice: Frequently defect checking as following

1. Check batteries poles

2. Check the remaining charge in the batteries

3. Check IR controller sensor is mask

If it still doesn't work, Please change a new remote controller to try, or contact your dealers

The interface of remote controller is shown in Fig2.11 Remote Controller.

Fig 2.11 Remote Controller

Item Name Function

1 Power Button Soft switch off to stop firmware running. Do it before power off.

2 INFOR Button Get information about the DVR like firmware version, HDD information

3 REC Button To record manually

4 Digital Button Input digital or choose camera

5 Multi Screen Button To choose multi screen display mode

6 SEARCH Button To enter search mode

7 MENU Button To enter menu

8 ENTER Button To confirm the choice or setup

9 Direction Button Move cursor in setup or pan/title PTZ

10 +/- Button To increase or decrease the value in setup

11 Playback Control Button To control playback, Fast forward/rewind/stop/single frame play

12 AUDIO Button To enable audio output in live mode

13 Auto Dwell Button To enter auto dwell mode

14 BACKUP Button To enter backup mode

15 PTZ Control Button To control PTZ camera:

Move camera/ZOOM/FOCUS/IRIS/SPEED control

◆Switch Remote Control ID

Take remote control and point to DVR then continuously press “8”,”8”,”ID(0-65535)”,”Enter”.

＊The ID must be the same on DVR.

＊For example: If ID=1 , please take remote control and point to DVR then press 8,8,1,Enter.

1.5 Control with Mouse

1.5.1 Connect Mouse

It supports USB mouse through the ports on the rear panel, please refer to Fig 2.11 Remote Controller.

Notice: If mouse is not detected or doesn't work, check below steps:

1. Make sure the mouse plugs in the USB mouse port not the USB port

2. Change a mouse to try

1.5.2 Use Mouse

The structure of the main menu is shown in Fig 2.11 Remote Controller.

In live:

Double-click left button on one camera to be full screen display. Double-click again to return to the previous screen display.

Click right button to show the control bar at the bottom of the screen as Fig 2.11 Remote Controller. Here are all control and setup. Click right mouse

again to hide the control bar.

In setup:

Click left button to enter. Click right button to cancel setup, or return to the previous.

If want to input the value, move cursor to the blank and click. An input window will appear as Fig2.12. It supports digitals, letters and symbols input.

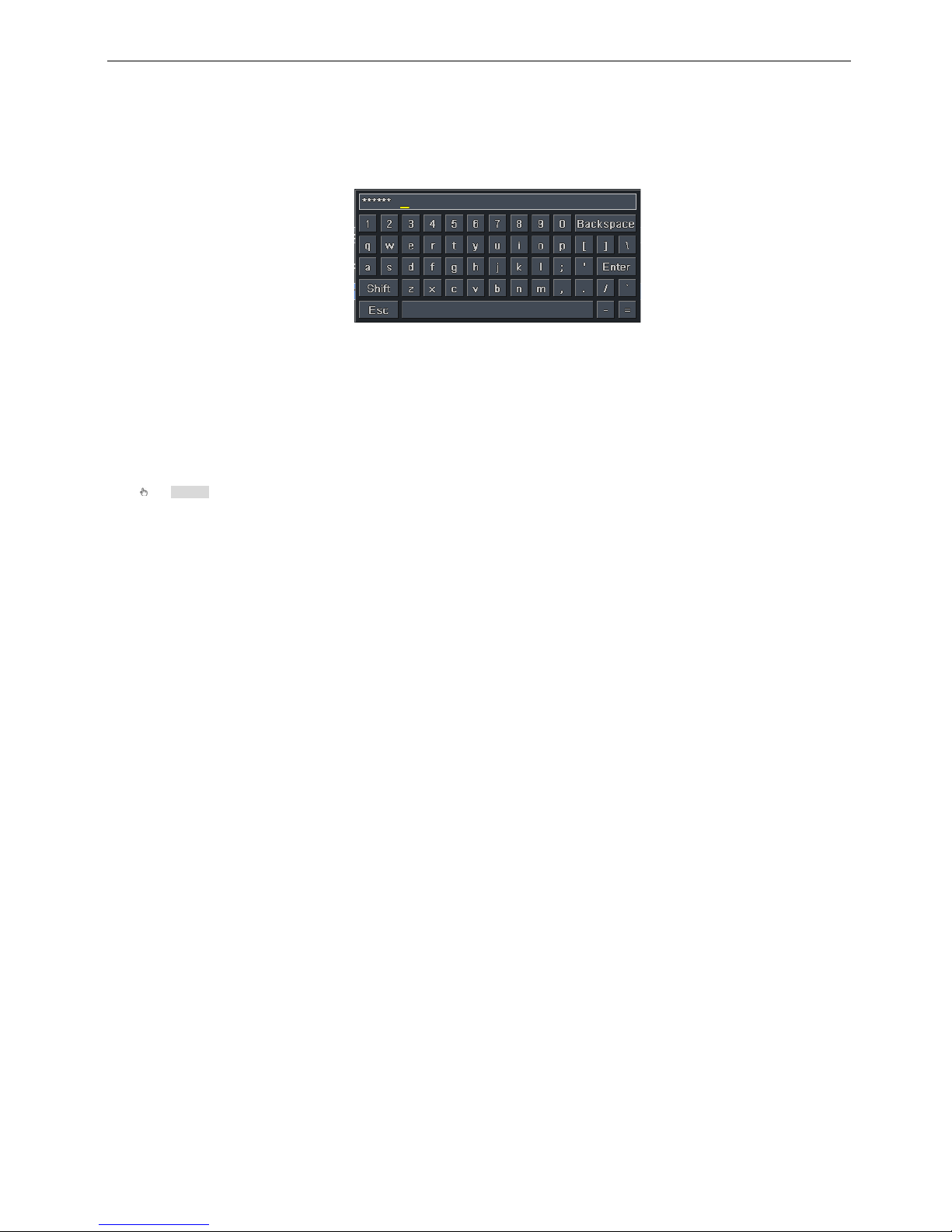

Fig 2.12 Digital Numbers and Letters Input Window

Users can change some value by the wheel, such as time. Move cursor onto the value, and roll the wheel when the value blinks.

It supports mouse drag. I.e. Set motion detection area: click customized, hold left button and drag to set motion detection area. Set schedule: hold

left button and drag to set schedule time

In playback:

Click left button to choose the options. Click right button to return to live mode.

In backup:

Click left button to choose the options. Click right button to return to previous picture.

In PTZ control:

Click left button to choose the buttons to control the PTZ. Click right button to return to live.

Notice: Mouse is the default tool in all the operation below unless Exceptional indication.

2Basic Function Instruction

2.1 Power On/Off

Before you power on the unit, please make sure all the connection is good.

2.1.1 Power on

Step1: connect with the source power; switch on the power button near the power port in the rear panel

Step2: the device will be loaded, and the power indicator will display blue

Step3: before start, a WIZARD dialogue box will be pop-up (refer to below picture) and show some information about time zone and time setup.

After the device power on, if there is no menu or only has live image display, user can long press ESC button to switch.

Notice: this serial device can only display menu on VGA monitor or BNC monitor at one time, if there is live image display without menu

display, please check up whether other device has menu display firstly, or long press ESC key to wait for login dialog box to appear.

2.1.2 Power off

User can power off the device by using remote controller、keyboard and mouse.

By remote controller:

Step1: press Power button, the Shut down window will appear, click OK, the unit will power off after a while.

Step2: disconnect the power

By keyboard and mouse:

Step1: enter into Menu, then select “System Shut Down” icon, the Shut down window will appear

Step2: click OK, the unit will power off after a while.

Step3: disconnect the power

2.2 Login

User can login and logout the DVR system. User cannot do any other operations except changing the multi-screen display once logout.

Fig 3-1 Login

Notice: the default user name and password is “admin” and 123456

”

The concrete operation steps for change password, add or delete user please refer to Fig 3.7 User management configuration for more

details.

2.3 Live preview

Fig 3-2 live preview interface

The explanation of symbol in the live preview interface:

symbol meaning symbol meaning

Green Manual record or time record Red Alarm record

Yellow Motion detection record Blue Schedule record

2.3.1 Live playback

Click Play button to playback the record. Refer to Figure3-3. User can do concrete operation by click the buttons on screen.

Fig 3-3 live playback

1 Playback process button Play/pause / stop / frame / forward / rewind

2 Playback screen mode Full / quad

3 Playback screen magnifier Screen digital zoomx2

4 Playback volume Volume mute on/off

5 Playback bar Hide playback tool bar

6 Playback close Exit playback to search page

7 Playback process bar Last/next segment of record and time process

①② ③ ④⑤ ⑥

⑦

3Main menu setup guide

Click right mouse or press ESC button on the front panel, the control bar will display on the screen, refer to Fig 4-1:

1 Single Full channel

2 Multi 4ch:1/4, 8ch:1/4/9, 16ch:1/4/9/16

3 Audio Audio channel setup and volume

4 Audio Audio channel setup and volume

5 PTZ Into PTZ control mode

6 Record Manual record

7 Playback Playback the nearest file

8 Main Menu Into main OSD

Fig 4-1 main menu toolbar

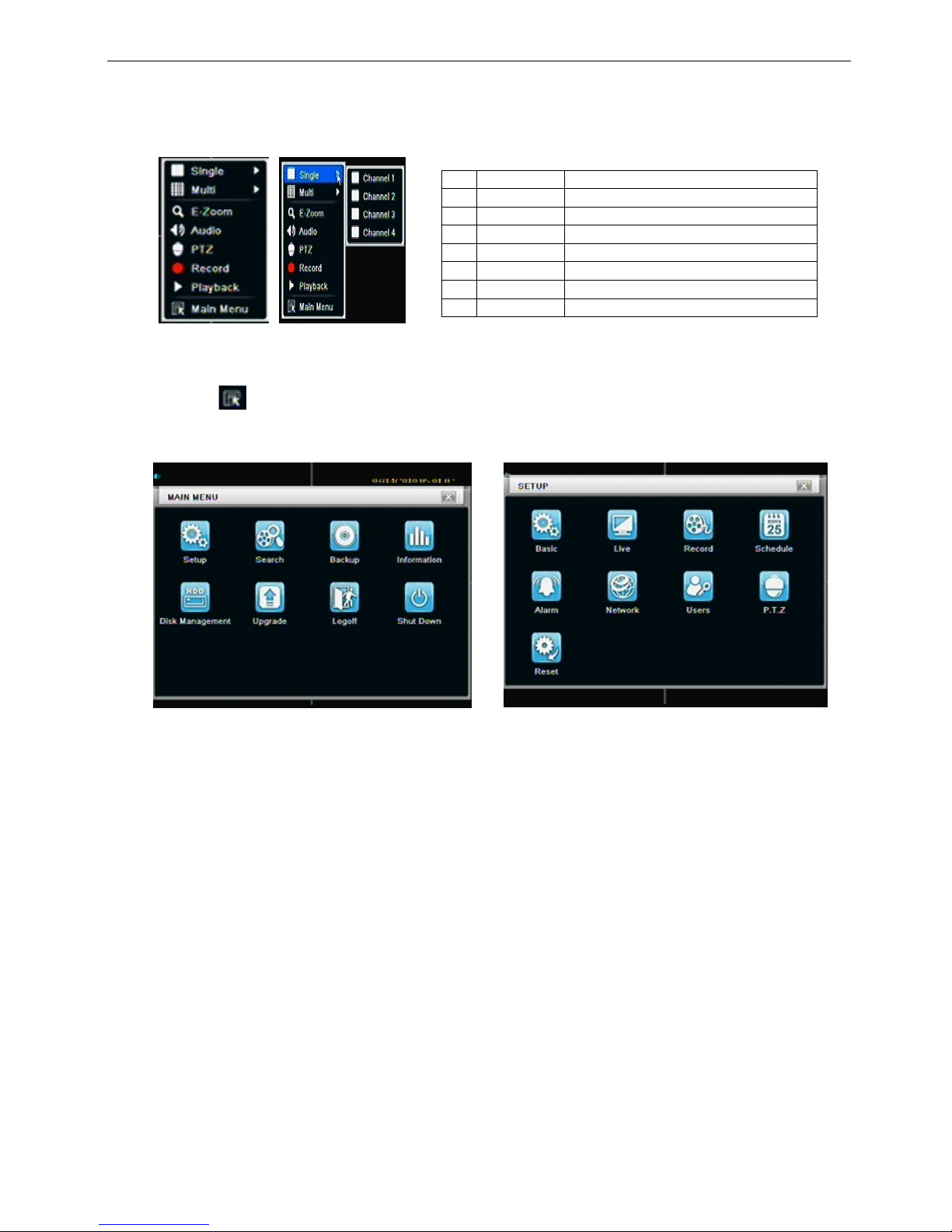

Click Menu button, the interface will pop-up as Fig 4-2; press MENU button on the front panel or operate with remote controller also can

display the main menu.

Fig 4-2 system setup

Full channel switch, camera 1 ~ 4 or camera 1 ~ 8

①

②

③

④

⑤

⑥

⑦

Altri manuali per DS-8104

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Registratore digitale

HIK VISION

HIK VISION DS-7300HFI-S Series Manuale utente

HIK VISION

HIK VISION DS-7100HWI Manuale utente

HIK VISION

HIK VISION DS-MP7608HN/GW Manuale utente

HIK VISION

HIK VISION DS-7100HQHI-K1 Series Manuale utente

HIK VISION

HIK VISION DS-7204HVI-ST Manuale utente

HIK VISION

HIK VISION DS-7300HFI-ST Series Manuale utente

HIK VISION

HIK VISION DS-7100HQHI-K1 Series Manuale utente

HIK VISION

HIK VISION DS-7100HWI-SL Series Manuale utente

HIK VISION

HIK VISION DS-7300HI Series Guida utente

HIK VISION

HIK VISION DS-7204HI series Manuale utente

HIK VISION

HIK VISION Ds-7604ni-e1, ds-7608ni-e1 Manuale utente

HIK VISION

HIK VISION DS-8100HFI-ST Series Manuale utente

HIK VISION

HIK VISION DS-7104HGHI-F1/N Manuale utente

HIK VISION

HIK VISION DS-7304HFI-SE Manuale utente

HIK VISION

HIK VISION DS-9600NI-ST Series Guida utente

HIK VISION

HIK VISION DS-7100NI-SL series Guida utente

HIK VISION

HIK VISION DS-6102HL Manuale utente

HIK VISION

HIK VISION DS-9500 Series NVR Manuale utente

HIK VISION

HIK VISION Pro Series Manuale utente

HIK VISION

HIK VISION DS-8100-S Series Manuale utente

HIK VISION

HIK VISION HWD Series Manuale utente

HIK VISION

HIK VISION DS-7604 Series Manuale utente

HIK VISION

HIK VISION DS-8100HMFI-TH Series Manuale utente

HIK VISION

HIK VISION DS-9100HWI-ST Series Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
