HIK VISION Network Video Recorder Guida utente

Network Video Recorder

Quick Operation Guide

UD.6L0202B1057A01

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to the models listed in the following table.

Series

Model

Type

7600NI-SE

DS-7604NI-SE

DS-7608NI-SE

DS-7616NI-SE

Network Video Recorder

7600NI-SE/N

DS-7604NI-SE/N

DS-7608NI-SE/N

DS-7616NI-SE/N

Network Video Recorder

7600NI-SE/P

DS-7604NI-SE/P

DS-7608NI-SE/P

DS-7616NI-SE/P

Network Video Recorder

7600NI-V

DS-7604NI-V

DS-7608NI-V

DS-7616NI-V

Network Video Recorder

7600NI-VP

DS-7604NI-VP

DS-7608NI-VP

DS-7616NI-VP

Network Video Recorder

NVR Pre-Installation

The DS-7600NI-SE, DS-7600NI-SE/N, DS-7600NI-SE/P, DS-7600NI-V, and DS-7600NI-VP series NVR are

highly advanced surveillance equipment that should be installed with care. Please take into consideration the

following precautionary steps before installation of the NVR.

1. Keep all liquids away from the NVR.

2. Install the NVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

NVR Installation

During the installation of the NVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.

6. Ensure the NVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC , 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the NVR. A factory

recommended HDD should be used for this installation.

Up to 2 SATA hard disks can be installed on your NVR.

Tools Required: Screwdriver.

Steps (for DS-7600NI-SE, DS-7600NI-SE/N and DS-7600NI-SE/P):

Note: The installation steps of DS-7600NI-SE/N and DS-7600NI-SE/P are the same as DS-7604/08NI-SE, so we

take the installation steps of DS-7604NI-SE as example.

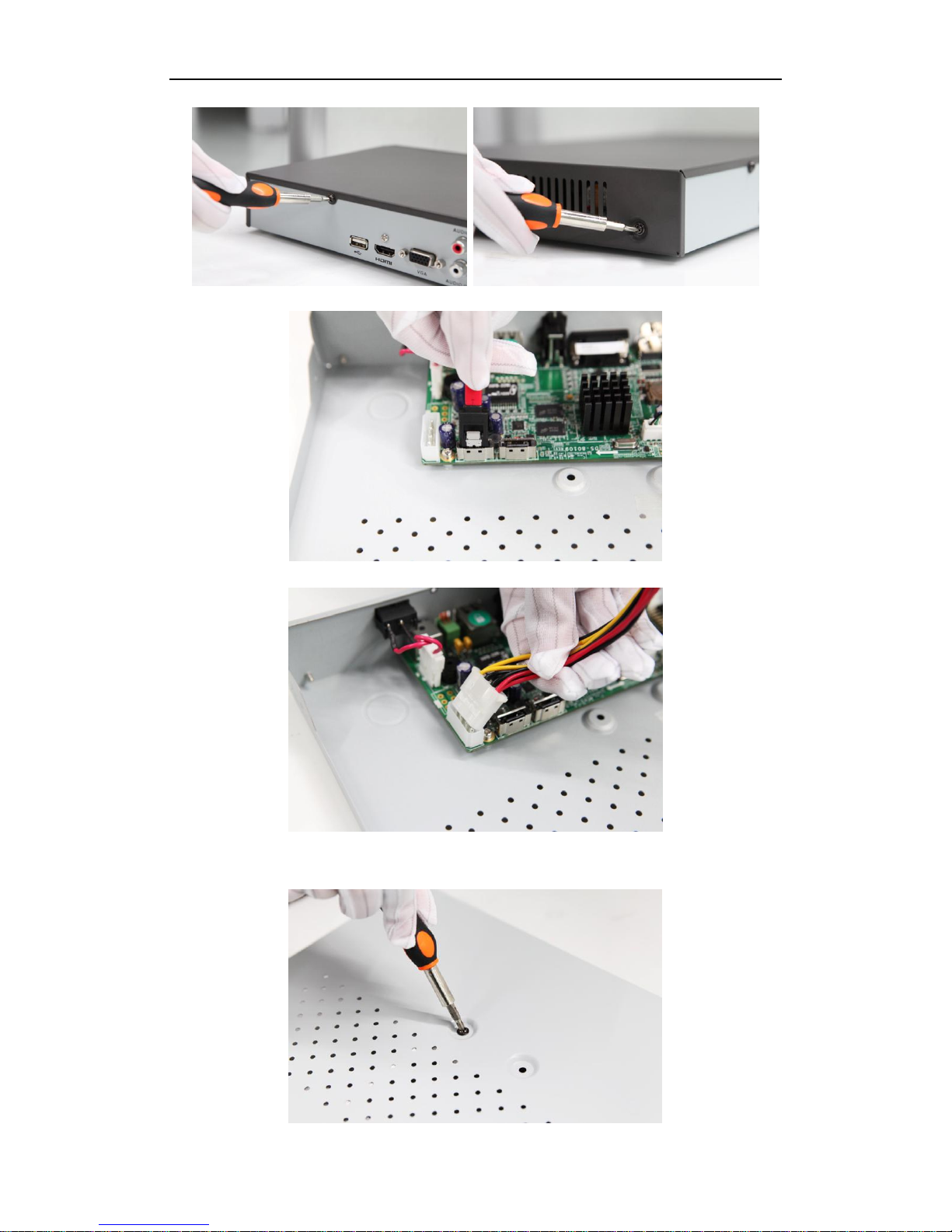

1. Remove the cover from the NVR by unfastening the screws on the back and side.

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

2. Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.

3. Connect the power cable to the HDD.

4. Place the HDD on the bottom of the device and then fasten the screws on the bottom

to fix the HDD.

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

5. Re-install the cover of the NVR and fasten screws.

Steps (for DS-7600NI-V and DS-7600NI-VP):

1. Fasten the hard disk mounting handle to the hard disk with screws.

2. Insert the key and turn in clockwise direction to open the panel lock.

3. Open the front panel.

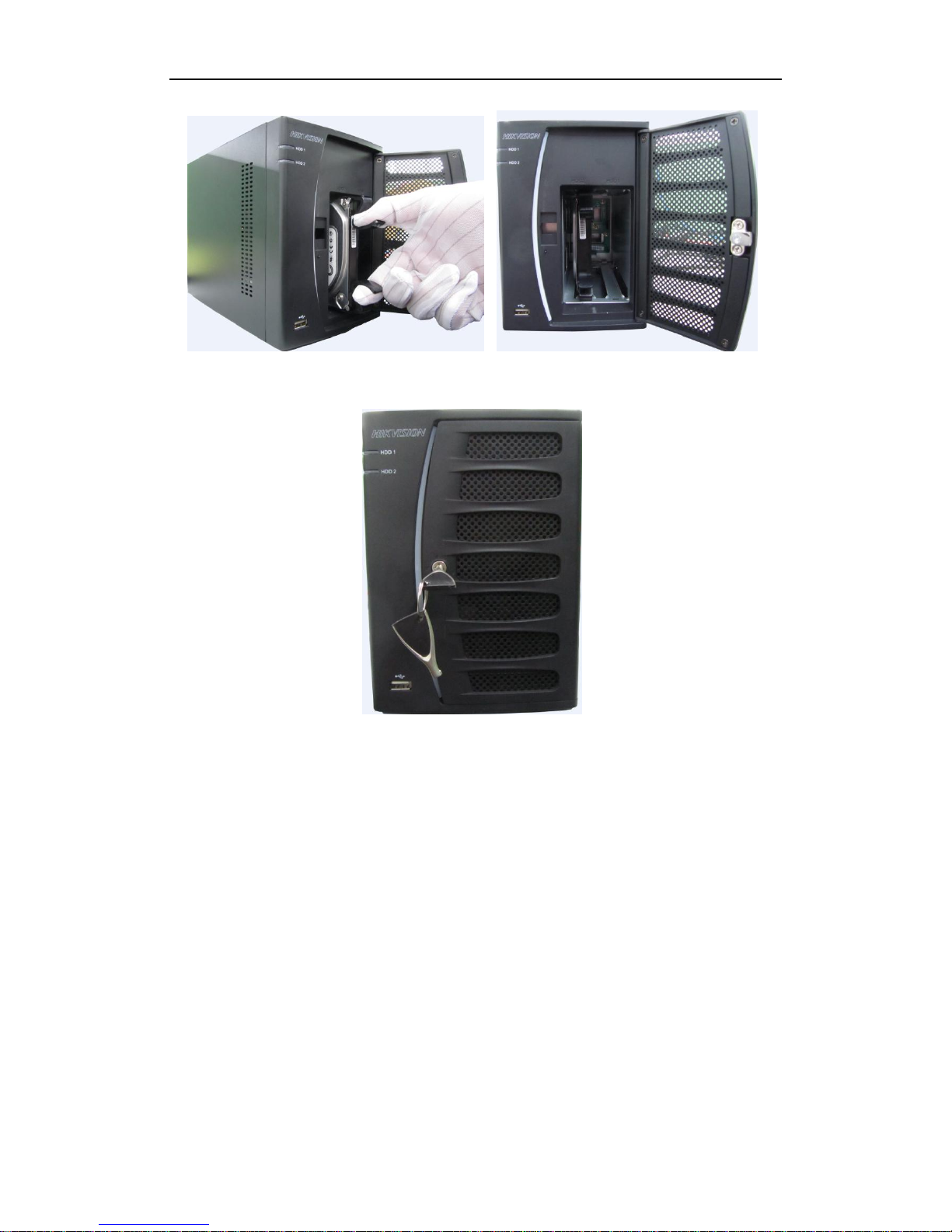

4. Insert the hard disk along the slot until it is placed into position.

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

5. Repeat the above steps to install other hard disks onto the NVR. After having finished the installation of all

hard disks, close the front panel and lock it with the key again.

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

Front Panel

DS-7600NI-SE, DS-7600NI-SE/N, and DS-7600NI-SE/P

①Status Indicator(Power, Status, Tx/Rx)

②USB Interface

DS-7600NI-V and DS-7600NI-VP

①HDD Status Indicators

②Panel Lock

③Running Status Indicator

④USB Interface

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

Rear Panel

DS-7604NI-SE/N

DS-7604&7608&7616NI-SE

DS-7608&7616NI-SE/N

No.

Item

Description

LAN Network Interface

Connector for LAN (Local Area Network).

RS-485 Interface

Connects to RS-485 devices.

Power Supply

12VDC power supply

Power Switch

Switch for turning on/off the device.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

GND

Ground (needs to be connected when NVR starts up).

HDMI Interface

HDMI video output connector.

VGA Output

DB9 connector for VGAoutput. Display local video output and menu.

Audio In

RCA connector for voice talk input

Audio Out

RCA connector for audio output

Network Interfaces with

switch function

(for DS-7600NI-SE/N)

Network interface for the cameras.

DS-7600NI-SE/P

No.

Item

Description

LAN Network Interface

Connector for LAN (Local Area Network).

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

RS-485 Interface

Connects to RS-485 devices.

Power Supply

100~240VAC power supply

Power Switch

Switch for turning on/off the device.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

GND

Ground (needs to be connected when NVR starts up).

HDMI Interface

HDMI video output connector.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

Audio In

RCA connector for voice talk input

Audio Out

RCA connector for audio output

Network Interfaces with

PoE function

(for DS-7600NI-SE/P)

Network interface for the cameras and to provide power over Ethernet.

DS-7600NI-V DS-7600NI-VP

No.

Item

Description

Power Switch

Switch for turning on/off the device.

LAN Network Interface

Connector for LAN (Local Area Network).

Audio In

RCA connector for voice talk input

GND

Ground (needs to be connected when NVR starts up).

Audio Out

RCA connector for audio output

HDMI Interface

HDMI video output connector.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

Power Supply

100~240VAC power supply

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

Network Interfaces with

PoE function

(for DS-7600NI-VP)

Network interface for the cameras and to provide power over Ethernet.

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

Specifications

Specifications of DS-7600NI-SE

Model

DS-7604NI-SE

DS-7608NI-SE

DS-7616NI-SE

Video/Audio

input

IP video input

4-ch

8-ch

16-ch

Two-way audio

input

1-ch, RCA (2.0 Vp-p, 1kΩ)

Bandwidth

Incoming

bandwidth

20Mbps

40Mbps

80Mbps

Output

bandwidth

40Mbps

Video/Audio

output

Decoding

resolution

5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/

2CIF/CIF/QCIF

HDMI/VGA

output

1-ch, resolution:

1920 × 1080P /60Hz, 1600 ×1200 /60Hz, 1280 × 1024 /60Hz, 1280 ×

720 /60Hz, 1024 × 768 /60Hz

CVBS

1-ch, BNC (1.0 Vp-p, 75 Ω)

Resolution: 704 ×576 (PAL); 704 ×480 (NTSC) (optional)

Audio output

1-ch, RCA (Linear, 1kΩ).

Playback

resolution

5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Synchronous

playback

4-ch, 720P / 2-ch,

1080P / 1-ch, 5MP

8-ch 4CIF /4-ch, 720P / 2-ch, 1080P / 1-ch,

5MP

Hard disk

SATA

1 SATA interface for

1 HDD

2 SATA interfaces for 2 HDDs

Capacity

Up to 4TB for each disk

External

interface

Network

interface

1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

Serial interface

1 RS-485 half-duplex interface

USB interface

2 ×USB 2.0

Alarm in/out

4/1 (optional)

Others

Power supply

12V DC

Consumption

≤ 10 W (without hard disk)

Working

temperature

-10 ºC ~ +55 ºC (14 ºF ~ 131 ºF )

Working

humidity

10 % ~ 90 %

Chassis

Stand-alone 1U

chassis

19-inch rack-mounted 1U chassis

Dimensions

(W ×D ×H)

315 ×230 ×45mm

(124.0 ×90.5 ×17.7

inch)

445 ×290 ×45mm (175.2 ×114.2 ×17.7 inch)

Weight

≤ 2 Kg (4.4 lb) (without hard disk)

Quick Operation Guide of DS-7600NI-SE&V(P) Series NVR

Specifications of DS-7600NI-SE/N

Model

DS-7604NI-SE/N

DS-7608NI-SE/N

DS-7616NI-SE/N

Video/Audio

input

IP video input

4-ch

8-ch

16-ch

Two-way audio

input

1-ch, RCA (2.0 Vp-p, 1kΩ)

Bandwidth

Incoming

bandwidth

20Mbps

40Mbps

80Mbps

Output

bandwidth

40Mbps

Video/Audio

output

Recording

resolution

5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI/VGA

output

1-ch, resolution:

1920 × 1080P /60Hz, 1600 ×1200 /60Hz, 1280 × 1024 /60Hz, 1280 ×

720 /60Hz, 1024 × 768 /60Hz

CVBS

1-ch, BNC (1.0 Vp-p, 75 Ω)

Resolution: 704 ×576 (PAL); 704 ×480 (NTSC) (optional)

Audio output

1-ch, RCA (Linear, 1kΩ)

Playback

resolution

5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF

Synchronous

playback

4-ch, 720P / 2-ch,

1080P / 1-ch, 5MP

8-ch 4CIF /4-ch, 720P / 2-ch, 1080P / 1-ch,

5MP

Hard disk

SATA

1 SATA interface

2 SATA interfaces

Capacity

Up to 4TB for each disk

External

interface

Network

interface

1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

4 independent 10 /100

Mbps Ethernet

interfaces (for built-in

switch)

8 independent 10 /100 Mbps Ethernet interfaces

(for built-in switch)

Serial interface

1 RS-485 half-duplex interface

USB interface

2 ×USB 2.0

Alarm in/out

4/1 (optional)

Others

Power supply

12 VDC

Consumption

≤ 15 W (without hard disk)

Working

temperature

-10 ºC ~ +55 ºC (14 ºF ~ 131 ºF)

Working

humidity

10 % ~ 90 %

Chassis

Stand-alone 1U

chassis

19-inch rack-mounted 1U chassis

Dimensions

(W ×D ×H)

315 ×230 ×45mm

(124.0 ×90.5 ×17.7

inch)

445 ×290 ×45mm (175.2 ×114.2 ×17.7 inch)

Weight

≤ 2 Kg (4.4 lb) ( without hard disk)

Altri manuali per Network Video Recorder

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali HIK VISION Hardware di rete

HIK VISION

HIK VISION DS-7604NI-E1/4P Manuale utente

HIK VISION

HIK VISION DS-7600NI-E1/A Manuale utente

HIK VISION

HIK VISION DS-MI9605-GA Series Manuale utente

HIK VISION

HIK VISION HiLook NVR-104H-D Manuale utente

HIK VISION

HIK VISION DS-7100NI-K1 Series Manuale utente

HIK VISION

HIK VISION DS-3WF03C Manuale utente

HIK VISION

HIK VISION HWN Series Manuale utente

HIK VISION

HIK VISION DS-7600NI-K1/W Series Manuale utente

HIK VISION

HIK VISION DS-3WF Series Manuale utente

HIK VISION

HIK VISION DS-7100NI-K1/W/M Series Manuale utente

HIK VISION

HIK VISION DS-7732NI-I4/16P Manuale utente

HIK VISION

HIK VISION DS-3WF02C-5N/O Manuale utente

HIK VISION

HIK VISION IDS-9664NXI-I8/X(STD)(C) Manuale utente

HIK VISION

HIK VISION DS-9608NI-I8 Manuale utente

HIK VISION

HIK VISION DS-8600NI-8 Guida utente

HIK VISION

HIK VISION DS-9608NI-ST Series Manuale utente

HIK VISION

HIK VISION DS-7604NI-KI/W Manuale utente

HIK VISION

HIK VISION UD04701B Manuale utente

HIK VISION

HIK VISION DS-9608NI-ST Series Manuale utente

HIK VISION

HIK VISION Network Digital Video Recorder Manuale utente

HIK VISION

HIK VISION DS-9608NI-I8 Manuale utente

HIK VISION

HIK VISION LV-N9600 Series Manuale utente

HIK VISION

HIK VISION DS-9600NI-SH Series Manuale utente

HIK VISION

HIK VISION DS-96128NI-H16DS-96128NI-H16/HDS-96128NI-H16/IDS-96128NI-H16/H/IDS-96128NI-F16DS-96128NI-F16/HDS-96128NI-F16/IDS-96128NI Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
