HIK VISION DS-2CD7153 Manuale utente

Network Camera

User Manual

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

Service Tel：+86-400-700-5998

2010-04

Thank you for purchasing our product. If there are any questions, or

requests, please do not hesitate to contact the dealer.

This manual applies to Network Camera.

This manual may contain several technical incorrect places or printing

errors, and the content is subject to change without notice. The

updates will be added to the new version of this manual. We will readily

improve or update the products or procedures described in the

manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or

reliability of the security or signaling aspects of this product. UL has only

tested for fire, shock or casualty hazards as outlined in UL’s Standard(s)

for Safety, UL60950-1. UL Certification does not cover the performance

or reliability of the security or signaling aspects of this product. UL

MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS

WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY

SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

User Manual of Network Camera 1

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly

to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards

to prevent serious injury or

death.

Cautions Follow these precautions

to prevent potential injury or

material damage.

Warnings：

1. In the use of the product, you must strictly comply with the electrical safety

regulations of the nation and region.

2. Source with DC 12V or AC 24V (Whether supporting AC 24V lies on the specific

camera model) according to the IEC60950－1 standard. Please refer to technical

specifications for more details.

3. Do not connect several devices to one power adapter as an adapter overload

may cause over-heating and can be a fire hazard. If use the POE as the power

supply, please make sure that the POE Switch have the sufficient

power .(Whether supporting PoE power supply lies on the specific camera

model)

4. Please make sure that the plug is firmly inserted into the power socket.

5. When the product is installed on a wall or ceiling, the device should be firmly

fixed.

6. If smoke, odor, or noise rise from the device, turn off the power at once and

User Manual of Network Camera 2

unplug the power cable, then contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not

assume any responsibility for problems caused by unauthorized repair or

maintenance.)

User Manual of Network Camera 3

Notice:

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for

an extended period of time, put on the lens cap to protect the sensor from dirt.

4. Do not aim the camera at the sun or extra bright places. A blooming or smear

may occur otherwise (which is not a malfunction however), and affecting the

endurance of sensor at the same time.

5. The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor will not be exposed to the

laser beam.

6. Do not place the camera in extremely hot or cold temperatures (the operating

temperature should be between -10°C~+60°C, dusty or damp locations, and do

not expose it to high electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for a proper operating

environment.

8. While shipping, the camera should be packed in its original packing, or packing

of the same texture.

9. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the

equipment should be replaced regularly according to their average life time.

The average time varies because of differences between operating

environment and usage history, so regular checking is recommended for all users.

Please contact with your dealer for more details.

User Manual of Network Camera

Table of Contents

Chapter 1 Network Camera Connection......................................................1

Chapter 2 Network Access ..............................................................................3

2.1 Access over IE Browser..........................................................................3

2.1.1 Live View.........................................................................................4

2.1.2 Parameters Configuration............................................................7

2.2 Access over Client Software ............................................................. 19

2.2.1 Client Software Installation........................................................ 19

2.2.2 Live View...................................................................................... 21

2.2.3 Sensor Parameters Configuration............................................ 24

Chapter 3 Access over Internet ................................................................... 28

3.1 Access network camera with static IP....................................... 28

3.2 Access network camera with dynamic IP................................. 29

Appendix 1 SADP Introduction..................................................................... 33

Appendix 2 Port Map..................................................................................... 35

Appendix 3 Pin Definition............................................................................... 37

User Manual of Network Camera 1

Chapter 1 Network Camera

Connection

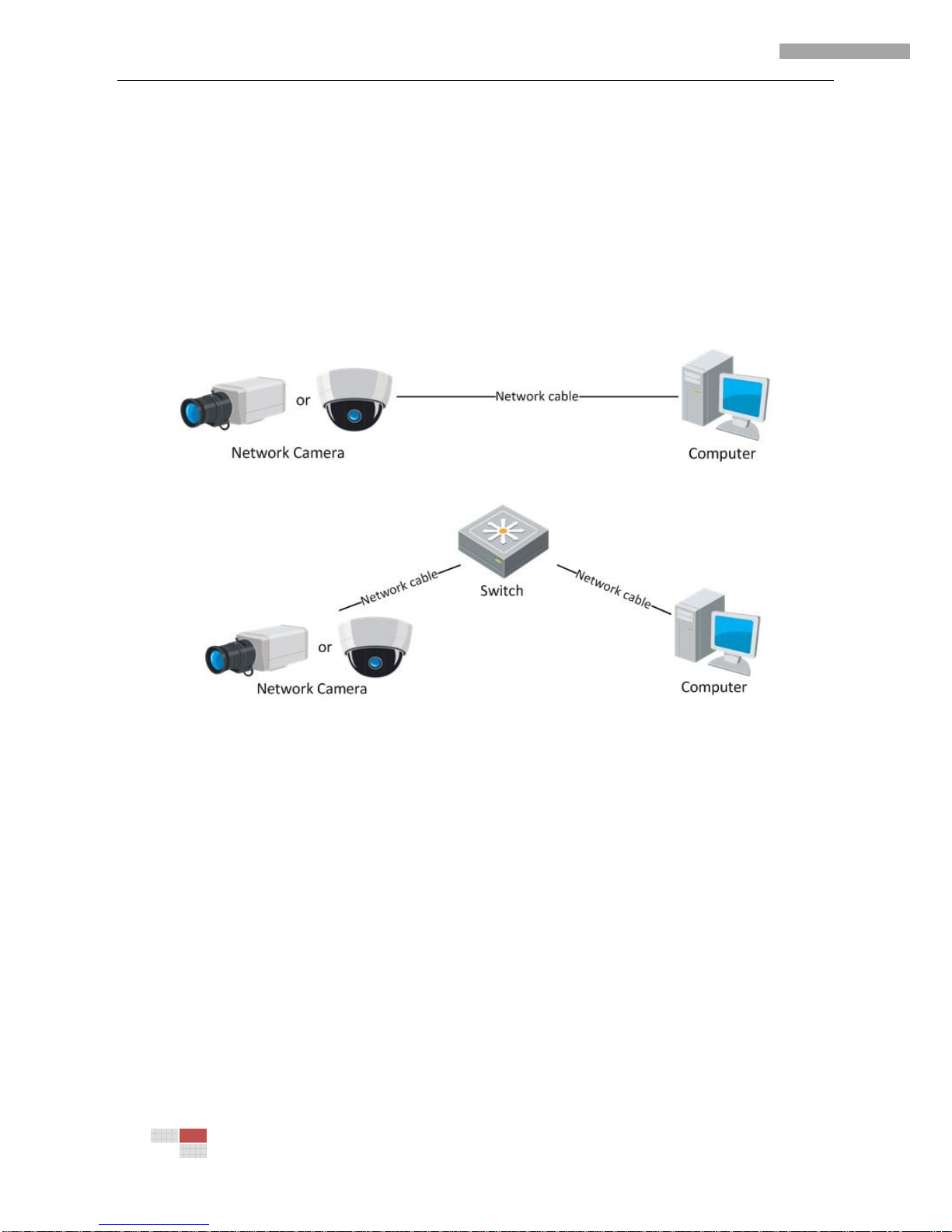

Two methods can be used to connect between network camera and PC, shown as

below:

Fig. 1.1 Cross Line Connection

Fig. 1.2 Direct Line Connection

Before visiting network camera over network, user should acquire its IP address first.

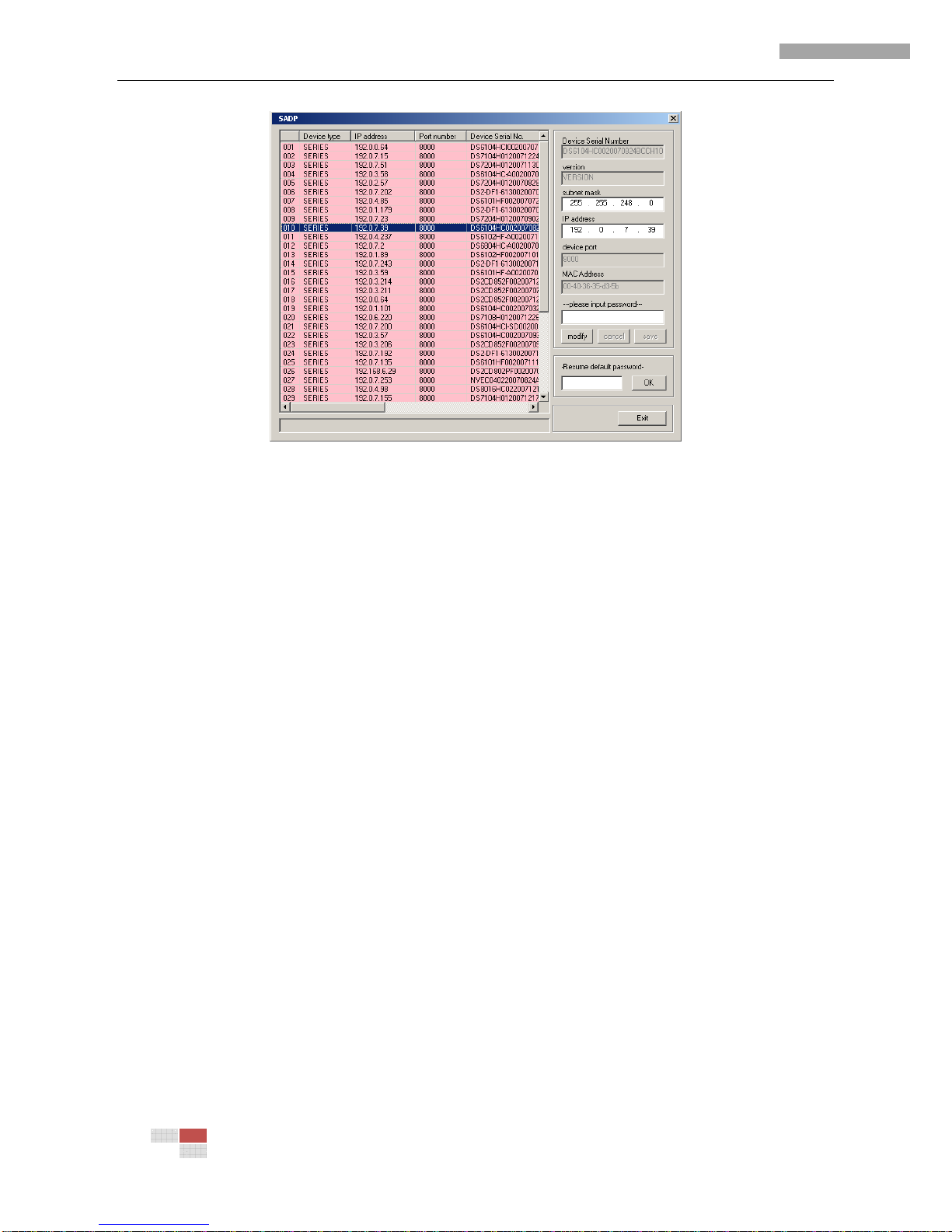

SADP is a software tool which can automatically detect Hikvision’s network device in

the LAN and give the device’s information like IP address, mask, port number,

device serial number, software version, etc., shown as Fig. 1.3.

User Manual of Network Camera 2

Fig.1.3

Select the device, and set its IP address and mask at the same network segment

with the PC.

For the detailed introduction of SADP, please refer to Appendix 1.

Note: The network camera is set with the factory default IP address of “192.0.0.64”,

the port of “8000”, the super user name of “admin” and the password of “12345”.

User Manual of Network Camera 3

Chapter 2 Network Access

After hardware installation, user can view live video and configure parameters for

the network camera, including IP address, subnet mask and port number, etc. The

following two methods can be used to access the camera:

1. View live video and configure parameters over IE browser.

2. View live video and configure parameters over client software.

2.1 Access over IE Browser

Before access to the camera over

IE browser, user should adjust the

security level.

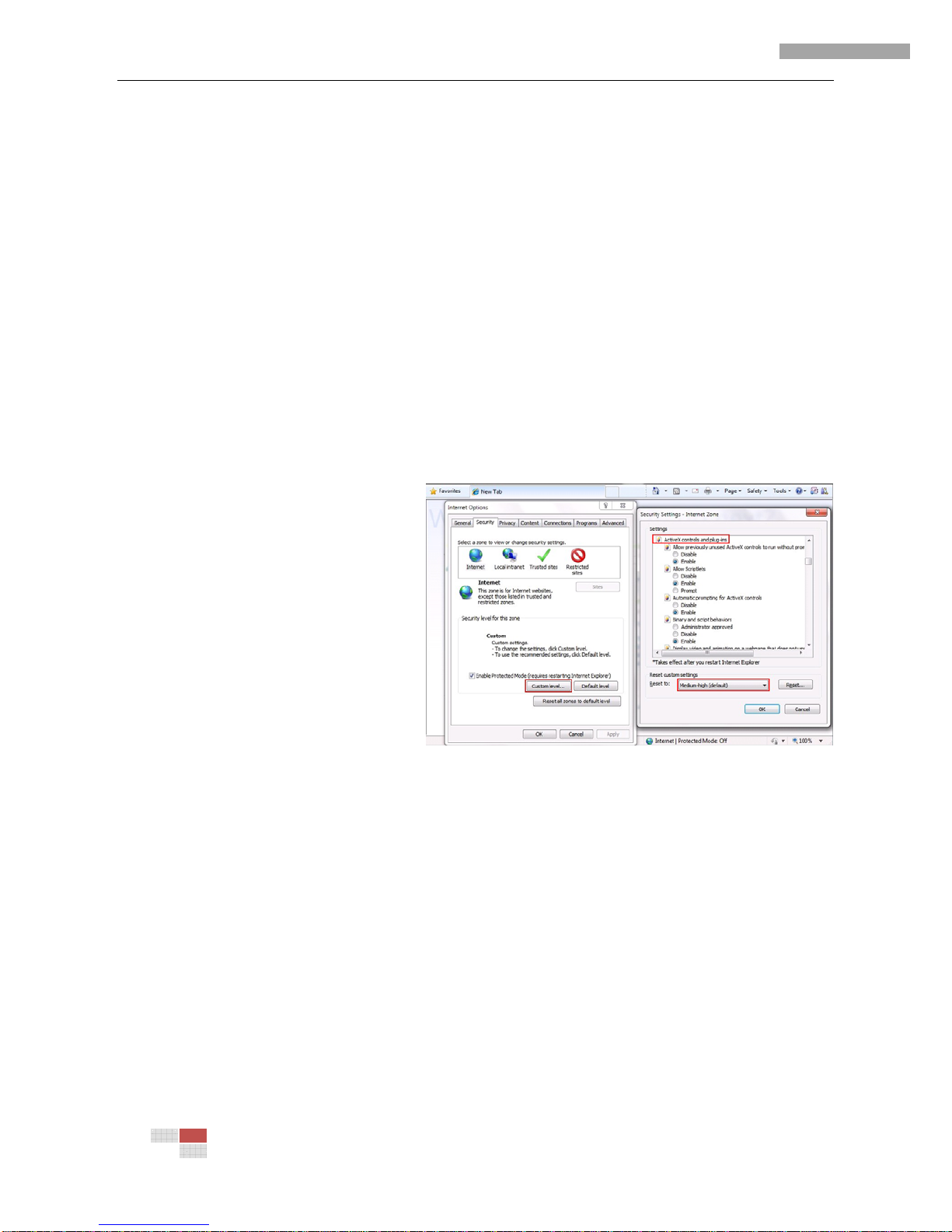

Open the IE browser, and set the

security level to [Low] in [Tools/

InternetOptions/Security/Custom

Level...], and enable Activex

Control and Plug-in directly as

well.

Fig. 2.1.1 Adjust the Security Level

User Manual of Network Camera 4

2.1.1 Live View

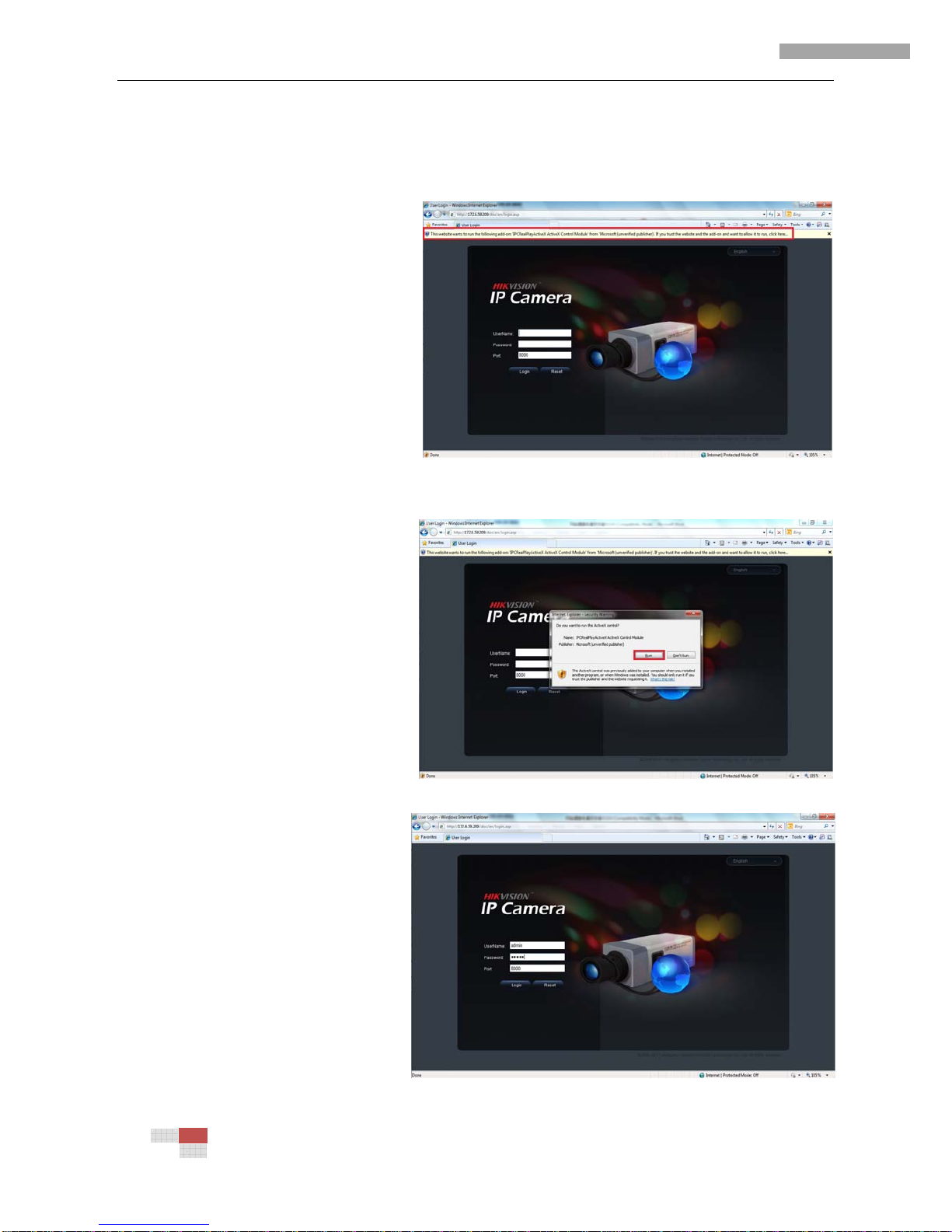

Figure 2.1.2 Tips of ActiveX Control Installation

Fig. 2.1.3 Install the ActiveX Control

Step 1: Install Active-X Control

and Plug-in.

Input the IP address of the

network camera and press

[Enter], then click the mention

box that pop up.

Step 3:

Step 2:

Click [Run] to install the ActiveX

control.

Input the “Username”

(default: admin), “Password”

(default: 12345) and “Port”

(default: 8000) of the

camera, and then click

[Login].

Fig. 2.1.4 Login Interface
