HIK VISION DS-2DE2204IW-DE3/W S6 Manuale utente

Network PTZ Camera

Quick Start Guide

DS-2DE2204IW-DE3/W S6


1
Table of Contents
English 9
Français 14
Deutsch 19
Español 23
Italiano 28
Português 32
Nederlands 37
Čeština 42
Dansk 46
Magyar 50
Polski 55
Limba română 60
Slovenčina 64
Bahasa Indonesia 69
ျမန္မာ 73

Türkçe 85
Русский 89
Українська 94

DC12V IN

2.0

②①

①

②

C2.1

C2.2

C3.1

C3.2

C3.3

C3.4

C3.5

①

OUT (n) DC

OUT (n)

②

①

OUT (n)

③

30 VDC

GND OUT

~220VAC

L N

④

(10A 250VAC)

English

Product appearance is for

reference only and may differ

from the actual product.

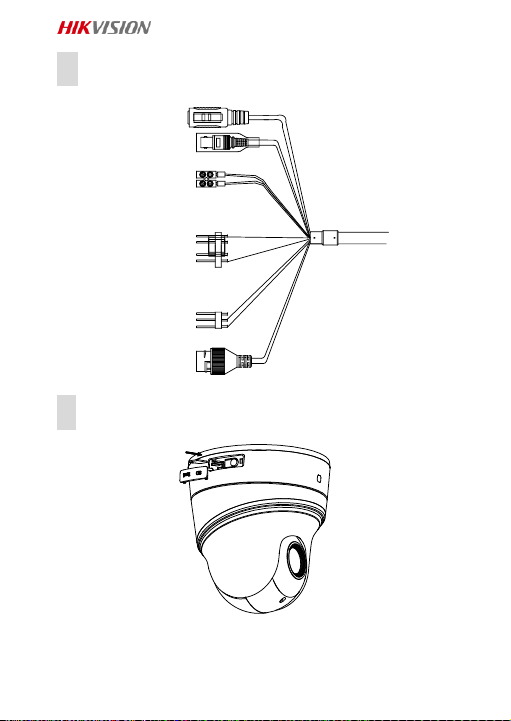

Cable Description (Page 2 –A)

Notes:

The cables vary depending on

different camera models.

1. Power Cord: Supports 12 VDC

power supply.

2. Video Cable: Connect BNC Cable

to test the video output.

3. RS-485

4. Alarm Cable: Connect terminal

ALARM-IN with GND interface,

and connect terminal

ALARM-OUT with ALARM-COM

interface.

5. Audio Cable: Connect terminal

AUDIO-IN with GND interface.

6. Network Cable: Connect the

network interface with network

cable.

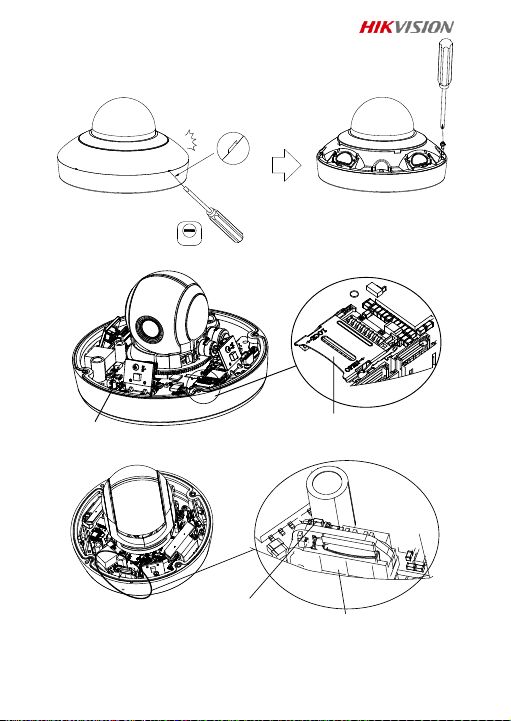

Install the Memory Card (Page 2 –B)

① Memory card slot

② Reset button: Press reset button

for about 10 s when the camera is

powering on or rebooting to

restore the default settings,

including the user name,

password, IP address, port No.,

etc.

Install the Camera (Page 4 –C)

Remove the installation plate from

the bottom of the camera (C1) and

mount the camera on the ceiling or

wall:

Ceiling mounting (C2.1-2.2)

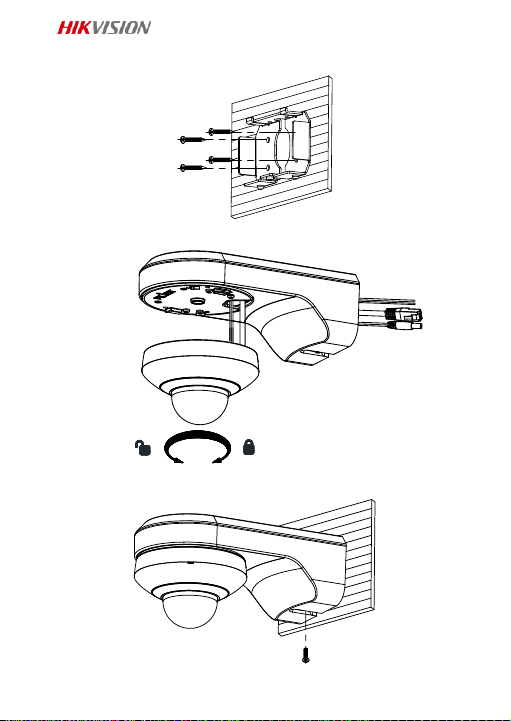

Wall mounting with bracket

(purchased separately) (C3.1-3.5)

Notes:

The installation steps for different

camera types are similar. The

diagrams use one type for

illustration.

Waterproof for Outdoor Installation

(Page 7 –D)

1. Install network cable waterproof

jacket.

2. Use supplied waterproof tape to

protect cable connectors and

unused cables.

Alarm Output (Page 8 –E)

①Relay output

②DC load

③Power supply

④JQC-3FG Relay

Protective Measures for Outdoor

Installation (Page 8 –F1)

Activate and Access Network

Camera (Page 8 –F2)

Technology Co., Ltd. All rights

reserved.

About this Manual

The Manual includes instructions for

using and managing the Product.

Pictures, charts, images and all other

information hereinafter are for

description and explanation only.

The information contained in the

Manual is subject to change, without

notice, due to firmware updates or

other reasons. Please find the latest

version of this Manual at the

Hikvision website

(https://www.hikvision.com/).

Please use this Manual with the

guidance and assistance of

professionals trained in supporting

the Product.

Trademarks

and other

Hikvision’s trademarks and logos are

the properties of Hikvision in various

jurisdictions.

Other trademarks and logos

mentioned are the properties of their

respective owners.
