Network Speed Dome

Technical Manual

DS-2DF1-713B / DS-2DF1-715B

Notices

The information in this documentation is subject to change without notice and does

not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any

liability whatsoever for incorrect data that may appear in this documentation. The

product(s) described in this documentation are furnished subject to a license and

may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for

the purposes for which it is supplied. It may not be reproduced in whole or in

part, in any form, or by any means or be used for any other purpose without prior

written consent of HIKVISION and then only on the condition that this notice is

included in any such reproduction. No information as to the contents or subject

matter of this documentation, or any part thereof, or arising directly or indirectly

therefrom, shall be given orally or in writing or shall be communicated in any

manner whatsoever to any third party being an individual, firm, or company or any

employee thereof without the prior written consent of HIKVISION. Use of this

product is subject to acceptance of the HIKVISION agreement required to use this

product. HIKVISION reserves the right to make changes to its products as

circumstances may warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com /www.hommaxsistemas.com

DS-2DF1-713-B / DS-2DF1-715-B

Key feature

IR function:

0 Lux minimum illumination

Up to 80m radiation distance

IR light MTBF reaching up to 30,000 hours

System function:

1/4’’ SONY high performance CCD

±0.1° Preset Accuracy

Self-adaptive to HIKVISION, Pelco-P/D protocol

3D intelligent positioning function

Power-off memory function: restore PTZ & Lens status after reboot

Fiber optical interface optional

3D NR

Built-in temperature sensor, with display of internal temperature

Camera function:

Auto iris, auto focus, auto white balance, backlight compensation ,WDR and auto/manual

day & night switch

Privacy masks programmable

PTZ function:

360° endless pan range and -10°-90° tilt range

240°/s Pan Preset Speed and 200°/s Tilt Preset Speed

0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed

256 presets programmable; preset image freezing capability

8 patrols, up to 32 presets per patrol

4 patterns, with the recording time not less than 10 min per pattern

Proportional zoom function

Park action: auto callup of PTZ movement, after a defined time of inactivity

2 alarm inputs and 2 alarm outputs（7 alarm inputs and 2 alarm outputs optional）

Network function:

H.264 video compression and the latest DaVinci processing chip and platform

Built-in Web server

SD/SDHC card local storage

Dual stream

Multiple network protocols supported: TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, PPPoE (FTP,

SMTP, NTP, SNMP optional )

1 audio input and 1 audio output

Application Scenarios

It can be widely applied to places with no lights or weak lights requiring wide-area and

high-speed monitoring, such as rivers, forests, highways, railways, airports, ports, sentries,

squares, parks, scenic sites, streets, stations, large venues, outside of residential areas, etc

Specifications

Model

Parameter

DS-2DF1-713-B(Outdoor)

DS-2DF1-715-B(Outdoor)

Network IR High Speed Dome

Camera

Image Sensor

1/4" SONY EXVIEW HAD progressive scan CCD

Effective Pixel

PAL:752(H)×582(V)

NTSC:768(H)×494(V)

Horizontal

Resolution

Color: 540 TVL

B/W: 570 TVL

Signal System

PAL /NTSC

Min.Illumination

Color: [email protected]

B/W: 0.01Lux@F1.4

0 Lux with IR

Color: 0.65Lux/F1.35

B/W: 0.005Lux/F1.35

0 Lux with IR

White Balance

Auto / Manual / ATW / Indoor / Outdoor

AGC

Auto / Manual

S / N Ratio

≥ 50dB

BLC

On / Off

WDR

128x( On / Off/Auto)

Anti-shake

—

On / Off

Shutter Time

PAL: 1/3-1/10,000s

NTSC: 1/4-1/10,000s

Day & Night

IR Cut Filter

Digital Zoom

12x

Privacy Mask

24 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the

same video screen

Focus Model

Auto / Semiautomatic / Manual

Lens

Focal Length

4.1-73.8mm, 18X

3.5-98mm, 28X

Zoom Speed

Approx.2.0s(Optical Wide-Tele)

Approx.1.7s(Optical Wide-Tele)

Angle of View

48-2.8degree(Wide-Tele)

55.8-2.1degree(Wide-Tele)

Min. Working

Distance

290-800mm (Wide-Tele)

10-1,500mm(Wide-Tele)

Aperture Range

F1.4 - F3.0

F1.35 - F3.7

Pan and

Tilt

Pan Range

360°endless

Pan Speed

Pan Manual Speed: 0.1°-160°/s,

Pan Preset Speed: 240°/s

Tilt Range

-10°-90° (Auto Flip )

Tilt Speed

Tilt Manual Speed: 0.1°-120°/s,

Tilt Preset Speed: 200°/s

Proportional

Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Number of

Preset

256

Patrol

8 patrols, up to 32 presets per patrol

Pattern

4 patterns, with the recording time not less than 10 min per pattern

Power-off

Memory

Support

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position

Display

On / Off

Freeze Frame

Support

Infrared

IR irradiation

distance

80m

IR irradiation

angle

Adjustable by zoom

Alarm

Alarm Input

2（7 alarm inputs optional）

Alarm Output

2 relay outputs, alarm response actions configurable

Alarm Action

Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client

Input/

Output

Monitor Output

1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

Audio Input

Audio input (LINE input), 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

Audio Output

Line level, impendance: 600Ω

Network

Ethernet

10Base-T / 100Base-TX

Max.Image

Resolution

PAL:704×576

NTSC:704×480

Frame Rate

PAL: 25 fps (704×576)

NTSC: 30 fps (704×480)


Compression

H.264

Audio

Compression

G.711 / 16kbps

Audio Mode

Off / Audio input / Audio output

Protocols

TCP/IP, HTTP, DHCP, DNS, RTP / RTCP, PPPoE,FTP, SMTP, NTP, SNMP

No. of

Simultaneous

Users

Up to 6 users

Dual Streams

Support

Mini SD

Memory Card

Manual REC / Alarm REC.

Built-in SD/SDHC Slot,up to 32GB

User/Host Level

3 Levels: Administrator, Camera control, Live view only

Security

Measures

User authentication (ID and PW),

Host authentication (MAC address)

Client

GUI

Camera Control

Pan / Tilt, Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program,

Auto mode.

Camera Name

Up to 18 characters

Date & Time

Display

Time: Week: Date, 6 formats on the Client

Reading Patrol

Message

Display and reading of preset message contained in each patrol via client software

Fiber

Interface

(available

for fiber

dome

only)

Data Mode

10Base-T / 100Base-TX

Physical

Interface

FC(SC optional)

Fiber

Wavelength

TX1310/RX1550nm

Fiber Type

Single Fiber/Singlemode

Transmission

Distance

20Km, with 40Km, 60Km and 80Km optional

General

Menu Language

English, Chinese

RS-485

Protocols

HIKVISION, Pelco-P, Pelco-D, self-adaptive

Power Supply

24VAC (12V DC optional)

Power

Consumption

40W max

Working

Temperature /

Humidity

-30 ℃-65℃(-22℉-149℉)(outdoor)

90% or less

Protection Level

IP66 standard (outdoor dome)

TVS 3,000V lightning protection, surge protection and voltage transient protection

Mounting

Various mounting modes optional

Dimension

Φ230.6 ×351.5mm (Φ9.08” ×13.84” ) (Outdoor)

Weight

(approx.)

5.5kg(12.13Ibs)

Mount Option

Long-arm wall mount: DS-1614ZJ; Indoor short-arm wall mount: DS-1615ZJ

Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ

Dimension

Unit: mm

DS-2DF1-718

Accesories

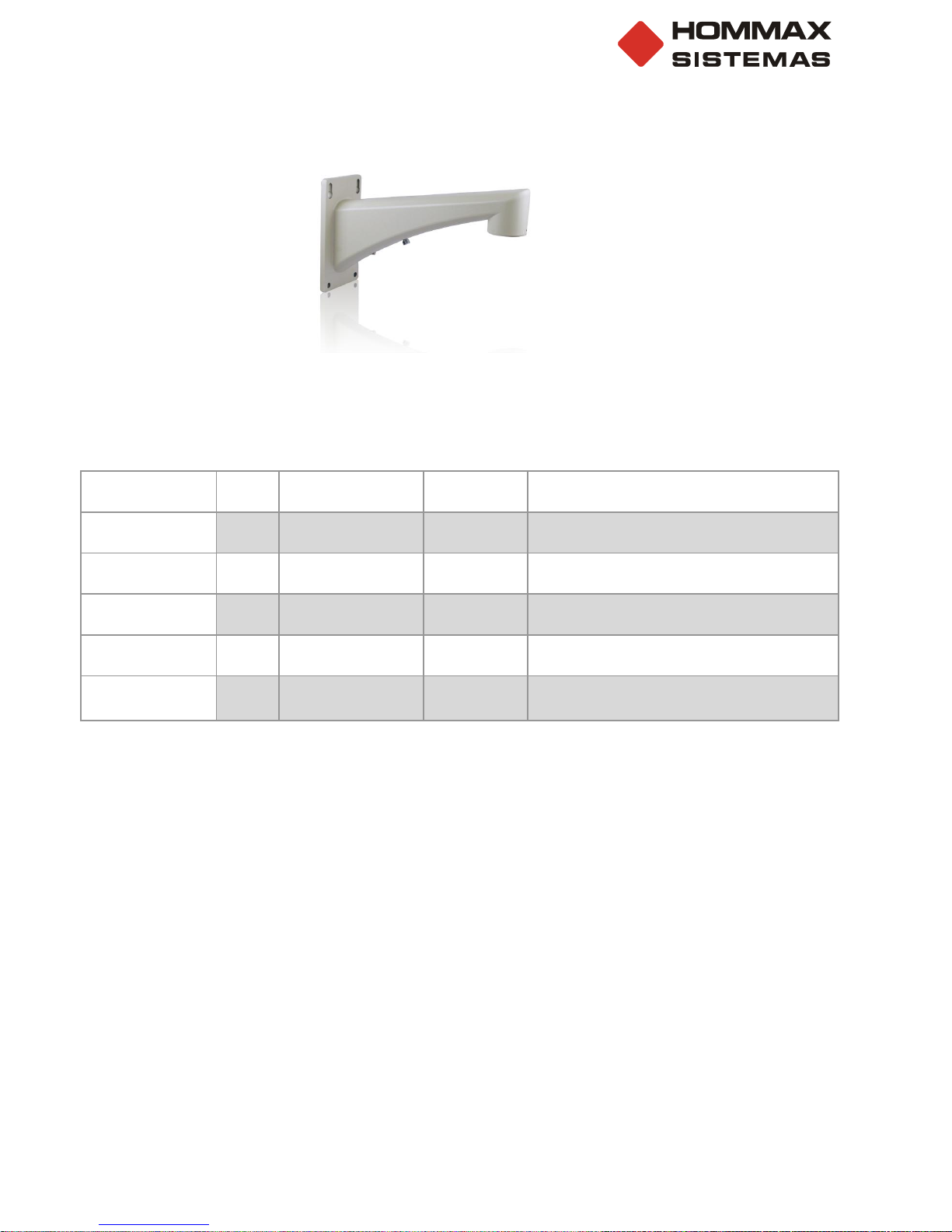

DS-1614ZJ Long-arm Wall Mount Bracket

Otros accesorios

DS-1614ZJ (IR)

EXTERIOR

Domos Hikvision con LEDs IR

Color blanco

Soporte largo a pared

DS-1615ZJ (IR)

INTERIOR

Domos Hikvision con LEDs IR

Color blanco

Soporte corto a pared

DS-1651ZJ (IR)

INTERIOR

Domos Hikvision con LEDs IR

Color blanco

Soporte colgante 30cm para montaje en techo

DS-1622ZJ (IR)

EXTERIOR

Domos Hikvision con LEDs IR

Color blanco

Soporte largo a pared con adaptador a columna

(incluye el soporte DS-1611ZJ y el adaptador a columna)

DS-1633ZJ (IR)

EXTERIOR

Domos Hikvision con LEDs IR

Color blanco

Soporte largo a pared con adaptador a esquina

(incluye el soporte DS-1611ZJ y el adaptador a esquina)

Alimentador

24VAC 3A

Domos Hikvision con LEDs IR
