HIK VISION DS-2XS6A25G0-I/CH20S40 Guida all'installazione

EXIR Fixed Bullet Solar Power 4G Network Camera Kit

How to set up:

4G Sim

Power management

Connecting to HIK-Connect

Connecting to HIK-Central connection

HIKVISION PRODUCT TEAM

2021-02-23

1 DS-2XS6A25G0-I/CH20S40

4G Solar Camera

This quick guide shows how to set up a 4G Solar Camera in relation to 4G Sim Setup,

connections to both HIK-Connect (APP) & HIK-Central (VMS) and Power

management setup with the DS-2XS6A25G0-I/CH20S40. All operations in the quick

guide are based on firmware version V5.5.111 build 201010

1. Basic introduction

EXIR Fixed Bullet Solar Power 4G Network Camera Kit can be used almost anywhere

especially areas were cabling for both power & broadband are difficult. Some

monitoring applications include farms, electric power cables, river systems, oil

pipelines and key forest areas. It can also be used in the temporary monitoring

scenes, such as the large-scale construction, temporary public events, and temporary

traffic control & city construction.

Main Specification bullet points:

High quality imaging with 2 MP(1920 × 1080 @30 fps) resolution

Clear imaging against strong back light due to 120 dB true WDR technology

The solar panel battery can work up to seven days (in low consumption

mode) in rainy or cloudy days if it is fully charged

40 W photovoltaic panel, 20 Ah chargeable lithium battery

Support battery management, battery display, battery high-low temperature

protection, charge-discharge protection, low-battery sleep protection and

remote wakeup

LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support

Micro SIM card

Camera: Water and dust resistant (IP67)

2 DS-2XS6A25G0-I/CH20S40

2. Operation

(1) 4G Sim Setup

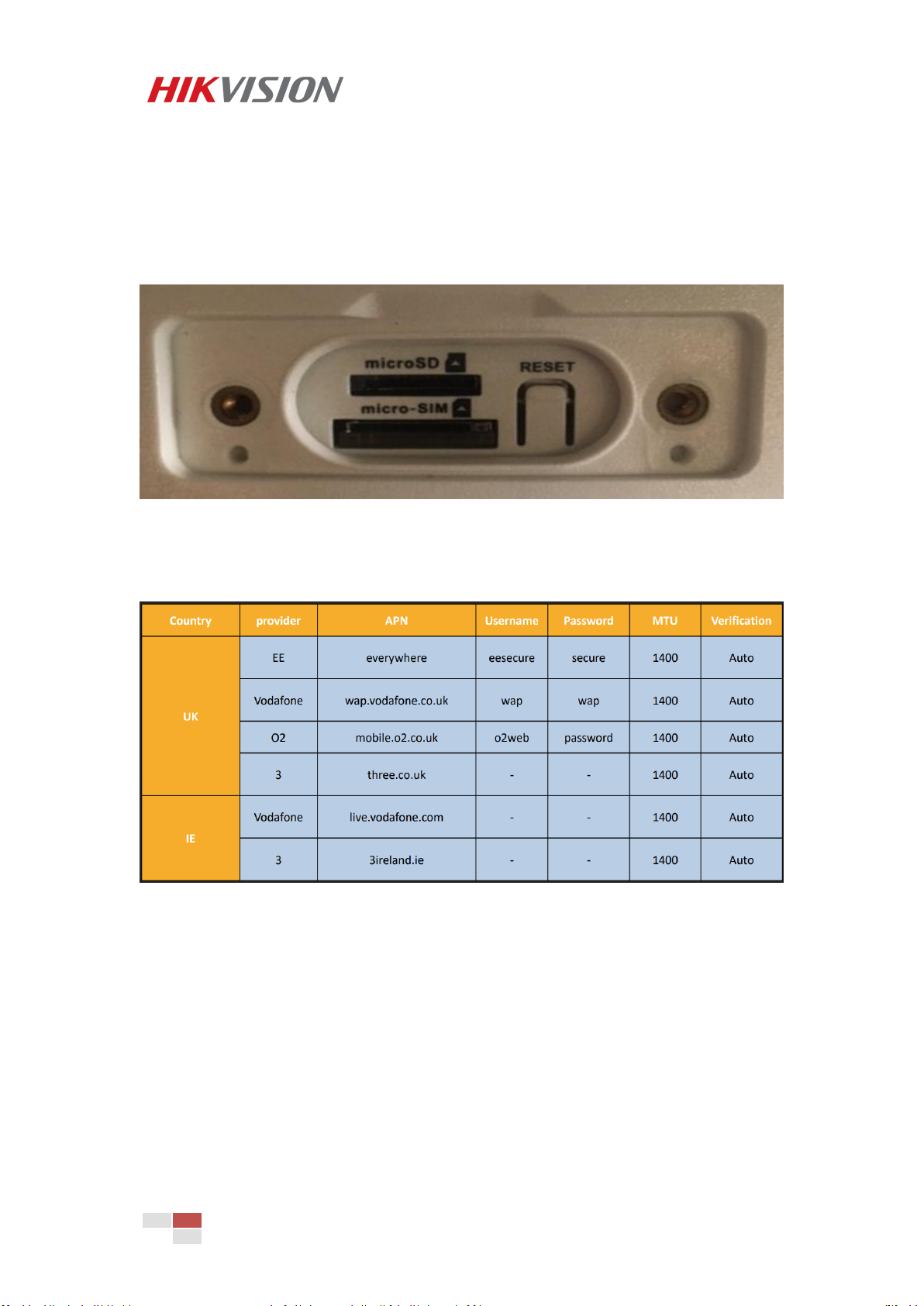

Micro Sim should be inserted into Sim card tray located in bottom of camera as seen

in image below:

Note:

Once inserted fix cover back with screws provided

4G Compatibility List

3 DS-2XS6A25G0-I/CH20S40

Next go to camera web page:

Basic settings-Wireless Dial-Dial Parameters-Enable.

Sim card mobile number should be populated in both Phone & Access number fields.

APN should be populated. Refer to 4G compatibility list above.

Example if its Vodafone bill pay use:

live.vodafone.com

Example if it’s Vodafone prepay use:

PP.vodafone.com

Staying in basic settings go to:

Wireless Dial-up status.

Again making sure it’s enabled.

Once enabled & saved the following information should populate as below:

IP Address, Subnet mask, Gateway & DNS address. The wireless dial up status should

appear connected & signal strength should be displayed.

4 DS-2XS6A25G0-I/CH20S40

(2) Connecting to HIK-Connect

Within web page go to:

Network-Advanced settings-Platform Access.

Choose HIK-Connect in “Platform Access mode” & enable.

Once enabled type in personalized “verification code”.

As below, hit save “register status” should change to Online.

Next go to HIK-Connect APP:

Go to add device (+symbol)-Manual adding-Enter last 9 digits of the devices serial

number

5 DS-2XS6A25G0-I/CH20S40

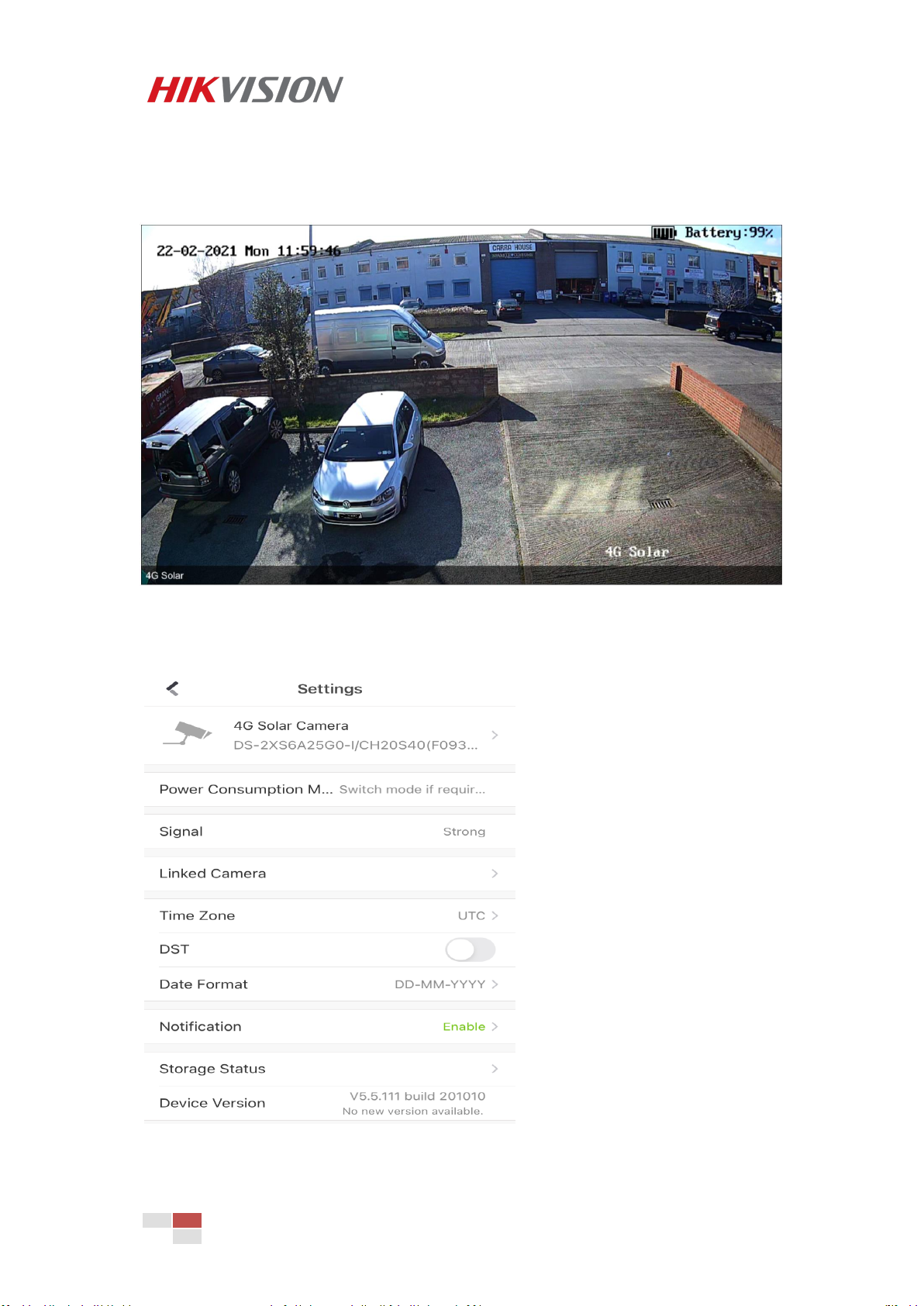

Staying within APP. Go to live view:

Camera should appear online as below with battery voltage displayed in top right

hand corner of the stream

Within settings in HIK-Connect app, see below, it is also possible to view or change

“Power consumption mode” (explained in part 4) & also view signal strength

6 DS-2XS6A25G0-I/CH20S40

(3) Connecting to HIK-Central

Within camera web page go to:

Network-Advanced settings-Platform Access.

Choose “ISUP” in “Platform Access mode” & enable.

Once enabled enter the following credentials:

Server address: This is the IP address of the HIK-Central server

Port: This is the ISUP Registration Port being used by the server

Device ID: As below this can be personalized

Key: Choose a personalized key / passcode

Once completed press save.

Next open up HIK-Central web page

Within web page go to:

Physical view-Encoding device. Populate the following information like below:

Device ID: This is the personalised ID entered in previous section in camera

webpage

Enter Key: This is the personalised passcode that was entered in previous

section in camera web page

Enter device name: Name of the camera entered in previous section

7 DS-2XS6A25G0-I/CH20S40

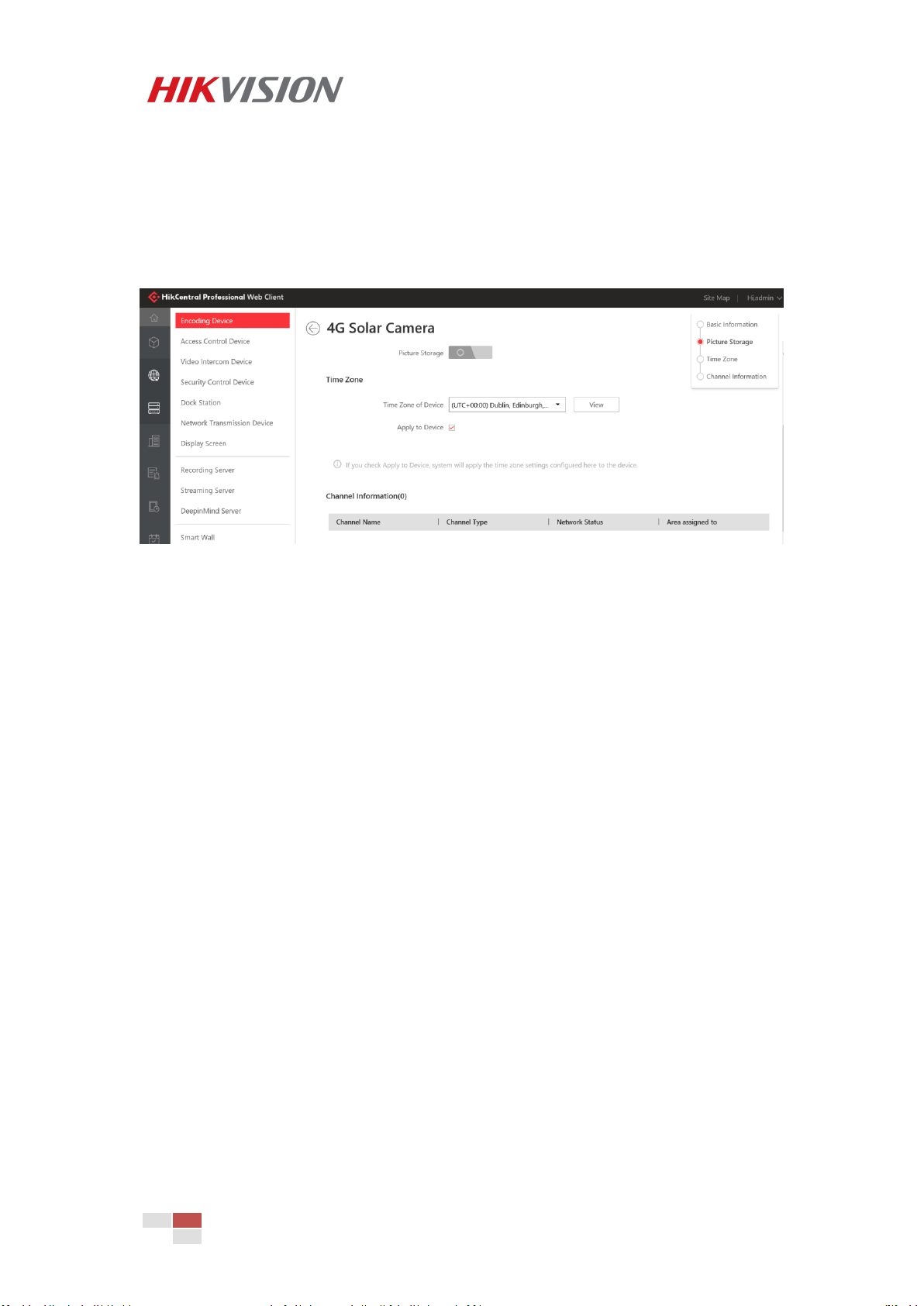

If storage is required

Staying within HIK-Central webpage choose:

Picture storage-Picture/Video Storage (Pstor)

Staying within same page choose:

Time zone-Select correct time zone from list offered

Once completed press save.

8 DS-2XS6A25G0-I/CH20S40

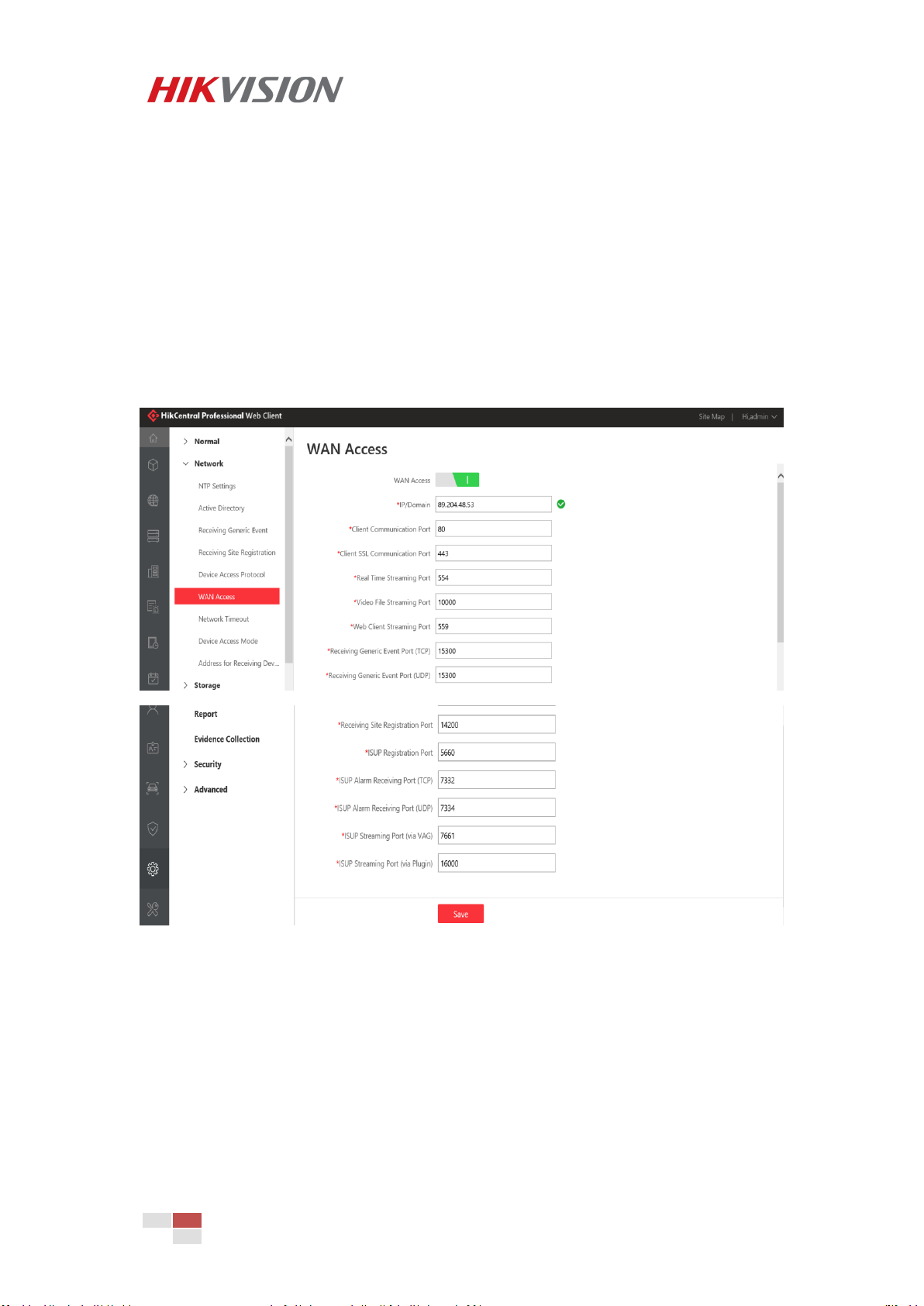

Finally & staying within HIK-Central webpage go to:

System-Network-Wan Access. Enable Wan Access.

You have to do port mapping for ports below if your sever is connected to a router.

Populate the following fields below (x1 IP address & x5 port numbers):

IP/Domain: Public facing IP address of 4G Solar camera

ISUP Registration Port: 5660

ISUP Alarm Receiving Port (TCP): 7332

ISUP Alarm Receiving Port (UDP): 7334

ISUP Streaming Port: 7661

ISUP Streaming Port (Via Plugin): 16000

The following ports must be port forwarded also.

Once camera is added in HIK-Central check “Register status” in web page of camera.

It may be required to refresh both camera webpage & encoding device menu web

page before moving on.

Once camera is online open up control client to view livestream.

9 DS-2XS6A25G0-I/CH20S40

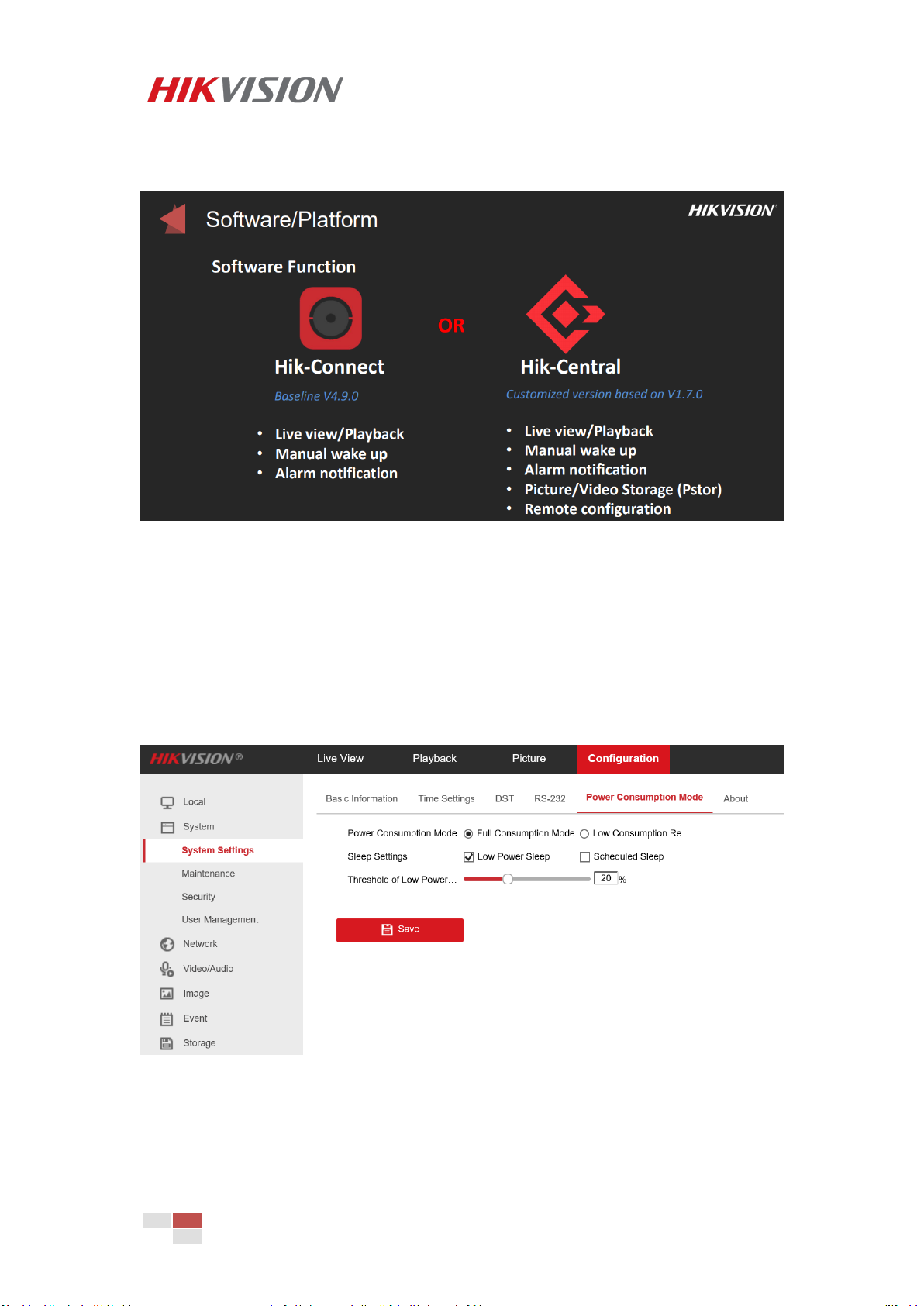

HIK-Connect Vs HIK-Central

(4) Power Management

Consumption modes

Within camera web page go to:

Configuration-System settings-Power consumption mode:

Choose mode which best suits the application.

Full Consumption mode
