HIK VISION DS-19A08-BNG Manuale utente

Title:

How to Confirm Fault Type When

Control Panel in Zone Fault Status

Version:

v1.0

Date:

7/11/2017

Product:

Alarm Device

Page:

1 of 3

Description

When control panel is in disarm status, it shows “Zone Fault” for some zones. In

this case, control panel can not arm system successfully.

Problem Checking Flow

Zone Fault

Detector is in

alarm

Remove Detector,

Replaced with an

EOL directly

Connect to zone

terminal

Fault

Disappears?

Measure Voltage

between zone’s

terminal Z and G

故障是否消失

Keep Detector in

Normal Statues,

Fault

Disappears?

NO Problem in

Detector and

Control Panel

探测器故障

Detector Fault or

Wiring Fault

总线接线问题

Voltage in

Normal Range Detector Fault or

Wiring Fault

Control Panel Fault

Yes

Title:

How to Confirm Fault Type When

Control Panel in Zone Fault Status

Version:

v1.0

Date:

7/11/2017

Product:

Alarm Device

Page:

2 of 3

Detail Steps

Step 1: Check whether the Detector is in Alarm Status

If detector is in alarm status, eliminate all the factors that will cause alarm for detector.

If detecor still can not go back to normal status, we can confirm it is detector fault; If

detector is in normal status, but control panel is still in “zone fault”, go on next

checking step.

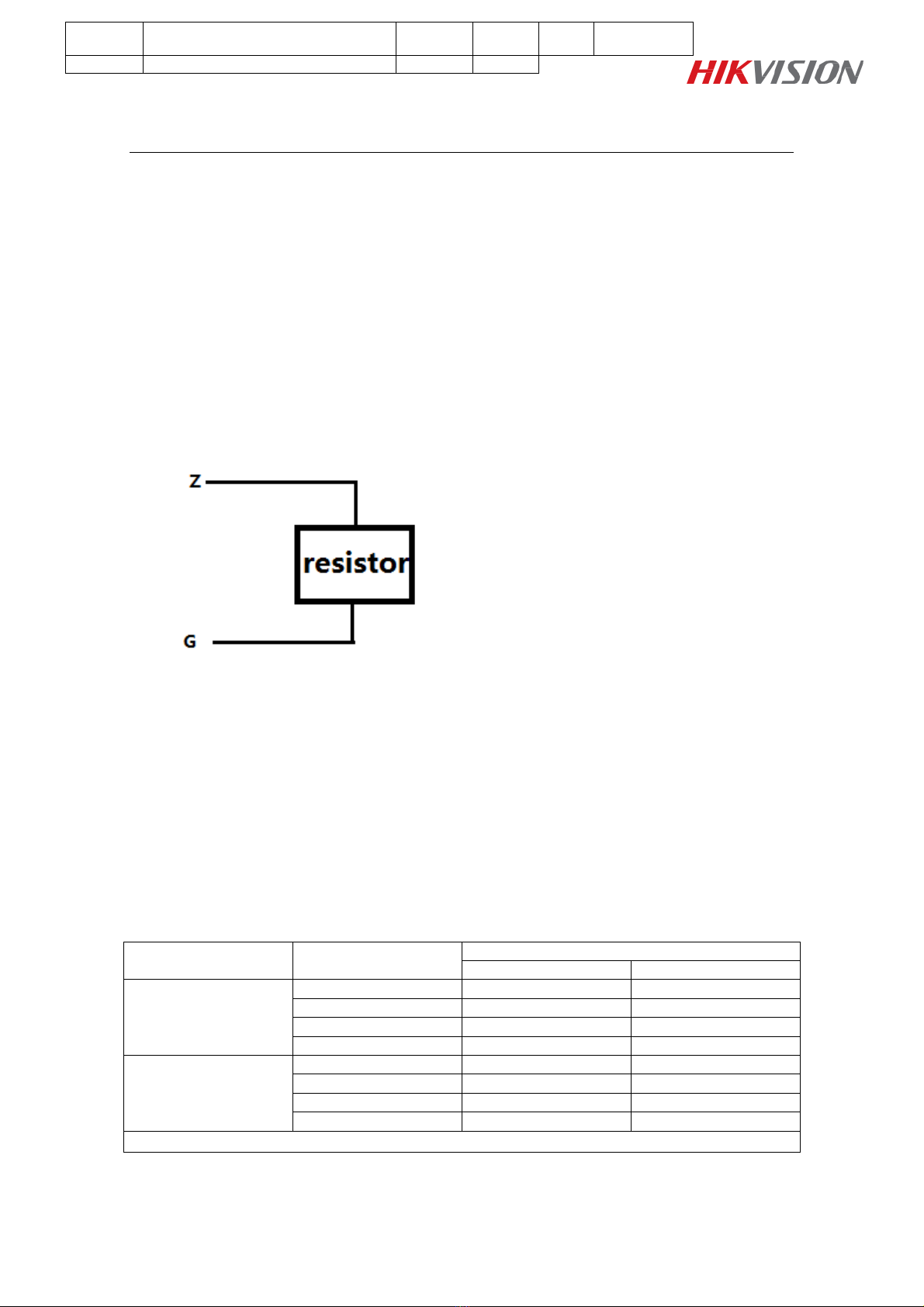

Step 2: Connect Corresponding End of Line Resistor to Terminal Z and G for the

Fault Zone

If “Zone Fault” disappears, we can confirm it is a wiring fault between detector and

control panel. Check wire poor contact, short circuit, open circuit between detector and

control, or signal cable is too close to power cable. After all these wiring issue have

checked, but control panel is still in “zone fault” status, go on next step.

Step 3: Measure Voltage between Z and G for the Fault Zone

According to the chart below, if voltage between Z and G is out of normal range, we

can confirm it is a control panel fault. Please ask technical support team for further

help.

Control Panel Input

Voltage(V)

EOL Resistor(Ω)

Voltage between Z and G

Min

Max

14.3

2.2K

5.6

9.68

3.3K

7.24

11.32

5.6K

8.58

12.66

8.2K

9.34

12.55

10.5

2.2K

4.04

6.98

3.3K

5.21

8.15

5.6K

6.18

9.12

8.2K

6.73

9.05

Note：This voltage range is measured without tamper-proof EOL resistor

Title:

How to Confirm Fault Type When

Control Panel in Zone Fault Status

Version:

v1.0

Date:

7/11/2017

Product:

Alarm Device

Page:

3 of 3

First Choice for Security Professionals

HIKVISION Technical Support
