English

1. Introduction

HIKMICRO THUNDER 2.0 Thermal Monocular featuring high thermal sensitivity ensures perfect detail recognition

even in the hardest weather conditions when the object and background are with minimal temperature

difference. With an extended operation time, the monocular is mainly applied to scenarios such as hunting.

2. Package Content

The package includes: Device (× 1), Battery (× 2), Type-C Cable (× 1), Lint-free Cloth (× 1), Battery Charger (× 1),

Bag (× 1), Wrench (× 1), and Quick Start Guide (× 1).

3. Appearance

The appearance may vary according to different models. Please take the actual product for reference.

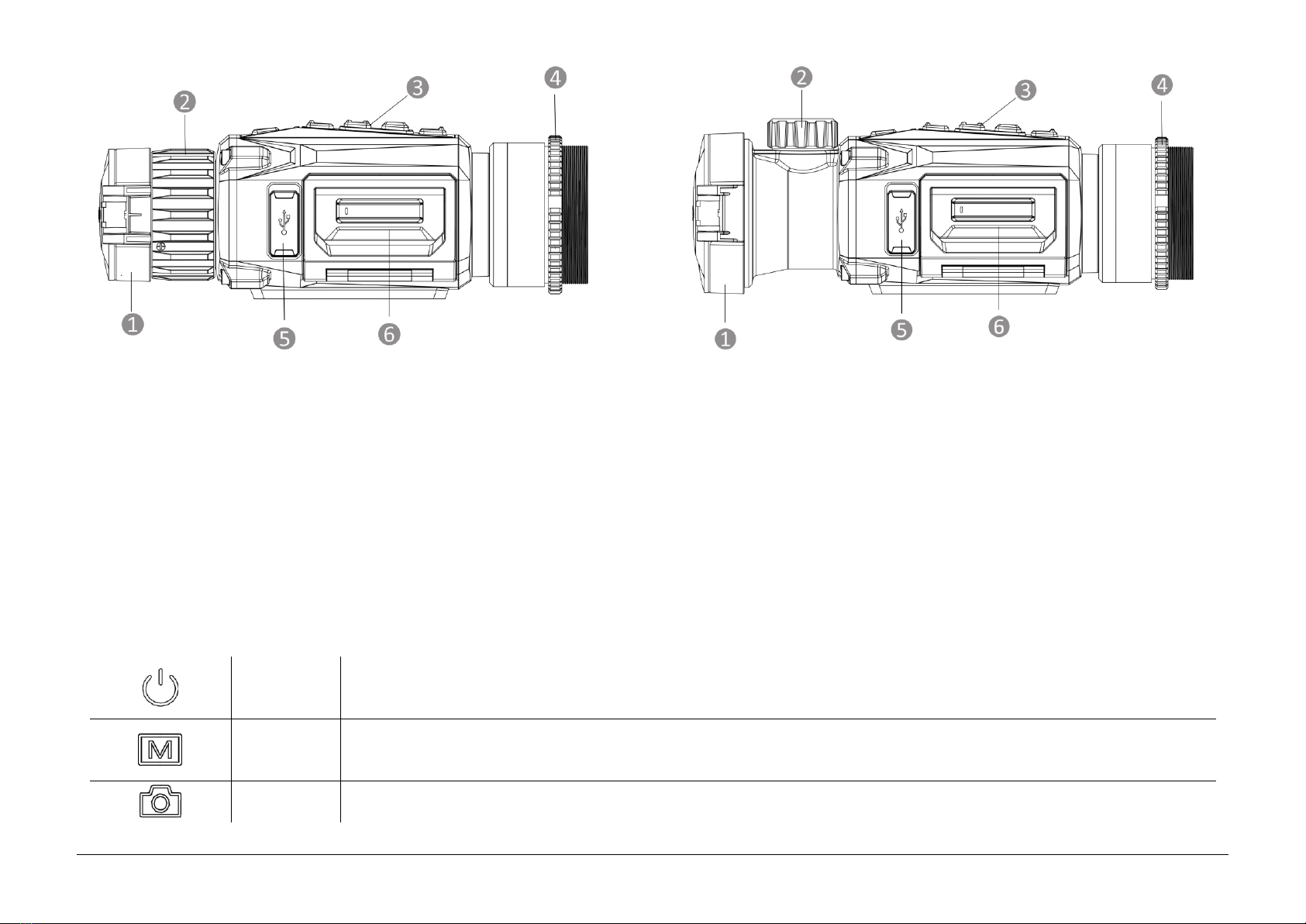

1. Lens Cover: Protects the lens.

2. Focus Ring/Knob: Adjusts focus to obtain clear targets.

3. Buttons: To set functions and parameters.

4. Fixing Ring: Holds the clip-on eyepiece in place.

5. Type-C Interface: To connect the device to power supply or transmit data with a type-C cable.

6. Battery Compartment: For holding the battery.

Button Description

Power

Press: Standby mode/wake up device | Hold: Power on/off

* The power indicator stays solid red when the device is on.

Mode

Press: Switch palettes | Hold: Correct non-uniformity of display (FFC)

Capture

Press: Capture snapshots | Hold: Start/stop recording

Press: Call quick menu | Hold: Enter/exit main menu, and exit quick menu


Press: Clear/display all OSD information on live view interface.

4. Change Battery

Steps

1. Lift the battery compartment cover handle and pull the battery compartment cover outwards.

2. Push the battery latch aside (as the arrow shows), and release the battery.

3. Take out the used battery, and insert a new battery. The latch locks the battery in place when the battery is

fully inserted.

4. Push the battery compartment cover until it clicks into the locked position.

Note:

Remove the battery if you aren’t making use of the device for a long time.

The device supports removable li-ion battery. The charging limited voltage of the battery is 4.2 V. The Battery

capacity is 3.6 V/4.4 Ah (15.84 Wh).

Charge the battery for more than 4 hours before first use.

Please purchase the battery type recommended by the manufacturer if necessary.

5. USB Connection

Steps

1. Turn on the device and make sure the hotspot function

is disabled.

2. Lift the type-C interface cover.

3. Connect the device and power adapter with a type-C

cable to power on the device.

6. App Connection

Live view

HIKMICRO Academy

Set parameters

Upgrade device

Access albums

Capture snapshots and record videos

Android

iOS

7. Getting Started

Install Adapter

Install an adapter if you want to connect the device to a daylight scope.

Steps

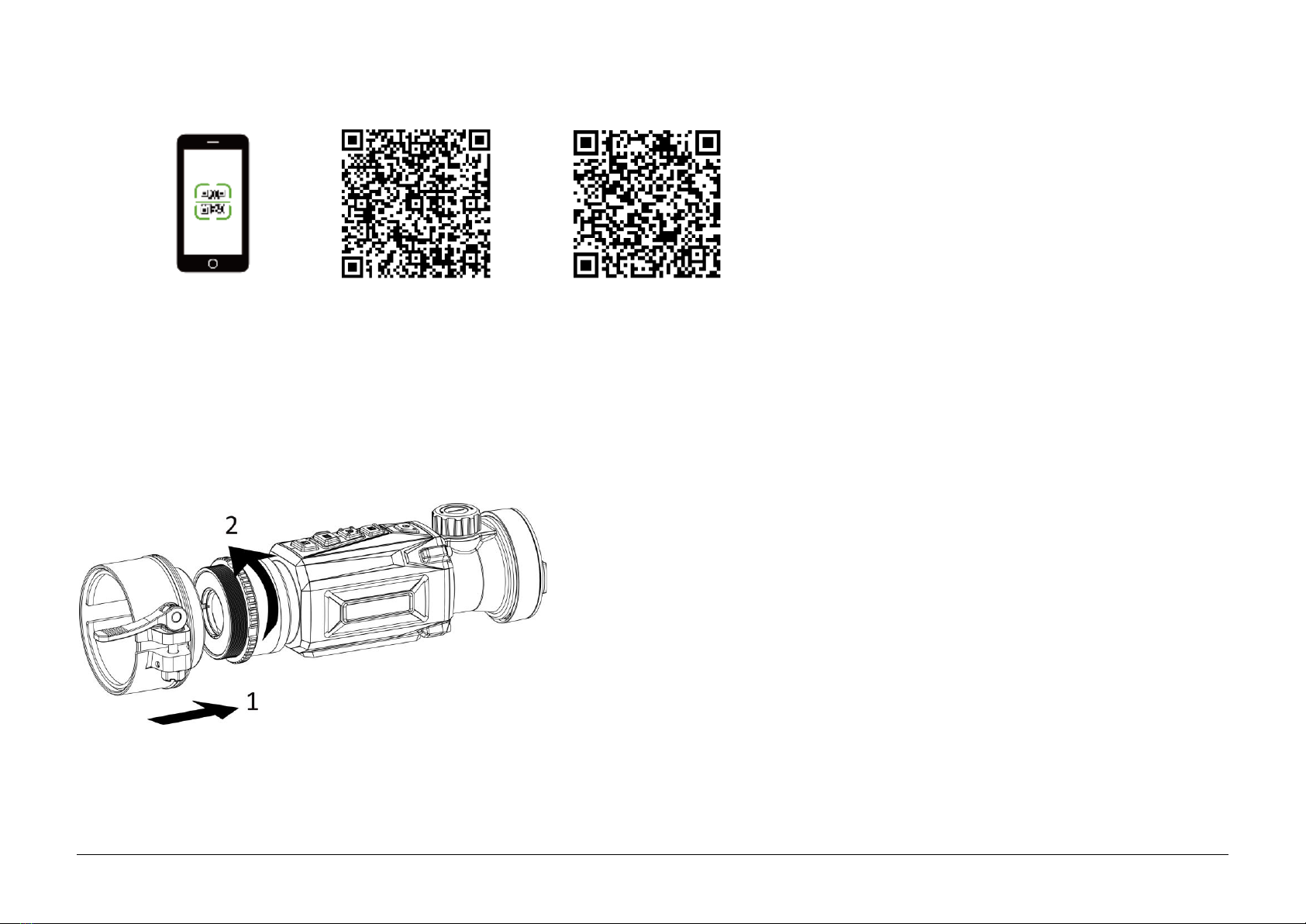

1. Align the red dot of the adapter with the red dot of the

clip-on eyepiece, and insert the adapter as arrow 1 shows.

2. Rotate the fixing ring clockwise with the supplied wrench

(as arrow 2 shows) to secure the adapter.

Notes:

The adapter is not included in the package. Please

purchase it separately as needed.

The thread size is M52*0.75. Purchase the adapter

recommended by the manufacturer.

Remove Adapter

Steps

1. Rotate only the fixing ring counterclockwise, and make sure the device or other parts of the adapter are not

rotated or moved.

2. Plug out and remove the adapter after it is loosen.

Calibrate Image

Steps

1. In main menu, select Image

Calibration in Function Settings, and

press to enter the setting interface.

2. Select , and press to switch calib.

profile.

3. Select , and press to enable

reference line.

4. Select or , and press to

confirm. Press and to set the

coordinates until the window reaches the

target position.

8. More Operations

Scan the QR Code below to obtain the user manual for more operations.

Deutsch

1. Einleitung

Das HIKMICRO THUNDER 2.0 Wärmebild-Monokular mit hoher thermischer Empfindlichkeit sorgt für eine

perfekte Detailerkennung selbst unter schwierigsten Wetterbedingungen, wenn Objekt und Hintergrund einen

minimalen Temperaturunterschied aufweisen. Mit seiner langen Betriebszeit wird das Monokular vor allem bei

Anwendungen wie etwa der Jagd eingesetzt.

2. Lieferumfang

Das Paket enthält: Gerät (1), Akku (2), Typ-C-Kabel (1), fusselfreies Tuch (1), Ladegerät (1), Tasche (1),

Schraubenschlüssel (1) und Kurzanleitung (1).

3. Aufbau

Das Aussehen kann je nach Modell variieren. Bitte nehmen Sie das tatsächliche Produkt als Referenz.

1. Objektivdeckel: Schützt das Objektiv.

2. Fokusring/Knopf: Stellen Sie den Fokus ein, um die Ziele klar zu erkennen.

3. Schaltflächen: Zum Einstellen von Funktionen und Parametern.

4. Befestigungsring: Fixiert das Vorsatz-Okular.

5. Typ-C-Schnittstelle: Schließen Sie das Gerät an die Stromversorgung an oder übertragen Sie Daten mit

einem Typ-C-Kabel.

6. Akkufach: Zum Halten der Akkus.

Schaltfläche Beschreibung

Strom

Drücken: Standby-Modus/Gerät aufwecken | Gedrückt halten: Ein-/Ausschalten

* Die Betriebsanzeige leuchtet rot, wenn das Gerät eingeschaltet ist.

Modus

Drücken: Paletten wechseln | Gedrückt halten: Ungleichförmigkeit der Anzeige

korrigieren (FFC)

Erfassen

Drücken: Fotos aufnehmen | Gedrückt halten: Aufnahme starten/beenden.

Menü

Drücken: Schnellmenü anrufen | Gedrückt halten: Hauptmenü aufrufen/verlassen

und Schnellmenü verlassen


Drücken: Alle OSD-Informationen auf der Live-View-Oberfläche

ausblenden/anzeigen.

4. Die Batterie wechseln

Schritte

1. Heben Sie den Griff des Batteriefachdeckels an und ziehen Sie den Batteriefachdeckel nach außen.

2. Schieben Sie die Batterieverriegelung zur Seite (in Pfeilrichtung) und geben Sie die Batterie frei.

3. Nehmen Sie die leere Batterie heraus und legen Sie eine neue Batterie ein. Die Verriegelung arretiert die

Batterie, wenn sie vollständig eingelegt ist.

4. Drücken Sie den Batteriefachdeckel fest, bis er einrastet.

Hinweis:

Nehmen Sie den Akku heraus, wenn Sie das Gerät für längere Zeit nicht benutzen.

Das Gerät unterstützt einen austauschbaren Li-Ionen-Akku. Die Ladespannung des Akkus beträgt 4,2 V. Er hat

eine Kapazität von 3,6 V/4,4 Ah (15,84 Wh).
