Hill-Rom® MC700 General Ward Bed—
Central Brake System Replacement Instructions
Tools required: Hex wrench, 3mm Hex wrench, 4mm
Flat head screwdriver Needle nose pliers
Rubber mallet Torque wrench
Parts required: (1) 713528 Hex bar foot end
(1) 713529 Hex bar head end
(1) 710526 Central rod link weldment
(1) 710075 Transmission lever
(1) 172134 Transmission lever bariatric
(4) 187063 Bushing
(2) 711079 Grub screw
(2) 710066 Helmut cap
Removal
1. Adjust the bed height to access the base frame.
2. Set the brakes to Steer.
3. At the foot end, loosen, but do not remove, the grub screws (A, B) from the brake ped-
als (see figure 1).
Figure 1. Foot End Brake Pedal Screws
4. Set the brakes to Neutral.
Page 2 of 10 187155 REV 1 June 23, 2014
5. Remove the brake pedal (C), plastic cap (D), hex bar foot end (E), and brake pedal (F)
(see figure 2).
Figure 2. Foot End Brake Disassembly
6. From the head end of the bed, remove the helmut cap (G), plastic cap (H), hex bar
head end (I), and helmut cap (J) (see figure 3).
Figure 3. Head End Brake Disassembly
June 23, 2014 187155 REV 1 Page 3 of 10
7. Pull the central link rod (K) to access the transmission lever (L) (see figure 4).
8. Remove the transmission lever (L), and push the back central link rod (K) inside the
base frame tube (M).
Figure 4. Head End Transmission Lever
9. From the foot end of the bed, pull the central link rod (K) and remove the transmission
lever bariatric (N) (see figure 5).
Figure 5. Foot End Transmission Lever
Page 4 of 10 187155 REV 1 June 23, 2014
10. Rotate the central link rod (K) until the short pin (O) is pointed upwards (see figure 6).
11. Pull the central link rod (K) out of the base frame tube.
Figure 6. Foot End Central Link Rod Removal
Replacement
1. Insert the new hex bar foot end (A) until it goes through the first hole of the base frame
tube (M) (see figure 7).
Figure 7. Foot End Hex Rod Assembly
June 23, 2014 187155 REV 1 Page 5 of 10
2. Install a bushing on hole (H1) using the protruding end of the hex bar foot end (A) as
the guide.
3. Install a bushing on hole (H2) (see figure 8).
Figure 8. Foot End Bushing Assembly
4. At the head end of the bed, insert new hex bar head end (C) until it goes through the
first hole of the base frame tube (N) (see figure 9).
Figure 9. Head End Hex Rod Assembly
Page 6 of 10 187155 REV 1 June 23, 2014
5. Install a bushing on hole (H3) using the protruding end of the hex bar head end (C) as
the guide (see figure 10).
6. Install a bushing on hole (H4).
Figure 10. Head End Bushing Assembly
7. Install the new central link rod (D) into the base frame tube (E) with the short pin (F)
pointed upwards (see figure 11).
Figure 11. Head End Central Link Rod Installation
June 23, 2014 187155 REV 1 Page 7 of 10
8. Install the new transmission lever (G) (see figure 12).
9. Push the transmission lever (G) and central link rod (D) inside the base frame tube to
expose the opposite end of the central link rod at the foot end of the base frame tube.
Figure 12. Head End Transmission Lever Installation
10. At the foot end of the bed, install the new transmission lever bariatric (J) (see figure
13).
Figure 13. Foot End Transmission Lever Installation
Page 8 of 10 187155 REV 1 June 23, 2014
11. Position the transmission lever bariatric (J) between the bushings (see figure 14).
12. While keeping the transmission lever bariatric (J) in the upright position, push in the
hex bar foot end (A) until the leading end goes through the other caster.
Figure 14. Foot End Hex Bar Installation
13. Position the head end transmission lever (G) between the bushings (see figure 15).
14. While keeping the transmission lever (G) in the upright position, push the hex bar head
end (C) until the leading end goes through the other caster.
Figure 15. Head End Hex Bar Installation
June 23, 2014 187155 REV 1 Page 9 of 10
15. Install helmut caps (retainers) (L1, L2) on the hex rod head end (see figure 16).
16. Install the brake pedals (P1, P2) (torque setting at 15 ± 0.5 N-m).
Figure 16. Retainers and Pedal Assembly Installation
17. Test the brakes (brake -neutral - steer).
18. Set the brakes to Neutral.
19. Install a grub screw (S1) (torque setting at 6.5 ± 0.5 N-m) on the foot end transmission
lever, and install the cover (U1) (see figure 17).
Figure 17. Foot End Grub Screw and Cover Installation
Page 10 of 10 187155 REV 1 June 23, 2014
20. Set the brakes to Steer.
21. Install a grub screw (S2) (torque setting at 6.5 ± 0.5 N-m) on the head end transmis-
sion lever (see figure 18).
22. Install the cover (U2).
Figure 18. Head End Grub Screw and Cover Installation
Altri manuali Hillrom Attrezzature mediche
Hillrom
Hillrom O-FAS Manuale utente
Hillrom
Hillrom Liko FreeSpan SR Manuale
Hillrom
Hillrom Liko Sabina II Manuale utente
Hillrom

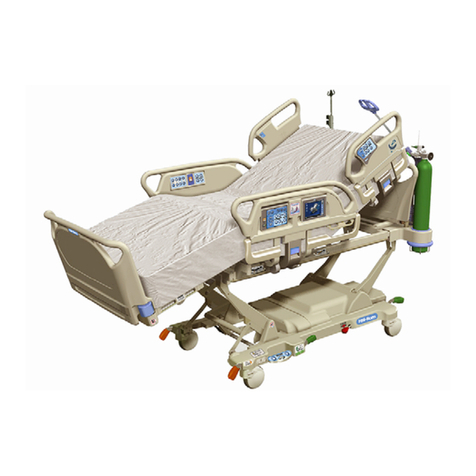

Hillrom Progressa Bed Manuale utente
