Hills Wireless DIY security alarm starter kit Manuale utente

Wireless DIY

security alarm

starter kit

User guide

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 1 27/02/2015 4:24 pm

2Features

1 Introduction 3

1.1 Box Content 3

1.2 Features 3

1.3 Recommendations 4

1.4 Warnings 4

2 Easy Install 5

2.1 Insert SIM card into the alarm panel and install in desired location 5

2.2 Register accessories with the alarm panel 6

2.3 Download App and set your personal alarm settings 7

3 Alarm settings 8

3.1 Enter Setup Mode 8

3.2 Exit Setup Mode 8

3.3 Store phone numbers 8

3.4 Delete phone numbers 9

3.5 Change password 9

3.6 Set Siren volume 9

3.7 Set Siren ring time 9

3.8 Set Entry and Exit delay 9

3.9 Clear connected sensors 9

4 Control your alarm 10

4.1 Arm your system 10

4.2 Disarm your system 10

4.3 Home mode 10

4.4 Mute mode 10

4.5 Emergency mode 10

4.6 Make a phone call 11

4.7 Speed Dial 11

4.8 Remotely control your alarm 11

5 Responding to an alarm 12

6 Specifications 13

6.1 Alarm panel 13

6.2 Wireless remote 16

6.3 Wireless motion sensor 17

6.4 Wireless door/window sensor 20

6.5 RFID Tag 22

6.6 SMS operation 23

6.7 Assign sensors to zones 28

7 FAQ 30

Thank you for purchasing the Hills

Wireless Security Alarm DIY Starter Kit.

Please read this manual carefully to get

the best use out of this product. Keep

this manual for future reference.

1 Introduction

1.1 Box Content

1 x Alarm Panel (with internal siren)

2 x Remote Controls

1 x Wireless Motion Sensor

1 x Wireless Window/Door Sensor

2 x RFID Tags

1 x AC Adaptor

2 x 800 mAh Batteries

(8hr in standby mode)

2 x Security Warning Stickers

NOTE: You will need to supply your

own SIM card for use with this system

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 2 27/02/2015 4:24 pm

1 Introduction 3

1.1 Box Content 3

1.2 Features 3

1.3 Recommendations 4

1.4 Warnings 4

2 Easy Install 5

2.1 Insert SIM card into the alarm panel and install in desired location 5

2.2 Register accessories with the alarm panel 6

2.3 Download App and set your personal alarm settings 7

3 Alarm settings 8

3.1 Enter Setup Mode 8

3.2 Exit Setup Mode 8

3.3 Store phone numbers 8

3.4 Delete phone numbers 9

3.5 Change password 9

3.6 Set Siren volume 9

3.7 Set Siren ring time 9

3.8 Set Entry and Exit delay 9

3.9 Clear connected sensors 9

4 Control your alarm 10

4.1 Arm your system 10

4.2 Disarm your system 10

4.3 Home mode 10

4.4 Mute mode 10

4.5 Emergency mode 10

4.6 Make a phone call 11

4.7 Speed Dial 11

4.8 Remotely control your alarm 11

5 Responding to an alarm 12

6 Specifications 13

6.1 Alarm panel 13

6.2 Wireless remote 16

6.3 Wireless motion sensor 17

6.4 Wireless door/window sensor 20

6.5 RFID Tag 22

6.6 SMS operation 23

6.7 Assign sensors to zones 28

7 FAQ 30

1. Introduction

Thank you for purchasing the Hills

Wireless Security Alarm DIY Starter Kit.

Please read this manual carefully to get

the best use out of this product. Keep

this manual for future reference.

1 Introduction

1.1 Box Content

1 x Alarm Panel (with internal siren)

2 x Remote Controls

1 x Wireless Motion Sensor

1 x Wireless Window/Door Sensor

2 x RFID Tags

1 x AC Adaptor

2 x 800 mAh Batteries

(8hr in standby mode)

2 x Security Warning Stickers

NOTE: You will need to supply your

own SIM card for use with this system

1.2 Features

• Wireless alarm system

• Easy to install

• Remote access control via phone

• Supports up to 50 wireless sensors

and associated accessories

• Easy registration of new

accessories

• Built-in 120dB siren to deter

potential intruders

• Store up to 5 phone numbers and

5 SMS numbers

• Arm, disarm and monitor remotely

via phone

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 3 27/02/2015 4:24 pm

41. Introduction

1.3 Recommendations

For your safety, it is recommended to

follow these precautions:

• Do not forget to arm the alarm panel

during your absence and make sure

it works properly.

• Do not forget to lock the doors,

windows and other exits.

• Always keep your remote control

with you and do not leave it visible

or noticeable.

• To optimize the operation of the

alarm system, it is recommended to

carefully select the location for each

accessory to be installed.

• It is recommended to mount the

sensors on a smooth wall, to ensure

the proper use of the tamper switch.

• Accessories purchased separately

must be connected to the alarm

panel manually.

• Wait until the end of the auto-test

before replacing the cover of the

sensor.

• If you do not use this product for a

long time, remove the batteries to

optimize their lifespan.

• Do not cross the beams of different

motion sensors.

1.4 Warnings

• The alarm panel is provided with a

separate battery. Please dispose the

used batteries responsibly.

• Do not open the case of the alarm

panel and do not repair it yourself.

• If you encounter an issue with the

product, contact your supplier or an

authorised technician.

• Take care of this product and do not

let water get into it as it may damage

the product.

• Place the alarm panel in a cool, dry

and well-ventilated area. Do not

install sensors near heating, cooling,

or ventilation.

• Do not use detergent or other

flammable materials to clean

this unit.

• Do not let your device fall on the

floor.

• Remove the battery holder cover

with care.

2 Easy Install

2.1 Insert SIM card into the

alarm panel and install in

desired location

Your SIM card must support the 2G or

3G network (850/2100Mhz ). The SIM

card should have SIMLOCK deactivated.

SIMLOCK can be deactivated using a

mobile phone prior to installing the SIM

card into your alarm panel.

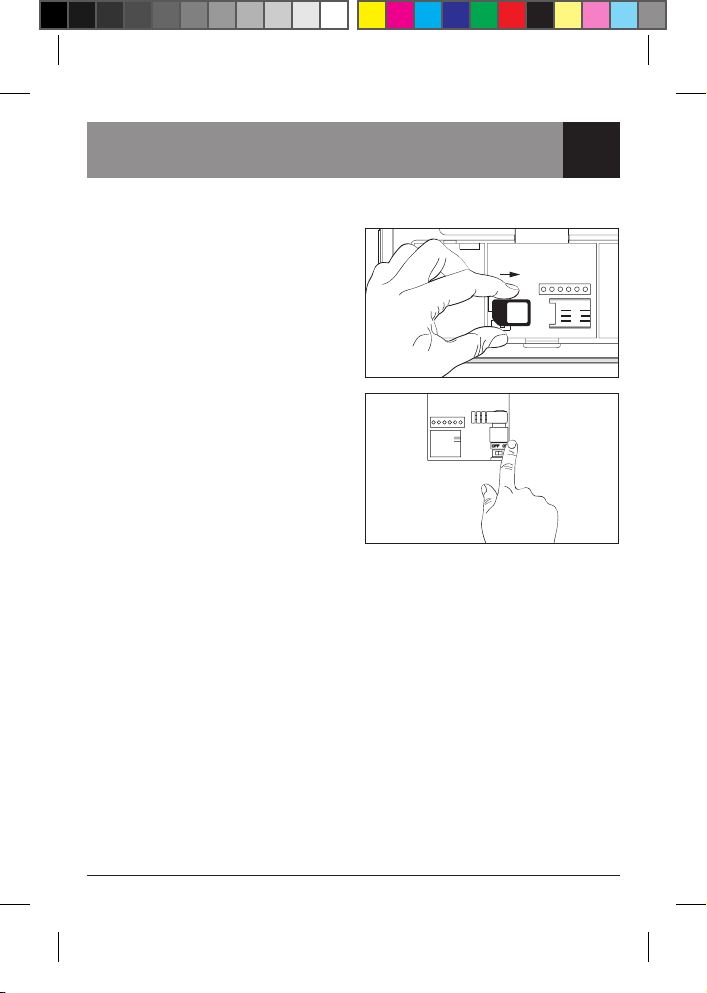

1. Insert the SIM card (NOT included)

in the alarm panel as shown in the

image below.

2. Install your alarm panel to your

desired location

3. Plug the adaptor into an AC power

socket.

4. Switch the alarm panel on.

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 4 27/02/2015 4:24 pm

1.4 Warnings

• The alarm panel is provided with a

separate battery. Please dispose the

used batteries responsibly.

• Do not open the case of the alarm

panel and do not repair it yourself.

• If you encounter an issue with the

product, contact your supplier or an

authorised technician.

• Take care of this product and do not

let water get into it as it may damage

the product.

• Place the alarm panel in a cool, dry

and well-ventilated area. Do not

install sensors near heating, cooling,

or ventilation.

• Do not use detergent or other

flammable materials to clean

this unit.

• Do not let your device fall on the

floor.

• Remove the battery holder cover

with care.

2. Easy Install

2 Easy Install

2.1 Insert SIM card into the

alarm panel and install in

desired location

Your SIM card must support the 2G or

3G network (850/2100Mhz ). The SIM

card should have SIMLOCK deactivated.

SIMLOCK can be deactivated using a

mobile phone prior to installing the SIM

card into your alarm panel.

1. Insert the SIM card (NOT included)

in the alarm panel as shown in the

image below.

2. Install your alarm panel to your

desired location

3. Plug the adaptor into an AC power

socket.

4. Switch the alarm panel on.

SIM

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 5 27/02/2015 4:24 pm

62. Easy Install

2.2 Register accessories with the

alarm panel

Remote Controls, Motion Sensors,

Window/Door Sensors, RFID Tags and

additional sirens must all be registered

with the Alarm Panel prior to use.

To register each accessory, you must

first enter Registration Mode on the

Alarm Panel.

1. On the Alarm Panel, press “#1”

2. The Connection LED indicator

will light up to indicate

connection mode.

Trigger connection on the accessory

you wish to register via the correct

method below:

Once you have registered all

accessories, exit Registration Mode:

1. Press the “Disarm” key on the

alarm panel

Accessory Trigger

Wireless remote control Press any button on the remote control.

Wireless motion sensor Press the connect button at the back of the

sensor or trigger the sensor by moving in front

of it.

Wireless window/door sensor Separate the magnet from the transmitter

RFID Tag Swipe the RFID tag in front of the RFID reader

on the alarm panel

Additional siren Contact Hills Security for further information

Accessories may now be installed

following specifications in section 6 of

this document.

Additional accessories not listed above

may be registered. Consult the relevant

accessory manual for trigger details.

2.3 Download App and set your

personal alarm settings

Remote access control of your alarm

and configuration of alarm settings may

be performed from your smartphone

using the Hills DIY Wireless Security App.

This app is available from the Apple App

Store or Google Play.

To install the App, use your device to

search for “Hills DIY Wireless Security

App” and tap “GET”. Enter your store

password when prompted and the App

will be installed to your home screen.

Once the App is installed, tap the App

icon to start the app. You will be guided

through registering an account for

yourself and connecting to your alarm

system. You will need to know the

mobile number of the SIM card installed

in your alarm panel.

NOTE: Prior to controlling or configuring

the alarm via the App you must program

a phone number for SMS notifications.

Only stored numbers are allowed to

control and configure the system. See

section 3.3 for more information.

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 6 27/02/2015 4:24 pm

2. Easy Install

Accessory Trigger

Wireless remote control Press any button on the remote control.

Wireless motion sensor Press the connect button at the back of the

sensor or trigger the sensor by moving in front

of it.

Wireless window/door sensor Separate the magnet from the transmitter

RFID Tag Swipe the RFID tag in front of the RFID reader

on the alarm panel

Additional siren Contact Hills Security for further information

Accessories may now be installed

following specifications in section 6 of

this document.

Additional accessories not listed above

may be registered. Consult the relevant

accessory manual for trigger details.

2.3 Download App and set your

personal alarm settings

Remote access control of your alarm

and configuration of alarm settings may

be performed from your smartphone

using the Hills DIY Wireless Security App.

This app is available from the Apple App

Store or Google Play.

To install the App, use your device to

search for “Hills DIY Wireless Security

App” and tap “GET”. Enter your store

password when prompted and the App

will be installed to your home screen.

Once the App is installed, tap the App

icon to start the app. You will be guided

through registering an account for

yourself and connecting to your alarm

system. You will need to know the

mobile number of the SIM card installed

in your alarm panel.

NOTE: Prior to controlling or configuring

the alarm via the App you must program

a phone number for SMS notifications.

Only stored numbers are allowed to

control and configure the system. See

section 3.3 for more information.

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 7 27/02/2015 4:24 pm

83. Alarm settings

3 Alarm settings

Alarm settings may be configured

directly from the alarm panel, via SMS

or via the App. This section details direct

alarm panel configuration. Instructions

for configuration via SMS can be found

in Section 6.6 of this manual.

When configuring settings,

the alarm panel will sound the

words “operation completed”

when a change is successful.

3.1 Enter Setup Mode

In order to configure settings, the alarm

panel must be in setup mode:

1. Press the “#” key, followed by the

“2” key on the alarm panel

2. The “Setup” LED indicator will

light up

3.2 Exit Setup Mode

After settings have been configured, you

must exit setup mode:

1. Press the “Disarm” key on the

alarm panel

2. The “Setup” LED indicator will

go out and the system will sound

2 beeps

ID Type of number

1First phone number control.

2Second phone number

3Third phone number

4Fourth phone number

5Fifth phone number

6First SMS number

7Second SMS number

8Third SMS number

9Fourth SMS number

10 Fifth SMS number

3.3 Store phone numbers

Phone and SMS numbers are defined

by ID:

ID’s 1-5 are used for calls from the alarm

system in the event of an alert. ID’s 6-10

are used for SMS alert messages.

The first stored number is the Speed

Dial Number.

1. Enter Setup Mode

2. Enter “#[ID]#[your number]”

(do not enter the [ ] signs)

For example to store number

“12345678” as the first SMS number,

enter “#6#12345678#”

3. Exit Setup Mode

3.4 Delete phone numbers

Individual numbers may be deleted by ID.

1. Enter Setup Mode

2. Enter “#[ID]##”

For example to delete the fourth stored

SMS number, enter “#9##”

3. Exit Setup Mode

Alternatively, you may delete ALL stored

numbers.

1. Enter Setup Mode

2. Enter “#*##”

3. Exit Setup Mode

3.5 Change password

The default system password is “1234”.

For security reasons it is recommended

you set your own 4-digit password.

1. Enter Setup Mode

2. Enter “*9*[password]*”

For example to set the password to

0987, enter “*9*0987*”

3. Exit Setup Mode

3.6 Set Siren volume

The alarm system siren may be set to

either high (1) or mute (0).

1. Enter Setup Mode

2. Enter “*23*[volume]*”

For example to set the volume to mute,

enter “*23*0*”

3. Exit Setup Mode

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 8 27/02/2015 4:24 pm

3. Alarm settings

ID Type of number

1First phone number control.

2Second phone number

3Third phone number

4Fourth phone number

5Fifth phone number

6First SMS number

7Second SMS number

8Third SMS number

9Fourth SMS number

10 Fifth SMS number

3.3 Store phone numbers

Phone and SMS numbers are defined

by ID:

ID’s 1-5 are used for calls from the alarm

system in the event of an alert. ID’s 6-10

are used for SMS alert messages.

The first stored number is the Speed

Dial Number.

1. Enter Setup Mode

2. Enter “#[ID]#[your number]”

(do not enter the [ or ] signs)

For example to store number

“12345678” as the first SMS number,

enter “#6#12345678#”

3. Exit Setup Mode

3.4 Delete phone numbers

Individual numbers may be deleted by ID.

1. Enter Setup Mode

2. Enter “#[ID]##”

For example to delete the fourth stored

SMS number, enter “#9##”

3. Exit Setup Mode

Alternatively, you may delete ALL stored

numbers.

1. Enter Setup Mode

2. Enter “#*##”

3. Exit Setup Mode

3.5 Change password

The default system password is “1234”.

For security reasons it is recommended

you set your own 4-digit password.

1. Enter Setup Mode

2. Enter “*9*[password]*”

For example to set the password to

0987, enter “*9*0987*”

3. Exit Setup Mode

3.6 Set Siren volume

The alarm system siren may be set to

either high (1) or mute (0).

1. Enter Setup Mode

2. Enter “*23*[volume]*”

For example to set the volume to mute,

enter “*23*0*”

3. Exit Setup Mode

3.7 Set Siren ring time

Siren ring time may be set from 1 to 9

minutes.

1. Enter Setup Mode

2. Enter “*1*[minutes]*”

For example to set the ring time to 7

minutes, enter “*1*7*”

3. Exit Setup Mode

3.8 Set Entry and Exit delay

Entry and exit delay may be set from 0

to 300 seconds, using ID “3” for entry

and “2” for exit.

1. Enter Setup Mode

2. Enter “*[ID]*[seconds]*”

For example to set the exit delay to 60

seconds, enter “*2*60*”

3. Exit Setup Mode

3.9 Clear connected sensors

To clear ALL currently connected

accessories:

1. Enter Setup Mode

2. Enter “*22*[password]*”

Where [password] is the 4-digit

password you set in section 3.5

3. Exit Setup Mode

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 9 27/02/2015 4:24 pm

10 Control your alarm

4 Control your alarm

4.1 Arm your system

To arm your system, press the Arm

button ( ) on your Alarm panel,

remote control or App. The LED

indicator on the alarm panel will light up

and the alarm panel will beep once.

4.2 Disarm your system

To disarm your system, press the

Disarm button ( ) on your Alarm

panel, remote control or App. The LED

indicator on the alarm panel will go out

and the alarm panel will beep twice.

NOTE: If the alarm has sounded,

the user must type the password

and the disarm button to disarm the

alarm system. This operation must be

completed within 15 seconds.

4.3 Home mode

In home mode, sensors configured in

the Home Mode zone are disarmed

so you can move around your home.

Sensors in all other zones are armed.

To set home mode, press the Home

Mode button ( ) on your Alarm

panel, remote control or App. The LED

indicator on the alarm panel will blink

once per second.

4.4 Mute mode

From the remote control, you can

prevent the alarm panel beeping

when you arm or disarm your system.

Press the Home Mode button followed

immediately by either the Arm or

Disarm button.

4.5 Emergency mode

In an emergency, you can trigger an

alarm regardless of the status of the

system. Press the SOS button on the

remote control, or hold the SOS button

on the alarm panel for 3 seconds. Once

activated, the alarm panel will send an

SMS notification in the form of “RC-01

SOS” (where RC-01 is remote control 1)

and call the pre-stored phone numbers

to report the SOS.

4.6 Make a phone call

The alarm panel supports phone calls:

In disarmed status, type the telephone

number and press the key on the

alarm panel.

Press or to end the call.

The middle white LED indicator blinks

once every 2 seconds during the call.

If a phone call is received on the

alarm panel, the LED blinks once

every second.

4.7 Speed Dial

This function is only available when the

system is disarmed.

Press and hold the Call button on

the alarm panel for 3 seconds: the

panel auto-dials the first stored phone

number.

Press the Call button to end the call.

4.8 Remotely control your alarm

1. Dial the telephone number of the SIM

card using your mobile phone.

2. Enter your password followed by “#”.

3. Select the operations required to

control the panel (see Section 5 for a

table of instructions).

Note: The call will end automatically

if no command is received within

30 seconds.

TE0166_Wireless_Security_Alarm_Kit_Prod_Manual_PM1004a_R1.indd 10 27/02/2015 4:24 pm

Indice

Altri manuali Hills Sistema di sicurezza

Hills

Hills VoiceNav Manuale utente

Hills

Hills VoiceNav Manuale utente

Hills

Hills VSD1 Manuale utente

Hills

Hills VoiceNav Manuale utente

Hills

Hills touchnav Manuale utente

Hills

Hills VoiceNav Manuale utente

Hills

Hills ChallengerPlus Training Kit Guida di sicurezza

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
