Hilltip Ice STRIKER 600 TR Manuale utente

STRIKER

Owner’s manual

600-1000 LITER POLY ELECTRIC TRACTOR SPREADER

19 November, 2021

Version 1.2

This manual replaces all editions with an earlier date.

IceStrikerTM

GENERAL INFORMATION ............................................ 3

Spreader parts .................................................. 3

Technical information ............................................. 4

SAFETY INFORMATION.............................................. 5

 Safetydenitions ................................................ 5

Safety precautions ............................................... 5

Recommended vehicle requirements ................................. 6

Noise ......................................................... 6

Personal safety.................................................. 6

Emergency stop ................................................. 6

Warning and caution labels ........................................ 7

INSTALLATION AND OPERATION ..................................... 8

Control placement ............................................... 8

Vehicle side harness cable kit ...................................... 8

Accessory cables ................................................ 9

Mounting the top screen ........................................... 9

Mounting the Tarp cover assembly...................................10

Spreading pattern ................................................12

Rotate jammed auger manually .....................................12

LOADING ..........................................................13

Average material weights ..........................................13

Filling the integrated pre-wet tank ...................................13

MAINTENANCE .....................................................14

Maintaining the spreader ..........................................14

Storage ........................................................15

OPTIONAL LIQUID SYSTEMS.........................................16

Pre-wet (optional) ................................................16

Spray-bar (optional) ..............................................17

Bladder tank (optional) ............................................18

Hose reel (optional) ..............................................19

Liquid system clean-out instructions..................................19

ELECTRICAL SCHEMATIC ...................................... . . . . . 20

WARRANTY INFORMATION ..................................... . . . . . 21

CERTIFICATE OF CONFORMITY ................................. . . . . . 22

Read this manual before installing or

operating the spreader

CAUTION

IceStrikerTM

GENERAL INFORMATION

Spreader parts

Tarp cover

License plate kit and

rear light (optional)

Beacon light (optional)

Emergency stop button

Spinner

Auger

(inside hopper)

IceStrikerTM

Technical information

SPREADER SPECIFICATIONS 600 TR 800 TR 1000 TR

Overall width 1500 mm 1500 mm 1500 mm

Height 1500 mm 1650 mm 1800 mm

Capacity (water level) 550 l 750 l 950 l

Capacity (rounded) 630 l 850 l 1050 l

Weight (empty) 320 kg 360 kg 390 kg

Hopper construction Poly Poly Poly

Spreading width 1-8 m (may vary depending on material)

Spinner size 390 mm 390 mm 390 mm

Auger diameter 65 mm 65 mm 65 mm

Vibrator YES YES YES

GPS speed control YES YES YES

Vehicle Tractors/loaders

Material Salt, sand, granulat, mixed

OPTIONAL LIQUID SYSTEM 600 TR 800 TR 1000 TR

Pre-wet, Spray volume 3-12 l/min 3-12 l/min 3-12 l/min

Spraybar, Spray volume 5-25 l/min 5-25 l/min 5-25 l/min

Pre-wet, Spraying width 1-8 m (together with spreading material)

Spraybar, Spraying width 2-5 m 2-5 m 2-5 m

Pre-wet, liquid tank capacity 330 l 330 l 330 l

Spraybar, liquid tank capacity 330/900 l * 330/900 l * 330/900 l *

Spraying material Anti- and de-icing liquids, water, liquid fertilizers **

IceStrikerTM

Technical information

Implies a potentially hazardous

situation that, if not avoided, could

result in death or serious personal

injury.

Implies a potentially hazardous

situation that, if not avoided, may

result in minor or moderate injury.

It may also be used to alert against

unsafe practices.

Implies a situation or action that can

lead to damage to your spreader and

vehicle or other property. Other useful

information can also be described.

Safety denitions

1. Read this manual before operating the

spreader.

2. Before operating, make sure all the

equipment is securely mounted into place.

3. Check that there are no persons within the

spreader spray area when starting and

operating this spreader.

4. Do not exceed your vehicle total weight

beyond payload limits.

5. Alwaysturno󰀨thespreader before

cleaning, lubricating or unclogging

material jambs.

6. Never climb or ride on or in the spreader.

7. Ensure that you have fastened the

spreader to the vehicle according to

descriptions in this manual.

8. A spreader in need of repairs or

maintenance should not be operated.

9. Before removing or replacing any

electrical components, always disconnect

the battery.

10.Donotkeepgasolineorotherammable

liquids on the truck bed while spreader is

mounted on the truck bed.

Observe these safety precautions

before, during and after operating the

spreader. You can prevent injury to

persons and damage to the spreader

by following these precautions.

SAFETY INFORMATION

Safety precautions

Incorrect installation and operation can lead

to serious personal injury and/or damage

your equipment and property. Note and

ensure that you understand this manual and

all the labels before installing, operating or

making adjustments to the spreader.

!WARNING

iNOTE

!WARNING CAUTION

IceStrikerTM

Always keep bystanders a minimum

of 10 meters away when operating the

spreader.

Empty and clean the hopper after each

use. Unused spreading material left in

hopper could freeze or solidify, causing

the spreader to not work properly.

Use a good quality multi-purpose

greasetolubricategreasettingsafter

each use.

• To prevent accidents, secure long hair and do not wear jewelry or necktie, only wear tight-tting

clothes while working on your spreader or vehicle.

• Protect your eyes with safety goggles to avoid damage from battery acid, gasoline, dirt and dust.

• Always handle the solid and liquid materials carefully. Wear safety goggles, mouth mask, gloves

and protecting clothes to protect yourself from spattering material.

Wait for auger and spinner to stop and

lock out power before servicing the

spreader.

Personal safety

!WARNING !WARNING

iNOTE

CAUTION

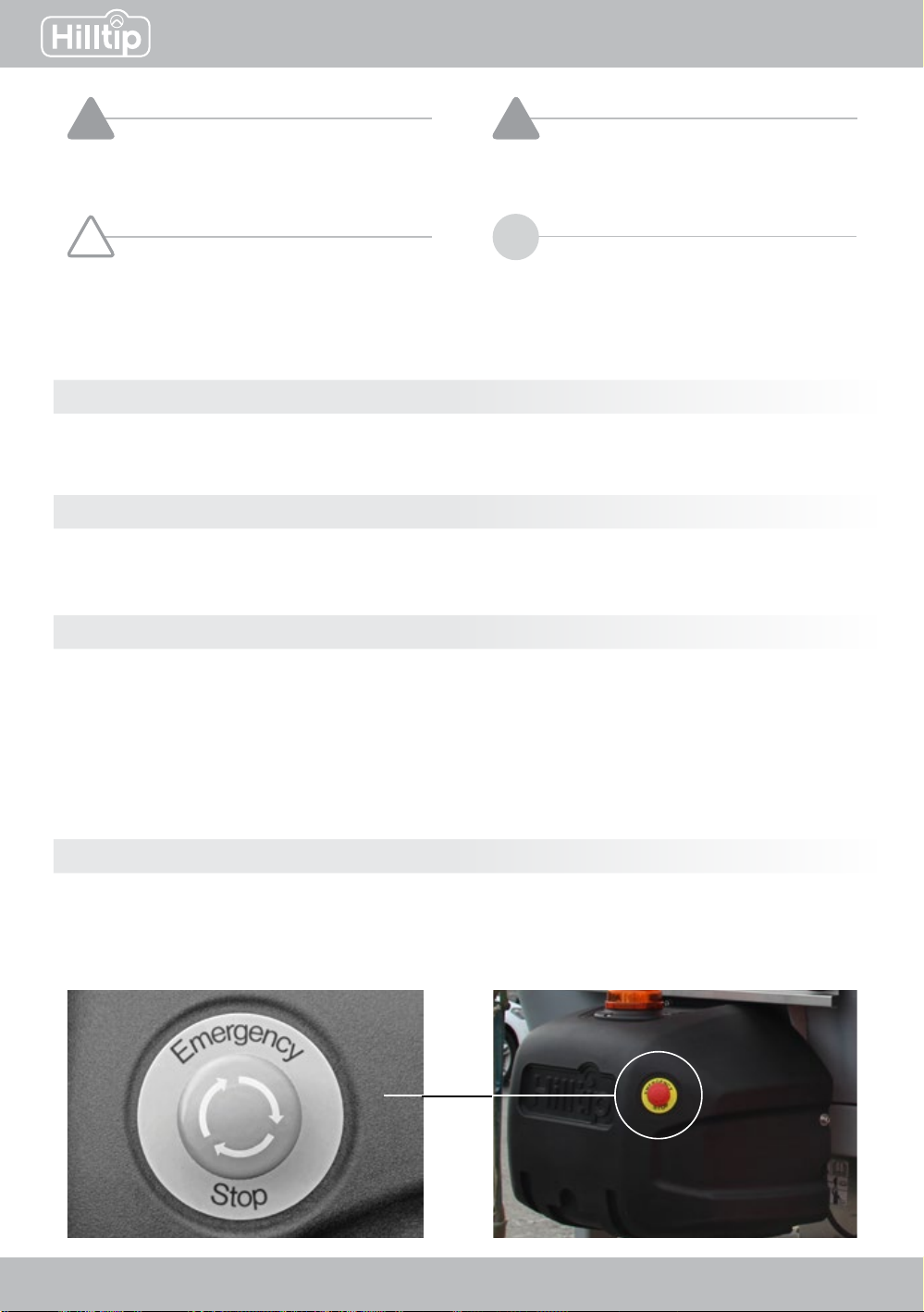

The spreader has an emergency stop button located at the right side of the chute. All spreader

functions will immediately stop by pushing this button.

Emergency stop

Recommended vehicle requirements

This spreader is suitable for tractors and loaders with a minimum lift capacity of 2000 kg.

Noise

The noise caused by the running spreader does not exceed 70 dB

IceStrikerTM

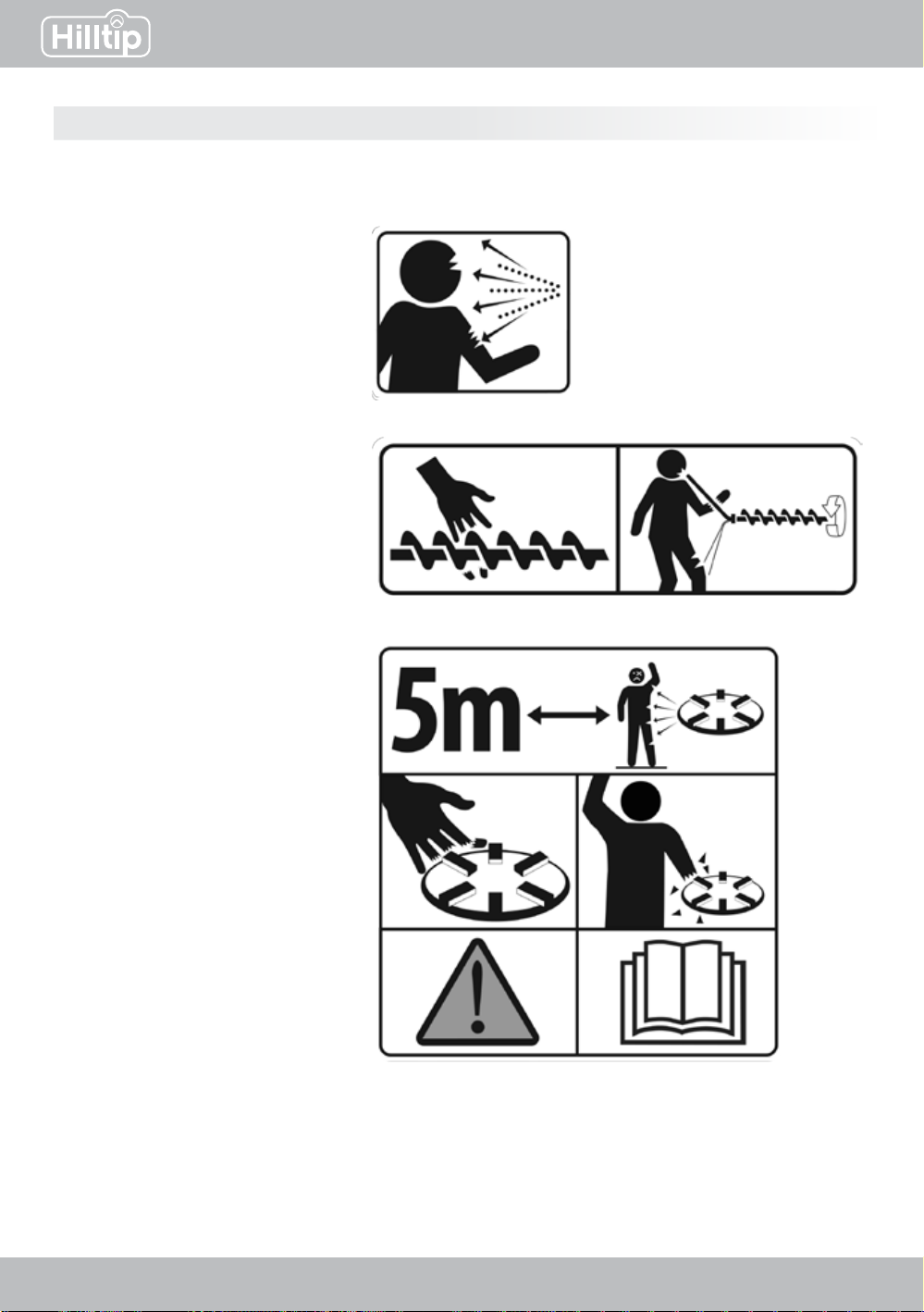

Warning and caution labels

Please become familiar with warning and caution labels on the spreader.

- Visible when removing the spinner

assembly

Warning - Rotating auger! Keep

hands clear. Wrench might slip when

working with auger

Warning - Keep away from spinner

and spreader in motion. Stay clear

of turning spinner. Moving parts can

crush and cut

Warning - Handling of abrasive

and chemical material can cause

injury

- Located on the chute

IceStrikerTM

INSTALLATION AND OPERATION

The controller should be mounted in a place

where it can easily be reached and doesn’t

interfere with the access to vehicle controls

or other equipment. Make sure that the

spreader control panel doesn’t block any

vehicle airbag areas. Protect the controller

from water, dirt and dust.

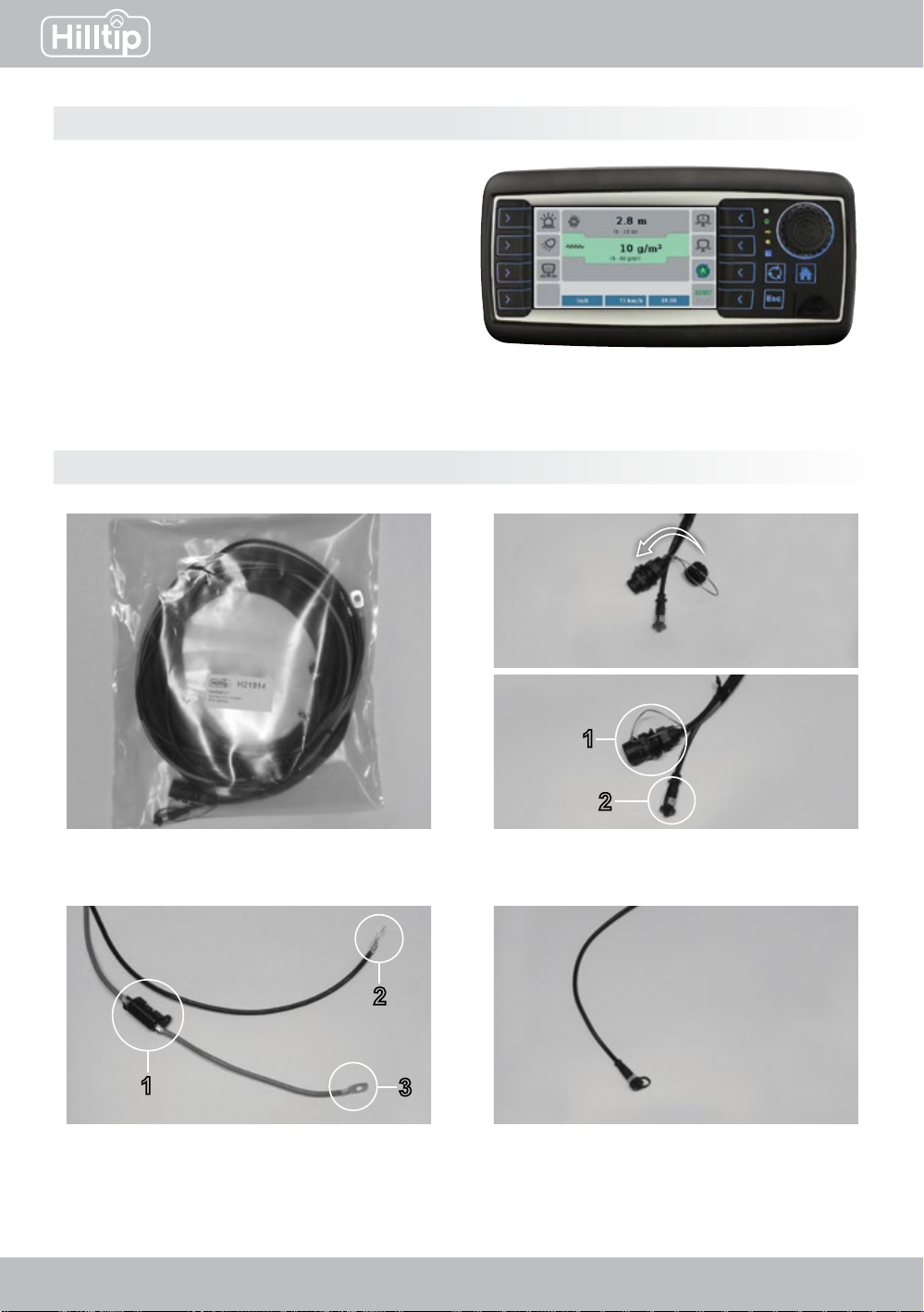

Control placement

Vehicle side harness cable kit

Vehicle side harness cable kit 1. Power connector to spreader

2. Data connector to spreader

To vehicle battery 1. 80A fuse

2. Black (-)

3. Red (+)

In-cabin connector

IceStrikerTM

Red = Emergency stop (standard)

Black = Water pump

Yellow = Beacon light

Blue = Camera power feed

White = LED worklight

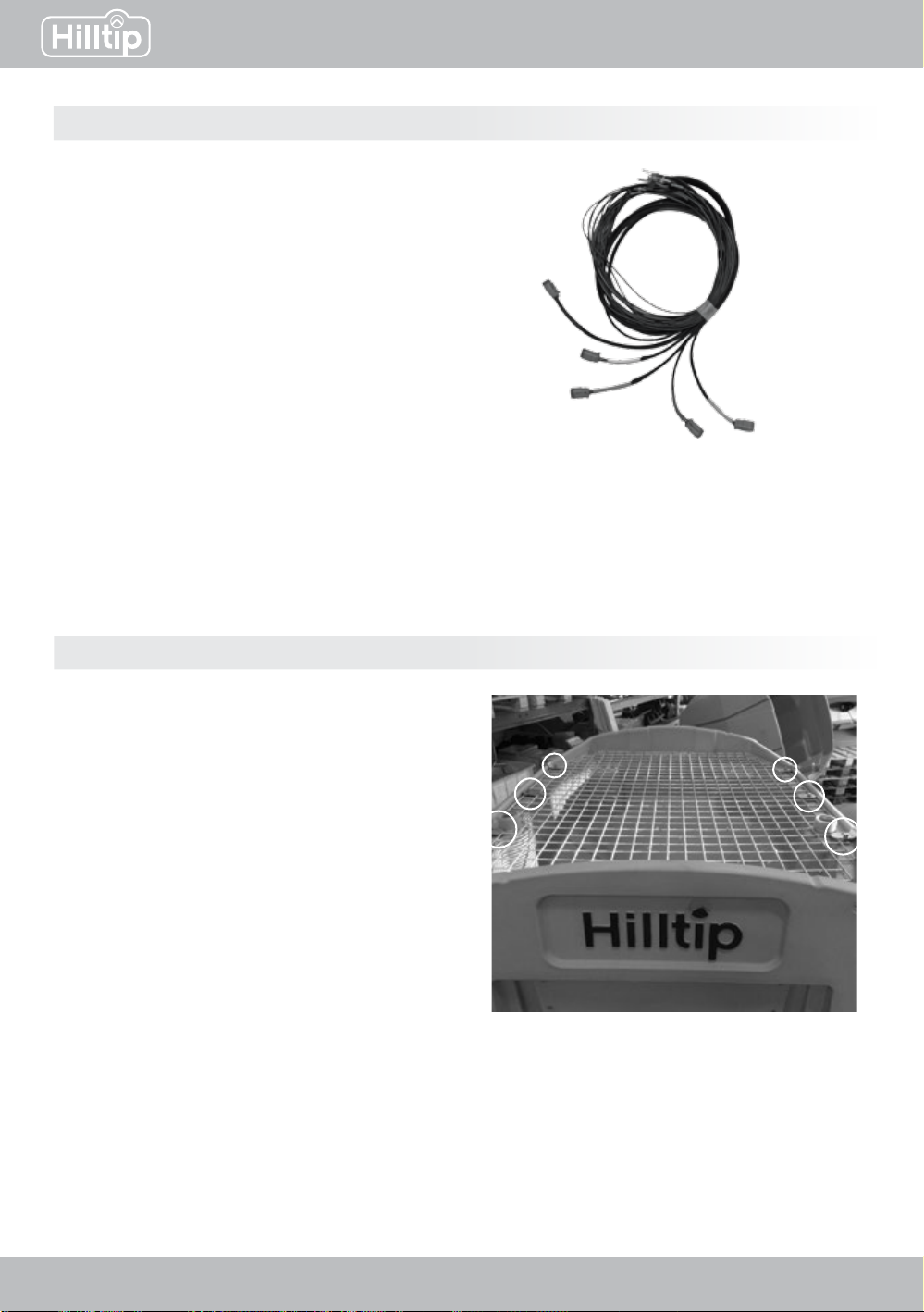

Accessory cables

Mounting the top screen

Placethescreensothatittsthehopperopening.

Fasten the brackets on both sides of the screen,

theatbracketshouldbeinthemiddle.

IceStrikerTM

Mounting the Tarp cover assembly

Insert one of the longer pipes into the

opening in the cover (pre-mounted)

1Insert brackets in both sides.

Connect pipe and brackets with bolts in

both ends.

3Place the second long pipe under the

cover and connect to the brackets using

bolts
