Hisense HAWC12D Manuale utente

SWINGSWING

OFFON/

MODE

TIMER

FAN

SPEED

Window (Room) Air Conditioner

User Manual

HAWC12D

Thank you very much for purchasing a air conditioner, please

read this User and Care Manual carefully before installing and using this

appliance, keep this manual for future reference.

CONTENTS

Safety precautions

Operating instructions

Electrical specifications

Part names

Maintenance

Troubleshooting

Installation instructions

Operation tips 9

PDF created with pdfFactory Pro trial version www.pdffactory.com

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

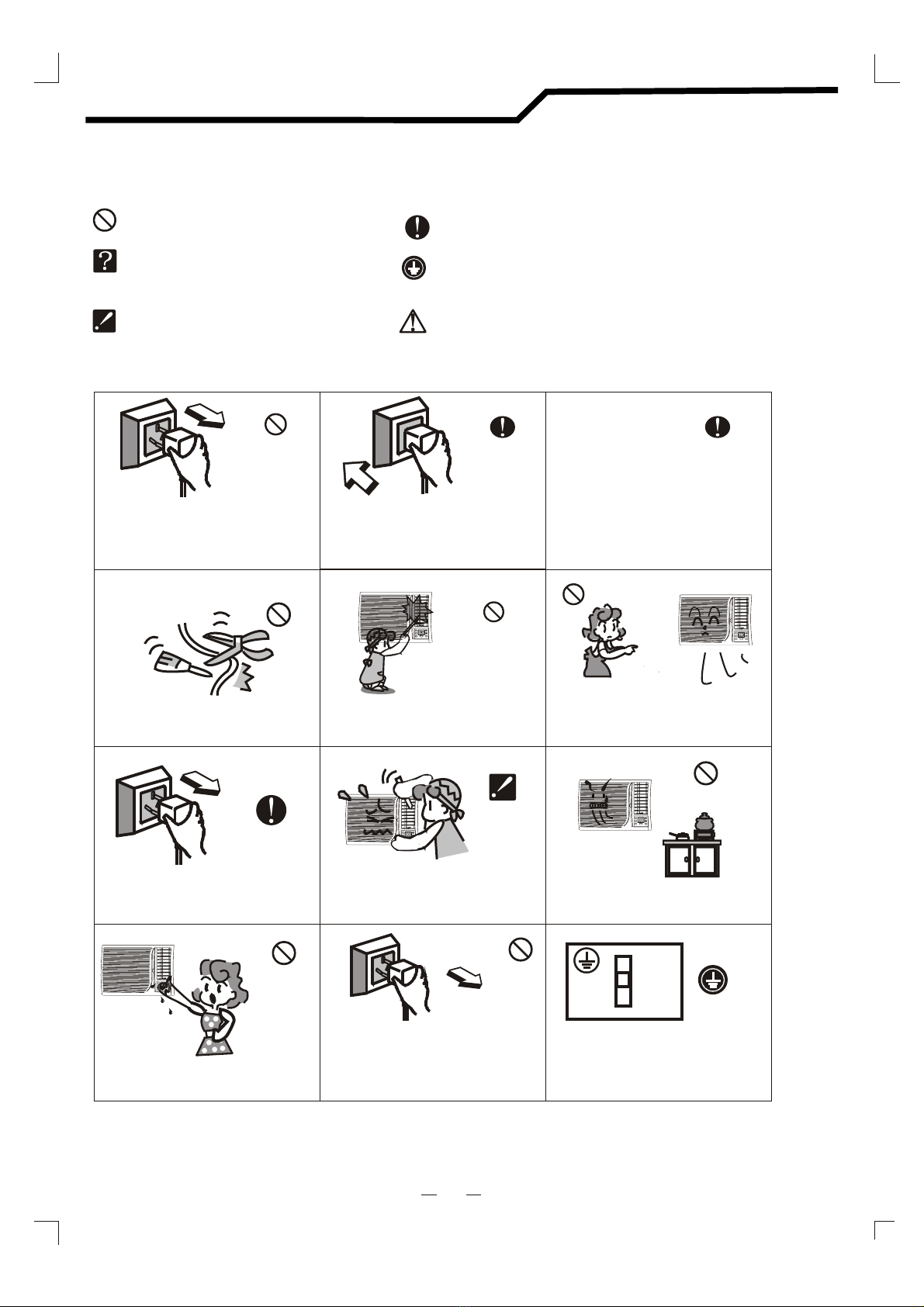

Symbols in this User's Manual are interpreted as shown below:

Be sure not to do.

The feature of the appliance,

instead of a fault.

Pay attention to such a situation.

Grounding is necessary.

Be sure to follow the instruction.

Do not use the power supply circuit

breaker or pull off the plug to turn it off

during operation. This may cause a fire

due to spark, etc.

Keep the power supply circuit breaker

or plug from dirt. Connect the power

supply cord to it firmly and correctly,

lest an electric shock or a fire break out

due to insufficient contact.

Otherwise, serious faults maybe occur

Use correct power supply according to the

rating plate.

or a fire maybe break out.

Do not knit, pull or press the power supply

cord, lest the power supply cord be broken.

An electric shock or fire is probably caused

by a broken power supply cord.

Never insert a stick or similar to the unit.

Since the fan rotates at high speed, this

may cause an injury.

Do not repair the appliance by yourself.

If this is done incorrectly, it may cause

an electric shock, etc.

Turn off the appliance first before cutting

off power supply when malfunction occurs.

It is harmful to your health if the cool air

reaches you for a long time. It is advisable

to let the air flow be deflected to all the room.

Prevent the air flow from reaching the gas

burners and stove.

Do not touch the operation buttons

when your hands are wet.

Pull off the plug to stop it when

the operation is abnormal

( a peculiar odor is smelled, etc.),

or it may cause an electric shock, etc.

It is the user's responsibility to make the

appliance be grounded according to

local codes or ordinances by a licenced

person.

Warning: Incorrect handling could

cause a serious hazard, such as death,

serious injury,etc.

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

Safety Precautions

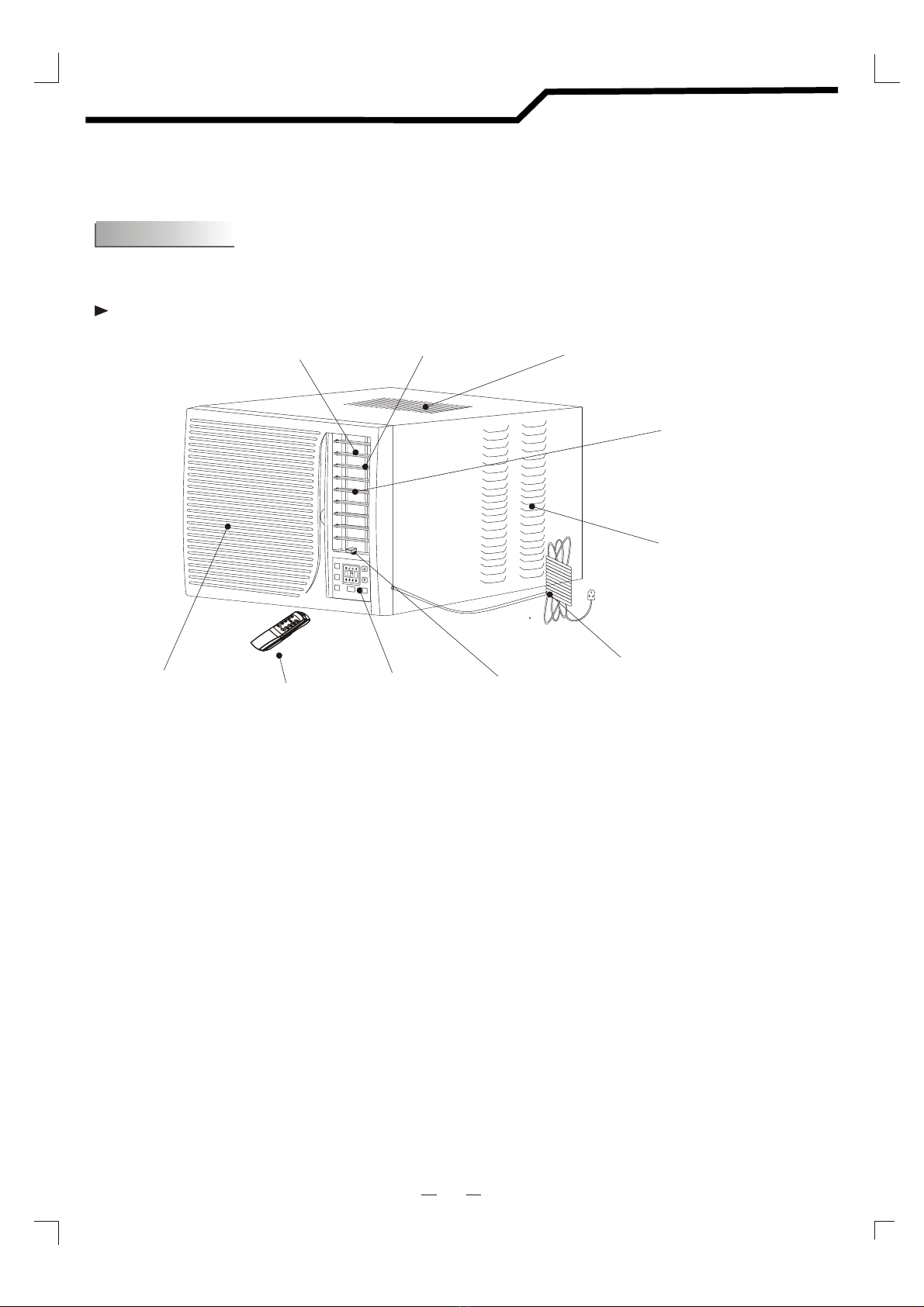

Note: The figure in this manual are based on the external view of a standard model.

Consequently, the shape may differ from that of the air conditioner you have selected.

Air Outlet

Fig. 1

Control Panel

Power Cord

Interior

Air Inlet

Grille

Horizontal Air Vane

Vertical Air Vane

Front view

Fresh air lever

Exterior Air Inlet

Remote Controller

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

For remote control model

Parts Names

Air Filter handle

Fresh air lever

SWING

OFFON/

MODE

TIMER

FAN

SPEED

Shut the fresh air door to achieve the best

cooling effect and open it to introduce fresh

air into the room if the air is foul inside .

Fresh air lever

SHUT OPEN

Fresh air lever

Pull out

Push in

Fig.1 Fig.2

Outside Air Outlet

Drainage Tip

Exterior Air Inlet

1.Accessories

Back view

Parts Name

Operating Instructions

MODE Button

Each time the MODE button is pressed, the operation

mode is changed in sequence:

COOLING FAN ONLY ENERGY SAVING COOLING

NOTE: After setting a mode, allow 3

minutes before switching to another mode.

NOTE: The temperature setting range is from 19 (66 ) to 31 (88 ).

FAN SPEED Button

Used to select the fan speed in sequence: auto low

medium high.

SWING Button

Used to start or stop the vertical air vanes.

TIMER Button

Used to set or cancel a timer operation.

When the unit is in operation, you can set the OFF TIMER.

When the unit is off, you can set the ON TIMER.

Timer setting range is 0 to 24 hours.

If the OFF TIMER is set, the timer LED displays

the remaining operating time for only 12 seconds,

the display then reverts to displaying the set temperature.

If the ON TIMER is set, the timer LED displays

the remaining time to left until turn on.

If you want to cancel the ON TIMER, press the TIMER

button again.

Used to set the room temperature in COOLING mode or the time in TIMER mode.

ON/OFF Button

The air conditioner will start operation or will stop operation

when this button is pressed.

You can easily operate this air conditioner by pressing

the relevant button on the control panel as well as the

remote controller.

Indication symbols on the LED control panel:

High fan speed

Medium fan speed

Low fan speed

Auto fan speed Cooling

Fan only Display set temp

Display set timer

Timer

The above LED symbol lights when the relevant mode is in use.

Energy-saving

Buttons

Control Panel

SWING

OFFON/

MODE

TIMER

FAN

SPEED

Power

Mode

Temp/Time

Auto

Power Saver

Mid

High Low

Timer

Fan Speed

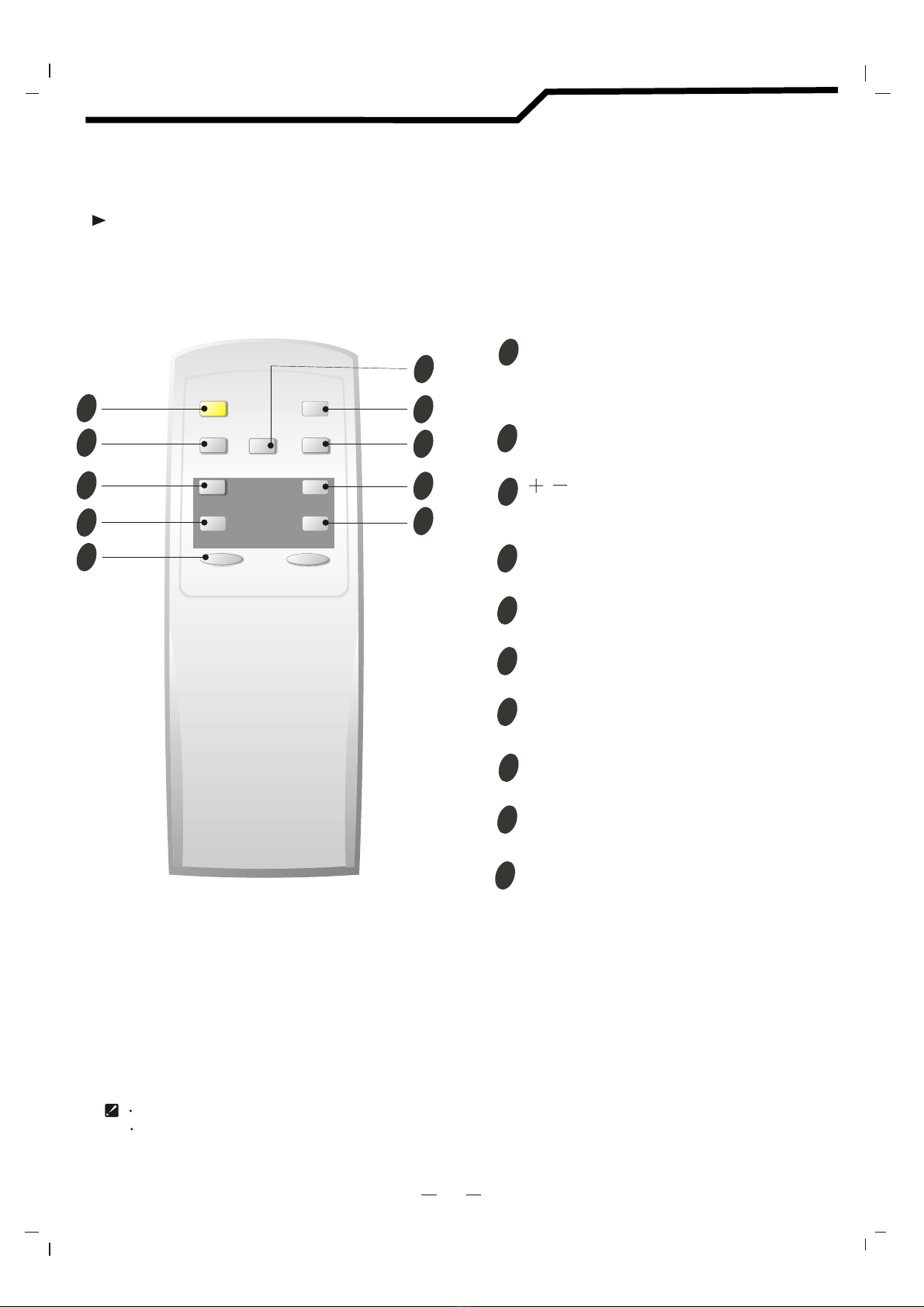

The remote controller transmits signals to the system.

Remote Controller

Swing

Operating Instructions

Buttons

POWER Button

MODE Button

TIMER Button

The air conditioner will start operation or

will stop operation when this button is

pressed.

Used to select the mode.

Used to set or cancel a timer operation..

4HIGH Button

Used to select mode.high fan speed

5MID Button

Used to select medium mode.fan speed

6LOW Button

Used to select Low mode.fan speed

7AUTO Button

Used to select the Auto mode.fan speed

9POWER SAVE Button

Used to select the mode.Energy-saving

Used to set the room temperature in COOLING

mode or the time in TIMER mode.

Used to start or stop the vertical air vanes.

10 SWING Button

When changing modes during operation, the unit will not respond instantly. Please wait 3 minutes.

Wait 3 minutes before restarting the appliance.

Signal receptor

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

Operating Instructions

Remote Control

How to Insert the Batteries

Remove the battery cover according to the arrow direction.

Insert new batteries making sure that the (+) and (-) of the

battery are matched correctly.

Re attach the cover by sliding it back into position.

Note:

Use 2 LR6 AA(1.5volt) batteries. Do not use rechargeable batteries. Re-

place batteries with new ones of the same type when the operation becomes

erratic. If the replacement is done within 1 minute, the remote control will keep

its original presets.

How to Use

To operate the room air conditioner , aim the remote control

at the remote sensor.

The remote control will operate the air conditioner at a dis-

tance of up to 23 feet when pointed at the remote sensor on the

main unit.

Unplug from power source

Front panel maintenance Air filter maintenance

Take out air filter as shown

Stop operation and

take out air filter.

Wipe with a soft and dry cloth

Use lukewarm water

(below 40 C) to clean

if the air conditioner

is very dirty.

Unplug from power

source after switch off

the air conditioner.

Never use volatile substance

such as gasoline or polishing

powder to clean the appliance.

Clean and reinstall the air filter.

If the dirt is conspicuous,

wash it with a solution of

detergent in lukewarm water.

After cleaning, dry well in

shade.

soft cloth to

clean it.

Use a dry and

SWING

OFF

ON/

MODE

TIMER

FAN

SPEED

Care and Maintenance

Noise pollution

Operating condition

The protective device maybe trip and stop

the appliance in the cases listed below. The noise level of air conditioner sounds

higher at night than in the daytime.

Please set (LOW FAN SPEED) or

(FAN ONLY) mode at night in order

to decrease noise.

COOLING

Outdoor air temperature is over *43 c

Room temperature is below 21 c

You need to wait 3 minutes before restarting.

(Note : If you let the appliance on after power cut, the compressor may be burned)

Features of protector

Caution

The protective device will work at following cases.

Restarting the unit at once after operation stops or changing mode during operation, you need to

wait 3 minutes.

Connect to power supply and turn on the unit at once, it may start 20 seconds later.

Use proper fuse

Do not use wire or anything else instead of fuse. Otherwise, air conditioner will be damaged,

or cause stock, fire, etc.

If the air conditioner runs in COOLING or DRY mode with

door or window opened for a long time when relative

humidity is above 80%,dew may drip down from the outlet.

*For Tropical (T3) Climate condition models, the

temperature point is 52 instead of 43 .

Operation Tips
