Read the manual carefully and ensure you have fully understood its

contents before operating this device for the first time.

Safety Instructions

CAUTION

This symbol indicates high voltage

is present inside. It is dangerous

to make any kind of contact with

any inside part of this product.

This symbol alerts you that

important literature concerning

operation and maintenance has

been included with this product.

ELECTRIC

RISK OF SHOCK

CAUTION: To reduce the risk of

electric shock, do not remove cover

(or back). No user serviceable parts

service personnel.

Waste Electrical and Electronic Equipment-WEEE

Attention: users in European Union private households

This marking on the product or on its packaging illustrates that,

under European Directive 2012/19/EU governing used electrical

and electronic appliances, this product may not be disposed of with

normal household waste. You are responsible for disposal of this

equipment through a designated waste electrical and electronic

equipment collection. To determine the locations for dropping off

such waste electrical and electronic equipment, contact your local

government ofce, the waste disposal organization that serves your

household or the store at which you purchased the product.

End of Life Directives-Recycling

Your new Public Information Display contains several materials that

can be recycled for new users.

Please dispose of according to all Local, State, and Federal laws.

End-of-Life Disposal

Your new Public Information Display contains materials that can be recycled and

reused. Specialized companies can recycle your product to increase the amount of

reusable materials and to minimize the amount to be disposed of.

Please nd out about the local regulations on how to dispose of your old display from

your local dealer.

For customers in Canada and U.S.A.

This product may contain lead and/or mercury. Dispose of in accordance to local-

state and federal regulations. For additional information on recycling contact www.eia.

org (Consumer Education Initiative)

Safety Instructions

Important Safety Instructions

Read and follow these instructions when connecting and using your Public

Information Display.

• Unplug the display if you are not going to use it for an extensive period of time.

• Unplug the display if you need to clean it with a slightly damp cloth. The screen

may be wiped with a dry cloth when the power is off. However, never use alcohol,

solvents or ammonia-based liquids.

• Consult a service technician if the display does not operate normally when you

have followed the instructions in this manual.

• The casing cover should be opened only by qualied service personnel.

• Keep the display out of direct sunlight and away from stoves or any other heat

sources.

• Remove any object that could fall into the vents or prevent proper cooling of the

display’s electronics.

• Do not block the ventilation holes on the cabinet.

• Keep the display dry. To avoid electric shock, do not expose it to rain or excessive

moisture.

• If turning off the display by detaching the power cable, wait for 6 seconds before

re-attaching the power cable for normal operation.

• To avoid the risk of shock or permanent damage to the set, do not expose the

display to rain or excessive moisture.

• When positioning the display, make sure the power plug and outlet are easily

accessible.

• IMPORTANT: Always activate a screen saver program during your application. If a

still image in high contrast remains on the screen for an extended period of time,

it may leave an ‘after-image’ or ‘ghost image’ on the front of the screen. This is

a well-known phenomenon that is caused by the shortcomings inherent in LCD

technology. In most cases the afterimage will disappear gradually over a period

of time after the power has been switched off. Be aware that the after-image

symptom cannot be repaired and is not covered under warranty.

Safeguards

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

iii

Safety Instructions

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third

prong is provided for your safety. If the provided plug does not t into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by

the manufacturer, or sold with the apparatus. When a cart is used,

use cautiously when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of

time.

14. Refer all servicing to qualied service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

15. The batteries (batteries installed) shall not be exposed to excessive heat such as

sunshine, re or the like.

16. An all-pole MAINS SWITCH is used as the disconnect device, the location on the

apparatus and the function of the switch shall be described, and the switch shall

remain readily operable.

WARNING:

• To reduce the risk of re or electric shock, do not expose this apparatus to rain or

moisture.

• Apparatus shall not be exposed to dripping or splashing and no objects lled with

liquids, such as vases, shall be placed on the apparatus.

• The batteries (batteries installed) shall not be exposed to excessive heat such as

sunshine, re or the like.

• The mains plug or appliance coupler is used as the disconnect device,the

disconnect device shall remain readily operable.

• To prevent the spread of re, keep candles or other open ames away from this

product at all times.

• To prevent injury, this apparatus must be securely attached to the oor/wall in

accordance with the installation instructions.

Safety Instructions

• The Class I apparatus shall be connected to a mains socket outlet with a

protective earthing connection.

Never place a television set in an unstable location. A television set may fall, causing

serious personal injury or death. Many injuries, particularly to children, can be

avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or

bookcases) without anchoring both the furniture and the television set to a

suitable support.

• Not placing the television set on cloth or other materials that may be located

between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the

television set or its controls.

If your existing television set is being retained or relocated, the same considerations

as above should be applied.

• This equipment is compliant with Class A of EN55032/CISPR 32. In a residential

environment this equipment may cause radio interference.

CAUTION:

• These servicing instructions are for use by qualied service personnel only. To

reduce the risk of electric shock,do not perform any servicing other than that

contained in the operating instructions unless you are qualied to do so.

• Excessive sound pressure from earphones and headphones can cause hearing

loss. Adjustment of the equalizer to maximum increases the earphone and

headphone output voltage and the sound pressure level. Therefore, to protect

your hearing, adjust the equalizer to an appropriate level.

• FCC/CSA regulations state that any unauthorized changes or modications to this

equipment may void the user’s authority to operate it.

• To prevent electric shock, match the wide blade of plug to the wide slot, and fully

insert the plug.

• To prevent damage which may result in re or electric shock hazard, do not

expose this appliance to rain or moisture.

• The Socket-outlet should be installed near the apparatus and be easily

accessible.

Safety Instructions

NOTE:

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

Contents

1. Unpacking and Installation ..................................................................................1

1.1. Unpacking ................................................................................................1

1.2. Package Contents....................................................................................1

1.3. Installation Notes......................................................................................2

1.4. Mounting on a Wall ..................................................................................2

2. Parts and Functions ............................................................................................4

2.1. Control Panel ...........................................................................................4

2.2. Input/Output Terminals .............................................................................5

2.3. Remote Control........................................................................................6

3. Connecting External Equipment..........................................................................8

3.1. Connecting External Equipment (DVD/VCR/VCD) ..................................8

3.2. Connecting a PC......................................................................................8

3.3. Connect USB ...........................................................................................9

4. Operation...........................................................................................................10

4.1. Media Player Introduction ......................................................................10

4.2. PDF Reader Play ...................................................................................12

4.3. U player Autoplay Instructions................................................................14

4.4. U disk Files Playback and Copy Instructions .........................................15

4.5. App Customization.................................................................................15

5. OSD Menu.........................................................................................................16

5.1. Navigating the OSD Menu .....................................................................16

5.2. Operation on the OSD Menu..................................................................17

6. Compatibility of the USB device ........................................................................22

7. Input Mode ........................................................................................................26

8. Cleaning and Troubleshooting...........................................................................29

8.1. Cleaning.................................................................................................29

8.2. Troubleshooting .....................................................................................30

9. Technical Specications ....................................................................................32

Unpacking and Installation

This manual is for reference only, please refer to the actual machine.

1. Unpacking and Installation

1.1. Unpacking

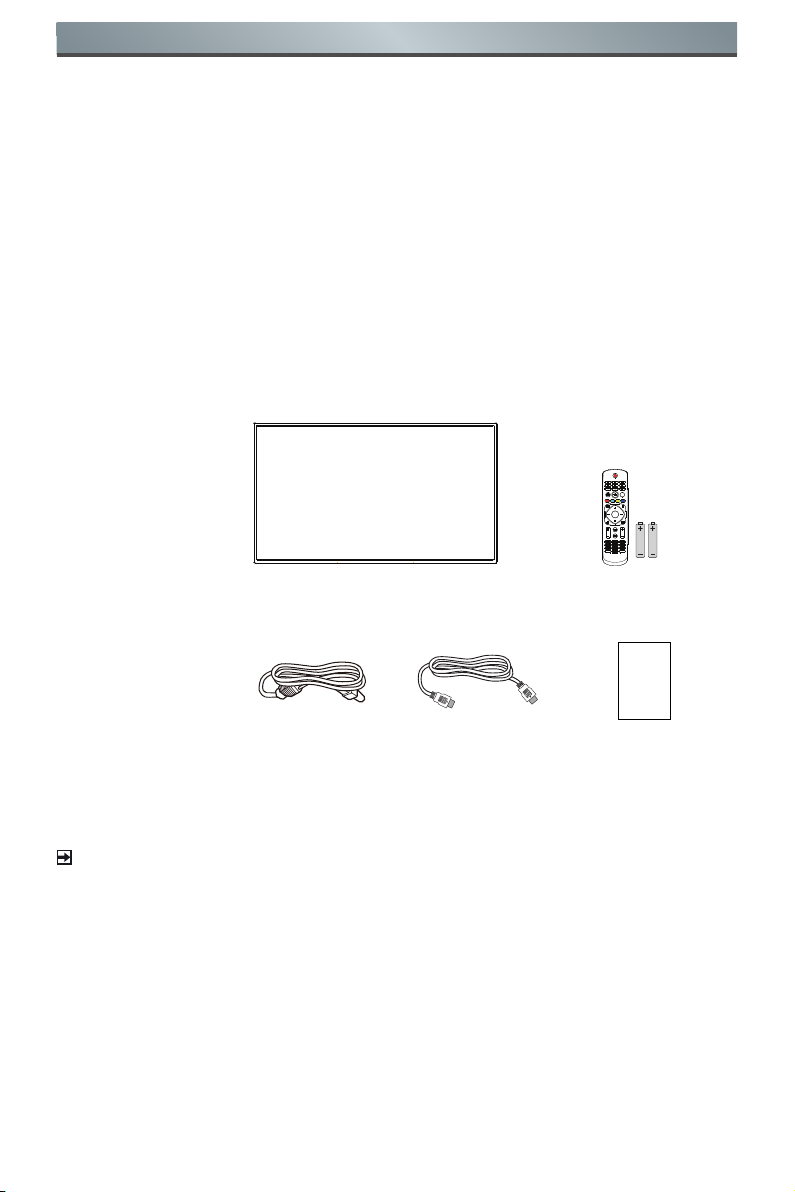

• This product is packed in a carton, together with the standard accessories.

• Any other optional accessories will be packed separately.

• Move the display by at least two (2) adults.

• After opening the carton, ensure that the contents are complete and in good

condition.

1.2. Package Contents

Please verify that you received the following items with your package content:

• LCD Display

• User Manual

• Remote Control

with AAA

Batteries

• Power Cord

• HDMI Cable * The supplied power cord varies

depending on destination.

Power Cord

Remote Control

and AAA Batteries

HDMI Cable User Manual

VOL CH

RETURN HELP

INFO OPTION

SOURCE

SET

FORMAT

FUNCTION

* Items may differ in different locations

* Display design and accessories may differ from the images

shown.

NOTES:

• For all other regions, apply a power cord that conforms to the AC voltage of the

power socket and has been approved by and complies with the safety regulations

of the particular country.

• Keep the packaging materials appropriately after unpacking the product.

Unpacking and Installation

1.3. Installation Notes

• Only use the power cable provided with this product. If an extension cord is

required, please consult your service agent.

• The product should be installed on a at surface, or the product may tip over.

Leave a space between the rear of the product and the wall for proper ventilation.

Do not install the product in a kitchen, bathroom or a place exposed to moisture,

failure to do so may shorten the life of the internal parts.

• Do not install the product where it is 3000m or higher in altitude. Failure to do so

may result in malfunctions.

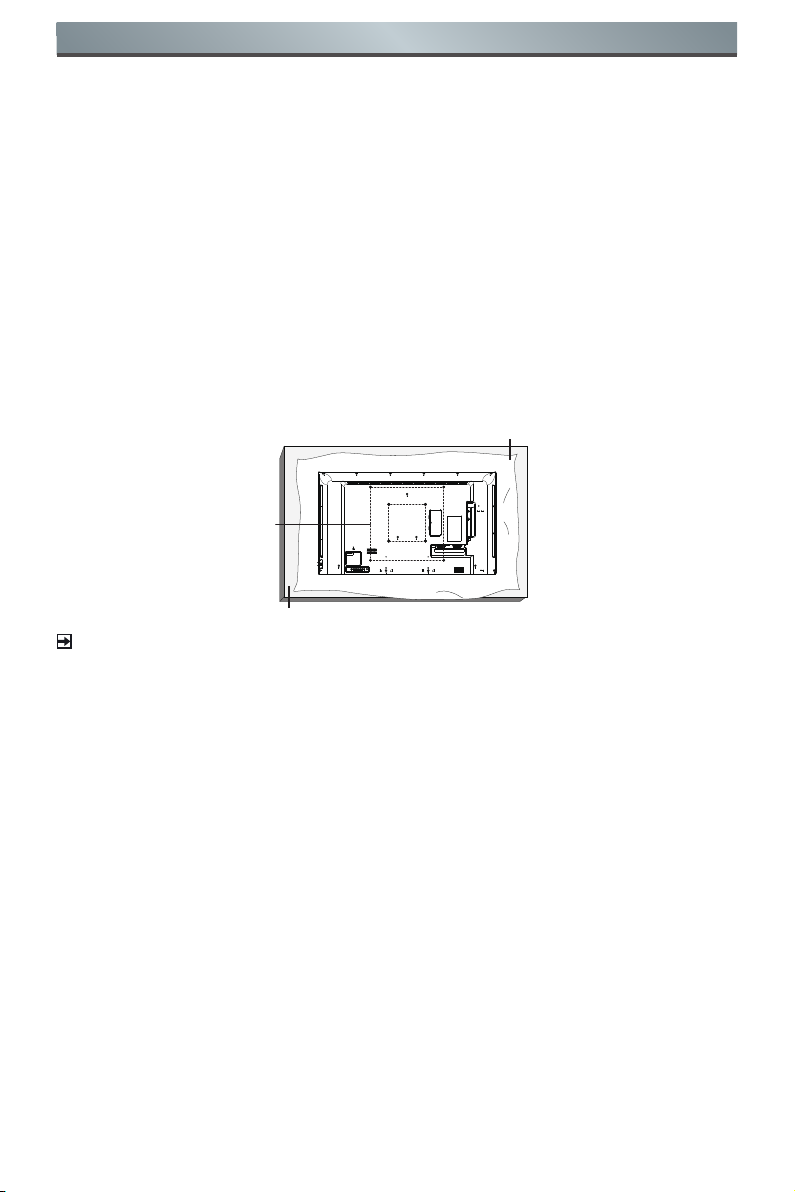

1.4. Mounting on a Wall

To mount this display onto a wall, you will have to obtain a standard wall-mounting kit

(commercially available). We recommend using a mounting interface that complies

with TUV-GS and/or UL1678 standard in North America.

Protective Sheet

VESA Grid

Table

NOTE:

The appearance and color of the product are subject to the material object. The

picture is for reference only.

1. Lay a protective sheet on a table, which was wrapped around the display when it

was packaged, beneath the screen surface so as not to scratch the screen face.

2. Ensure you have all accessories for mounting this display (wall mount, ceiling

mount, table stand, etc).

3. Follow the instructions that come with the base mounting kit. Failure to follow

correct mounting procedures could result in damage to the equipment or injury to

the user or installer. Product warranty does not cover damage caused by improper

installation.

4. For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer

than the thickness of the mounting bracket) and tighten them securely.

Unpacking and Installation

To prevent the display from falling:

• For wall or ceiling installation, we recommend installing the display with metal

brackets which are commercially available. For detailed installation instructions,

refer to the guide received with the respective bracket.

• To lessen the probability of injury and damage resulting from fall of the display

in case of earthquake or other natural disasters, be sure to consult the bracket

manufacturer for installation location.

Ventilation Requirements for enclosure locating

To allow heat to disperse, leave space between surrounding objects as shown in the

diagram below.

100 mm 100 mm

100 mm

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hisense Segnaletica digitale

Hisense

Hisense 49SOA25PT Manuale utente

Manuali Segnaletica digitale popolari di altre marche

LG 72WS70MS-B Manuale utente

SMART-AVI

SMART-AVI SIGNAGEPRO Manuale utente

LG 65SM5D Manuale utente

LG 55EW5TK-A.AUS Manuale utente

KeyWest Technology

KeyWest Technology BREEZE Manuale utente

XtendLan

XtendLan XL-DSP-183C Manuale utente

LG 47VL10 Manuale utente

LG WP400 Guida rapida

Dynascan

Dynascan DS861LR4 Manuale utente

Classic Exhibits

Classic Exhibits SEGUE DESIGNS MOD-1363 Manuale utente

LG 22XE1J Manuale utente

protech

protech KT-7290 Manuale utente

WebDT

WebDT 515A Istruzioni per il montaggio

Samsung

Samsung IWJ Series Manuale utente

LG 84TR3B Manuale utente

LG 55EJ5D Guida rapida

EVERI

EVERI Enrollment Kiosk Manuale utente

LG 75XS4G Manuale utente
