Hisense HS212 Manuale utente

Hisense 2.1 ch Soundbar With Wireless Subwoofer

Model: HS212

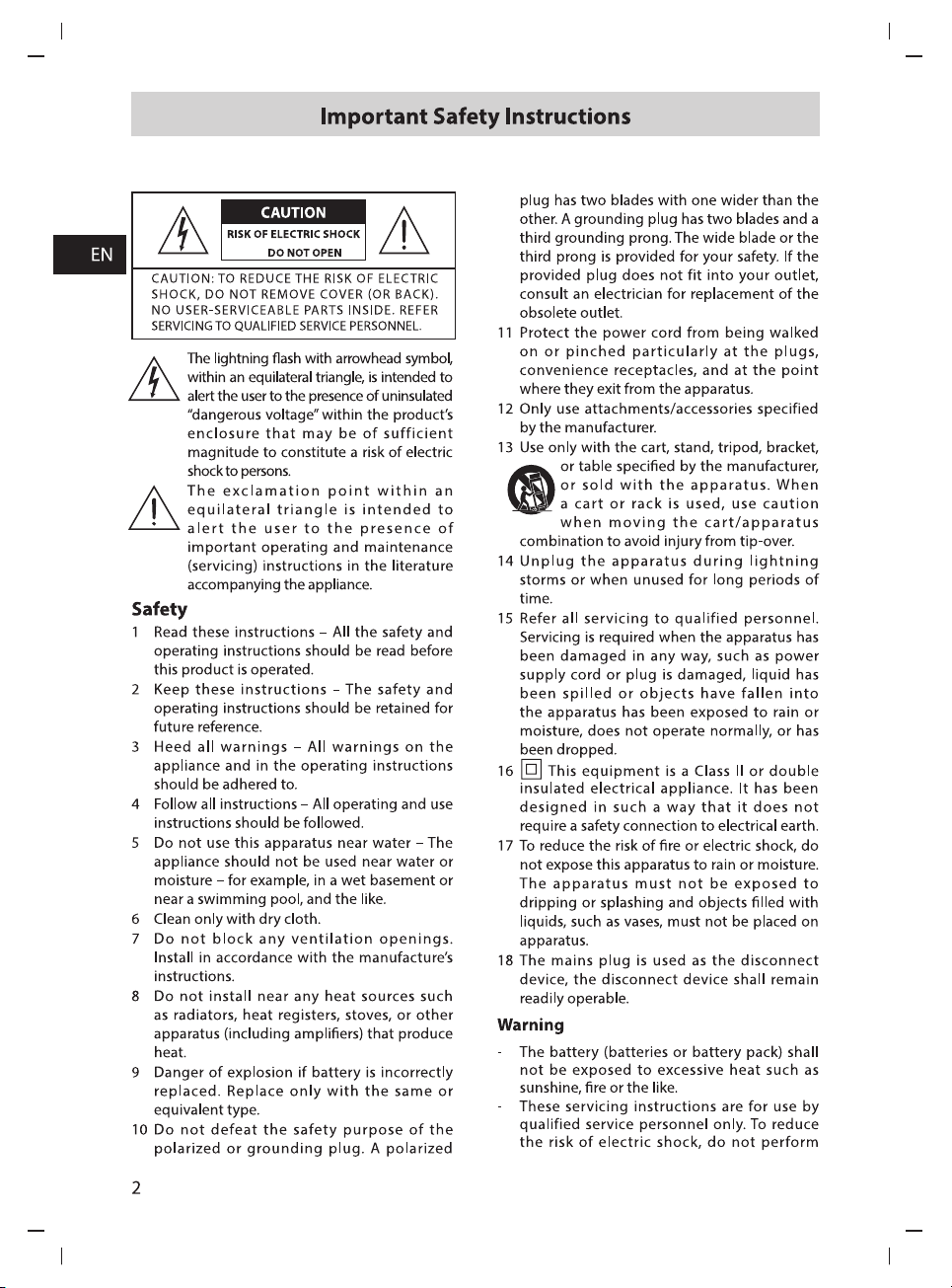

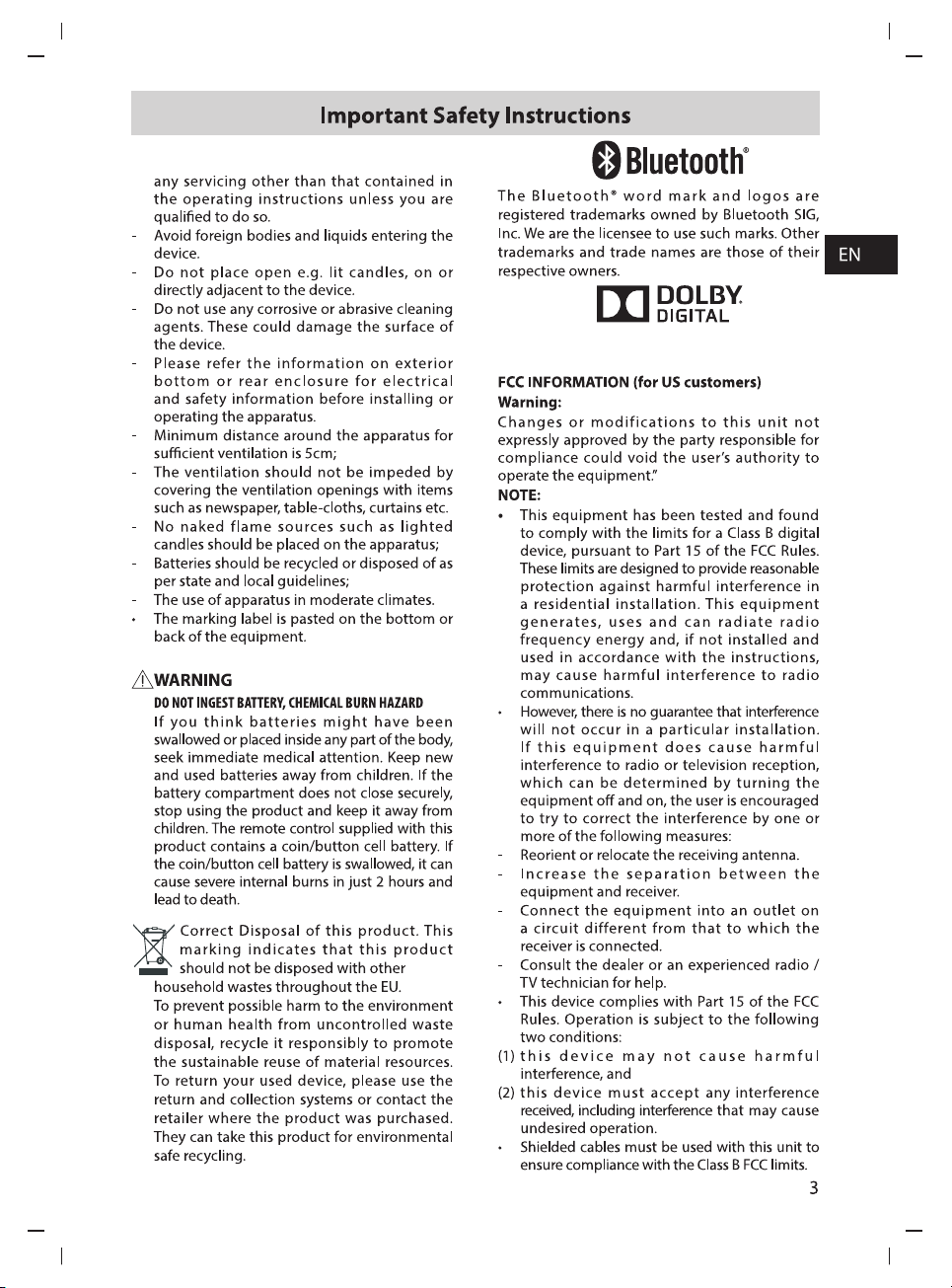

Read all the safety instructions carefully before use and keep

this instruction manual for future reference.

-1-

RCA(AUX)

LINE IN

Subwoofer Connection

LINE IN

Manufactured under license from Dolby

laboratories.Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

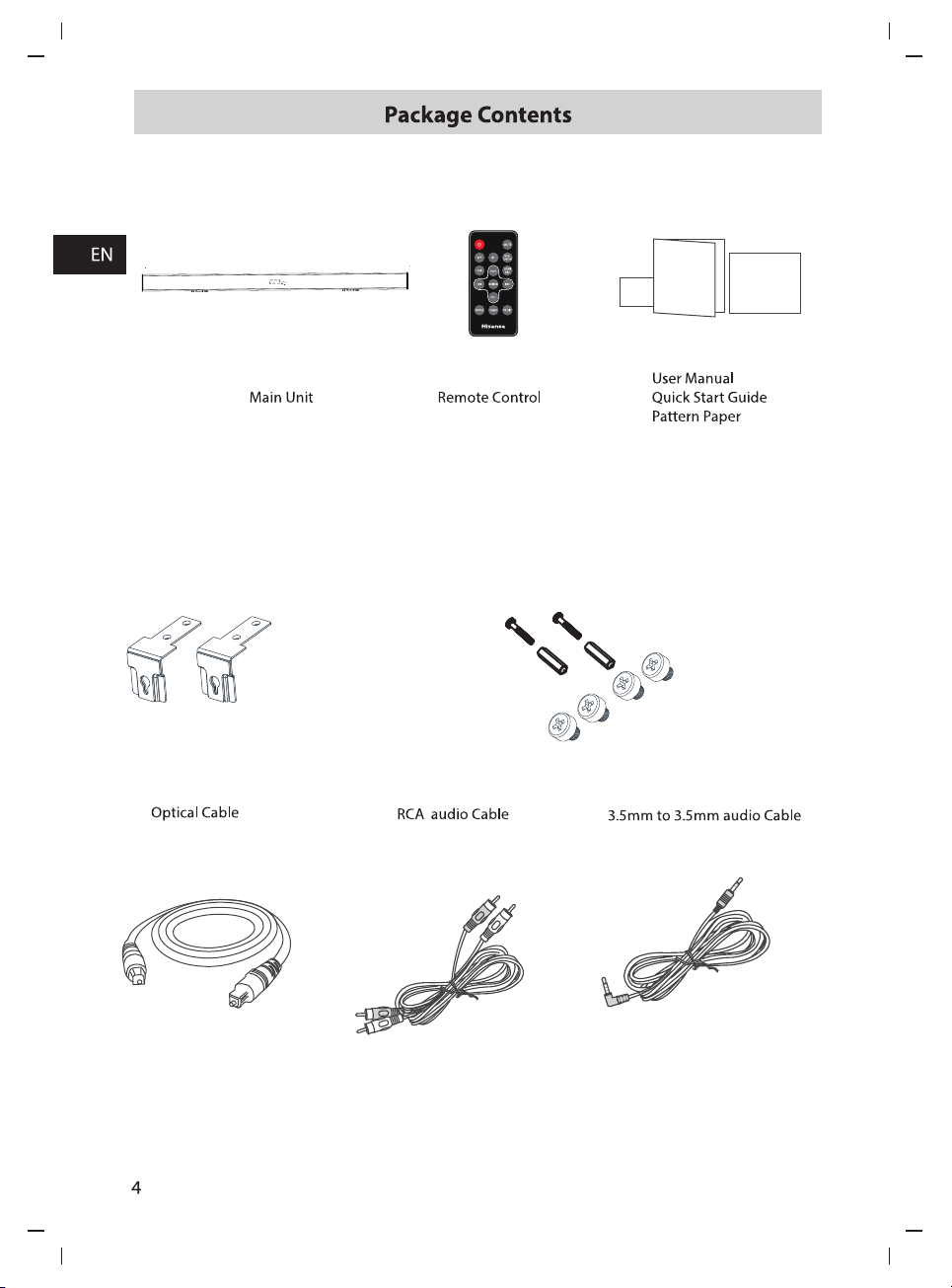

Bracket(2x) Wall plug(2x) and screw(2x) and bracket screw(4x)

REMOTE SENSOR

Side View:

DISPLAY SCREEN

OPTICAL DIGITAL AUDIO INPUT

HDMI ARC

AUX INPUT

AC INPUT

VOLUME+

STANDBYSOURCE

LINE IN

VOLUME-

USB SLOT

HS 212 Remote Control and LED Display and Port

Remote Control Port

LED Display

OPT OPt OPTICAL

BT bt /

LINE IN LInE

USb

LINE IN

RCA R-AUX,IN-L

USB USB

HDMI ARC ArC HDMI

VOL+/VOL- U 0~45

PAIR PLAy/PAUS

001

MOVIE eq2

NEWS eq3

eq1

MUSIC

MUTE U 0 0

STANDBY on/byE

rCA

Functional Mode

Switch to OPTICAL mode

Switch to Bluetooth mode

Switch to LINE IN mode

Switch to RCA(AUX) mode

Switch to USB mode

Audio Return Channel from TV/AV to

Sound bar

Inside

In Bluetooth mode/USB mode:Skip to

previous/next track

Play/pause/resume playback in Bluetooth mode

Press and Hold to active the pairing function in

Bluetooth mode or disconnect the existing paired

Bluetooth device

Increase/Decrease the volume level

Viewing in MOVIE mode

listening in NEWS mode

listening in MUSIC mode

Mute or resume volume

Switch the unit between ON and

STANDBY mode

1 STANDBY

2 OPT

3 BT

4 USB

5 VOLUME+

6 PREVIOUS

7 PLAY/PAUSE/PAIR

8 VOLUME-

9 EQ

10 MUTE

11 RCA/LINE IN

12 HDMI ARC

13NEXT

Switch the unit between ON and STANDBY mode.

Switch to OPTICAL IN mode.

Switch to BLUETOOTH mode.

Switch to USB mode.

Increase the volume level.

Skip to previous track.

Play/pause/resume playback.

In bluetooth connection,press and

hold to disconnect the existing paired

bluetooth device.

Decrease the volume level.

Select a preset sound effect mode.

Mute or resume volume.

Switch the unit between RCA and LINE IN mode.

Switch to HDMI ARC mode.

Skip to next track.

Mounting soundbar on a wall

In order to prevent injuries,the sound base device

must be securely fasten to the wall in accordance

with the below installation instructions.

1.Drill the two holes(about 6mm diameter ) in the wall

and keep the distance between drill holes of the

sound base is 500mm.As shown in the picture on the

right(diagram 1).

2. Insert the two plugs supplied into two drilled holes

and then insert two screws supplied into two holes

and tighten.As shown in the picture on the

right(diagram 2).

heads and wall.As shown in the picture on the

right(diagram 3).

Take care to leave 4 mm between the screw

500mm

4mm

Diagram 1

Diagram 2

Diagram 3

4.Insert the wall-mounting bracket supplied

into the pedestal of the sound base.As shown

in the picture on the right(diagram 4).

5.Use the bracket screws supplied to insert

the wall-mounting bracket hole and

tighten.As shown in the picture on the

right(diagram 5).

6.Use the assembled sound base to hang on

the setscrews on the wall .As shown in the

picture on the right(diagram 6).

Diagram 4

Diagram 5

Diagram 6

REAR PANEL

OF THE SUBWOOFER

Audio out(L,R)

RCA(L,R)

DVD

RCA(AUX)

LINE IN

Insert the AC power cord into

a mains socket.

RCA(AUX)

LINE IN

Make sure the AC power cord is connected to a power supply

securely. subwoofer have the wireless bluetooth to receive the

audio signal from the sound bar.when the blue indicator flashing ,

the subwoofer is in searching bluetooth signal status, the blue

indicator keeps lighting means bluetooth was connected,if the

subwoofer can not connect with the soundbase

automatically,please press pair button on the rear panel of

subwoofer to reconnect .

The subwoofer will memories the sound bar and repaired

automatically when you power off the subwoofer then power on.

Subwoofer Connection
