Hisense Washing Machines Istruzioni per il montaggio



ensure

Ensure

Single inlet -

Dual inlet - and cold

only

Ensure that the ventilation openings in the base of the washing machine

(if available on your model) are not obstructed by a carpet or other material.

NOTE

The manufacturer reserves the right for any modifications on the product which

might be deemed necessary or useful without informing about it in this IFU.

Thank you for choosing a Hisense washing machine.

Before operating your new washing machine, please read this instruction

carefully, and keep it for future reference.

Please make sure the socket is grounded securely, the water source connection

is reliable. The manufacturer declines all liability and warranty for damage to

property or injury to persons or animals due to non-compliance with the

directions given in this instruction.

If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used and that old

hose-sets should not be reused.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical. Sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of theappliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall

not be by children without supervision.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The maximum permissible inlet water pressure, 1MPa, for appliances intended to

be connected to the water mains

The minimum permissible inlet water pressure, 0.1MPa, if this is necessary for the

correct operation of the appliance

For washing machines with ventilation openings in the base, that a carpet must not

obstruct the openings.

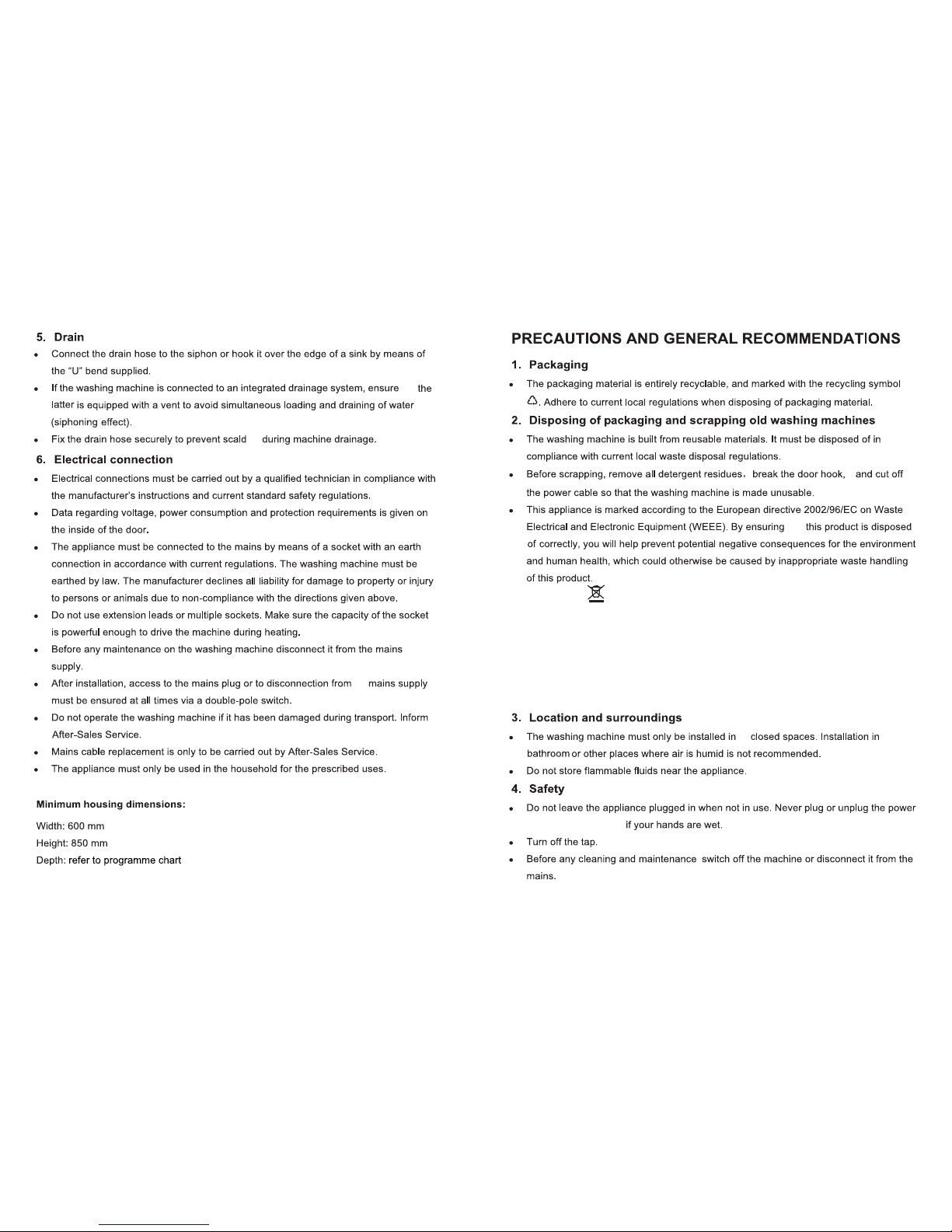

Thesymbol ontheproduct,oron thedocumentsaccompanyingtheproduct,

indicates that thisappliancemay not be treatedas householdwaste. Insteadit

shall be handed over to the applicable collection point for the recycling of electrical

andelectronicequipment. Disposalmustbecarriedoutinaccordancewithlocal

environmentalregulationsforwastedisposal.Formoredetailedinformationabout

treatment, recoveryandrecyclingof this product, pleasecontactyourlocalcity

office,yourhouseholdwastedisposalserviceortheshopwhereyoupurchased

the product.

that

the

ing

that

en the

from the mains supply,

Control panel layout and

appearance will depend on the model.

Clean the outside of the washing machine with a damp cloth. Do not use abrasive

detergents.

Never open the door forcibly or use it as a step.

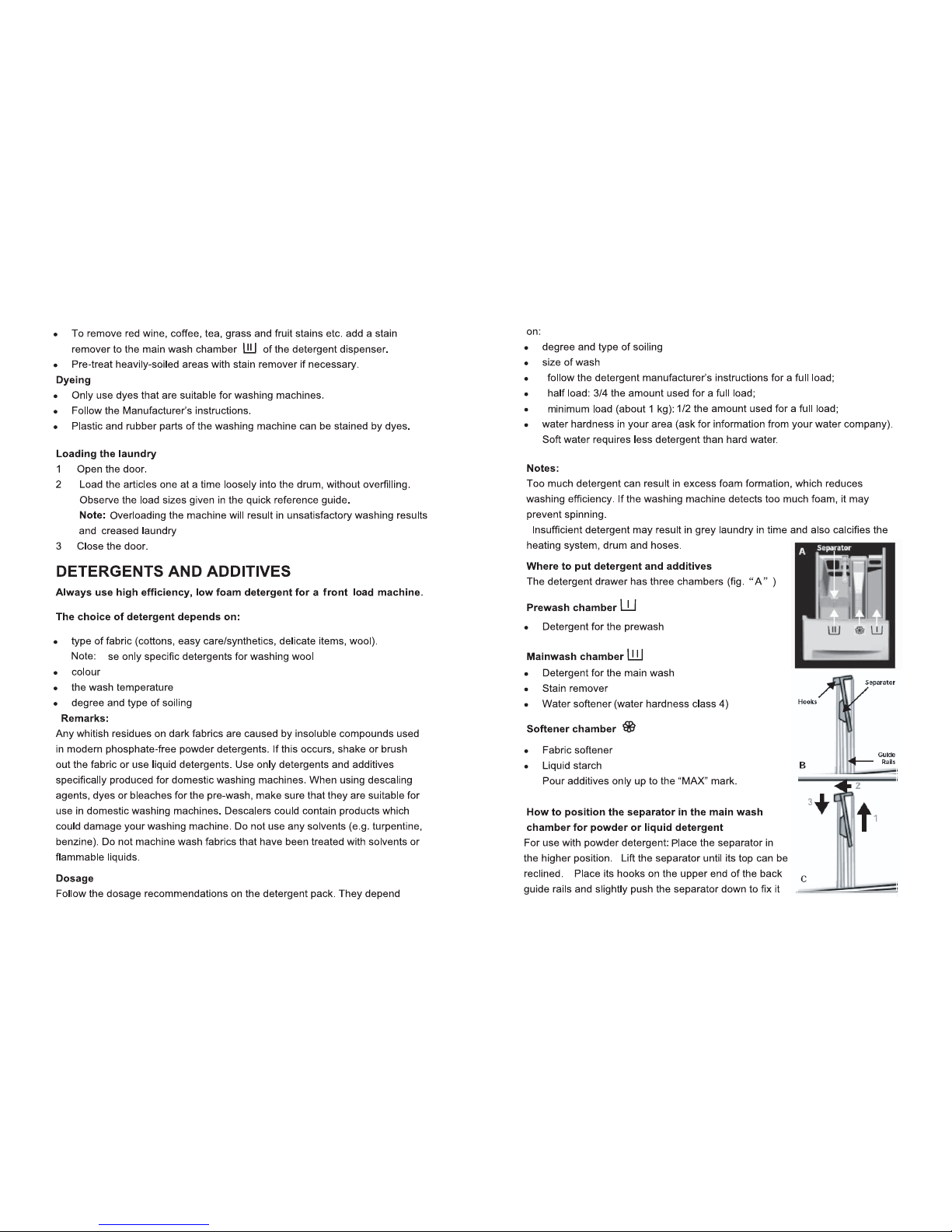

1. Sort the laundry according to...

Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwash items.

The wool wash cycle of this machine has been tested and approved by The

Woolmark Company for the washing of Woolmark garments labelled as “machine

wash” provided that the garments are washed according to the instructions on the

garment label and those issued by the manufacturer of this washing machine.

Colour

Separate coloured and white items. Wash new coloured articles separately.

Wash items of different sizes in the same load to improve washing efficiency and

distribution in the drum.

Delicates

Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras)

in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains

with the rings inside a cotton bag.

2. Empty all pockets

Coins, safety pins etc. can damage your laundry as well as the appliance drum and

tub.

3. Fasteners

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied

together.

Stain removal

Blood, milk, eggs etc. are generally removed by the automatic enzyme phase of the

programme.

To removeanyresidualwaterusedduring testingbythemanufacturer, we

recommend that you carry out a short wash cycle without laundry.

1 Open the tap.

2 Close the door.

3 Pour a little detergent (about 30 ml) into the main wash chamber of the deter-

gent dispenser .

4. Select and start a short programme (see separate quick reference guide).

BEFORETHEFIRSTWASHCYCLE

PREPARATIONOFTHEWASHING

DESCRIPTIONOFTHEWASHINGMACHINE

while the

can

for

for to be

7 8

/ soak

910

unds

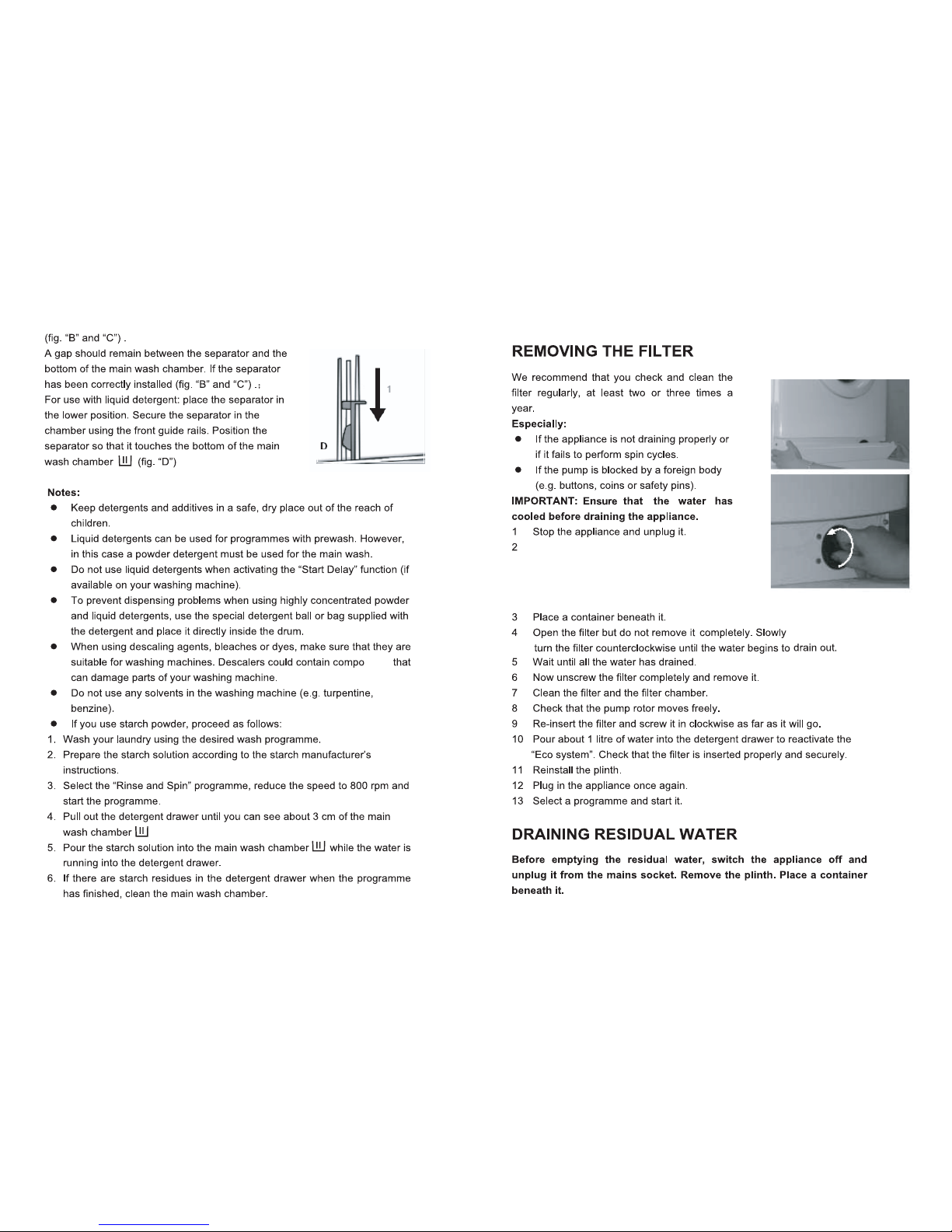

Depending on the model, remove the plinth

by holding it tightly on both sides, pushing it

downward and tilting it to the front. Or, push

down on the tabs provided on both the sides

and remove it.

11 12

fit

13 14

solv

and the power switched ON

too

remove some

15 16

Fig.1

Hot fill

Red inlet valve

Blue inlet valve

Cold fill

Red inlet valve

Blue inlet valve

Cold fill

Y-piece

Fig.2

If you wish to connect hot and cold water supply (Fig.1):

1. Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red

filter on the rear side of machine.

2. Fix the other inlet hose to the cold water tap and to the inlet valve with the blue filter

on the rear side of the machine.

Make sure:

a) The connections are tightly fixed

b) Do not invert their position (for example: cold fill into hot inlet valve and vice versa).

If you wish to connect only the cold fill follow the below instructions (Fig. 2):

1. You will need a Y-piece connector. This can be purchased from local hardware or plumb

ing supplier.

2. Fix the Y-piece connector to the cold fill tap.

3. Connect the two inlet valves present on the rear part of the machine to the Y-piece

connector using the hoses provided.

Ensure that:

All connections are tightly fixed.

Do not allow children to operate, crawl on, be near or inside your washer.

Note that during the wash cycles, the surface temperature of the porthole door may

increase.

Close supervision of children is necessary when the appliance is used near children.

Hot / Cold fill fault - For Models with Dual Inlets

Ensure that

Fault Code List

Displayed on Display Window Fault Description

“F01” Water inflow fault

“F03” Drainage fault

“F04”, “F05”, “F06”, “F07” and “F24” Electronic module fault, overflow or too much foam.

“F13” Door lock fault

“UNB” Unbalance alarm

a. “F01” displayed on screen

The machine is not fed with water or insufficient water. Check:

•Faucetisfullyopenandhasenoughwaterpressure.

•Waterinletpipeisknottedornot.

•Filteringnetofwaterinletpipeisblockedornot(refertomaintenanceand

repair).

•Waterpipeisfrozenornot.

Press “Start/Pause” key after fault is removed.

If fault occurs again, please contact with after-sale service (refer to after-sale

service.).

b. “F03” displayed on screen

The washer is not emptied. The washer stops the program being executed. Shut

down the machine and disconnect power supply. Check:

•Drainpipeisknottedornot.

•Filterindrainpumpisblockedornot(refertothecleaningoffilterindrainpump)
