HISTREAM Mega Pixel IP Camera Manuale utente

Mega

Mega Pixel

Pixel

Pixel IP

IP Camera

Camera

----User

----User Manual

Manual

Packing List:

1. Mega Pixel IP Camera 1 pc

2. DC12V Power Adapter 1 pc

3. User Manual 1pc

4. CD 1pc

5. Warranty Card 1pc

Our corporation reserves the right to make any update to this manual without

notice.

Mega

Mega Pixel

Pixel

Pixel IP

IP Camera

Camera

Camera User

User

User Manual

Manual

1 / 35

Contents

1 Product Overview

...............................................................................................................................

1.1 Main Features

............................................................................................................................

1.2 Basic Specification

.................................................................................................................

1.3 Hardware requirement

............................................................................................................

2 Appearance and Installation

.............................................................................................................

2.1 Backside connection of mega pixel IP Camera

......................................................................

2.2 Hardware installation

.................................................................................................................

3 Searching device and installing ActiveX

........................................................................................

3.1 Searching device and modify network parameters

...................................................................

3.2 Checking connection

.................................................................................................................

3.3 Installing ActiveX and login device

..........................................................................................

4. Software configuration for mega pixel IP Camera

....................................................................

4.1 Liveview

..................................................................................................................................

4.2 Playback

...................................................................................................................................

4.3 System

......................................................................................................................................

4.4 Video

........................................................................................................................................

4.5 Motion alarm

............................................................................................................................

4.6 Sensor alarm

............................................................................................................................

4.7 Network fault alarm

.................................................................................................................

4.8 Network

...................................................................................................................................

4.9 Advanced

.................................................................................................................................

4.10 User management

..................................................................................................................

4.11 Terminal

.................................................................................................................................

4.12 Storage set

..............................................................................................................................

4.13 Local set

.................................................................................................................................

Appendix 1 Network Interface for IP Camera

.................................................................................

Appendix 2 Network Parameters Default

........................................................................................

Appendix 3 Visits IP Camera under different network environment

...........................................

2 / 36

1 Product

Product

Product Overview

Overview

1.1 Main Features

User can visit the mega pixel ip camera live image and playback in IE .



It support s max 10 users visit it at the same time.



Local PC storage or network storage permitted, it is built-in SD slot and supports

several n etwork storage protocols .



Max resolution 1600x1200.



Support CDMA1X and GRPS Mobile network.



Support local or remote arming or disarming.



Support warning detecting and gang video recording scheme. Sending the snapped picture or

alarm message by email or FTP server.



Support video masking, can be set 4 video mask areas.



Set motion detection to alarm for recording, it supports 4 detecting areas.



Sending alarm message and snapshot to user by email or FTP upload.



Support many network protocols, for example, HTTP , TCP/IP ,

UDP,

SMTP , DDNS, DNS,

SNTP ,BOOTP , DHCP ,

FTP,

RTSP,

SNMP , and so on.



Network self-adapting to match the network bandwidth for the bit rate and frame rate.



Support DDNS, LAN and Internet (ADSL 、Cable Modem).



Provide alarm message for Video Lost, Motion Detection (sensitivity and area can be set) and

Sensors.



Support remote configuration, remote upgrade, and remote error testing and automatic

recovery.

1.2

1.2 Basic

Basic

Basic Specification

Specification

3 / 36

1.3

1.3 Hardware

Hardware

Hardware requirement

requirement

The lowest configuration for hardware

Image Sensor

CMOS ：1/3 inch d einterlace CMOS sensor. Min 1 .5Lux

Video Compression

H.264 Main Profile

Two Streaming

Primary and Secondary streaming H.264 & MJPEG

Video Resolution

CMOS: 1600*1200, 1280*960, 1280*720 .

Video Parameters

CMOS: Brightness, Chroma, Saturation, gamma, Contrast, Acutance, Red,

Blue and Image quality.

Streaming Type

Pure Video Streaming or Audio and Video streaming.

Video Frame rate

CMOS: 1-30 fps ，can be set under different resolution.

Video Compression

bit rate

30Kbit/S ～8MKbit/S

Audio Input

1 channel linear input, input impedance 1 K Ohms

Audio Compression

G.726, G.711, ADPCM

Audio Output

1 channel Linear output

Two-way talk input

Support Audio two-way talk

Local Recording

Support SD card to record the image and snapshot. SD2.0 standard.

Support IP-San storage.

System Interface

10Base-T/100Base-TX Ethernet Port

WiFi （802.11b/g ）

1 RS485

USB port

SD Slot

Alarm Input

1 channel on/off input, Support NO(open),or NC(closed)

Alarm Output

1 channel on/off output, 120VAC 1A/24VDC 1A

PoE

POE standard 802.3AF-class 0

Power Supply

DC 12V 1A

Power Consumption

Less than 6W

Work Temperature

-10 ℃~ 55 ℃

Work Humidity

10% ~ 85%

Storage

Temperature

-20 ℃~ 70 ℃

4 / 36

◆CPU: Pentium 2.8 GHz

◆Memory: 512 MB

◆Graphic Card: TNT2

◆Sound Card: Speaker, Two-way talk

◆Hard Disk: Bigger than 40G

Recommended configuration for hardware

◆CPU: Dual-core 2.6GMhz

◆Memory: 1G B

◆Graphic Card: Nvidia Geforce FX5200 or

ATI

RADEON 7000(9000) series 256 M B video

memory

Operation System

◆32 bit Windows2000, Windows

XP,

Windows2003, Windows Vista and

64 bit Windows2003 、Windows

XP.

Software

◆IE 6.0 or Better

◆DirectX8.0 or Better

◆TCP ／IP protocol

PC system other requirement

The PC graphics card is required to support conversion and zoom in & out of image color. The

tested VGA are as follows: Nvidia Tnt/Tnt2, Geforce Mx200/400/420/440, Fx5200/5600 and its

series;

ATIR

adeon7000/7200/7500/8500/9000/9200/9500/9600and its series , MatroxG450/550;

INTEL845G/865G and its series. Please attend that the driving of graphics card must support

hardware zoom in & out function.

5 / 36

2 Appearance

Appearance

Appearance and

and

and Installation

Installation

2.1

2.1 Backside

Backside

Backside connection

connection

connection of

of mega

mega

mega pixel

pixel

pixel IP

IP Camera

Camera

�

Note ：

The power input DC12V 50Hz 1A.Don ’ t use other power supply to damage the mega

pixel ip camera.

Explanations:

LAN: Ethernet Port

RST:

Reset Button (default set)

DC12V: Power Supply, DC 12V/1A

out: Audio Output

in: Audio Input

SD Card: SD Card slot

AUTO IRIS: Auto Iris port, support DC Lens

ANT:

WiFi interface

ALM out: 1 Alarm output

ALM in: 1 Alarm Input

GND: Signal ground, alarm ground, RS485 ground

RS485: RS485 Control interface, connect

Pan/Tilt or encoder, support many protocols

SD Card

SD slot

2.2

2.2 Hardware

Hardware

Hardware installation

installation

2.2.1Connecting

2.2.1Connecting mega

mega

mega pixel

pixel

pixel IP

IP camera

camera

camera through

through

Router

Router /Network

/Network

/Network Switch/Hub

Switch/Hub

6 / 36

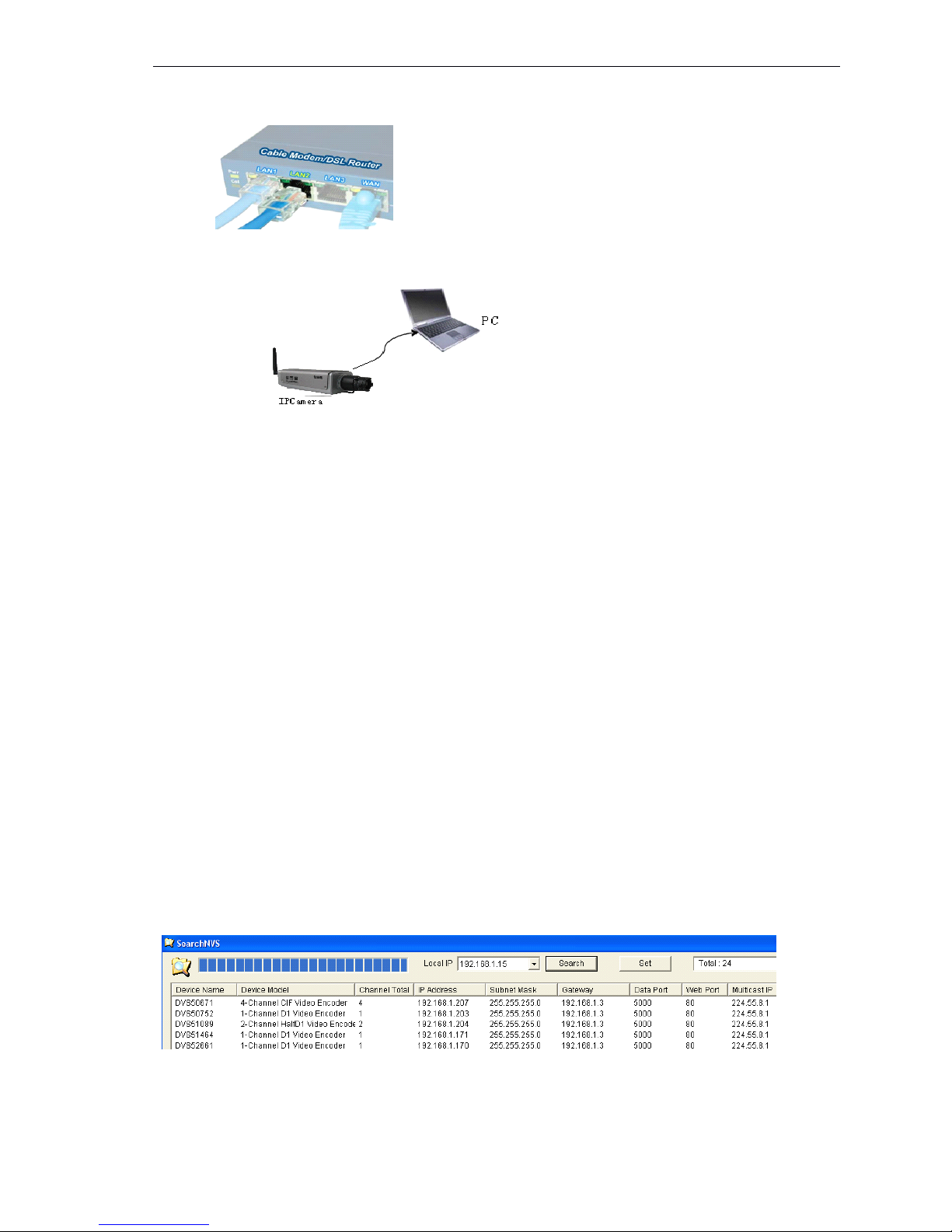

Step1: Connect power supply (DC 12V)

Step2: Connect LAN port with router/network switch/ hub via RJ45 cable.

2.2.2

2.2.2 Connect

Connect

Connect LAN

LAN

LAN port

port

port with

with

with PC

PC via

via

via RJ45

RJ45

RJ45 cable.

cable.

The Light of LAN port turns green within 5 seconds under the normal network situation after power

on.

3 Searching

Searching

Searching device

device

device and

and

and installing

installing

installing ActiveX

ActiveX

3.1

3.1 Searching

Searching

Searching device

device

device and

and

and modify

modify

modify network

network

network parameters

parameters

Run “ SearchNVS ”

find the default IP and modify mega pixel ip camera network parameters

according

clients

’

local PC IP gateway (Such as IP address, subnet mask, gateway and

on)

How

run “ SearchNVS ” ,

A: Find the NVSCenter software in 【Application 】file from the CD.

B: Install the NVSCenter software, then do it as follows

find SearchNVS: 【Start 】--- 【all

programs 】--- 【NVS Center 】--- 【Search NVS 】.

�

Note

Note ：

The factory settings of the IP Camera as follows IP: 192.168.55.160; Subnet mask:

255.255.255.0.

User name: admin; Password: admin

Run the SearchNVS software

search and modify IP Camera network parameters .It is

multicast protocol. But the firewall forbids the multicast data packet. So please close the firewall

first.

(1)Click

(1)Click 【SearchNVS

SearchNVS

SearchNVS 】button

button

button to

to run

run

run SearchNVS

SearchNVS

SearchNVS software

software

software as

as follow:

follow:

【Local IP 】Display the local PC

IP.

If your PC is NIC or multi-addressed local

IP,

please select on

IP address

connect NVS.

7 / 36

(2)Set IP address for mega pixel ip camera.

Your mega pixel ip gateway must be same as your local PC ’ s gateway. Then you can

visit IP camera. So we need to set the IP address for the IP camera before using 。

get your local PC IP configuration information: click “

start

” , choose “

run

” , then input

“

command

” or “

cmd

” (Windows

2000/XP

system).click “ confirm ” , then input “ ipconfig ” and

press “ Enter ” button, you will get following information:

Now please remember the above IP Address, Subnet Mask, Default Gateway ，then set

the IP address of mega pixel ip camera according to your local PC IP address. For example

:192.168. １.100.

Please make sure the Default Gateway and Subnet Mask to be same.

Click 【Set 】to get the following windows:

After setting, click “

” , then mega pixel IP camera will restart.

8 / 36

3.2

3.2 Checking

Checking

Checking connection

connection

check connection works well: “ Start ”→ “ Run ”→ “ cmd ” .

Input: “ ping 192.168.1.100 ” , Click “ Enter ” button.

That means the IP Camera works normally and connects

network correctly.

[ Then use SearchNVS software

search and modify network parameters (such as IP address,

subnet mask, gateway and

on according

clients

’

local IP information ) ].

3.3

3.3 Installing

Installing

Installing ActiveX

ActiveX

ActiveX and

and

and login

device

You

need

install ActiveX when you visit mega pixel IP camera for the first time through Internet

Explorer.

How to install ActiveX:

Download the ActiveX from Internet Explore: input the IP address of mega pixel IP camera

in Internet Explore; it appears Login interface as follows:

Click 【File 】to download the ActiveX

A new dialogue box pops up, click 【Run

】

or 【Save

】

to download ActiveX, after downl oad

it , double-click the downloaded file “ xdview.exe ” to install it as follows:

Download ActiveX

9 / 36

Note: ActiveX have to be installed.

Close current Internet Explorer, click “ Install ” button

，

it will be installed the ActiveX and shows “ Insta ll

OK ！” .

Open one Internet Explorer, and input IP address of IP Camera ，for

example:192.168.55.160, it will show:

Input User name (Default: admin) 、Password (Default: admin) ，click “ Submit ” to show as

follows:

Video Name

Image display

Date,Time, Frame, Bitrate

display

Pan/Tilt

Function Keys

Setings

Indice
