Hitachi CL 10SA Manuale

POWER TOOLS

TECHNICAL DATA

AND

SERVICE MANUAL

STUD CUTTER

CL 10SA

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

LIST No. 0789 Jan. 2001

MODEL

CL 10SA

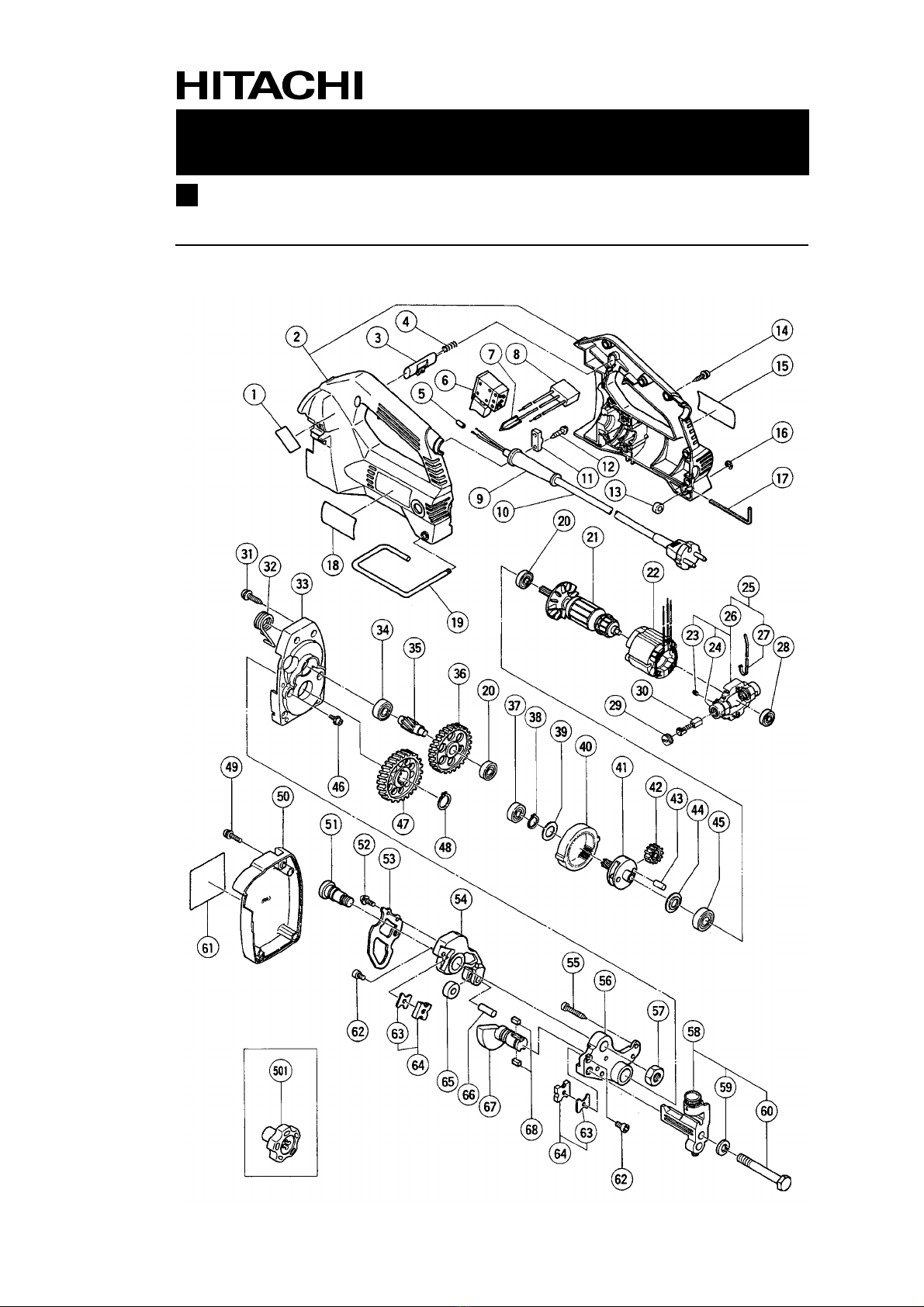

ELECTRIC TOOL PARTS LIST

LIST NO.

STUD CUTTER

Model CL 10SA

2001

•

(E1)

0789

*ALTERNATIVE PARTS

ITEM

NO. CODE NO.

DESCRIPTION

REMARKS

NO.

USED

PARTS CL 10SA

1 -- 01

1 CAUTION PLATE (E) 1

2 319-411 HOUSING (A).(B) SET 1

3 319-402 PUSHING BUTTON (A) 1

4 319-403 SPRING (A) 1

5 981-373 TUBE (D) 2 FOR CORD

6 319-412 SWITCH 1

7 992-635 EARTH TERMINAL 1

8 994-273 NOISE SUPPRESSOR 1

* 9 953-327 CORD ARMOR D8.8 1

* 9 938-051 CORD ARMOR D10.1 1

* 10 500-235Z CORD 1 (CORD ARMOR D8.8)

* 10 500-391Z CORD 1 (CORD ARMOR D10.1) FOR SUI

* 10 500-440Z CORD 1 (CORD ARMOR D8.8) FOR GBR

11 937-631 CORD CLIP 1

12 984-750 TAPPING SCREW (W/FLANGE) D4X16 2

13 307-607 WRENCH HOLDER 1

14 301-653 TAPPING SCREW

(W/FLANGE) D4X20 (BLACK)

15 NAME PLATE 1

16 968-643 RETAINING RING (E-TYPE) FOR D4 SHAFT 1

17 944-458 HEX. BAR WRENCH 4MM 1

18 HITACHI LABEL 1

19 319-401 HOOK 1

20 608-VVM BALL BEARING 608VVC2PS2L 2

21 360-545E ARMATURE 230V 1

22 340-490E STATOR 230V 1

23 981-478 HEX. SOCKET SET SCREW M4X4 2

24 957-571 BRUSH HOLDER 2

25 319-408 BRUSH BLOCK ASS’Y 1 INCLUD.26,27

26 315-992 BRUSH BLOCK ASS’Y 1 INCLUD.23,24

27 313-505 WIRE BAND 2

28 626-VVM BALL BEARING 626VVC2PS2L 1

29 931-266 BRUSH CAP 2

30 999-021 CARBON BRUSH (1 PAIR) 2

31 305-558 TAPPING SCREW

(W/FLANGE) D5X25 (BLACK)

32 307-624 RETURN SPRING 1

33 307-622 GEAR COVER 1

34 629-VVM BALL BEARING 629VVC2PS2L 1

35 319-407 THIRD PINION 1

36 319-406 SECOND GEAR 1

37 609-VVM BALL BEARING 609VVC2PS2L 1

38 939-544 RETAINING RING FOR D15 SHAFT (10 PCS.) 1

39 302-714 WASHER 1

40 310-254 RING GEAR 1

41 319-405 SECOND PINION 1

42 319-404 IDLE GEAR 2

43 307-609 NEEDLE 2

44 307-608 WASHER 1

45 600-1VV BALL BEARING 6001VVCMPS2L 1

46 998-471 HEX. SOCKET HD. BOLT M5X12 3

47 319-393 FINAL GEAR 1

48 939-546 RETAINING RING FOR D18 SHAFT (10 PCS.) 1

*ALTERNATIVE PARTS

ITEM

NO. CODE NO.

DESCRIPTION

REMARKS

NO.

USED

PARTS CL 10SA

1 -- 01

49 307-606

MACHINE SCREW (W/WASHERS) M4X20 (BLACK)

50 319-838 COVER 1

51 319-396 BOLT (A) 1

52 987-203 SEAL LOCK SCREW (W/SP. WASHER) M4X12 2

53 319-398 RETURN PLATE 1

54 319-397 BRACKET (A) 1

55 931-875 TAPPING SCREW D5X35 2

56 319-395 BRACKET (B) 1

57 949-574 LOCK NUT M12 (10 PCS.) 1

58 309-180 STUD GUIDE ASS’Y 1 INCLUD.59,60

59 949-458 SPRING WASHER M10 (10 PCS.) 1

60 309-621 BOLT W3/8X75 1

61 CAUTION PLATE (F) 1

62 998-486 SPECIAL BOLT M5X9 2

63 308-779 SPACER M8 (10 PCS.) 2

64 308-564 CUTTER ASS’Y M8 (1 PAIR) 2 INCLUD.63

65 319-399 ROLLER (A) 1

66 319-400 ROLLER PIN 1

67 319-394 CAM SHAFT 1

68 948-015 FEATHER KEY 5X5X10 2

*ALTERNATIVE PARTS

STANDARD ACCESSORIES

OPTIONAL ACCESSORIES

ITEM

NO. CODE NO.

DESCRIPTION

REMARKS

NO.

USED

ITEM

NO. CODE NO.

DESCRIPTION

REMARKS

NO.

USED

CL 10SA

Printed in Japan

(010125N) 1 -- 01

501 308-569 TRIMMER M8 1

601 308-563 CUTTER ASS’Y M6 (1 PAIR) 2 INCLUD.602

602 309-181 SPACER M6 (10 PCS.) 2

603 308-565 CUTTER ASS’Y M10 (1 PAIR) 2 INCLUD.604

604 308-780 SPACER M10 (10 PCS.) 2

605 998-479 CUTTER W3/8" (1 PAIR) 2

606 308-568 TRIMMER M6 1

607 308-570 TRIMMER M10 1

608 308-567 TRIMMER W3/8" 1
