Hitachi WJ200 Series Software Manuale utente

WJ200

Series Inverter

Quick Reference Guide

• Single-phase Input 200V class

• Three-phase Input 200V class

• Three-phase Input 400V class

Hitachi Industrial Equipment Systems Co., Ltd.

Manual Number: NT3251X

May 2010 Refer to the user manual for detail

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

ULCautions, Warnings and Instructions xii

Warnings and Cautions for Troubleshooting and Maintenance

The warnings and instructions in this section summarizes the procedures necessary to ensure an

inverter installation complies with Underwriters Laboratoriesguidelines.

WARNING: Use 60/75C Cu wire only. (for models: WJ200-001L, 002L, 004L, 007L, 015S, 022S,

004H, 007H, 015H, 022H, 030H)

WARNING: Use 75C Cu wire only. (for models: WJ200-001S, -002S, -004S, -007S, -015L, -022L,

-037L, -055L, -075L, -110L, -150L, -040H, -055H, -075H, -110H and -150H)

WARNING: Suitable for use on a circuit capable of delivering not more than 100,000 rms

Symmetrical Amperes, 240 or 480V maximum.

WARNING: When protected by CC, G, J, or R class Fuses, or when Protected By A Circuit Breaker

Having An Interrupting Rating Not Less Than 100,000 rms Symmetrical Amperes, 240 or 480 Volts

Maximum.

WARNING: Install device in pollution degree 2 environment.

WARNING: Maximum Surrounding Air Temperature 50C

WARNING: Solid state motor overload protection is provided in each model

WARNING: Integral solid state short circuit protection does not provide branch circuit protection.

Branch circuit protection must be provided in accordance with the National Electric Code and any

additional local codes

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

Terminal symbols and Screw size

Inverter Model Screw Size Required

Torque (N-m) Wire range

WJ200-001S

WJ200-002S

WJ200-004S

M3.5 1.0 AWG16 (1.3mm2)

WJ200-007S M4 1.4 AWG12 (3.3mm2)

WJ200-015S

WJ200-022S M4 1.4 AWG10 (5.3mm2)

WJ200-001L

WJ200-002L

WJ200-004L

WJ200-007L

M3.5 1.0 AWG16 (1.3mm2)

WJ200-015L M4 1.4 AWG14 (2.1mm2)

WJ200-022L M4 1.4 AWG12 (3.3mm2)

WJ200-037L M4 1.4 AWG10 (5.3mm2)

WJ200-055L

WJ200-075L M5 3.0 AWG6 (13mm2)

WJ200-110L M6 3.9 to 5.1 AWG4 (21mm2)

WJ200-150L M8 5.9 to 8.8 AWG2 (34mm2)

WJ200-004H

WJ200-007H

WJ200-015H

M4 1.4 AWG16 (1.3mm2)

WJ200-022H

WJ200-030H M4 1.4 AWG14 (2.1mm2)

WJ200-040H M4 1.4 AWG12 (3.3mm2)

WJ200-055H

WJ200-075H M5 3.0 AWG10 (5.3mm2)

WJ200-110H

WJ200-150H M6 3.9 to 5.1 AWG6 (13mm2)

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

Fuse Sizes

The inverter shall be connected with a UL Listed Cartridge Nonrenewable fuse, rated

600Vac with the current ratings as shown in the table below.

Inverter Model Type Rating

WJ200-001S

WJ200-002S

WJ200-004S

10A, AIC 200kA

WJ200-007S 15A, AIC 200kA

WJ200-015S

WJ200-022S 30A, AIC 200kA

WJ200-001L

WJ200-002L

WJ200-004L

10A, AIC 200kA

WJ200-007L

WJ200-015L 15A, AIC 200kA

WJ200-022L 20A, AIC 200kA

WJ200-037L 30A, AIC 200kA

WJ200-055L

WJ200-075L 40A, AIC 200kA

WJ200-110L

WJ200-150L 80A, AIC 200kA

WJ200-004H

WJ200-007H

WJ200-015H

WJ200-022H

10A, AIC 200kA

WJ200-030H

WJ200-040H 15A, AIC 200kA

WJ200-055H

WJ200-075H 20A, AIC 200kA

WJ200-110H

WJ200-150H

Class J

40A, AIC 200kA

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

CALL NOW 800-985-6929

http://www.automatedpt.com

Email: [email protected]

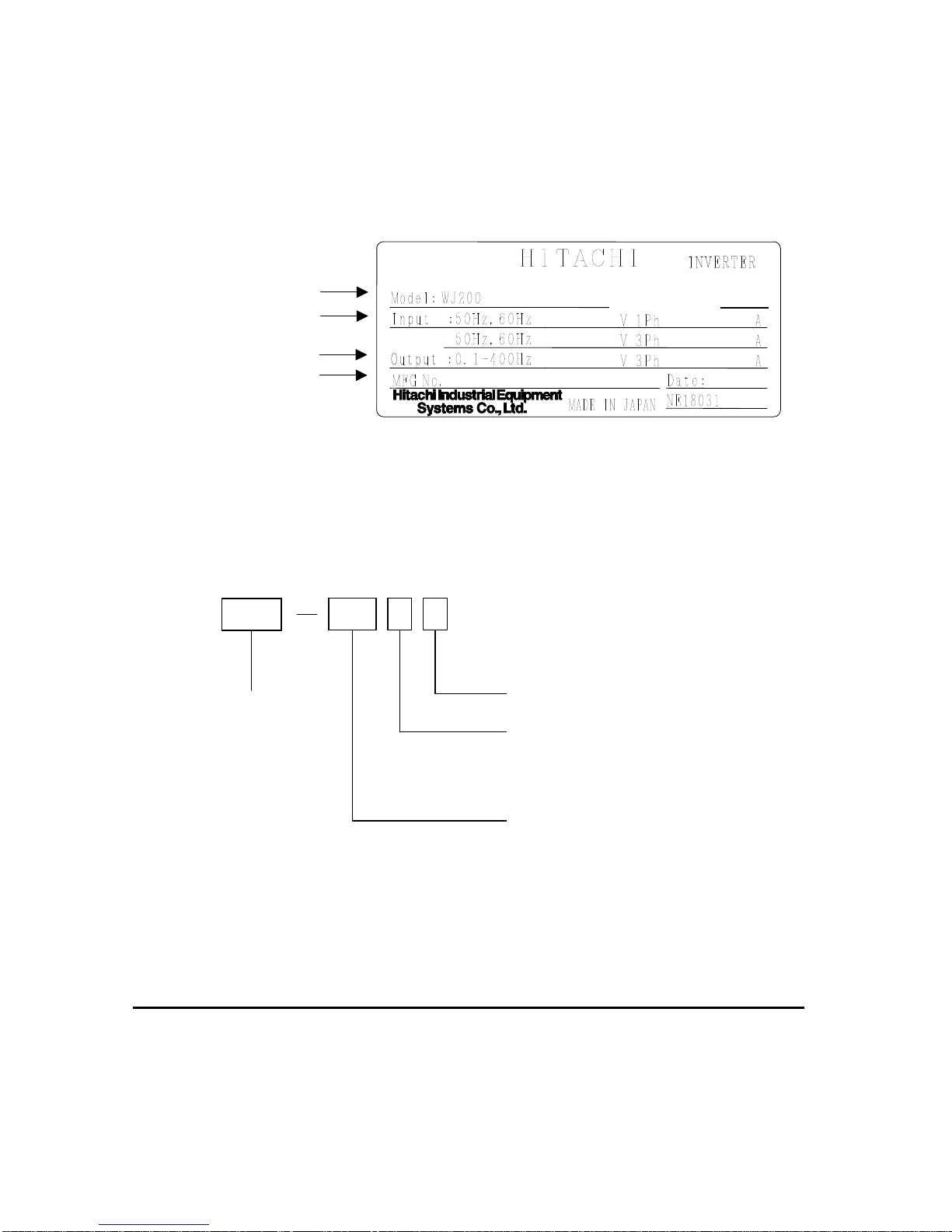

Inverter Specification Label

The Hitachi WJ200 inverters have product labels located on the right side of the housing,

as pictured below. Be sure to verify that the specifications on the labels match your power

source, and application safety requirements.

Inverter Specification Label

The model number for a specific inverter contains useful information about its operating

characteristics. Refer to the model number legend below:

WJ200 001 S F

Series name Configuration type

F=with keypad

Input voltage:

S=Single-phase 200V class

L=Three-phase 200V class
