Hitachi LE55W806 Manuale utente

IMPORTANT SAFETYINSTRUCTIONS....................................................................... 2-6

INSTALLING THE TABLETOP STAND 7

FIRST TIME USE

.......................................................................................................

10-12

TV OPERATION ........................................................................................................ 13-19

CONNECTIONS

NETWORK SETTINGS

TO OTHER EQUIPMENT .............................................................. 20-22

TROUBLESHOOTING ......................................

.............................................................

36-37

.....................................

.............................................................

23-35

SPECIFICATIONS.......................................................................................................... 38

.............................................................

LIMITED WARRANTY...............................................................................................

39-40

APPENDIXES................................................................................................................. 43

Thank you for purchasing this Hitachi product. Please read these instructions carefully.

For additional assistance please call 1-888-333-1899(U.S.A. or Puerto Rico), or 01-800-700-4321(Mexico) or visit our

website at www.hitachi.us/tv.

Keep this owner's guide for future reference.

Record the model number and serial number of your LCD Television for future reference.

This information is located on the back of the television.

MODEL NUMBER SERIAL NUMBER

ES-G122201

TABLE OF CONTENTS

Simulated image.

Image may differ from actual product.

Models

Owner’s Guide

LE55W806

55” Class (54.64” Diagonal)

LE48W806

48” Class (47.61” Diagonal)

TO PREVENT ELECTRIC SHOCK, THIS APPLIANCE MUST BE CONNECTED TO AN OUTLET WITH A

PROTECTIVE EARTHING CONNECTION.

This TV has an Auto Shut Off feature that will automatically turn off the TV if there is no video signal detected within 15minutes.

Additionally this TV has LED backlighting which has greater energy saving benefits versus conventional CCFL type TV.

This product contains lead. Dispose of this product in accordance with applicable environmental laws .For product recycling and

disposal information,contact your local government agency or www.eRecycle.org (in California),the Electronic Industries Alliance at

www.eiae.org(in the US) or the Electronic Product Stewardship Canada at www.epsc.ca (In Canada).For more information,call

"1-888-333-1899."

(1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference

that may cause undesired operation.

This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

4 inches

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block

ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf leave 4 inches (10 cm) free space

around the entire unit.

Notes when mounting the LCD TV on a wall

If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV for advice, and have the equipment pro-

fessionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the LCD TV.

The screws ISO M6 thread type should be used. The insertion length must be within 12 - 16mm.

If the insertion length is less than 12mm, the weight can not be maintained.

If the insertion length is more than 16mm, a space is created between the Wall Mount Bracket and the Television.

(Insertion Length) = (Screw Length) - (Washers Thickness) - (Mounting Bracket Thickness)

If the unit is to be mounted on a cabinet smaller than length of the unit, it could result in an unstable location and the unit may tumble

over, creating a risk of personal, possibly fatal injury. Also, this would damage the product seriously. Accordingly, Hitachi accepts no

responsibility or liability for any injuries or property damage resulting from the improper installation.

YES!! NO !!

SAFETY PRECAUTIONS

YES!! NO!!

Securing to a Wall

1. Use metallic wire, clamp and screw (not provided) on the rear of the LCD TV as shown below.

2. Use proper hardware (drywall anchor, masonry screw, etc) to secure other end of wire to wall.

4 inches

Wire

Screw M6×12

Clamp

This TV is designed for tabletop or wall mounted use only. Please follow the guidelines below for safe use of this product.

Notice For Use With Included Tabletop Stand

Installing the Tabletop Stand

1. Use the four screws(GB/T 818-2000 M5x12) which are

in the accessories bag to attach the base plate.

2. Use the two screws(GB/T818-2000 M4X12) which are

in the accessories bag to attach the cover plate.

4. Please secure the assembled base are installed to

the TV. Make sure that the three hooks on the stand of

the head bracket inserted into the three slots at the

rear of TV.

5.Use the four screws(GB/T818-2000 M5X12) which are in

the accessories bag to attach the base stand to the TV set.

3. Use the two screws(SJ2822-87 ST4X14) which are

in t h e accessories bag to attach the cover plate.

1 2

3 4

in accordance with FCC rules.

Manufactured under license from Real Sound Lab. SIA. CONEQ is a trademark of Real Sound Lab, SIA.

CONEQ delivers clear, rich sound using proprietary professional equalizing technology. Dialog is clear and music sounds

more dynamic when the speakers are perfectly optimized.

CONEQ HA MODE (Hearing Aid) technology produces natural sound for the hearing impaired. The listener can enjoy

details in music and clear dialog often without the help of a hearing aid.

Unique space saving design combines a 55"/ 48" LCD color TV with the 6 features noted below and more!

Connections to other equipment

Network Settings

Network Connection

Connecting to a Wireless Network

Wireless Setting

Home Network Settings

Media Share Settings in computer

Setting to Share Files

Internet-based Services

VUDU HD Movies

VUDU Apps

Netflix

YouTube

Other

View the Shared Files on TV

Digital Media Player

Enjoy Video Files

Enjoy Music Files

Browse the Pictures

Troubleshooting

Specifications

Limited Warranty

End User License Agreement for HITACHI DTV Software

End User License Agreement for Open Source Sofrware

Appendixes

Starting setup

Using the Channels Menu

Using the Video Menu

Using the Audio Menu

Using the Setup Menu

Using the Parental Controls Menu

Before using your unit

TV Operation

Advanced Features

Other Information

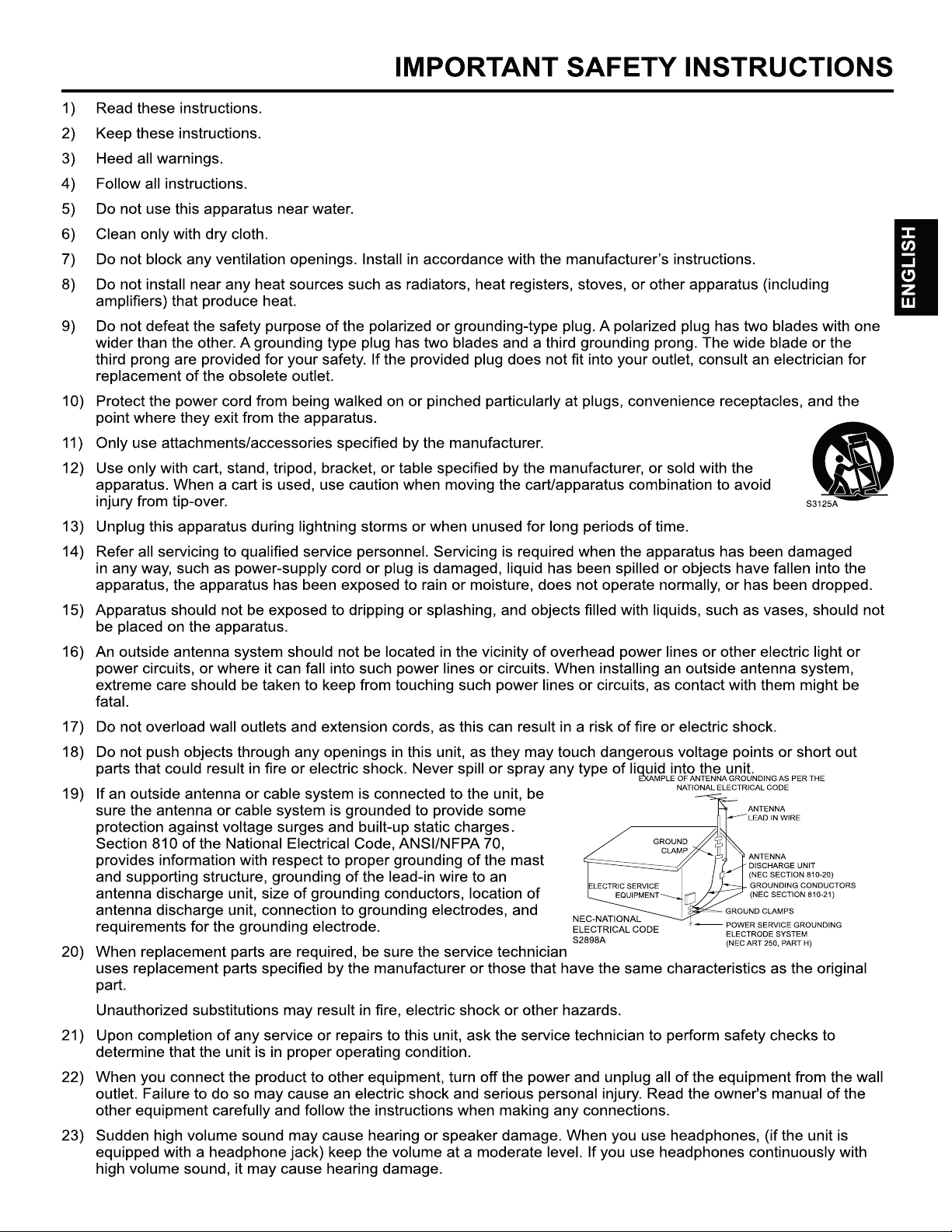

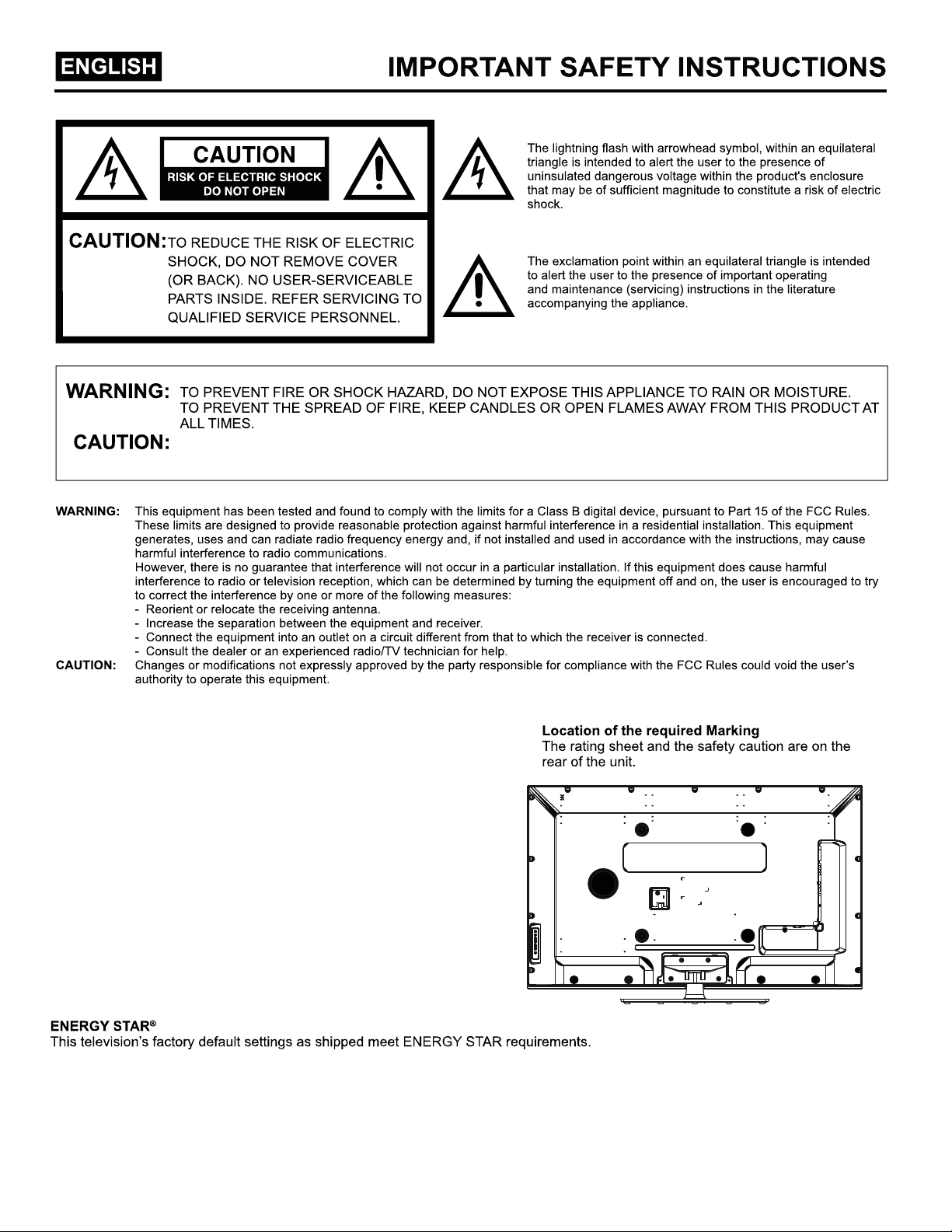

IMPORTANT SAFETY INSTRUCTIONS

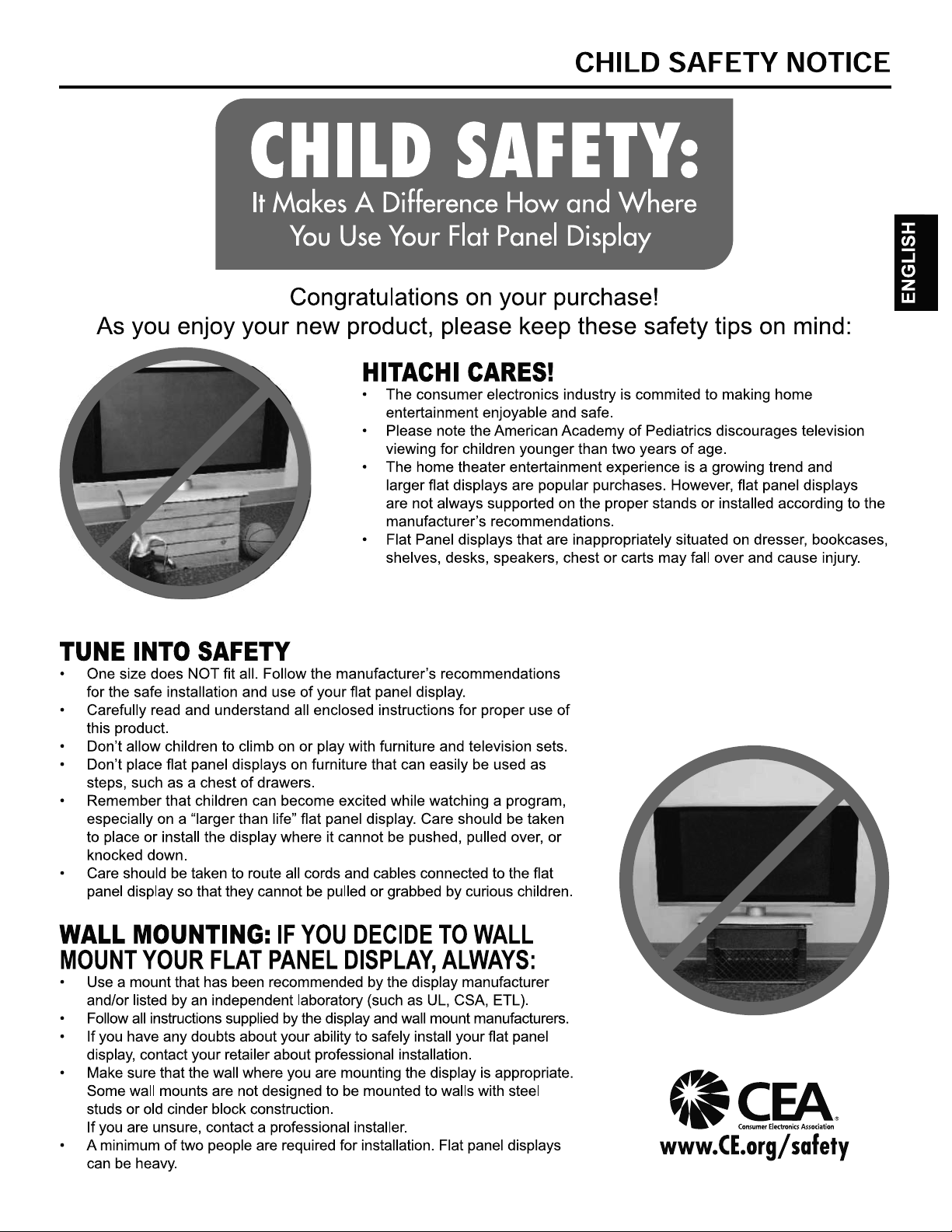

CHILD SAFETY NOTICE

SAFETY PRECAUTIONS

Installing the Tabletop Stand

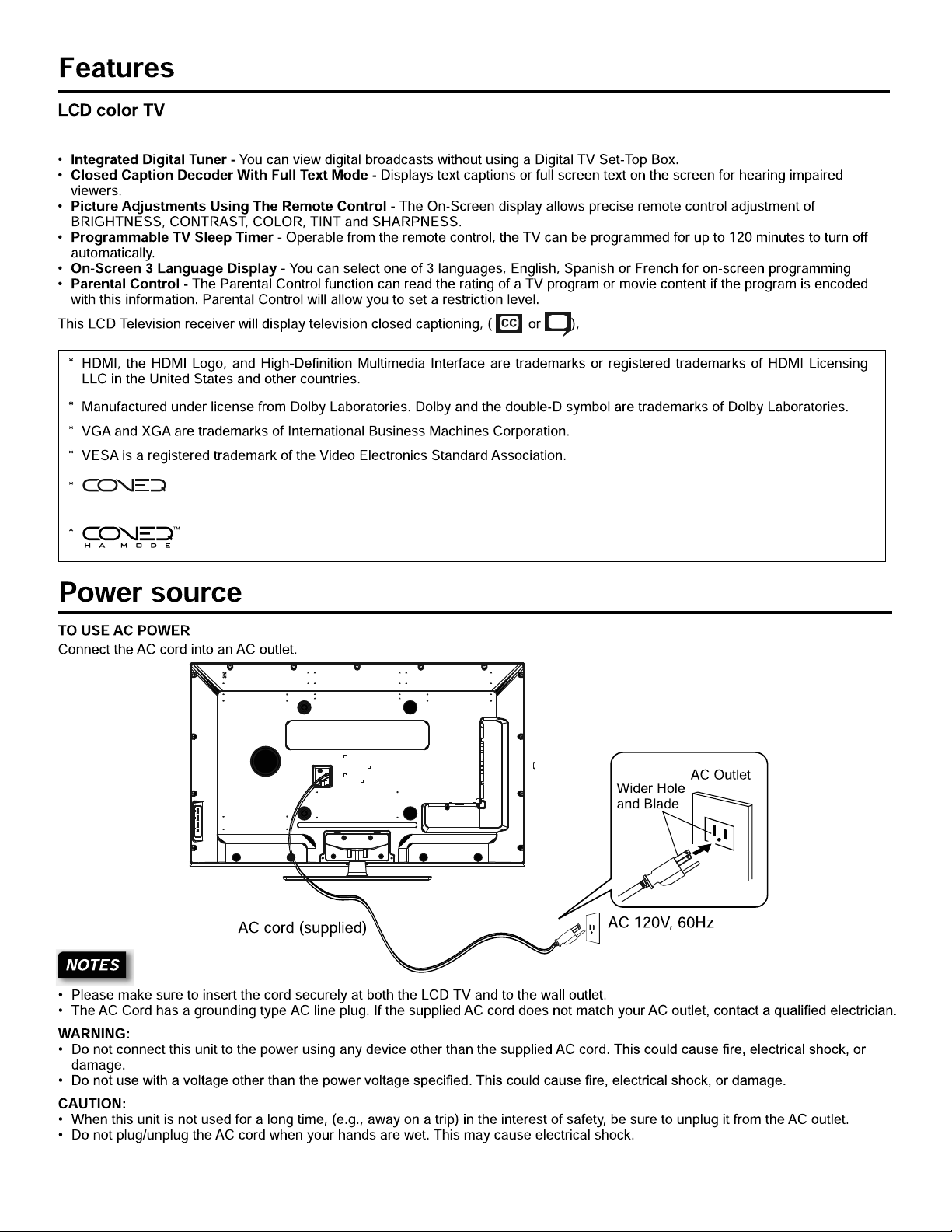

Features

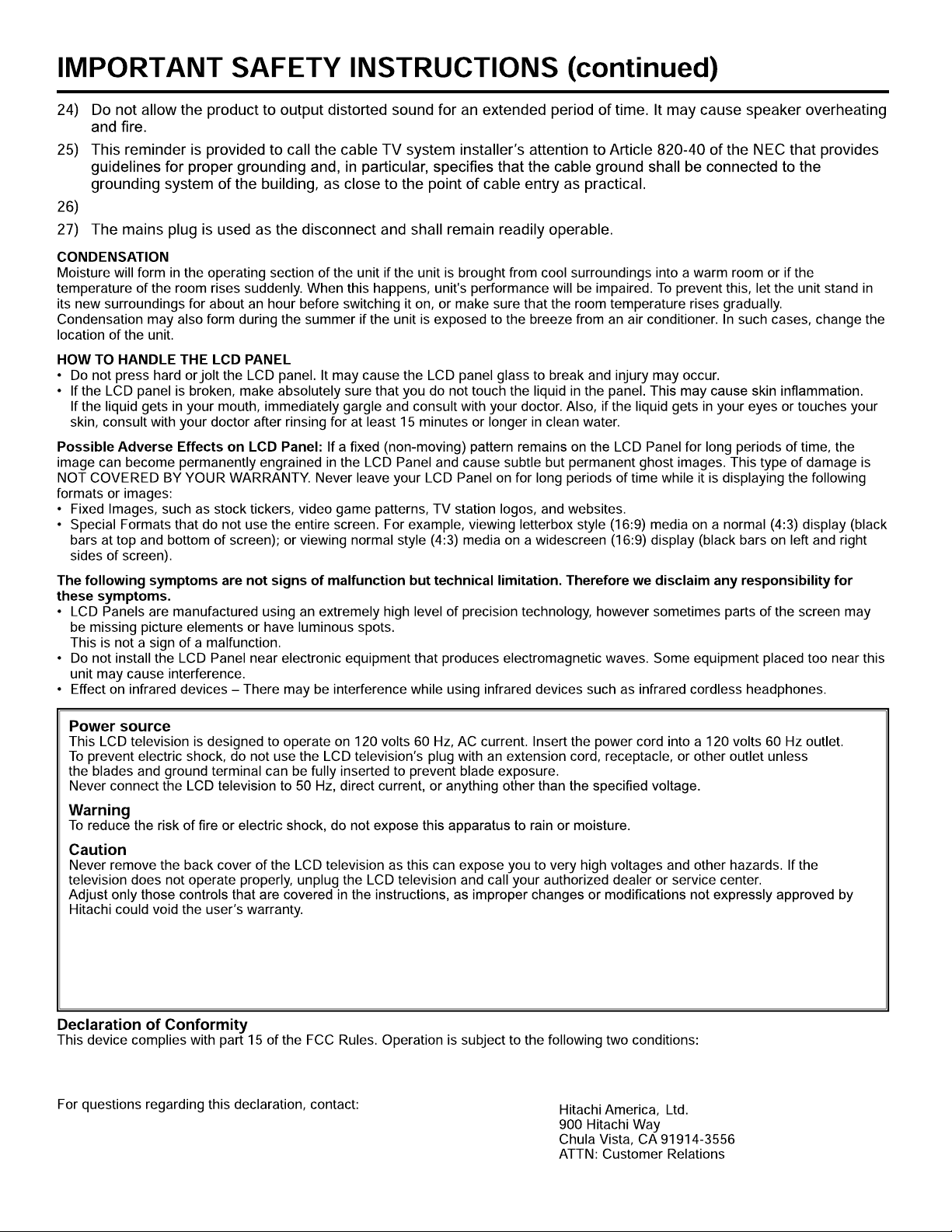

Power source

Contents

Location of controls

Remote control

Antenna connections

Cable TV connections

Power indicator3D emitter

3D emitter Sends signals to 3D glasses during playback of 3D movies and TV shows.

Adjusts TV volume and used as Cursor Left and Right keys to navigate OSD menus.

Selects input source to TV and used like remote control's ENTER key when

choosing an item in OSD menus.

Selects a TV channel and used as Cursor Up and Down keys to navigate OSD menus.

Do not put anything near the sensor,

as its function may be affected.

red

0(18

,1387

92/

32:(5

Illuminates white when the TV is in on mode.

3( )
