Hitachi C 10FM Manuale

POWER TOOLS

TECHNICAL DATA

AND

SERVICE MANUAL

MITER SAW

C 10FM

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

LIST No. E930 March 2000

MODEL

C 10FM

--- 25 ---

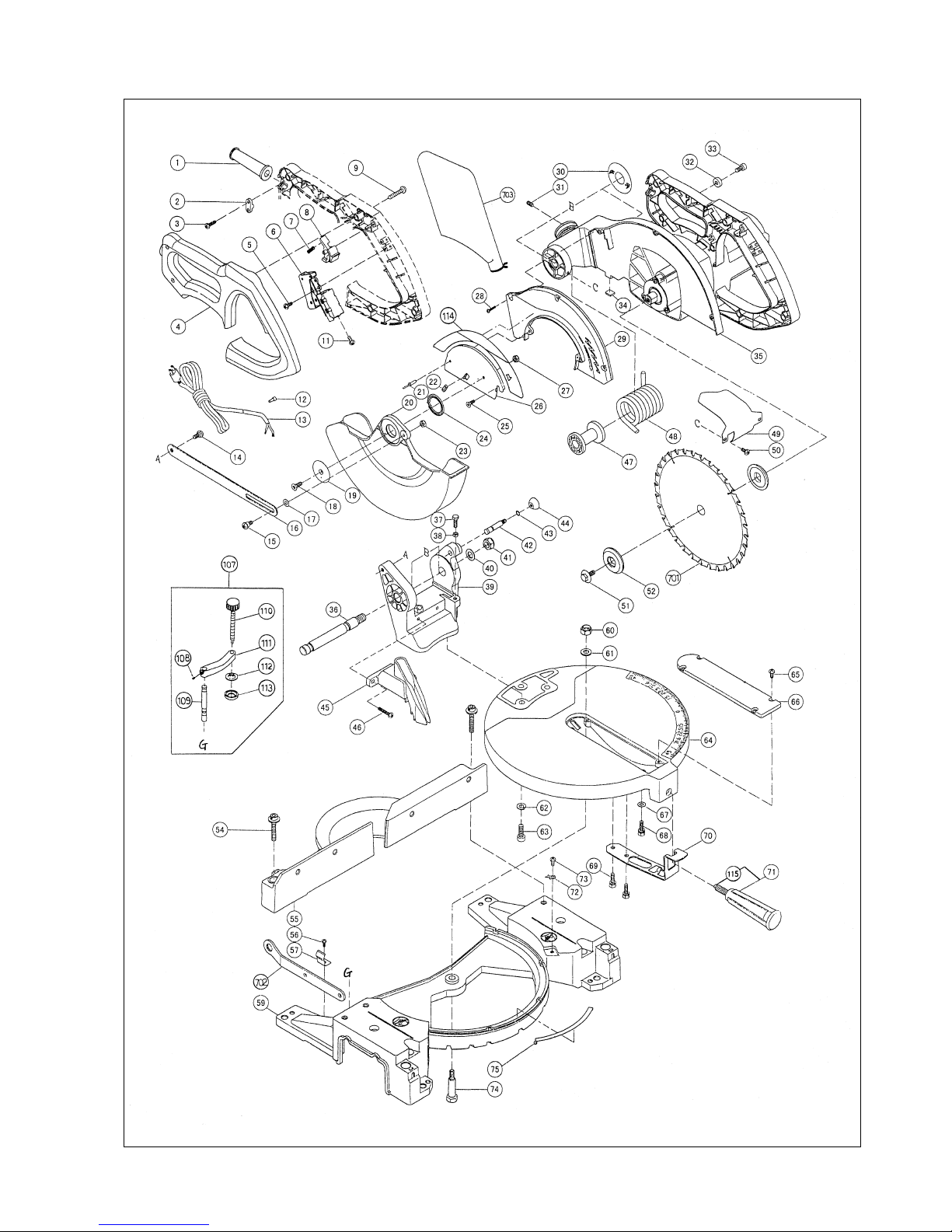

Assembly Diagram for C 10FM

--- 26 ---

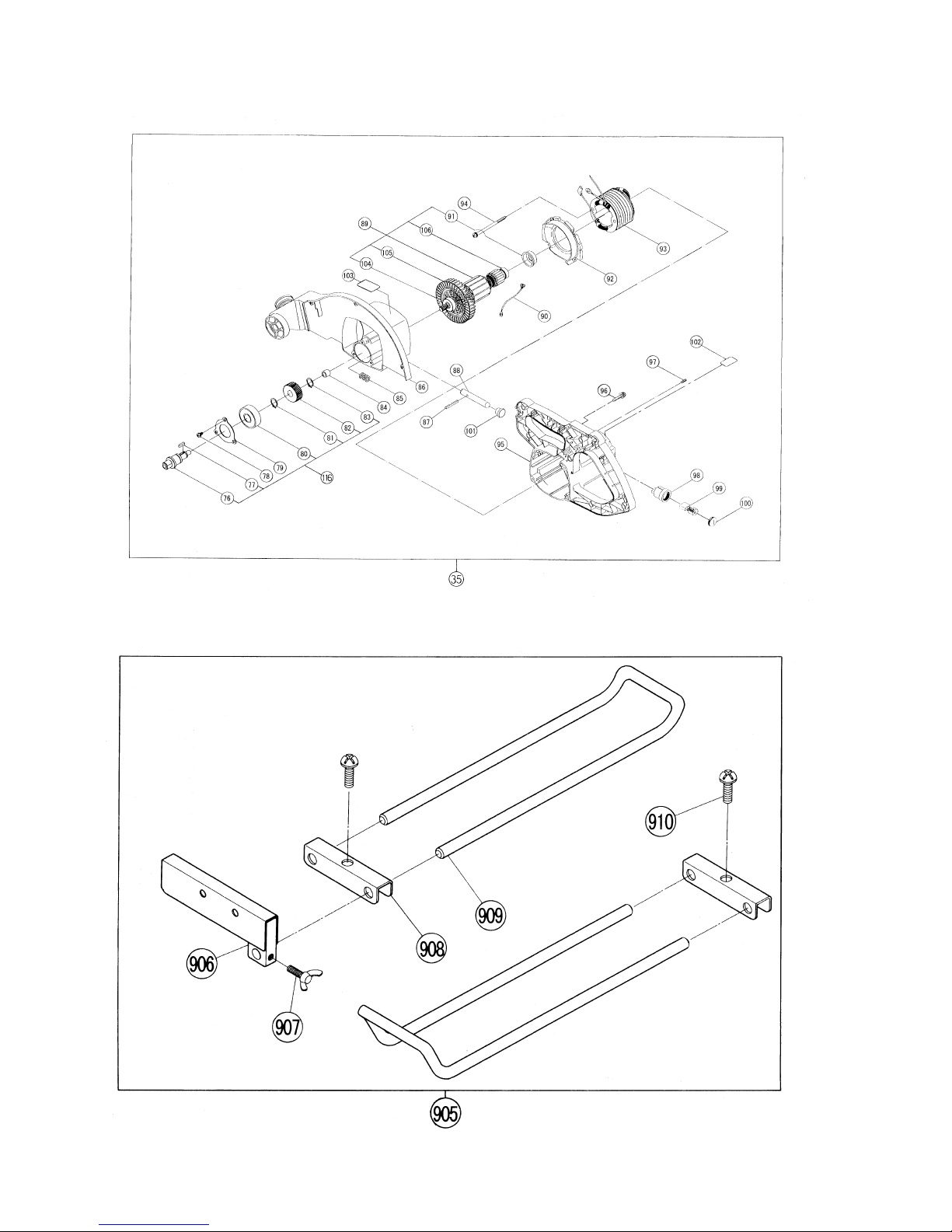

Motor Assembly

Holder Assembly

--- 27 ---

Vise Assembly

--- 28 ---

PARTS

C 10FM

: ALTERNATIVE PARTS

ITEM

No. CODE NO. DESCRIPTION NO.

USED

REMARKS

1 311-096 CORD GUARD 1

2 311-070 CORD CLAMP 1

3 311-103 TRUSS HD. TAPPING SCREW D4X12 2

4 318-850 HANDLE COVER 1

5 311-103 TRUSS HD. TAPPING SCREW D4X12 1

6 317-553 SWITCH 1

7 311-106 SPRING 1

8 318-851 SWITCH 1

9 317-377 TAPPING SCREW D4X20 6

11 317-070 MACHINE SCREW M5X12 3

12 318-852 TERMINAL 1

13 318-853 POWER CABLE 1

14 314-980 TRUSS HD. STEP SCREW M6X12 1

15 317-496 TRUSS HD. STEP SCREW M6X14 1

16 318-854 LEVER 1

17 317-505 FLAT WASHER M6 1

18 317-582 COUNTER HD. SCREW M6X16 1

19 317-583 COLLAR 1

20 318-855 PC-GUARD 1

21 311-036 RIVET 3/16"X17/32" 1

22 317-585 BUMPER 1

23 318-856 HEX. NUT M6 1

24 314-987 SPRING GUARD 1

25 317-586 COUNTER HD. SCREW M5X12 1

26 318-857 CUTTER SHAFT GUARD 1

27 314-522 SPECIAL NUT CHUCK M6 1

28 317-566 TAPPING SCREW D4X16 3

29 318-858 HOUSING 1

30 318-859 SHIM 1

31 318-860 HEX. SOCKET SET SCREW M6X10 2

32 318-861 ANCHOR BLOCK 1

33 318-862 HEX. SOCKET HD. BOLT M6X12 1

34 318-863 RUBBER PAD 1

35 318-864 MOTOR ASS'Y 1 INCLUD.76-90,92-103

36 318-884 SHAFT 1

37 318-885 HEX. BOLT M6X20 1

38 318-856 HEX. NUT M6 1

39 318-887 SUPPORT 1

40 318-888 FLAT WASHER M12 1

41 318-889 NUT CHUCK 1

42 318-890 BRACKET STOP 1

43 318-891 O-RING ROD 1

44 318-892 KNOB HANDLE 1

45 318-893 CHIP DEFLECTOR 1

46 318-894 SPECIAL SCREW M5X16 2

47 318-895 SHAFT SLEEVE 1

48 317-589 TORSION SPRING 1

49 318-896 CHIP PLATE 1

50 318-897 SPECIAL SCREW M4X8 2

51 314-348 BOLT (LEFT HAND) W/WASHER M8X20 1

52 317-360 ARBOR COLLAR 2

2 --- 00

--- 29 ---

PARTS

C 10FM

ITEM

NO. CODE NO. DESCRIPTION NO.

USED

REMARKS

54 317-632 HEX. SOCKET HD. BOLT M8X45 2

55 318-898 FENCE 1

56 318-899 TAPPING SCREW D5X10 1

57 317-353 FOLLOWER PLATE 1

59 318-900 BASE 1

60 314-519 NUT CHUCK M8 1

61 311-047 FLAT WASHER M8 1

62 949-457 SPRING WASHER M8 (10 PCS.) 3

63 318-902 HEX. SOCKET HD. BOLT M8X25 3

64 318-903 TABLE 1

65 318-904 SPECIAL SCREW M4X10 4

66 311-046 TABLE INSERT 1

67 317-626 WASHER 1

68 318-118 HEX. BOLT (W/WASHERS) M6X20 1

69 317-628 HEX. BOLT (W/WASHER) M6X20 2

70 317-630 SPRING PLATE 1

71 317-631 HANDLE ASS'Y 1 INCLUD.115

72 317-638 ANGLE POINTER 1

73 318-905 SPECIAL SCREW M6X10 1

74 311-039 CENTER SHAFT 1

75 317-639 SLIDE PLATE 3

76 318-865 ARBOR SHAFT 1

77 318-866 PARALLEL KEY 1

78 318-867 MACHINE SCREW (W/FLANGE) M5X10 3

79 318-868 BEARING COVER 1

80 620-4VV BALL BEARING 6204VVCMPS2L 1

81 311-076 C-RING 1

82 318-869 HELIX GEAR 1

83 318-870 C-RING 1

84 314-570 NEEDLE BEARING 1

85 318-871 COMPRESSION SPRING 1

86 318-872 UPPER ARM 1

87 318-873 SPRING PIN 1

88 318-874 BRACKET STOP 1

89 318-875 ARMATURE ASS'Y 115V 1 INCLUD.91,104-106

90 318-877 INTERNAL WIRE 1

91 317-075 BEARING BUSHING 1

92 317-596 FLOW GUIDE 1

93 318-878 FIELD 1

94 318-879 TAPPING SCREW (W/SP. WASHER) D5X60 2

95 318-880 MOTOR HOUSING 1

96 318-881 TAPPING SCREW (W/SP. WASHER) D5X16 4

97 318-882 HEX. SOCKET SET SCREW M5X8 2

98 317-374 BRUSH HOLDER 2

99 311-089 CARBON BRUSH 2

100 314-583 BRUSH CAP 2

101 318-883 PLASTIC CAP 1

102 NAME PLATE 1

103 WARNING LABEL (A) 1

104 620-1DD BALL BEARING 6201DDCMPS2L 1

105 318-876 PLAIN WASHER 1

: ALTERNATIVE PARTS

*2 --- 00

--- 30 ---

701 311-128

TCT SAW BLADE 255MM-D15.88 HOLE-NT24

702 311-013 WRENCH 1

703 311-034 DUST BAG 1

901 976-472

TCT SAW BLADE CROSS-CUT 255MM-D15.9 HOLE

903 976-473 TCT SAW BLADE 255MM-D15.9 HOLE 1

905 317-542 HOLDER ASS'Y 1 INCLUD.906-910

906 317-654 STOCK STOP 1

907 317-375 WING BOLT 1/4"X3/4" 1

908 317-655 LOCK SUPPORT ROD 2

909 317-656 EXTENSION WING 2

910 949-271 MACHINE SCREW M8X20 (10 PCS.) 2

911 317-541 VISE ASS'Y (FOR LATERAL) 1 INCLUD.912-921

912 317-648 SCREW BAR 1

913 317-649 VISE BEARING 1

914 949-515 ROLL PIN D6X30 (10 PCS.) 1

915 317-650 CLUTCH 1

916 317-629 SET PLATE 1

917 311-126 WASHER 3/16"X1/2" 1

918 317-503 MACHINE SCREW (W/WASHER) M5X10 1

919 317-652 SUPPORT 1

920 949-518 ROLL PIN D3X18 (10 PCS.) 1

921 317-653 KNOB 1

Printed in Japan

(000210 N)

ITEM

No.

: ALTERNATIVE PARTS

OPTIONAL ACCESSORIES

ITEM

No. CODE NO. DESCRIPTION NO.

USED

REMARKS

PARTS

STANDARD ACCESSORIES

C 10FM

ITEM

No. CODE NO. DESCRIPTION NO.

USED

REMARKS

106 620-0VV BALL BEARING 6200VVCMPS2L 1

107 317-642 VISE ASS'Y (FOR VERTICAL) 1 INCLUD.108-113

108 968-247 HEX. SOCKET SET SCREW M6X10 1

109 317-643 SUPPORT 1

110 317-644 SCREW BAR 1

111 317-645 VISE BEARING 1

112 317-646 FLANGE 1

113 317-647 BUSHING 1

114 HITACHI LABEL 1

115 318-819 BUSHING 1

116 319-003 SPINDLE ASS'Y 1 INCLUD.76,77,80-83

CODE NO. DESCRIPTION NO.

USED

REMARKS

2 --- 00 *
