Hitachi CR 13VA Manuale

POWER TOOLS

TECHNICAL DATA

AND

SERVICE MANUAL

RECIPROCATING SAW

CR 13VA

SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT

LIST No. E930 May 2000

MODEL

CR 13VA

--- 28 ---

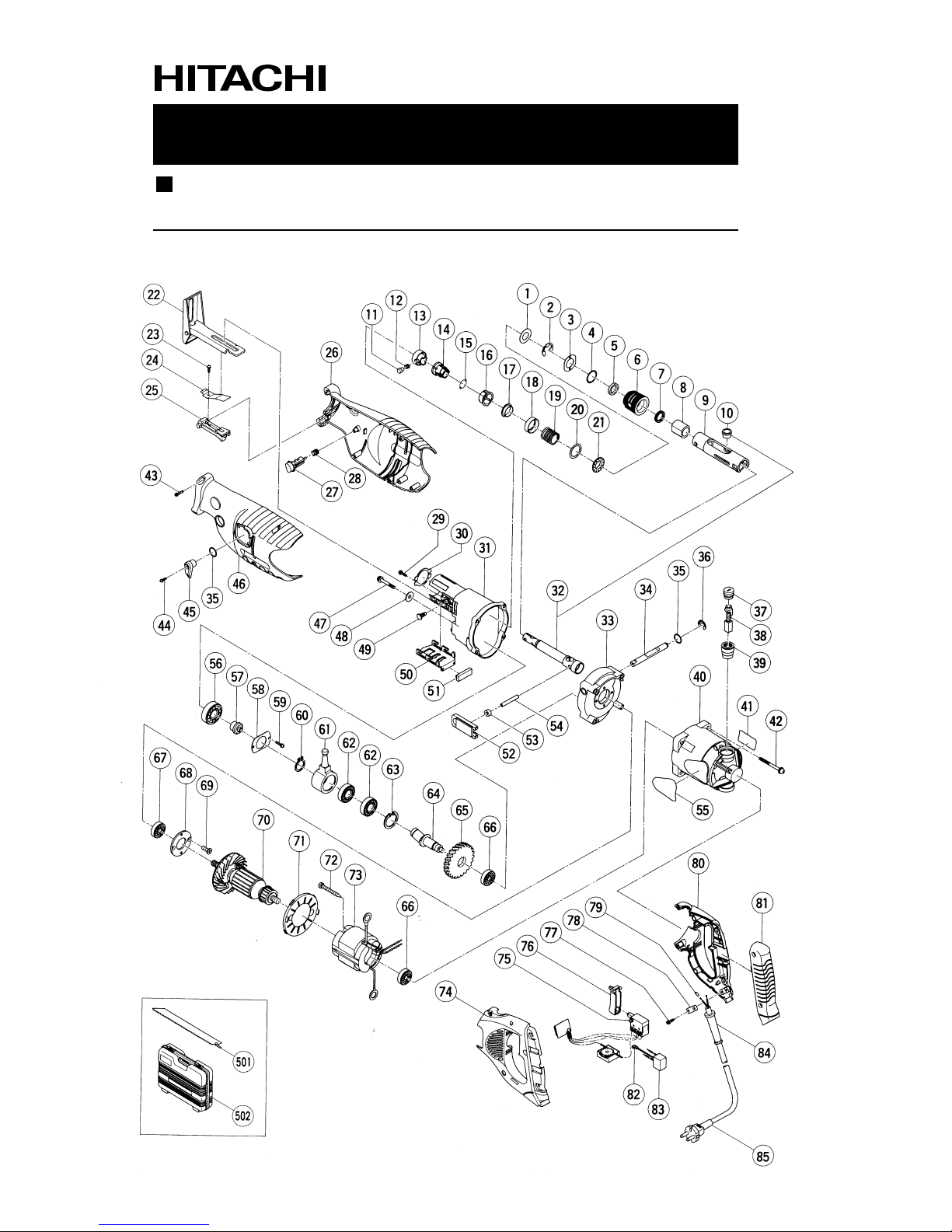

SABER SAW

Model CR 13VA

1999

•

(E1)

LIST NO. 0786

ELECTRIC TOOL PARTS LIST

--- 29 ---

PARTS

CR 13VA

: ALTERNATIVE PARTS

ITEM

NO. CODE NO. DESCRIPTION NO.

USED

REMARKS

1 318-484 WASHER (E) 1

2 318-453 RETAINING RING (E-TYPE) FOR D14 SHAFT 1

3 318-457 WASHER (F) 1

4 878-609 O-RING (S-24) 1

5 318-458 FELT WASHER 1

6 318-460 SEAL SLEEVE 1

7 318-459 V-RING 1

8 318-463 METAL (A) 1

9 318-462 GUIDE SLEEVE ASS'Y 1 INCLUD.8

10 PLUNGER SLEEVE 1

11 318-481 HOLDER PIN 1

12 318-483 SPRING (B) 1

13 318-478 HOLDER SLEEVE (A) 1

14 318-479 HOLDER SLEEVE (B) 1

15 959-149 STEEL BALL D4.76 (10 PCS.) 2

16 318-480 HOLDER SLEEVE (C) 1

17 318-477 GUIDE WASHER 1

18 318-487 DUST WASHER 1

19 318-482 SPRING (A) 1

20 318-486 WASHER (D) 1

21 318-485 THRUST BEARING 1

22 318-455 BASE 1

23 310-222 TAPPING SCREW D4X8 1

24 318-495 HOLDER SPRING 1

25 318-497 BASE LEVER 1

26 318-471 FRONT COVER (B) 1

27 318-496 PUSHING BUTTON 1

28 318-494 SPRING (C) 1

29 677-495 FT-MACHINE SCREW M4X6 2

30 318-456 FELT COVER 1

31 318-468 GEAR COVER 1

32 318-824 PLUNGER (A) SET 1 INCLUD.10

33 318-469 INNER COVER (A) 1

34 318-489 CHANGE SHAFT 1

35 872-654 O-RING (1AP-10) 2

36 974-577 RETAINING RING (E-TYPE) FOR D7 SHAFT 1

37 945-161 BRUSH CAP 2

38 999-043 CARBON BRUSH (1 PAIR) 2

39 958-900 BRUSH HOLDER 2

40 318-506 HOUSING (GREEN) 1

41 NAME PLATE 1

42 307-224

MACHINE SCREW (W/WASHERS) M5X60 (BLACK)

43 307-028

TAPPING SCREW (W/FLANGE) D4X25 (BLACK)

44 303-851

SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK)

45 318-490 CHANGE KNOB 1

46 318-470 FRONT COVER (A) 1

47 318-451 NYLOCK BOLT (W/FLANGE) M6X35 1

48 318-452 WASHER (G) 1

49 318-493 BOLT M10 2

50 318-454 BASE ADAPTER 1

51 318-461 CUSHION RUBBER 1

*12 --- 99

--- 30 ---

CR 13VA

ITEM

NO. CODE NO. DESCRIPTION NO.

USED

REMARKS

52 318-488 SWING RAIL 2

53 318-492 SWING ROLLER 2

54 318-491 PIN D6 1

55 HITACHI LABEL 1

56 600-3DD BALL BEARING 6003DDCMPS2S 1

57 318-475 SUB SHAFT 1

58 318-476 BEARING COVER (B) 1

59 949-216 MACHINE SCREW M4X10 (10 PCS.) 2

60 967-261 RETAINING RING FOR D17 SHAFT 1

61 318-466 RECIPRO PLATE 1

62 600-3VV BALL BEARING 6003VVCMPS2L 2

63 939-556 RETAINING RING FOR D35 HOLE (10 PCS.) 1

64 318-474 SECOND SHAFT (A) 1

65 318-473 GEAR 1

66 608-VVM BALL BEARING 608VVC2PS2L 2

67 600-1VV BALL BEARING 6001VVCMPS2L 1

68 302-435 BEARING COVER 1

69 949-321 FLAT HD. SCREW M4X8 (10 PCS.) 2

* 70 360-514C ARMATURE 110V-115V 1

* 70 360-514U ARMATURE ASS'Y 120V-127V 1 INCLUD.66,67

* 70 360-514E ARMATURE 220V-230V 1

* 70 360-514F ARMATURE 240V 1

71 318-467 FAN GUIDE 1

* 72 961-501 HEX. HD. TAPPING SCREW D5X60 2

* 72 953-174 HEX. HD. TAPPING SCREW D5X55 2 FOR USA

* 73 340-459H STATOR 110V-115V 1

* 73 340-459G STATOR 120V-127V 1 FOR USA

* 73 340-459J STATOR 220V-230V 1

* 73 340-459E STATOR 220V-230V 1 FOR IND,SYR,HKG

* 73 340-459K STATOR 240V 1

74 318-508 HANDLE (A) (GREEN) 1

* 75 318-817 SWITCH 1 FOR GBR(110V)

* 75 318-504 SWITCH 1 FOR USA

* 75 318-505 SWITCH 1

76 318-499 SWITCH TRIGGER 1

77 984-750 TAPPING SCREW (W/FLANGE) D4X16 2

78 937-631 CORD CLIP 1

79 981-373 TUBE (D) 4

80 318-509 HANDLE (B) (GREEN) 1

81 318-472 GRIP COVER 1

* 82 938-108 TERMINAL 1 FOR NOISE SUPPRESSOR

* 83 994-273 NOISE SUPPRESSOR 1 EXCEPT SYR,USA,IND,HKG

* 84 953-327 CORD ARMOR D8.8 1

* 84 938-051 CORD ARMOR D10.1 1

* 85 500-201Z CORD 1 (CORD ARMOR D10.1) FOR TPE

* 85 500-234Z CORD 1 (CORD ARMOR D8.8)

* 85 500-245Z CORD 1 (CORD ARMOR D10.1) FOR SYR

* 85 500-435Z CORD 1 (CORD ARMOR D8.8) FOR HKG,GBR(230V)

* 85 500-439Z CORD 1 (CORD ARMOR D8.8) FOR AUS,NZL

* 85 500-461Z CORD 1 (CORD ARMOR D8.8) FOR GBR(110V)

* 85 500-447Z CORD 1 (CORD ARMOR D8.8) FOR SUI

: ALTERNATIVE PARTS

12 --- 99

--- 31 ---

Printed in Japan

(991220 N)

: ALTERNATIVE PARTS

PARTS

OPTIONAL ACCESSORIES

CR 13VA

ITEM

No. CODE NO. DESCRIPTION NO.

USED

REMARKS

* 85 500-434Z CORD 1 (CORD ARMOR D8.8) FOR USA

* 85 500-455Z CORD 1 (CORD ARMOR D8.8) FOR CHNOR

ITEM

No. CODE NO. DESCRIPTION NO.

USED

REMARKS

501 318-613

SABER SAW BLADES NO.103 150L P.14 (5 PCS.)

502 312-831 CASE 1

12 --- 99

STANDARD ACCESSORIES

ITEM

No. CODE NO. DESCRIPTION NO.

USED

REMARKS

601 959-610 SABER SAW BLADES NO.1 (5 PCS.) 1

602 958-182 SABER SAW BLADES NO.2 (5 PCS.) 1

603 958-183 SABER SAW BLADES NO.3 (5 PCS.) 1

604 959-611 SABER SAW BLADES NO.4 (5 PCS.) 1

605 958-185 SABER SAW BLADES NO.5 (5 PCS.) 1

606 958-188 SABER SAW BLADES NO.8 (5 PCS.) 1

607 996-427 SABER SAW BLADES NO. 9 (3 PCS.) 1

608 959-799 SABER SAW BLADES NO.95 (3 PCS.) 1

609 959-800 SABER SAW BLADES NO.96 (3 PCS.) 1

610 318-611

SABER SAW BLADES NO.101 150L P.10 (5 PCS.)

611 318-612

SABER SAW BLADES NO.102 228L P.10 (5 PCS.)

612 318-614

SABER SAW BLADES NO.104 228L P.14 (5 PCS.)

613 318-615

SABER SAW BLADES NO.105 150L P.18 (5 PCS.)

614 318-616

SABER SAW BLADES NO.106 228L P.18 (5 PCS.)

615 318-617

SABER SAW BLADES NO.107 150L P.24 (5 PCS.)

616 318-618

SABER SAW BLADES NO.108 228L P.24 (5 PCS.)

617 318-619

SABER SAW BLADES NO.121 300L P.6 (5 PCS.)

618 318-620

SABER SAW BLADES NO.131 305L P.10/14(5 PCS.)

619 318-621 SABER SAW BLADES NO.132 203L (5 PCS.) 1
