Hitachi Deskstar 7K4000 Manuale utente
Page 1 version 1.0
Quick Installation Guide
Hitachi Deskstar 7K4000
& Deskstar 5K4000
Models: HDS7K4040ALE640
HDS5C4040ALE630
NOTE: The Deskstar 7K4000 & 5K4000 hard drives
feature Advanced Format technology. Advanced Format
increases the physical sector size on hard drives from
512 bytes to 4096 (4K) bytes, which increases drive
capacities and improves error correction capabilities.
Please consult the Hitachi Advanced Format Drives page
on our website for more information on using these hard drives.
System Requirements for Serial ATA
The following are needed to install a Serial ATA
(SATA) drive to a system:
SATA capable motherboard or controller card
SATA hard drive
SATA cable (1 meter or less in length)
Handling precautions
Set the drive down gently to prevent damage
from impact or vibration.
Do not open the ESD bag containing the drive
until needed.
Handle the drive carefully by the edges. Do not
touch the exposed printed circuit board or any
electronic components.
Do not press on the top or bottom of the drive.
Before handling the drive, discharge any static
electricity from yourself and your clothing. With
one hand, touch an unpainted metal surface on
your computer chassis, then touch the ESD bag
with the other hand. Remain in contact with the
chassis and the bag for a minimum of two
seconds.
Quick installation procedure
Note: Back up all data before installing drive.
1. Turn off the computer.
2. Unplug the computer.
3. Remove the computer cover as instructed by
the computer system manual.
4. Discharge static electricity (see Handling
precautions).
5. Note the mounting position of existing drives
and cables. If you are replacing a drive or any
cable, remove it now.
6. Remove the drive from the ESD bag.
7. Record the model, the part number, and the
serial number of the drive for future reference.
8. Attach the Serial ATA cable to the drive. Match
key on cable to connector on drive
Mounting instructions
Note: The mounting hole and connector locations are
shown in figures 1 and 2.
1. Mount the drive securely.
2. Verify all attachments.
3. Replace the computer cover.
4. Plug in the computer.
5. Turn on the computer.
6. Verify that the hard disk is recognized by the
BIOS. Instructions for accessing your BIOS
can be found in the computer system manual
or in the motherboard manufacturer
documentation. If the drive is not recognized in
the BIOS, check the following:
Hitachi Global Storage Technologies
Page 2 version 1.0
1) Auto Detect is enabled for the port the hard
disk is connected to.
2) SATA and power cables are connected
securely and not damaged.
3) The latest BIOS version is loaded onto the
system.
7. Many factors must be considered in order to
take advantage of the full capacity of drives
>2.2TB. Some configurations offer a higher
likelihood of success. Please refer to our
High Capacity Technology Brief and visit
our Above 2TB web page at
http://www.hitachigst.com/internal-
drives/above-2tb.
8. Your operating system setup utility will provide
instructions on how to partition and format your
drive before it installs the operating system.
For additional information see:
www.hitachigst.com/support
Note: The hard drive supports 6Gbps, 3Gbps and
1.5Gbps interface speeds. Higher interface speeds
are gated by Host Bus Adapter (HBA) or SATA
chipset of the system.
Mounting Recommendations
The drive will operate in all axes (6 directions).
Performance and error rate will stay within
specification limits if the drive is operated in the other
orientations from which it was formatted.
For reliable operation, the drive must be mounted in
the system securely enough to prevent excessive
motion or vibration of the drive during seek operation
or spindle rotation, using appropriate screws or
equivalent mounting hardware.
The recommended mounting screw torque is 0.6 - 1.0
Nm (6-10 Kgf.cm).
The recommended mounting screw depth is 4 mm
maximum for bottom and 6.1 mm maximum for
horizontal mounting.
Drive level vibration test and shock test are to be
conducted with the drive mounted to the table using
the bottom four screws.
Thread
(1)
(2)
(3)
(4)
(5)
(6)
(7)
6-32UNC
41.28±0.5
44.45±0.2
95.25±0.2
6.35±0.2
28.5±0.5
60.0±0.2
41.6±0.2

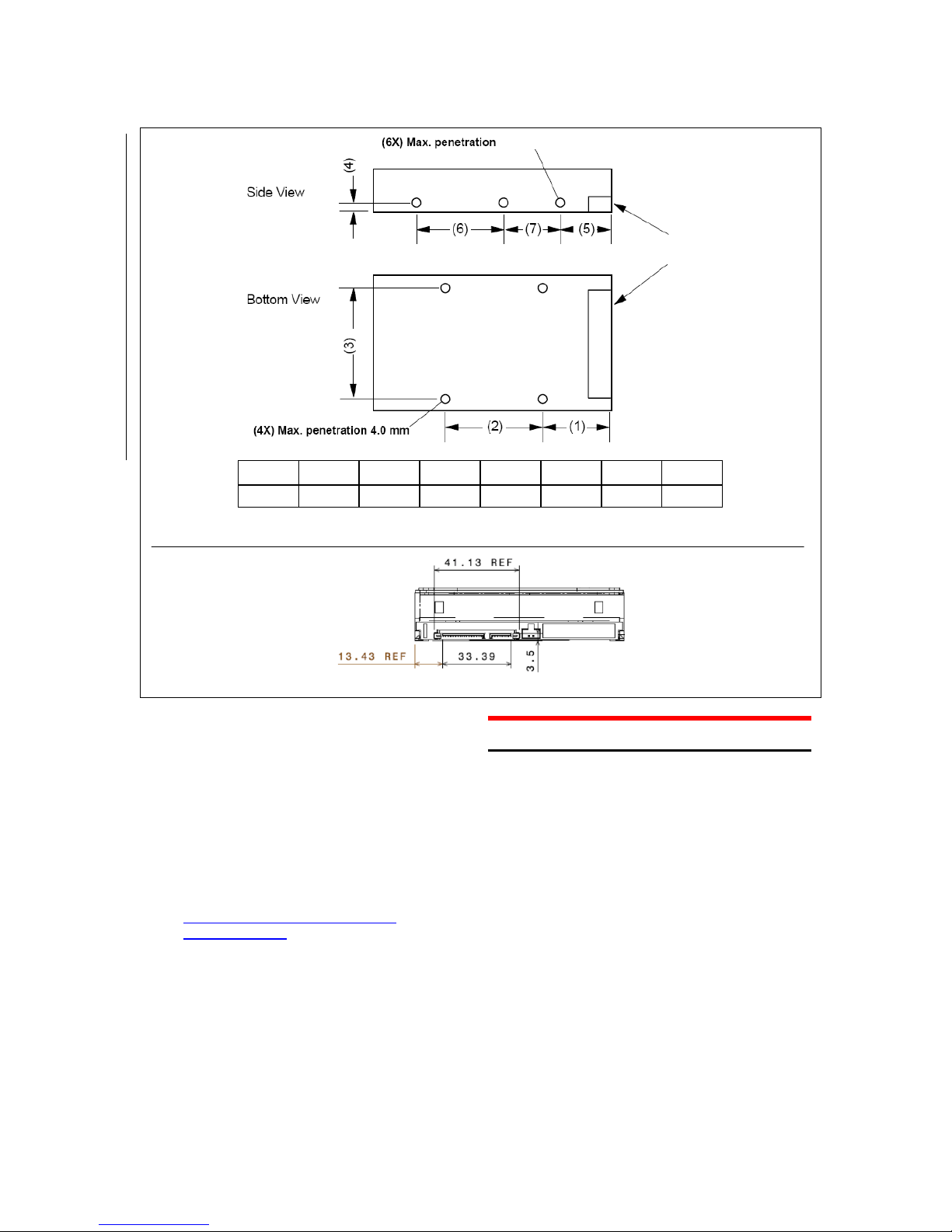

Figure 1: Mounting holes locations (all dimensions are in mm)
Figure 2: Connector location (all dimensions are in mm)
Interface connector
6.1mm
Hitachi Global Storage Technologies
Page 3 version 1.0
© 2012 Hitachi Global Storage Technologies
Hitachi Global Storage Technologies
3403 Yerba Buena Road
San Jose, CA 95135
Produced in the United States, 1/12. All rights reserved.
Capacity notice: One GB is equal to one billion bytes and one TB equals 1,000
GB (one trillion bytes) when referring to hard drive capacity. Accessible capacity
will vary from the stated capacity due to formatting and partitioning of the hard
drive, the computer’s operating system, and other factors.
Deskstar is a trademark of Hitachi Global Storage Technologies.
Hitachi Global Storage Technologies’ trademarks are authorized for use in
countries and jurisdictions in which Hitachi has the right to use, market and
advertise the brands. Hitachi shall not be liable to third parties for unauthorized
use of Hitachi trademarks.
References in this publication to Hitachi products, programs or services do not
imply that Hitachi intends to make these available in all countries in which it
operates. Some countries have laws that may affect encryption-enabled devices.
Hitachi GST assumes no responsibility for compliance with laws that apply to our
products after they are sold or outside of our control. Accordingly, we suggest
that you review all laws of the countries where you conduct business.
Product specifications provided are sample specifications and do not constitute a
warranty. Information is true as of the date of publication and is subject to
change. Actual specifications for unique part numbers may vary. Please visit the
Support section of our website, www.hitachigst.com/support, for additional
information on product specifications. Photographs may show design models.
4 January 2012
