Hitachi Ultrastar 15K73 Manuale utente

7/28/2003

v1.0 1

Quick installation guide

Hitachi Ultrastar 15K73

Ultra320 SCSI Hard disk drive

Model Numbers: 68 Pin Interface: HUS157373EL3600 HUS157336EL3600

80 Pin Interface: HUS157373EL3800 HUS157336EL3800

SPECIFICATIONS

Formatted Capacity*(Gbytes) 73.9 GB 36.9 GB

Bytes per Sector* 512 512

#Cylinders/#Heads/#Disks 40664/10/5 40664/5/3

Maximum LBA*(Hex) 89B88FF 44DC47F

Seektime:Average(Read. Typical) 3.9/4.2 3.9/4.2

Spindle Speed rpm 15037 15037

Interface Type Ultra 320 Ultra 320

Transfer rate (MB/s) 320.0 max 320.0 max

Operating Temperature (C/F) 5-55°C 5-55°C

Power: 12Vpeak(Typ)/5V peak (Typ) (A) 2.20/1.54 2.20/1.54

Start Time(s) 25 25

Handling Precautions

1. Do not press on the drive. Hold the drive by the sides only, do not apply any force to the drive during

handling or installation.

2. Always handle the drive with care to prevent damage from shock, vibration or electrostatic

discharge(ESD). Do not touch the Printed Circuit Board (PCB).

3. Electrostatic Discharge. Static electricity can damage the drive. Before handling the drive, touch an

unpainted metal surface for a few seconds to drain any static electricity from your body.

4. Keep the original packaging and static-protective bag in case the drive has to be returned.

Mounting Orientation

1. Installation horizontal or vertical ( 6 directions)

2. Provide adequate air flow to cool drive

3. Use 4 mounting screws (6x32 UNC). Maximum screw penetration 3.8mm (0.15 in) into drive

Cable Specifications:

1. Use interface cables that meet the ANSI SCSI guideline.

2. Cable length:

Interface cable (NW, Single-ended mode)

Cable Type Maximum cable length

Fast-5 Fast-10 Ultra(Fast20)

SCSI Interface Flat Ribbon or 6m 3m 3m(4 units max.)

Twisted Pair (16 units max.) (16 units max.) 1.5m (8 units max.)

DC power supply AWG#20 3m

7/28/2003

v1.0 2

Interface cable (NW, LVD mode)

Cable Type Maximum cable length

Ultra2(Fast)-40,Ultra160(Fast-80),Ultra 320(Fast-160)

SCSI Interface Flat Ribbon or 12m (16 units max.)

Twisted Pair

DC power supply AWG#20 3m

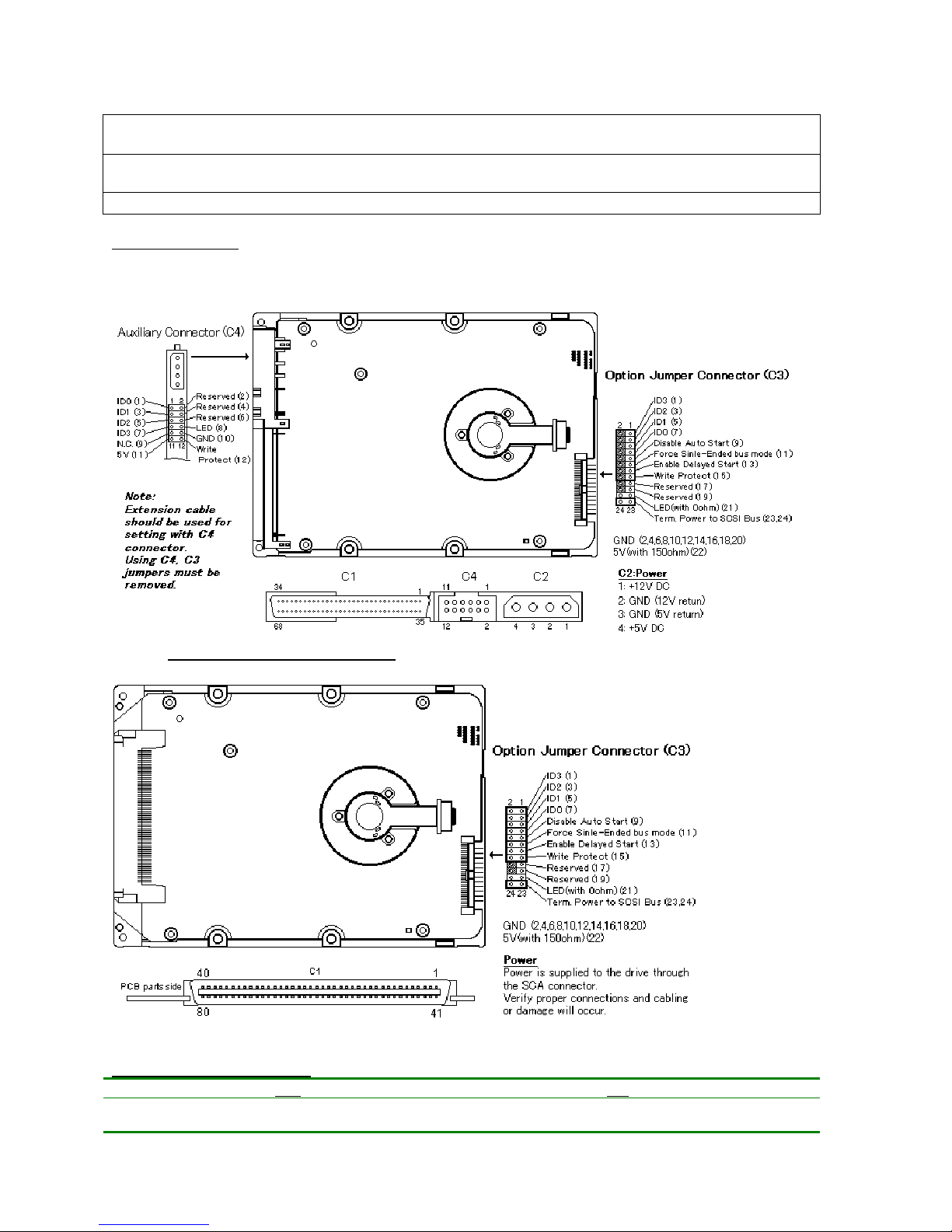

Connector Layout:

Wide LVD 68pin-16bits (NW)

SCA-2 LVD 80 pin-16bits (NC)

Option Jumper Connector C3

NW NC

Pin Function Removed Installed Function Removed Installed

1-2 ID3 * ID3 *

7/28/2003

v1.0 3

3-4 ID2 * ID2 *

5-6 ID1 * ID1 *

7-8 ID0 * ID0 *

9-10 Disable Auto Start At power on per

C3 pins 13-14

Only by SCSI

Command

Disable Auto Start

Refer note3 below Only by SCSI

Command

11-12 Force SE bus

mode

Single-ended or

LVD mode*

Only by SCSI

Command

Force SE bus

mode

Single-ended or

LVD mode*

Only by SCSI

Command

13-14 Enable delay start At power on* In 10 sec x ID

intervals on power

Enable delay start At power on* In 10 sec x ID

intervals on power

15-16 Write Protect Write Enable* Write Protected Write Protect Write Enable* Write Protected

17-18 Reserved Reserved

19-20 Reserved Reserved

21-22 LED(with 0 Ohm) LED(with 0 Ohm)

23-24 Term Power Termpwr not to

SCSI Bus*

Termpwr to SCSI

bus

Term Power Termpwr not to

SCSI Bus*

Termpwr to SCSI

bus

•Indicates Default Settings. Do not Change the reserved jumper pins! Changing will void warranty! Spare

jumpers C3: 2-4, 6-8, 12-14-16,18-20 for NW model, C3: 18-20 for NC model.. These spare jumpers can be used

for another setting.

7/28/2003

v1.0 4

Hitachi Global Storage Technologies

5600 Cottle Road

San Jose, CA 95193

Produced in the United States

7/03

Hitachi Global Storage Technologies.

Microsoft, Windows XP, and Windows are trademarks of

Microsoft Corporation in the United States, other

countries, or both.

Other product names are trademarks or registered trade-

marks of their respective companies.

References in this publication to Hitachi Global Storage

Technologies products, programs or services do not imply

that Hitachi Global Storage Technologies intends to make

these available in all countries in which Hitachi Global

Storage Technologies operates.

Product information is provided for information purposes

only and does not constitute a warranty.

Information is true as of the date of publication and is

subject to change. Actual results may vary.

This publication is for general guidance only. Photo-

graphs may show design models.

28 July 2003
