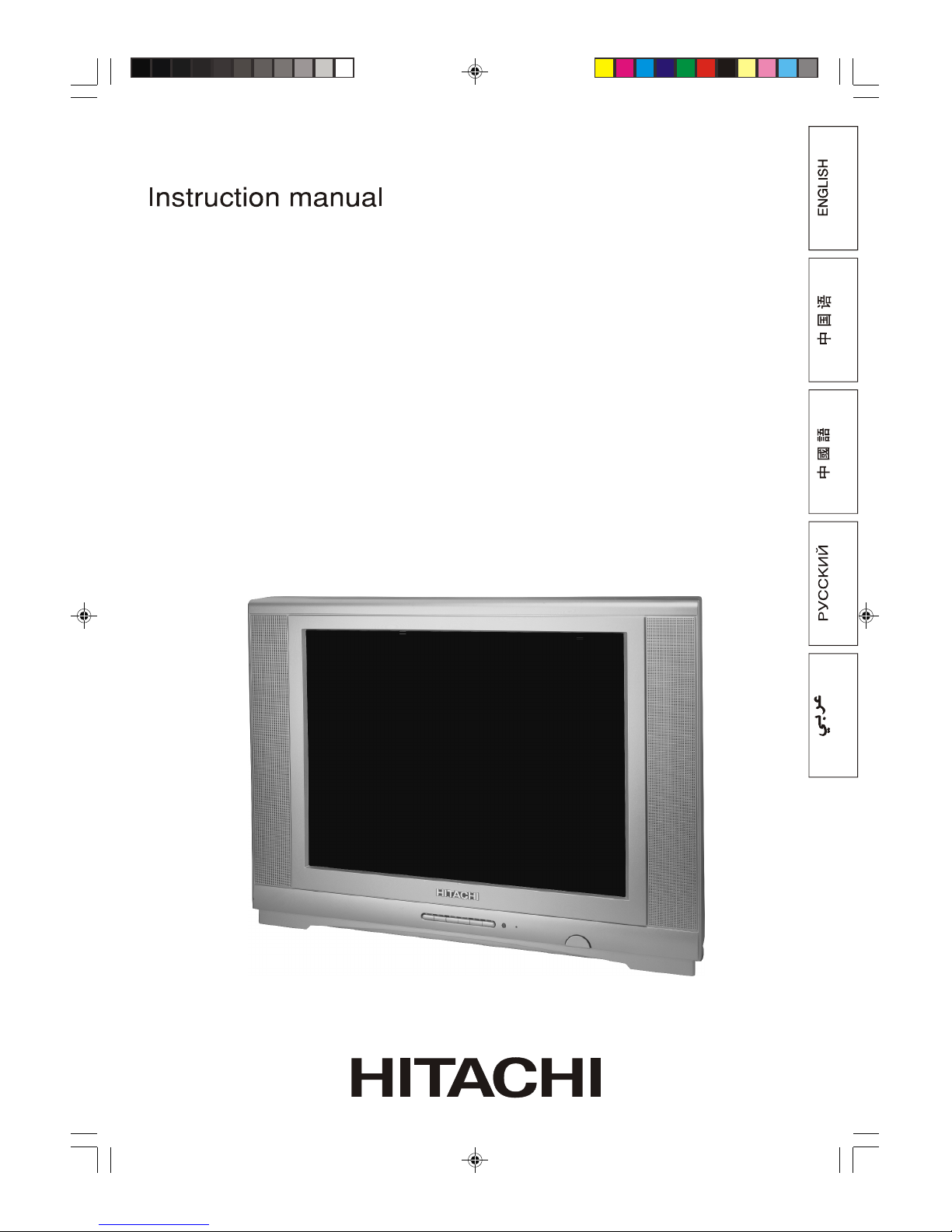

Hitachi C29-F800 Manuale utente

Hitachi Colour TV

C29-F800S

C29-F800SN

C29-F800SNT

Thank you for purchasing this colour TV.

Please read this instruction manual carefully before using the TV, especially the Safety Precautions in

page 3-4. Keep it carefully for future reference.

CONTENTS

SAFETY PRECAUTIONS 3

SETUP 5

Insert The Batteries

FUNCTIONAL PARTS 6

Front View of TV Set

Rear View of TV Set

Side Panel of TV Set

Remote Control Unit 8

MENU SCREENS 13

Picture Menu

Sound Menu

Time Menu

Setup Menu

Tune Menu

Exchange Menu

TROUBLESHOOTING 17

SPECIFICATIONS 19

TELETEXT OPERATIONS 11

is a trademark of SRS Labs , Inc.

TruBass technology is incorporated under license form SRS Labs , Inc.

SAFETY PRECAUTIONS

MAINTENANCE

•When the power cord or plug

is damaged or frayed, unplug

this TV from the wall outlet

and refer servicing to qualified

service personnel.

•Do not overload wall outlets

and extension cords as this

can result in fire or electric

shock.

•Do not allow anything to rest

on or roll over the power cord

and do not place theTV where

the power cord is subject to

traffic orabuse.This may result

in a shock or fire hazard.

•If theTV set has beendropped

or the cabinet has been

damaged, unplug this TV set

from the wall outlet and refer

servicing to qualified service

personnel.

•Never push objects of any

kind into this TV set through

cabinet slots as they may

touch dangerous voltage

points or short out parts that

could result in a fire or electric

shock.

•Do not attempt to service this

TV yourself as opening or

removing covers may expose

you to dangerous voltage.

Refer all servicing to qualified

service personnel.

•Do not place this TV seton an

unstable cart, stand or table.

The TV set may fall, causing

serious injury to human and

serious damage to the

appliance.

•Avoid dusty places, since

accumulated dust inside the

chassis may cause failure of

the set when high humidity

persists.

•Do not use this TV set near

water, for example, near a

bathtub, washbowl, kitchen

sink, or laundry tub, in a wet

basement, etc.

•Never cover the slots or

openings of the set with cloth

or other material.

•Never block the bottom

ventilation slots of the set by

placing it on a bed, sofa, rug,

etc.

•Never place the set near or

over a radiator or heat

•Never place the set in a

“built-in ” enclosure, unless

proper ventilation is provided.

•The TV set shall not be

exposed to dripping or

splashing and that no objects

filled with liquids, such as

vases, shall be placed on the

TV set.

built-in

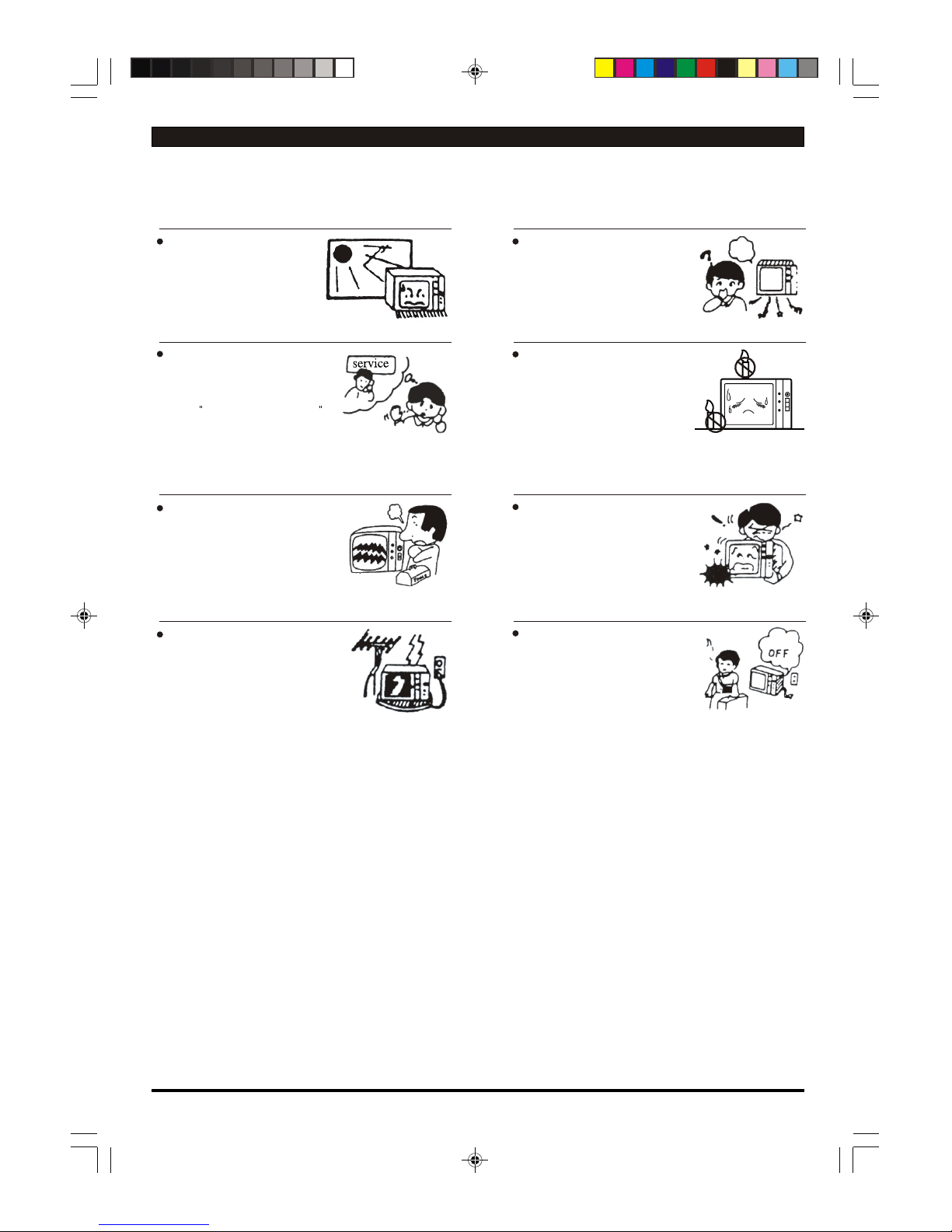

•If a strange sound or smell

gives off from this set, please

turn off the television and

unplug from the wall outlet,

then refer to service

personnel.

•To prevent fire, never place

any type of candle or naked

flames on the top or near the

TV set.

•Avoid any kind of impact to

your television. Be special

careful not to damage the

screen face.

•When going out:

If your television set is set to

remain unused for a periodof

time, turn off the television

and unplug it from the wall

outlet.

•Choose a place where light

(artificial or sunlight) does not

shine directly on the screen.

•Adjust only those controls

that are covered in the

operating manual as improper

adjustment of other controls

may result in damage, please

ask your service personnel to

restore the set to normal

operation.

•Lightning:

In order not to damage the

parts in the set, unplug and

remove the antenna

connection during lightning.

MAINTENANCE

•

If the set does not work

properly:

If you are unable to restore

normal operation by following

the TROUBLESHOOTING

section in your operating

manual, do not attempt any

further adjustment. Unplug

the set and consult service

personnel.

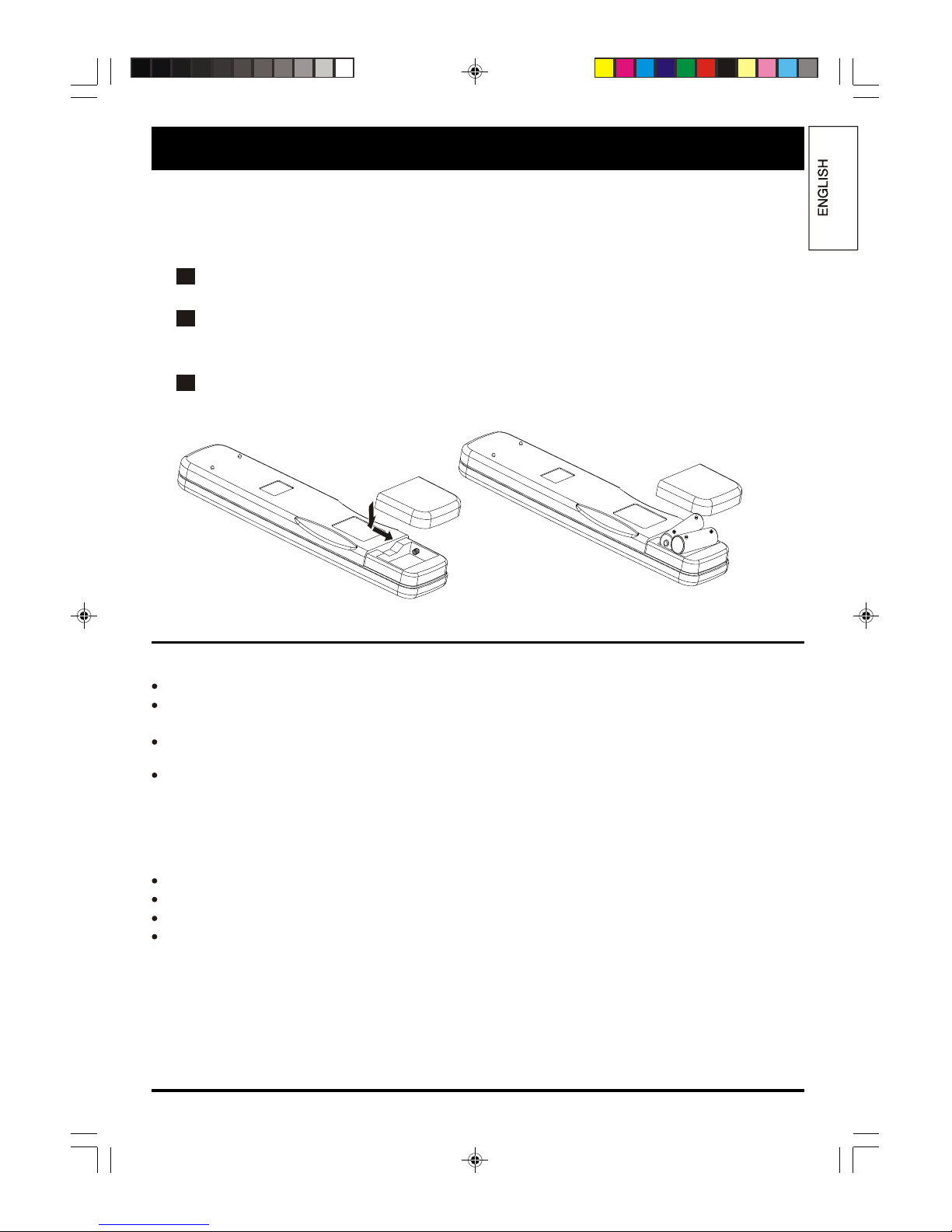

SETUP

Insert The Batteries

Remove the battery cover by pressing it and sliding it down.

Insert the two 1.5V (AAA size) batteries making sure the polarity (+ or -) of the

batteries matches the polarity marks inside the unit.

Replace the battery cover by sliding it in until you hear a click sound.

Precautions when using batteries

Do not use old and new batteries together.

Do not use different types of batteries (for example, Manganese and Alkaline batteries)

together.

Note that there are chargeable and non-chargeable batteries. Do not attempt to charge

non-chargeable batteries.

Remove the batteries from the remote control unit if you do not intend to use the unit for a long

time.

Precautions when using the remote control unit

Do not drop the remote control unit.

Do not subject the remote control unit to physical shocks.

Keep the remote control unit dry. Wetting it may cause the unit to malfunction.

Replace the batteries with new ones when operation of the unit deteriorates.

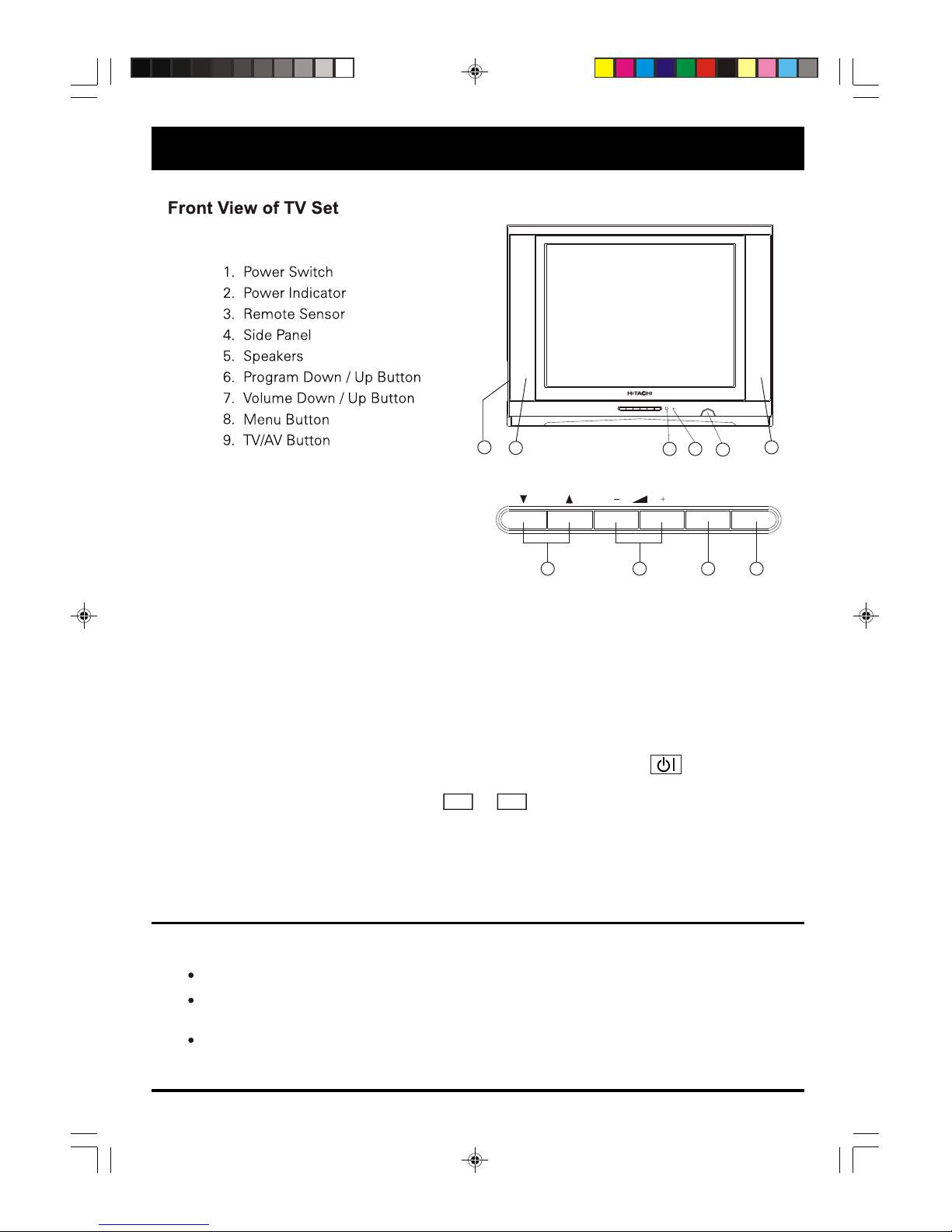

FUNCTIONAL PARTS

If you are not going to use this TV set for a long time, switch off the set using

the power switch on the TV set and disconnect the power plug from the wall outlet.

NOTE

Please note that the remote control unit can switch the TV set to ON or to

STANDBY mode only when the main power is ON.

To turn the TV power ON

Press the power switch on the TV set to switch on the TV.

When the TV set is ON ,the power indicator lights up dimly in red.

To turn the TV power OFF

Press the power switch on the TV set to switch off the TV.

When the TV set is off, the power indicator will not light up.

Standby Mode

At standby mode, the power indicator lights up brightly in red.

You can switch on the TV set or switch it to standby mode using the button on the

remote control unit. The picture usually takes a few second before appearing.

You can also press any number (0-9), or buttons to switch it on from standby

mode.

P+P -

If the TV set does not receive any signal for 5 minutes, it will enter standby mode.

MENU TV/AV

PROG.

66778899

4455

332211

NOTE

For Australia only - Install an external aerial conforming to AS 1417.1 for safety purpose.

S.VIDEO and AV IN 1 (VIDEO) inputs cannot be used at the same time.

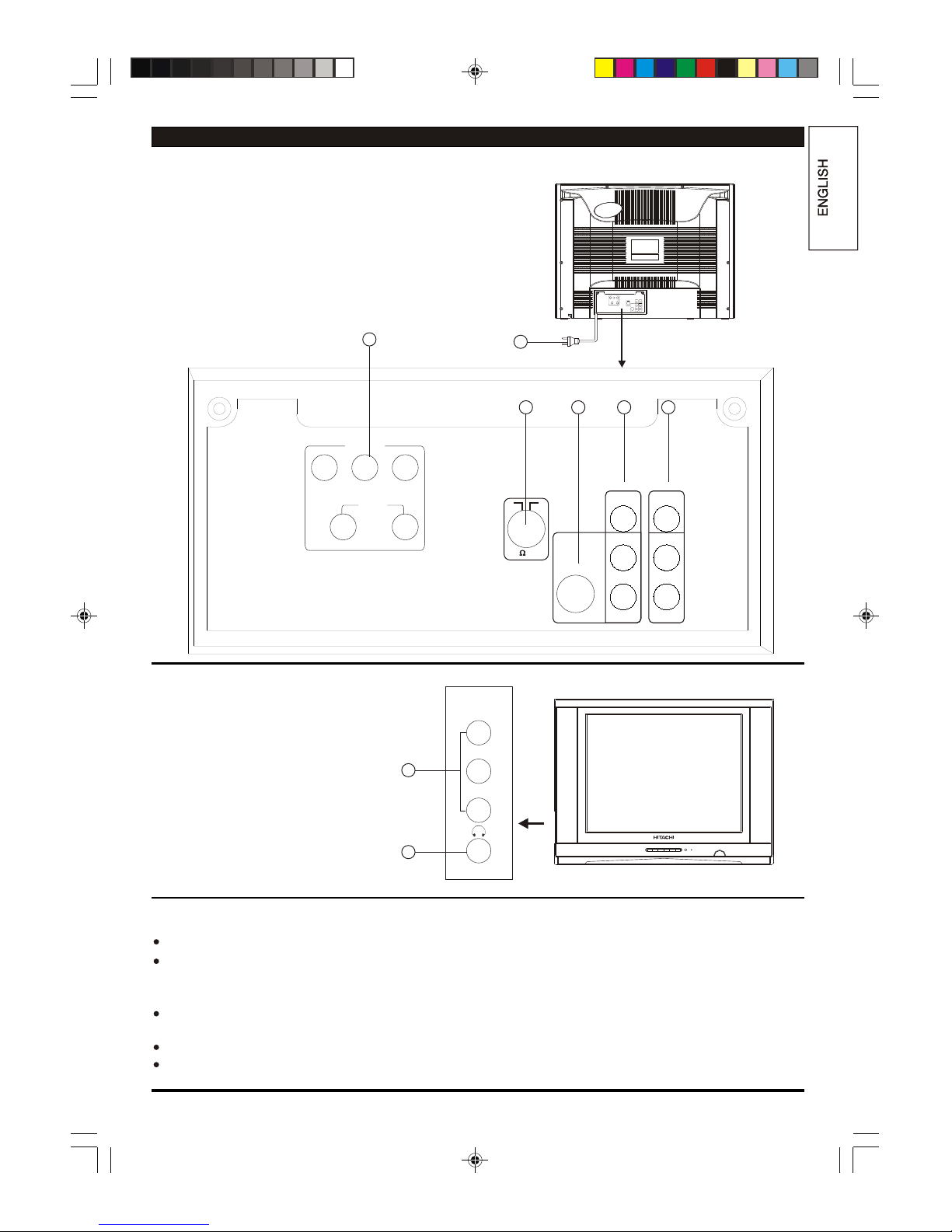

Precautions when connecting to other equipment

When using external equipment with this TV set, please read the instruction manual of the

external equipment.

Switch off all power supplies to the equipment and TV set before connection.

Always ensure that the input and output terminals are correctly connected.

1. YCbCr IN Terminals (YUV)

Antenna Input Socket (75 Ohm)

3. S-Video In Terminals

4. AV IN 1 Terminals

5. AV OUT Terminals

6. AC Power Cord

Rear View of TV Set

Side Panel of TV Set

1. AV IN 2 Terminals

2. Headphone Jack

S-VIDEO

75 ANT

RIGHT

LEFT

VIDEO

LEFT

AV OUT

AUDIO

YCb Cr AV IN 1

AUDIO

LEFT RIGHT

23 4 5

YCbCr IN

AUDIO

RIGHT

VIDEO

AV IN 2

VIDEO

LEFT

RIGHT

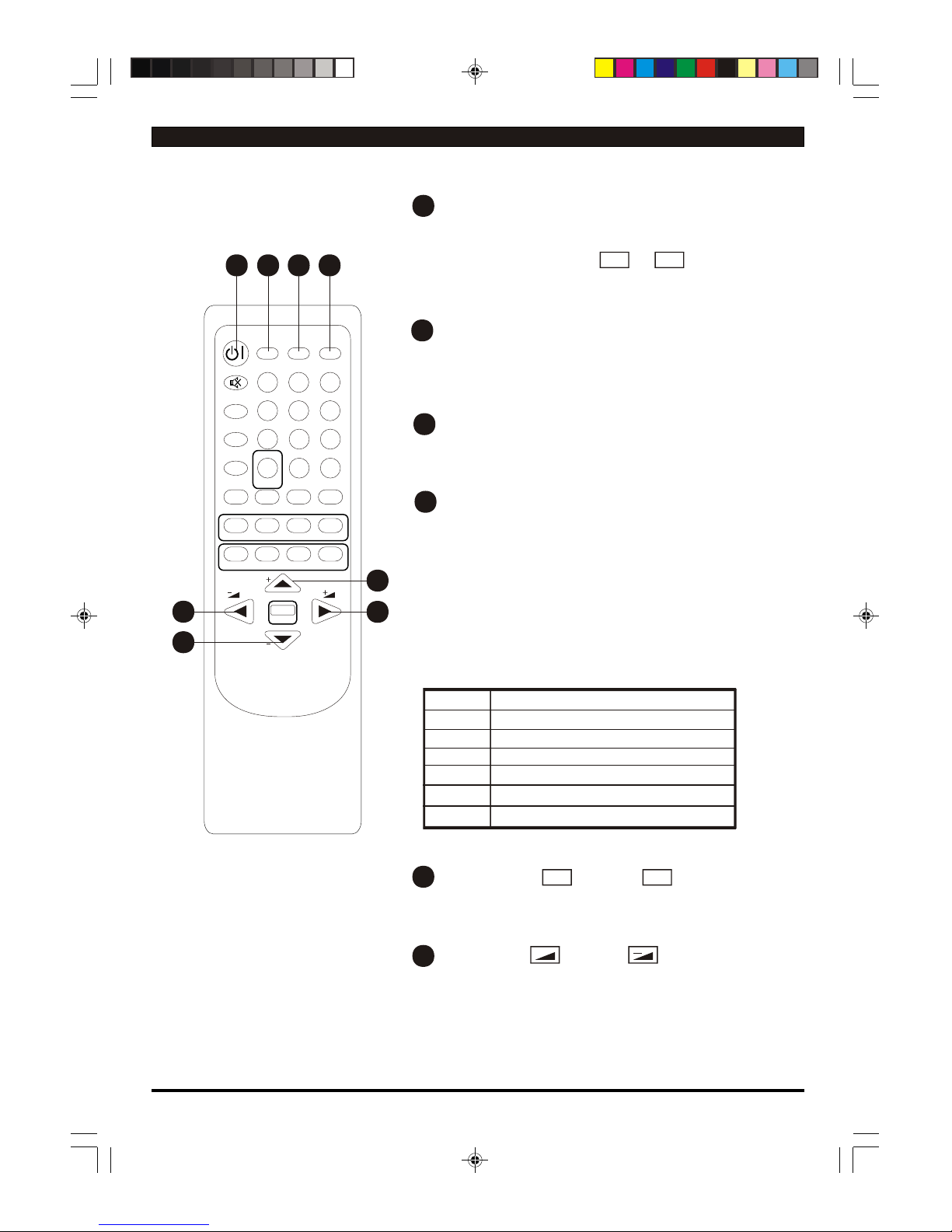

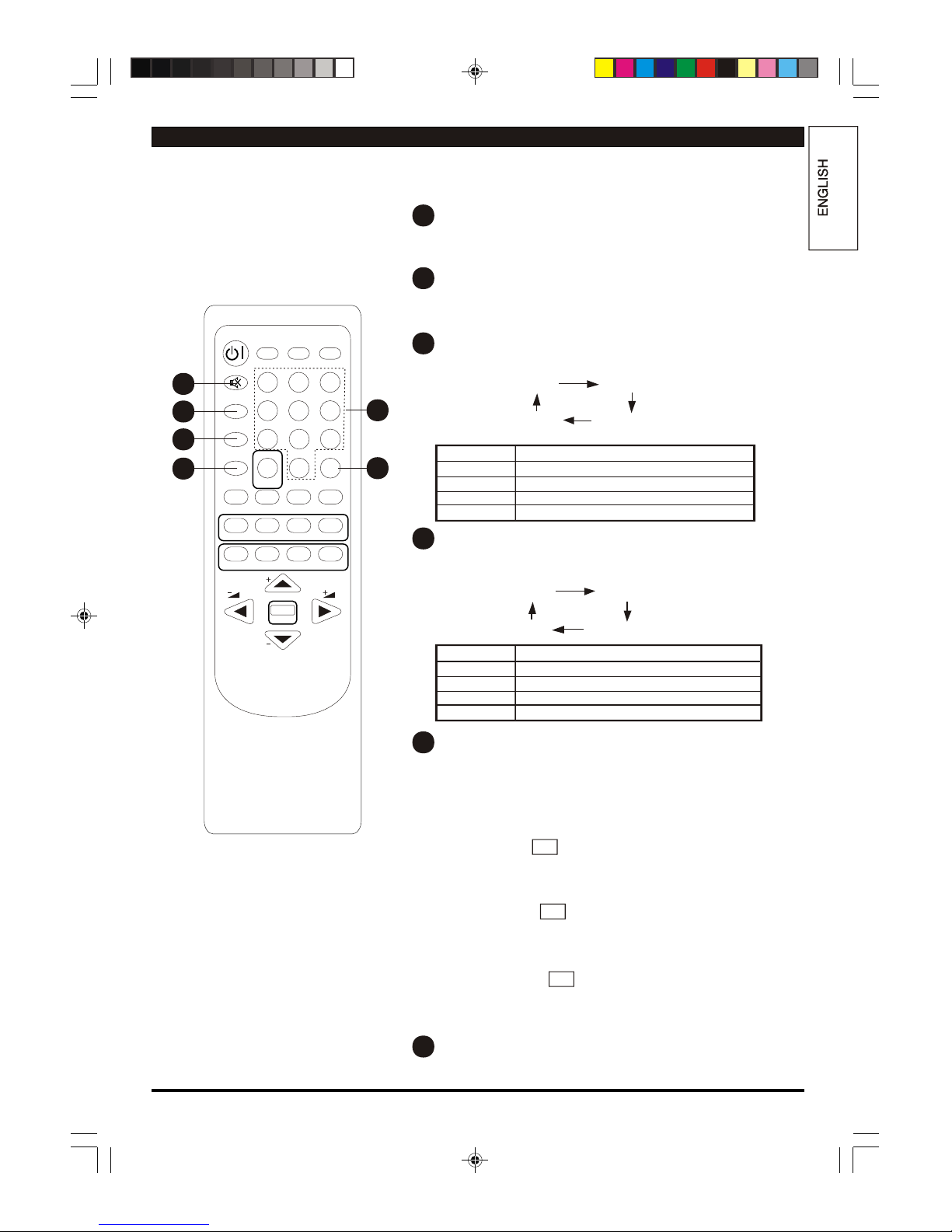

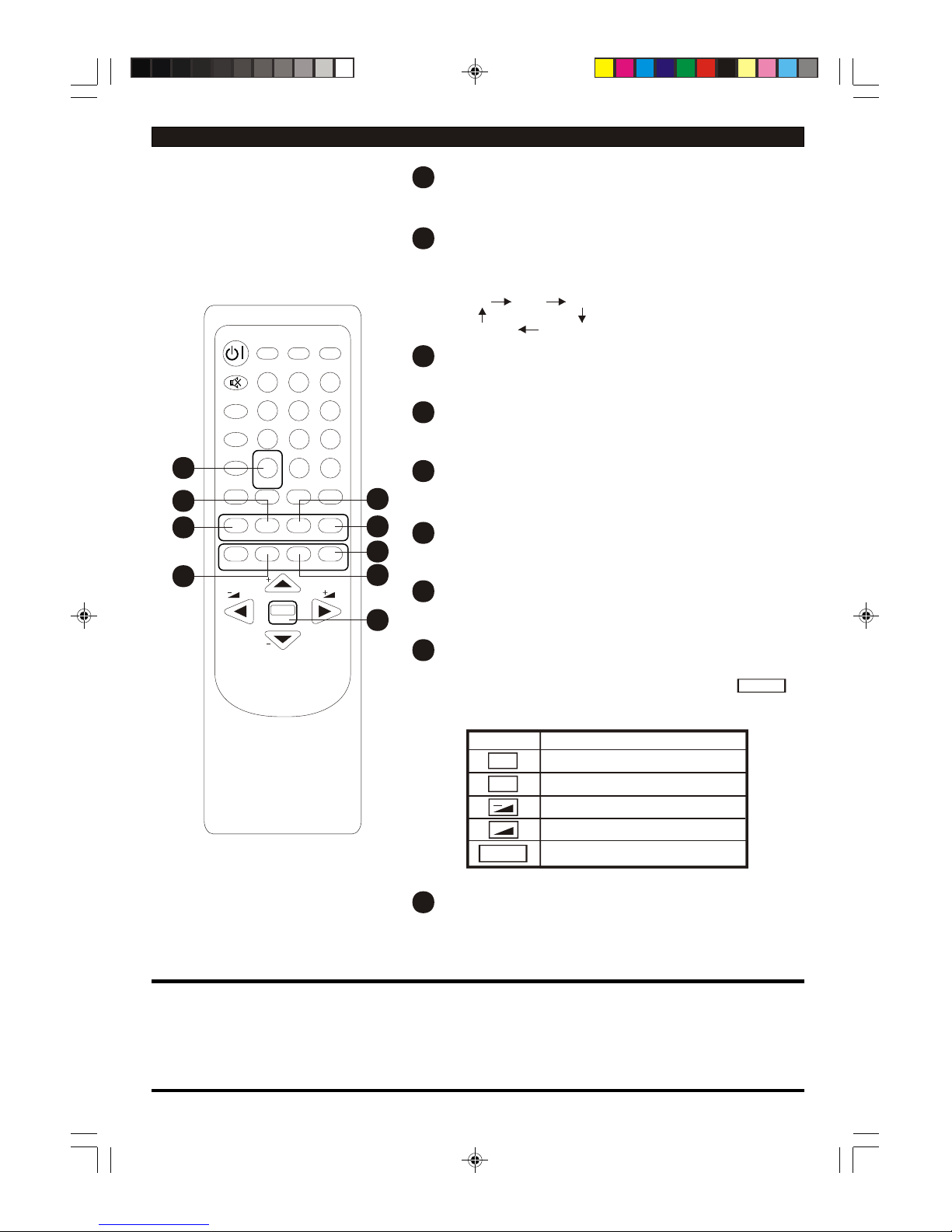

Remote Control Unit

SLEEP

1 2 3

--/-----/---

PIC. SETUP

SOUND TUNE

TV/TEXT CLOCK GAME LST-CH

INDEX

SUBPAGE

U.N.L HOLD

REVEAL

MIX TYPE SUBTITLE CANCEL

LANG.

SOUND

SYS. CH I/II

RECALL

SOUND

MODE

PIC.

MODE

TV/AV

CLE-9XX

POWER ON / STANDBY button

Press this button to switch on the TV when

at standby mode or vice versa.

Press any number 0-9, or

buttons will also switch on the TV from

standby mode.

SLEEP button

Press this button to set the sleep timer.

When the preset length of time has passed,

the TV set enters standby mode.

SOUND SYSTEMbutton

Press this button to select the correct

sound system.

STEREO/BILINGUAL SOUND button

When stereo program is received, press

this button to select STEREO or MONO.

In AV MODE ,press this button or select

STEREO, CH-L or CH-R.

When bilingual program is received, press

this button to select DUAL-1, DUAL-2 or

MONO.

The screen will display NICAM or A2 when

such broadcast is received.

STEREO

MONO

DUAL-1

DUAL-2

Stereo mode.

Mono mode.

Multi-sound channel for language 1.

Multi-sound channel for language 2.

4*1

Mode Description

CH-L Left sound track.

CH-R Right sound track.

CHANNEL UP / DOWN

5buttons

Press these buttons to select channels in

ascending or descending order.

VOLUME UP / DOWN buttons

Press these buttons to adjust the volume level

up or down.

P+P -

Remote Control Unit

SLEEP

1 2 3

--/-----/---

PIC. SETUP

SOUND TUNE

TV/TEXT CLOCK GAME LST-CH

INDEX

SUBPAGE

U.N.L HOLD

REVEAL

MIX TYPE SUBTITLE CANCEL

LANG.

SOUND

SYS. CH I/II

RECALL

SOUND

MODE

PIC.

MODE

TV/AV

CLE-9XX

MUTE button

Press once to mute the sound. Press again

to restore the sound volume.

RECALL button

Press this button to display the settings on

the screen. (e.g. Channel number, system)

SOUND MODE button

Press this button to select the desired sound

mode.

USER SPEECH

MUSIC THEATER

PICTURE MODE button

Press this button to select the desired

picture mode.

USER SOFT

RICH STANDARD

DIGIT button

This TV allows you to select channels from

0 to 199.

Press this button to select one-digit, two-

digit or three-digit channels input options.

To select a one-digit channel (e.g. Channel

8), press this button to change

channel selection to "-" on screen display

and press the "8" button only.

To select a two-digit channel (e.g. Channel

28), press this button to change

channel selection to "--" on screen display

and press "2" and "8" buttons.

To select a three-digit channel (e.g. Channel

128), press this button to change

channel selection to "1--" on screen display

and press "2" and "8" buttons.

--/---

CHANNEL SELECTION buttons

Press the number buttons to select a channel.

--/---

USER

SOFT

RICH

STANDARD

Picture Mode Description

User preset picture mode.

Low contrast and low brightness level.

Middle contrast and middle brightness level.

High contrast and high brightness level.

USER

SPEECH

Sound Mode Description

User preset sound mode.

Low treble and low bass level.

THEATER High treble and high bass level.

MUSIC Middle treble and middle bass level.

Remote Control Unit

SLEEP

1 2 3

--/-----/---

PIC. SETUP

SOUND TUNE

TV/TEXT CLOCK GAME LST-CH

INDEX

SUBPAGE

U.N.L HOLD

REVEAL

MIX TYPE SUBTITLE CANCEL

LANG.

SOUND

SYS. CH I/II

RECALL

SOUND

MODE

PIC.

MODE

TV/AV

CLE-9XX

MENU button

Press this button to enter the menu screens

for various optional adjustable settings.

TV/AV button *2

Press this button to switch between TV

broadcasts and AV input programs.

SOUND MENU button

Press this button to enter into the [SOUND]

menu directly.

PICTURE MENU button

Press this button to enter into the [PICTURE]

menu directly.

TV AV1 AV2

SETUP MENU button

Press this button to enter into the [SETUP]

menu directly.

TUNE MENU button

Press this button to enter into the [TUNE]

menu directly.

CLOCK button

Press this button to display the preset clock

time.

GAME button

Press this button to enter the game provided

with this TV set. Press this button again or

button to exit.

LAST CHANNEL button

Press this button to return to previously

viewed channel.

Buttons Actions In Game

To shift left.

To shift right.

16 17

19 20

NOTE

*1 Only applicable to models with NICAM and Sound Multiplex function only.

*2 See "Teletext Operations" section for details of these buttons functions in Teletext mode.

Only applicable to models with Teletext function only.

YCbCr S-VIDEO

To restart the game.

P+To transform.

P -

To speed up.

RECALL

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Hitachi TV

Hitachi

Hitachi 60RH2 Manuale utente

Hitachi

Hitachi L26A01 Manuale utente

Hitachi

Hitachi C2156TN Manuale utente

Hitachi

Hitachi ULTRAVISION L42S504 Manuale utente

Hitachi

Hitachi 40HXC06U Manuale utente

Hitachi

Hitachi C15F27 Manuale utente

Hitachi

Hitachi 55HAK5351 Manuale utente

Hitachi

Hitachi C21-RF80S - 21" CRT TV Manuale utente

Hitachi

Hitachi 55VH Manuale utente

Hitachi

Hitachi ULTRAVISION C58M6 Manuale utente

Hitachi

Hitachi 24HBT45U Manuale utente

Hitachi

Hitachi CDH-LE32FD14 Manuale utente

Hitachi

Hitachi C1422R Manuale utente

Hitachi

Hitachi 55HK6003 Manuale utente

Hitachi

Hitachi 55HK6200U Manuale utente

Hitachi

Hitachi HK5600 Manuale utente

Hitachi

Hitachi 53SWX10B Manuale utente

Hitachi

Hitachi 43GX10B Manuale utente

Hitachi

Hitachi 43HAK6150U H Manuale utente

Hitachi

Hitachi ULTRAVISION 48C6 Manuale utente

Hitachi

Hitachi 50HAK6152 Manuale utente

Hitachi

Hitachi C2057FN Manuale utente

Hitachi

Hitachi C2178FS Manuale utente

Hitachi

Hitachi 31KX39K, 31GX31B, 31DX21B, 31D Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente
