HiTRAx HIKE Manuale utente

HIKE

Cat. No. 42.4001

Instruction Manual

INTRODUCTION

This device is a digital product that provides altimeter, barometer, compass, altimeter data, dual time,

chronograph, chronograph data and alarmfunctions.

Features:

Altimeter

- 1 meter (or foot) resolution and with working range from -700 meters (-2296 feet) to 9000 meters (29520 feet).

- Graphical expression ofchanges provided.

- Unit in meters or feet selectable.

- 20 memories with date, time and altitude reading.

Barometer

- 1 hPa resolution and with working range from300 hpa to 1100 hpa.

- Graphical expression ofchanges provided.

- Both sea level pressure and absolute pressure can be shown.

- Weather forecast.

- Temperature displayed in °F or °C selectable.

Compass

- Electronic compass providing 16 cardinal indications together with bearing in degrees.

- Declination correction provided.

Time

- 2 time modes selectable.

- Presents dayofthe week, day, hours, minutes and seconds (year and month can also be set).

- 12/24-hour formats selectable.

- Auto-calendar from2000 to 2049.

Chronograph

- 1/100-second resolution with working range up to 24 hours.

- 100 memories for lap/split times stored in a maximumof30 runs.

Alarm

- 2 dailyalarms.

- Hourlychime.

Electro-luminescent backlight

- 3 seconds light up EL backlight.

Altimetermode with altitude change: measures every2,5 seconds

Altimetermode without altitude change (barometer mode): every2,5 minutes

Barometermode: measures every2,5 minutes. Changes to Time mode after 24 hours

Temperature: measures every2,5 minutes.

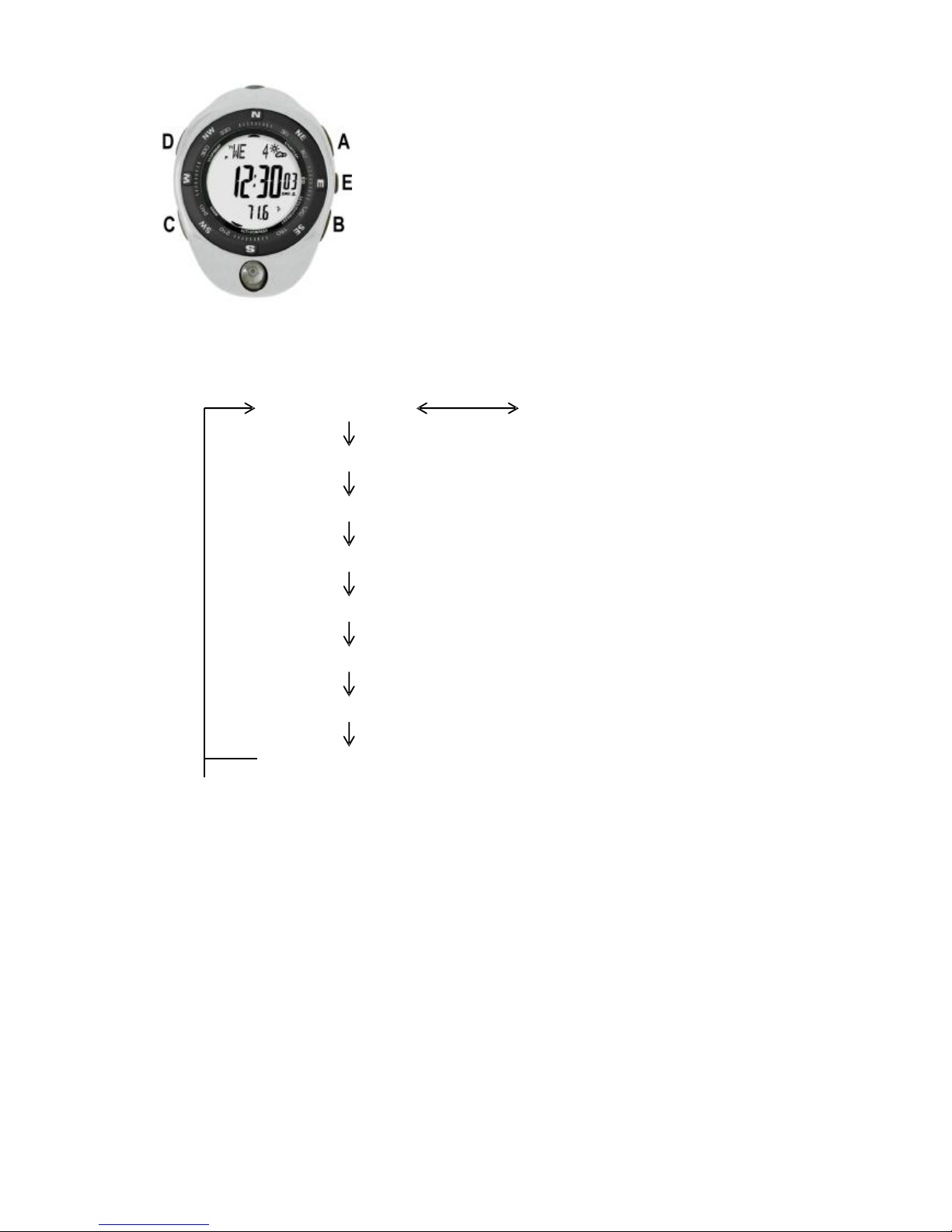

BASIC OPERATION OF BUTTONS

A: - SWITCH AMONG DISPLAYS

- TAKE BEARING

- STORE ALTITUDE DATA (PRESS AND HOLD)

- FORWARD SELECTION OF ALTITUDE DATA

- START/LAP OF CHRONOGRAPH

- RETRIEVE DATA IN RUN

- TURN ALARM ON AND OFF

- FORWARD SETTING (SETOR CALIBRATION)

B: - SWITCH BETWEEN NORMAL TIME AND DUAL TIME (PRESS AND HOLD)

- SWITCH BETWEEN UNITS OF TEMPERATURE (PRESS AND HOLD)

- SWITCH BETWEEN UNITS OF ALTITUDE (PRESS AND HOLD)

- REVERSE SELECTION OF ALTITUDE DATA

- STOP CHRONOGRAPH

- STORE CHRONOGRAPH DATA (PRESS AND HOLD)

- SELECTRUN NUMBER

- SWITCH BETWEEN ALARM 1 AND ALARM 2

- REVERSE SETTING (SETOR CALIBRATION)

C: - MODE CHANGE

- DIRECTCHANGE TO TIME MODE (PRESS AND HOLD)

- ADVANCE TO NEXTSETTING (SETOR CALIBRATION)

D: - EL BACKLIGHT

- ENTER SETOR CALIBRATION (PRESS AND HOLD)

- CLEAR DATA (PRESS AND HOLD)

- EXIT(SETOR CALIBRATION)

EL BACKLIGHT

Press E for EL backlight with 3 seconds auto light up.

MODE CHANGE OPERATION

There are 9 modes: Normal Time, Dual Time, Compass, Barometer, Altimeter, Altimeter Data, Chronograph,

Chronograph Data and Alarm.

Press C to change frommode to mode, hold down B to switch between Normal Time mode and Dual Time mode

as in the following:

* At anymode, holding down C will change to Time mode directly.

NORMAL TIME

COMPASS

BAROMETER

ALTIMETER

ALTIMETER DATA

DUAL TIME

Hold B

CHRONOGRAPH

CHRONOGRAPH DATA

ALARM

TIME MODE

Use C to enter Time mode.

* Mode prompt “TIME” is displayed first.

- There are 2 time modes, Normal Time (indicated byT1) and Dual Time (indicated byT2), and theycount up

individuallywith the same second.

- There are 3 displays for time. Theyare Time, Time with Barometer and Time with Weather.

- There is an auto-calendar from2000 to 2049.

To switch between Normal Time and Dual Time

Hold down B until the mode indicator (T1 or T2) stops flashing to switch between Normal Time mode and Dual

Time mode.

To switch among the 3 time displays

Use A to switch among the 3 displays for time.

* “TIME”, “BAROMETER” or “WEATHER” is displayed first.

* Graph ofsea level pressure is described in BAROMETER MODE.

To set time

1. Hold down D until the hour digits start to flash on the display, which indicates the setting screen.

2. Use A (+) and B (-) to change the setting. Holding down either button scrolls the settingat high speed.

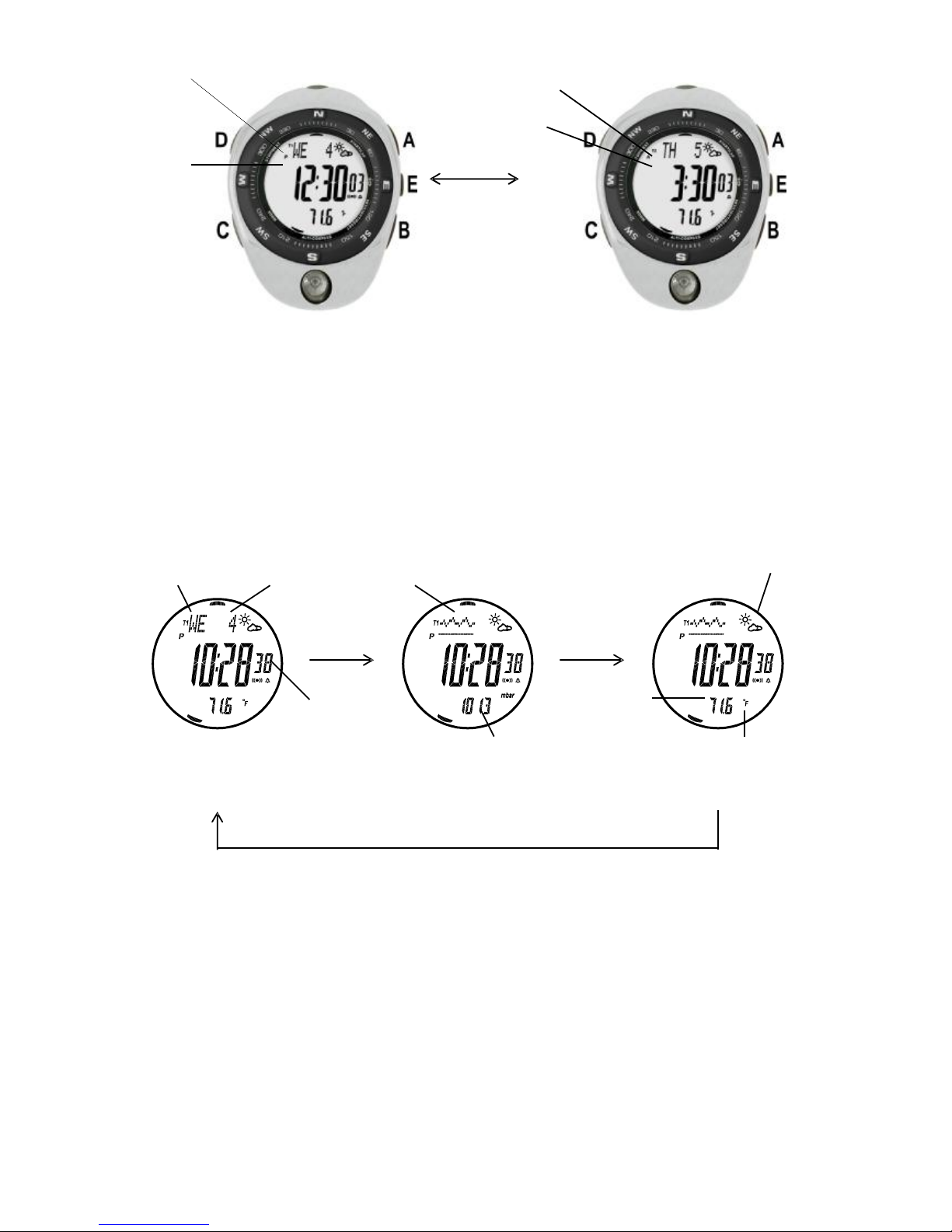

TIME/BAROMETER

TIME TIME/WEATHER

Temperature

Graph of

sea level pressure

Current sea level pressure

Weather indicators

Time

Dayof the week Day

Unit indicator

of temperature

Hold B

Normal Time indicator

indicator

Dual Time indicator

3. Press C to advance to the next setting as in the following:

* When second digits are flashing, press A or B to reset the digits to 00. Resetting seconds when the digits are

between 00 to 29 will leave the minute digits unchanged, or between 30 to 59 will increase the minute digits

byone.

* When 12 or 24 is flashing, press A or B to switch between 12- or 24-hour formats. If12-hour format is chosen,

AM or PM indicator will be shown.

4. Press D to exit the setting screen and dayofthe weekwill be adjusted automatically.

* Ifthere is no button operation for 2-3 minutes at setting screen, the displaywill return to Time mode

automatically.

COMPASS MODE

Use C to enter Compass mode.

* Mode prompt “COMP” is displayed first and bearings will be taken automatically.

-Compass mode indicator is shown.

- When you take bearings, readings are shown in 16 cardinal indications together with bearing in degrees.

* Reading shown indicates the direction that the LCD’s 12 o’clockposition is pointing to.

- North-South arrowis shown on circumference ofthe LCD.

* North is indicated by1 flag and South is indicated by3 flags.

- Declination correction is provided.

* Declination is the difference between true north and magnetic north.

Importance

1. The compass should be calibrated before use.

2. The compass must be kept in a level position when in use.

3. Compass readings are easilyaffected bydisturbing sources ofmagnetism, so the compass should always be

used in the open air.

To calibrate the compass

1. Hold down D until “CAL” is shown on the display, which indicates the calibration screen.

2. Rotate the product clockwise slowlyfor 2 complete rotations.

* Each rotation must last for at least 15 seconds. Keep the watch in a level position when calibrating.

Do avoid close contact to metal parts or other electrical instruments, when calibrating.

3. Press D and the ten-degree digit starts to flash on the display, which indicates the declination angle setting

screen.

* Press A will end calibration skipping the declination angle setting. In this case, the declination angle is set to

0 degree.

4. Use A (+) and B (-) to change the setting. Holding down either button scrolls the setting at high speed.

5. Press C to advance to the next setting as in the following:

HOUR MINUTE

SECOND YEAR

MONTHDAY12/24H

C C C

CCCC

Hold D

CALIBRATION SCREEN

South indicator

Bearing

Compass mode

indicator

North

indicator

Cardinal indicator

* When E or Wis flashing, press A or B to switch between East and West.

* You should consult your local organization for information ofdeclination. Declination angles for major cities

are listed belowfor reference only.

City Declination Angle

Anchorage 22° E London 4° W Rio De Janeiro 21° W

Atlanta 4° W Little Rock 3° E San Francisco 15° E

Bombay 1° W Livingston, MT

14° E Seattle 19° E

Boston 16° W Munich 1° E Shanghai 5° W

Calgary 18° W NewYorkCity 14° W Toronto 11° W

Chicago 3° W Orlando 5° W Vancouver 20° W

Denver 10° E Oslo 2° W Washington DC 10° W

Jerusalem 3° E Paris 2° W Waterbury, CT 14° W

6. Press D to end calibration.

* If“ERR” indicating error is displayed, calibrate the compass again.

* Ifthere is no button operation for 2-3 minutes during calibration or at declination angle setting screen, the

displaywill return to Compass mode automatically.

To take bearings

1. Press A, bearings will be taken and shown for about 10 seconds.

* Ifno bearing is being taken, the displayshows “----”.

2. Hold down A, bearings will be taken and shown continuouslyand for 10 seconds more after A is released.

BAROMETER MODE

Use C to enter Barometer mode.

* Mode prompt “BARO” is displayed first.

- Barometer mode indicator is shown.

- The barometer is of1 hPa resolution and with working range from300 hpa to 1100 hpa.

- Both sea level pressure and absolute pressure can be shown.

- Graph showing the changes in sea level pressure is provided.

* Graph will be cleared onlyafter batteryreplacement or reset.

- Weather forecast (indicated bythe weather indicators) for the coming 24-48 hours is provided.

* Forecast is accurate onlyifthe barometer has been functioning for at least 12 hours.

- Temperature is of0.1 degree resolution and with working range from -4°F (-20°C) to 158°F (70°C). And unit in

°F or °C selectable.

- There are 3 displays for Barometer mode.

To switch among the 3 displays for barometer mode

Use A to switch among the 3 displays for barometer mode.

TENS OF DEGREE DEGREE E/W

Barometer mode indicator

Graph of

Sea level pressure

Weather indicator

Unit indicator

Of pressure

Current

Sea level pressure

Barometer mode indicator

A A

Reading the graph of sea level pressure

The graph shows the relative changes in sea level pressure in the past with the current pressure represented on

the right. Each horizontal point represents one hour while each vertical point represents the relative reading of

pressure in that time.

* It is not possible to get the exact reading fromthe graph. User can onlyget the trend ofchanges fromthe graph.

To switch between °F and °C

1. Use A to switch to the barometer displaywith temperature.

2. Hold down B until the unit indicator (°F or °C) stops flashing to switch temperature between °F and °C.

To set sea level pressure reading

1. Hold down D until “SETCURRENTWEATHER” scrolls on the display, which indicates the weather setting

screen.

* The weather indicators start to flash.

2. Press C, “SETSEA LEVEL PRESSURE” scrolls on the display, which indicates reading setting screen.

* The current sea level pressure reading starts to flash.

3. Use A (+) and B (-) to change the setting. Holding down either button scrolls the setting at high speed.

4. Press D to exit the setting screen.

* Ifthere is no button operation for 2-3 minutes at setting screen, the displaywill return to Barometer mode

automatically.

To set current weather

1. Hold down D until “SETCURRENTWEATHER” scrolls on the display, which indicatesthe weather setting

screen.

* The weather indicators start to flash.

2. Use A (+) and B (-) to change the setting as in the following:

3. Press D to exit the setting screen.

* Ifthere is no button operation for 2-3 minutes at setting screen, the displaywill return to Barometer mode

automatically.

Temperature Absolute pressure Time

BBB

AAA

indicator

ALTIMETER MODE

Use C to enter Altimeter mode.

* Mode prompt “ALTI” is displayed first.

- Altimeter mode indicator is shown.

- The altimeter is of1 meter (or foot) resolution and with working range from -700 meters (-2296 feet) to 9000

meters (29520 feet).

- Altitude reading in meters or feet selectable.

- Graph showing the changes in altitude is provided.

* Graph will be cleared onlyafter batteryreplacement or reset.

- Maximum20 altitude data can be stored.

Reading the altitude graph

The altitude graph shows the relative changes in altitude in the past with the current altitude represented on the

right. Each horizontal point represents 15 minutes while each column represents the relative reading ofaltitude

in that time.

* It is not possible to get the exact reading fromthe graph. User can onlyget the trend ofchanges fromthe graph.

To switch between meters and feet

Hold down B until the unit indicator (M or Ft) stops flashing to switch altitude reading between meters and feet.

To store altitude data

Hold down A until “DATA” stops flashing to store the current altitude data.

* “STORED” and data number are shown.

To calibrate altitude reading

1. Hold down D until the current altitude reading starts to flash on the display, which indicates the setting screen.

2. Use A (+) and B (-) to change the setting. Holding down either button scrolls the setting at high speed.

3. Press D to exit the setting screen.

* Ifthere is no button operation for 2-3 minutes at setting screen, the displaywill return to Altimeter mode

automatically.

ALTIMETER DATAMODE

3 seconds

Altitude graph

Unit indicator

Of altitude

Current

Altitude reading

Time

Altimeter mode indicator

Altitude reading

Data number

Time

Month-Day

Use C to enter Altimeter Data mode.

* Mode prompt “ALTI DATA” is displayed first.

- Data number, time, date and altitude reading can be retrieved.

* Altitude data are shown in 2 different displays.

To retrieve the altitude data

Use A (+) and B (-) to select the altitude data to be retrieved.

To clear the altitude data

Hold down D until “----” is shown on the displayto clear all altitude data stored.

* Altitude data cannot be cleared individually.

CHRONOGRAPH MODE

Use C to enter Chronograph mode.

* Mode prompt “CHRO” is displayed first.

- The chronograph is of1/100-second resolution for the first hour and 1-second resolution for the rest and with

working range up to 24 hours, then the chronograph stops automatically.

-For the first hour, the chronograph shows minutes, seconds and 1/100-seconds, then it shows hours, minutes

and seconds.

* Leading zeros will not be shown.

- There are 100 memories for lap/split times stored in a maximumof30 runs.

- The chronograph lets you measure elapsed time, lap/split times and two (or more) finishes.

* When you take lap/split times, the displaywill be frozen to showlap time, split time and lap number for about 6

seconds, then the displaywill showthe current running times automatically.

To measure elapsed time

1. Press A to start the chronograph.

2. Press B to stop the chronograph.

* You can resume the measurement operation bypressing A.

3. Hold down B until the next run number is shown on the display.

* Data ofthe current run is stored and chronograph is reset to all zeros.

To measure lap/split times

1. Press A to start a time measurement.

2. Press A again when you want to take the first lap/split time.

3. Press A again when you want to take the next lap/split time.

* You maytake up to 100 lap/split times bypressing A.

4. Press B to stop the time measurement.

5. Hold down B until the next run number is shown on the display.

* Data ofthe current run is stored and chronograph is reset to all zeros.

To measure two (or more) finishes

1. Press A to start a time measurement.

2. Press A again when the first runner finishes.

Lap time

Split time

Lap number

Lap time

indicator

Split time

indicator

3. Press A again when the second runner finishes.

* You mayrecord the finish time ofup to 100 runners bypressing A.

4. Press B when the last runner finishes.

* Time measurement is stopped.

5. Hold down B until the next run number is shown on the display.

* Data ofthe current run is stored and chronograph is reset to all zeros.

* The finish times for the runners are the split times stored in Chronograph Data mode.

To clear times in current run

1. Press B to stop the chronograph.

2. Hold down D until the chronograph shows all zeros.

* Times in current run are cleared.

CHRONOGRAPH DATAMODE

Use C to enter Chronograph Data mode.

* Mode prompt “CHRO DATA” is displayed first.

- Run number, date, lap/split time ofeach lap, best lap time and average lap time can be retrieved.

- Ifchronograph is running, chronograph data cannot be cleared.

To retrieve the chronograph data

1. Use B to select the run to be retrieved.

* Run number and date are shown for about 2 seconds first.

2 seconds

Run number

Month-Day

Lap time

Split time

Lap number

Lap time

indicator

Split time

indicator

Indice

Altri manuali HiTRAx Orologio

HiTRAx

HiTRAx 42.7003 Manuale utente

Manuali Orologio popolari di altre marche

Pandora

Pandora WATCH2 Manuale utente

Casio

Casio QW-4343 Manuale utente

Suunto

Suunto X6 Manuale utente

Seiko

Seiko N830 Manuale utente

MotionX

MotionX 365 Manuale utente

Garmin

Garmin VENU SQ 2 Manuale utente

QCY

QCY Watch GTC Manuale utente

Canyon

Canyon Cindy CNE-KW41WP Manuale utente

Esq

Esq Watches Guida all'installazione

Crane

Crane AA5-CDSM-3A Manuale utente

Timex

Timex W-214 Manuale utente

DETOMASO

DETOMASO MATERA Manuale utente

Geemarc

Geemarc Watch N Shake Manuale utente

LORUS

LORUS W590 Manuale utente

STENLILLE

STENLILLE Actío Manuale utente

Casio

Casio 5594 Manuale utente

Sinn

Sinn HUNTER'S WATCH 3. Edition Manuale utente

Slazenger

Slazenger SLZ800 Manuale utente
