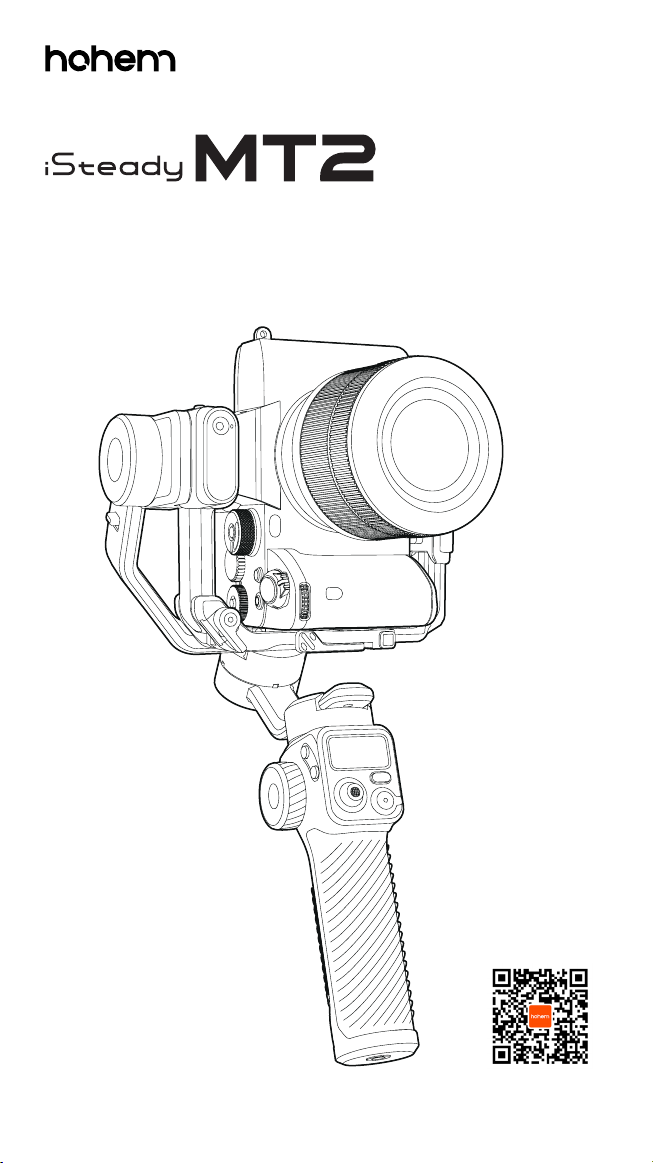

Hohem iSteady MT2 Manuale utente
Scan the QR code to
access the tutorial
User Manual V1.0
4-in-1 Camera Stabilizer
Warning & Disclaimer
Thank you for purchasing the Hohem product. By using this
product, you hereby signify that you have read this disclaimer
and warning carefully. In addition, you understand and agree to
abide by the terms and conditions herein. You acknowledge that
you are solely responsible for your own conduct while interacting
with this product, and for any consequences thereof. You agree
to use this product only for purposes that are proper and in
accordance with all applicable laws, rules, and regulations, and
all terms, precautions, practices, policies and guidelines Hohem
has made and may make available. Hohem accepts no liability
for damage, injury, or any legal responsibility incurred directly
or indirectly from the use of this product. The user shall observe
safe and lawful practices including, but not limited to, those set
forth in this document.
This document and all other collateral documents are subject to
change at the sole discretion of Hohem. For up-to-date product
information, visit www.hohem.com and click on the product
page for this product.
Email
Website
www.hohem.com
Manufacturer
Hohem Technology Co., Ltd.
Hohem Technology Co., Ltd.
Connect us at
Facebook
01 Product List 01
02 Introduction 02
03 Battery and Charging 03
04 Download the Hohem Joy App 03
05 Mounting and Balancing 04
Attaching the Tripod 04
Mounting A Camera 04
Mounting A Phone 08
Mounting An Action Camera 09
Balancing 10
06 How to Use the Gimbal 13
On-board Features 13
Modes Description 16
Manual Tilt Adjustment 16
07 How to Enable the AI Tracking 17
08 OLED Display 18
09 How to Use the Hohem Joy App 20
Bluetooth Connection 20
App Guidance 21
10 Auto Calibration & Firmware Update 22
Auto Calibration 22
Firmware Update 22
11 Specications 23
12 Warranty Terms 24
Contents
01 Product List
Before using this product, please carefully check that all the following items are
included in the product package. In case that any item is found missing, please contact
Hohem customer service or the local distributor.
iSteady MT2 *1
Fill Light with
AI Vision Sensor *1
(Sold Separately) Tripod *1
L-Bracket
(Arca-Swiss) *1
Camera Quick Release Plate
(Arca-Swiss) *1
Mobile Phone Quick Release
Plate (Arca-Swiss) *1
Adapter for
Action Camera *1 Thumb Screw Wrench *1 Thumb Screw *2
Type A to Type C Gimbal
Charging Cable *1
Type C to Type C Camera
Charging & Control Cable *1
Type C to Micro USB Camera
Charging & Control Cable *1
Type C to Mini USB Camera
Charging & Control Cable *1
Type C to Multi Camera
Control Cable *1
Type C to TRRS (2.5mm)
Camera Control Cable *1
Type C to TRS (2.5mm)
Camera Control Cable *1
Type C to TRS (3.5mm)
Camera Control Cable *1 Storage Bag *1
User Manual *1
01
02 Introduction
02
① Support Mount
② Pan Axis Arm
③ Pan Axis Arm
Latch
④ Pan Axis Motor
⑤ Roll Axis Arm
⑥ Roll Motor
⑦ Multifunctional
Control Wheel
⑧ Buttons for A-B
Motion
⑨ Joystick
⑩ Handle
⑪ 1/4"-20 UNC Port
①
②
③
④
⑤⑥
⑦
⑧
⑨
⑩
⑫
⑬
⑮
⑯
⑰
⑱
⑫ Type-C Reverse
Charging Port
⑬ Type-C Camera
Control Port
⑮ Roll Axis Motor
Lock Switch
⑯ OLED Display
⑰ M (Mode) Button
⑱ Zoom Lever &
Shutter Button
⑳
㉑
㉖
㉒
㉗㉜
㉔
㉘
㉓
㉛
㉝
㉚
⑲ 1/4"-20 UNC Port
⑳ Tilt Motor
㉑ Tilt Motor Lock
Switch
㉒ Gravity Lever
㉓ Gravity Lock Screw
㉔ USB-C Charging Port
㉕ Positioning Hole
㉖ Power Button
㉗ 1/4"-20 UNC Port
㉘ Magnetic Fill Light with
AI Vision Sensor
(*Sold Separately)
㉛ Pan Motor Lock Switch
㉜ Trigger
㉝ Strap Hole
⑲
㉙ Mount Safety Lock
㉚ Mount Latch
⑪
㉞ L-Bracket
㉟ Camera Quick Release Plate
㊱ Safety Lock
㊲ Quick Release Plate Latch
㉞
㉟
㊱
㊲
㉙
⑭⑭ Roll Axis Arm Latch
㉕
03
03 Battery and Charging
Please fully charge iSteady MT2 before using it for the rst time.
Charging Method:To charge iSteady MT2, connect a USB adapter (Not included, 5V-2A
for best) to the charging port with the provided USB-C charging cable.
USB Charger
（5V-2A）
*NOT included
in the package
Type A-Type C
Charging Cable
Charging Display: Charging is completed once the light stops ashing and the OLED
screen shows the battery icon is full.
Reverse Charging (For Smartphone/Camera/Action Camera)
Connecting the charging cable to Type-C Reverse Charging Port of iSteady MT2.
Power
Button
04 Download the Hohem Joy App
Scan the QR code or search "Hohem Joy" in App Store or Google Play
to download.
*The Hohem Joy App requires iOS 10.0 or later, Android 6.0 or later.
Download on the
04
05 Mounting and Balancing
Attaching the Tripod
Attach the tripod to the bottom of
the iSteady MT2 handle.
Unfold the tripod and place the
iSteady MT2 on a at surface.
Mounting A Camera
1.Unfold iSteady MT2
① Unfolded status for storage
Before mounting a camera, please
toggle the roll, tilt, and pan motor
lock switch to unlock the three axes.
② Folded status for installation
Expand the gimbal as shown in
Image ② and lock the three axes for
camera installation.
05
2.Mounting the Quick Release Plate
a. Mount the camera onto the camera quick release plate, and tighten the screw.
It is required to tighten the screw in case of gimbal shaking when
the gimbal is powered on.
b. Loosen the L-Bracket with the
thumb screw wrench (magnetically
attached to the L-Bracket.) Adjust
the L-Bracket according to the width
of the action camera and tighten
the screw after tting properly.
c. Attach the camera with the quick release plate onto the L-Bracket.
06
3. Mounting onto the Gimbal
a. Unlock the
mount latch, and
install the camera
with L-Bracket on
the mount.
b. Lock the mount
latch to ensure
that the camera is
tightly installed on
the gimbal.
*How to quick detach the camera from gimbal
① Unlock the
mount latch
② holding
down the
mount safety
lock
Unlock the mount
latch, and remove
the camera and
quick release
plate as a whole
while holding
down the mount
safety lock.
07
4. Connect the stabilizer to the camera with a control cable to enable control of
the shutter and other functions from the stabilizer.
Scan the QR code to
check the list of camera
compatibility and control
operations.
① Type-C to Type-C, Type-C to Micro USB, and Type-C to Mini USB are camera
charging cables. These cables can also be used for camera control.
② Type-C to Multi is the control cable exclusively for Sony cameras, it allows to
control certain Sony cameras to start/stop the lming.
③ Type C - TRRS (2.5mm), Type C - TRS (2.5mm), Type C - TRS (3.3mm) are camera
control cables.
For more supported cameras of iSteady MT2 and its tutorial, please scan the QR
code above to acquire up-to-date information.
5. Portrait Mode
a.Rotate the camera with
L-Bracket 90° to switch to
vertical shooting mode.
b.Insert the L-Bracket into
the mount slot, and lock
the mount patch.
