CHAPTERS

Dashboard ........................................... 1A

Audio system ....................................... 1B

Locks ......................................................2

Know your vehicle ..................................3

Driving ....................................................4

Fuel .........................................................5

Emergencies ...........................................6

Weekly checks ........................................7

Specications .........................................8

Tow and load ..........................................9

Cleaning ...............................................10

Index

CapMaxx Book.indb 1 6/4/2008 11:46:24 AM

We thank you for choosing Holden and want to

assure you of our continuing interest in your

driving pleasure and satisfaction.

This handbook applies to the current Captiva MaXX model.

Please note that all information, illustrations and

specications in this handbook are based on the latest

production information available at the time of printing.

Holden reserves the right to make changes at any time

without notice and without incurring any obligation.

CapMaxx Book.indb 2 6/4/2008 11:46:24 AM

Chapter 1A – Dashboard

Dashboard layout

Instrumentation

Warning/reminder indications

Driver Information Display (DID)

Steering, horn, hazard warning

Wipers and washers

Lights

Cruise control

Climate control

Chapter 1B – Audio

Overview

Steering wheel remote controls

Important information

Switching on/off

Audio settings

Radio operation

CD operation

Antenna information

Notes on compact discs

Glossary of terms

Chapter 2 – Locks

Keys

Ignition switch

Door locks

Rear tailgate lock

Bonnet lock

Security

Chapter 3 – Know your vehicle

Seats

Restraints

Supplemental restraint system

Power windows

Mirrors

Interior lamps

Assist grips and sun visors

Storage compartments

Power sockets

Chapter 4 – Driving

Safety

Driving precautions

Park brake

Park Assist

Engine starting

Transmission operation

Active safety systems

Add on equipment

Chapter 5 – Fuel

Fuel

Emission control

Reducing fuel consumption

Chapter 6 – Emergencies

Customer assistance – Australia

Customer assistance – New Zealand

Flat tyre

Changing a at tyre

Towing a disabled vehicle

Engine overheating

Flat battery

Fuse replacement

Bulb replacement

CONTENTS

3The asterisk signies equipment options not

in all vehicles, model variants, engine options,

optional equipment and Genuine Holden

Accessories (and Parts).

ESP®is a registered trademark of Daimler Chrysler AG.

CapMaxx Book.indb 3 6/4/2008 11:46:25 AM

CONTENTS cont.

Chapter 7 – Weekly checks

Exterior checks

Under bonnet checks

Battery

Chapter 8 – Specications

Specications

General specications

Identication labels

Chapter 9 – Tow and load

Loading the vehicle

Towing

Chapter 10 – Cleaning

Interior cleaning

Exterior cleaning

Cleaning products

Index

CapMaxx Book.indb 4 6/4/2008 11:46:25 AM

Dashboard

CHAPTER

Page

Dashboard layout ........................1A-2

Instrumentation............................1A-3

Warning/reminder indications......1A-6

Driver Information

Display (DID).............................1A-12

Steering, horn,

hazard warning..........................1A-18

Wipers and washers..................1A-19

Lights.........................................1A-21

Cruise control ............................1A-24

Climate control...........................1A-26

3The asterisk signies equipment options not

in all vehicles, model variants, engine options,

optional equipment and Genuine Holden

Accessories (and Parts).

CapMaxx Book.indb 1 6/4/2008 11:46:25 AM

DASHBOARD LAYOUT

Bonnet release lever

Card holder

Coin storage

Remote control for audio system

Headlamp switch

Lever for:

• turn signal

• high/low beam

• cruise control

Lever for wiper and washer

(front and rear)

Sunlight sensor

Driver airbag

Front passenger airbag

Instrument panel

Driver information display (DID)

Centre vent outlet

Side vent outlet

Audio system

Climate control

Hazard warning asher button

Glovebox

Accelerator pedal

Brake pedal

C105_1A001

6 2 45 3 116 18 6 17

1513

1112 19

87910

1A-2 Chapter 1A

DASHBOARD

CapMaxx Book.indb 2 6/4/2008 11:46:25 AM

INSTRUMENTATION

Page

Immobiliser warning indicator ....1A-9

Door ajar indicator....................1A-10

Service vehicle soon

warning indicator......................1A-10

Engine coolant temperature

warning indicator......................1A-10

Driver seat belt indicator............1A-8

Tailgate open indicator.............1A-10

Airbag and SRS

warning indicator........................1A-6

Front fog lamp indicator.............1A-8

High beam indicator...................1A-8

Winter mode indicator................1A-8

 Low washer uid

level warning..............................1A-9

Cruise control indicator............1A-10

Engine oil level warning

indicator ................................... 1A-11

Trip odometer reset button.........1A-4

Park Assist warning indicator........4-6

Page

Tachometer................................1A-4

Fuel gauge.................................1A-5

Speedometer ............................ 1A-4

Turn signal indicators...............1A-23

Low fuel warning indicator .........1A-6

Gear selector lever

position indicator........................1A-8

Trip odometer display ................1A-4

Engine oil pressure warning.......1A-7

Brake warning indicator .............1A-7

ABS warning indicator................1A-6

Battery warning lamp.................1A-7

ESP®off indicator.......................1A-9

ESP®not ready indicator............1A-9

ESP®active and

warning indicator........................1A-9

AWD warning indicator ............1A-10

DCS active indicator ..................1A-9

DCS not ready and

warning indicator........................1A-9

Check engine (MIL) lamp...........1A-7

2726 6

2425

3319

9117 16 15 14 13 412 523811 18

1A-3

Chapter 1A

DASHBOARD

CapMaxx Book.indb 3 6/4/2008 11:46:26 AM

INSTRUMENTATION cont.

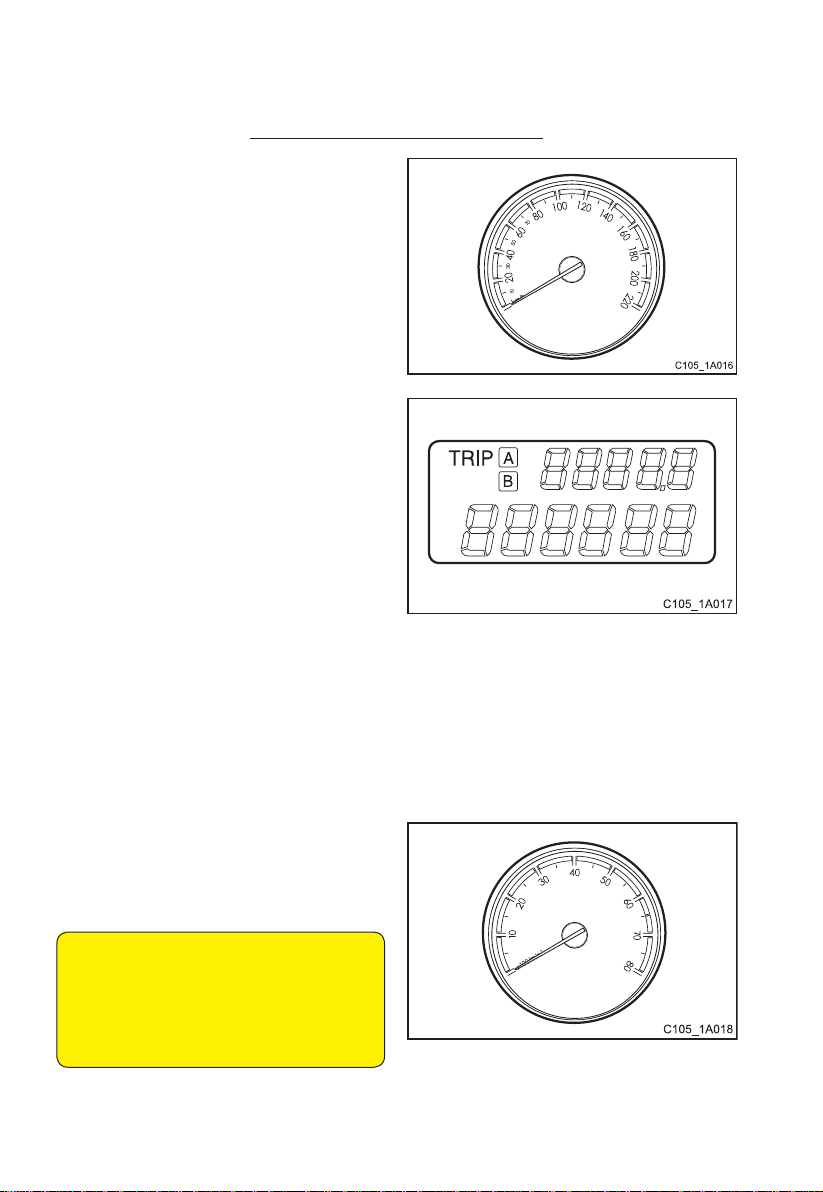

Speedometer

The speedometer 3indicates the

vehicle’s speed in kilometres per hour

(km/h).

Odometer and tripmeter

The window between the tachometer and

speedometer is used for the odometer

and tripmeter 7.

The odometer records the distance

travelled since the vehicle was built, and

thetripmeterrecordsthedistancetravelled

on a particular journey. The tripmeter can

keep a record of two different journeys at

the same time. The two trip odometers

are distinguished as TRIP A and TRIP B.

The trip odometer reset button Pis

located at the lower right-hand side of the

speedometer dial.

Withthe ignitionswitchedon,pushthe trip

odometer reset button Pto change the

display between the odometer, TRIP A

and TRIP B. If the trip odometer reset

button is pressed and held, the tripmeter

resets to zero.

Tachometer

The tachometer 1indicates the engine

speed in revolutions per minute (rpm).

The red zone of the tachometer indicates

critical engine speed.

WARNING

Never operate the vehicle with

the tachometer needle in the red

zone. Continued operation with the

tachometer needle in the red zone

will lead to serious engine damage.

1A-4 Chapter 1A

DASHBOARD

CapMaxx Book.indb 4 6/4/2008 11:46:27 AM
