Hollis DG02 Manuale utente
DG02
DIVE COMPUTER
OPERATING MANUAL
2
LIMITED TWO-YEAR WARRANTY
For details, refer to the Product Warranty Registration Card provided.
COPYRIGHT NOTICE
This Operating Manual is copyrighted, all rights are reserved. It may not, in whole or in part, be
copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine
readable form without prior consent in writing from HOLLIS/2002 Design.
DG02 Operating Manual, Doc. No. 12-4023
© 2002 Design, 2008
San Leandro, CA USA 94577
TRADEMARK NOTICE
HOLLIS, the HOLLIS logo, and DG02 are all registered and unregistered trademarks of HOLLIS. All
rights are reserved.
PATENT NOTICE
U.S. Patents have been issued, or applied for, to protect the following design features:
Dive Time Remaining (U.S. Patent no. 4,586,136), Data Sensing and Processing Device (U.S. Patent
no. 4,882,678), and Ascent Rate Indicator (U.S. Patent no. 5,156,055).
DIVE COMPUTER MODEL
The program within the DG02 simulates the absorption of nitrogen into the body by using a mathemati-
cal model. This model is merely a way to apply a limited set of data to a large range of experiences.
The DG02 dive computer model is based upon the latest research and experiments in decompression
theory. Still, using the DG02, just as using the U.S. Navy (or other) No Decompression
Tables, is no guarantee of avoiding decompression sickness, i.e. “the bends.” Every
diver’s physiology is different, and can even vary from day to day. No machine can predict how your
body will react to a particular dive profile.
3
CONTENTS
LIMITED TWO-YEAR WARRANTY ............................................................................................................................ 2
NOTICES ..................................................................................................................................................................... 2
DIVE COMPUTER MODEL ......................................................................................................................................... 2
FULL LCD .................................................................................................................................................................... 6
FEATURESAND DISPLAYS............................................................................................. 7
INTRODUCTION .......................................................................................................................................................... 8
CONTROL BUTTON ................................................................................................................................................... 8
BAR GRAPHS ............................................................................................................................................................. 9
Tissue Loading Bar Graph (TLBG)......................................................................................................................... 9
Oxygen Bar Graph (O2BG) .................................................................................................................................. 10
Variable Ascent Rate Indicator (VARI).................................................................................................................. 10
ALPHA / NUMERIC DISPLAYS................................................................................................................................. 11
Depth Displays...................................................................................................................................................... 11
Time and Date Displays ....................................................................................................................................... 12
Temperature Display............................................................................................................................................. 13
AUDIBLE ALARM ...................................................................................................................................................... 13
BACKLIGHT .............................................................................................................................................................. 14
POWER SUPPLY ...................................................................................................................................................... 14
Battery Indicator ................................................................................................................................................... 14
Low Battery Condition .......................................................................................................................................... 15
FO2 MODE ................................................................................................................................................................ 16
FO2 50% Default .................................................................................................................................................. 17
ACTIVATIONAND SETUP .............................................................................................. 19
ACTIVATION .............................................................................................................................................................. 20
Wet Activation ....................................................................................................................................................... 21
SURFACE SEQUENCE ............................................................................................................................................. 21
SURFACE MODE ...................................................................................................................................................... 21
4
CONTENTS (continued)
SET MODE ................................................................................................................................................................ 22
Set Mode Access .................................................................................................................................................. 22
TO SET FO2 ......................................................................................................................................................... 23
PC INTERFACE.................................................................................................................................................... 24
TO SET UNITS OF MEASURE ............................................................................................................................ 25
TO SET HOUR FORMAT ..................................................................................................................................... 25
TO SET TIME ....................................................................................................................................................... 26
TO SET DATE ...................................................................................................................................................... 27
TO SET PO2 ALARM ........................................................................................................................................... 28
TO SET FO2 50% DEFAULT ............................................................................................................................... 28
TO SET DIGITAL GAUGE MODE ........................................................................................................................ 29
TO SET WATER ACTIVATION ............................................................................................................................. 29
TO SET DEEP STOP ........................................................................................................................................... 30
PLANAND DIVE MODES ............................................................................................... 31
PRE DIVE PLANNING SEQUENCETM ...................................................................................................................... 32
TISSUE LOADING BAR GRAPH .............................................................................................................................. 34
OXYGEN ACCUMULATION BAR GRAPH ............................................................................................................... 34
VARIABLE ASCENT RATE INDICATOR .................................................................................................................. 34
CONTROL OF DISPLAYS ......................................................................................................................................... 35
NO DECOMPRESSION DIVE MODE ....................................................................................................................... 35
No Deco Deep Stop .............................................................................................................................................. 37
No Deco Safety Stop ............................................................................................................................................ 38
DECOMPRESSION DIVE MODE .............................................................................................................................. 39
VIOLATION MODES .................................................................................................................................................. 41
Conditional Violation Mode ................................................................................................................................... 42
Delayed Violation Modes ...................................................................................................................................... 42
Violation Gauge Mode .......................................................................................................................................... 44
HIGH PO2 .................................................................................................................................................................. 45
HIGH O2 .................................................................................................................................................................... 46
DIGITAL GAUGE MODE ........................................................................................................................................... 47
5
CONTENTS (continued)
POST DIVE MODES ....................................................................................................... 49
POST DIVE SURFACE MODE .................................................................................................................................. 50
TRANSITION PERIOD .............................................................................................................................................. 50
AFTER THE TRANSITION PERIOD (THE FIRST 2 HOURS) .................................................................................. 51
Time to Fly/Desaturate ......................................................................................................................................... 51
Pre Dive Planning Sequence ............................................................................................................................... 52
Log Mode .............................................................................................................................................................. 53
AFTER THE FIRST 2 HOURS .................................................................................................................................. 55
WET CONTACTS ....................................................................................................................................................... 55
DOWNLOADING DATA TO A PC .............................................................................................................................. 56
GENERAL ....................................................................................................................... 57
CARE AND CLEANING ............................................................................................................................................. 58
INSPECTIONS AND SERVICE ................................................................................................................................. 59
MODULE REMOVAL FROM A BOOT ...................................................................................................................... 60
BATTERY REPLACEMENT ...................................................................................................................................... 60
RETURNING A MODULE TO A BOOT ..................................................................................................................... 64
RESET FEATURE...................................................................................................................................................... 65
ALTITUDE COMPENSATION.................................................................................................................................... 66
SPECIFICATIONS ..................................................................................................................................................... 67
SERVICE RECORD ................................................................................................................................................... 75
Pay special attention to items marked with this Warning symbol.

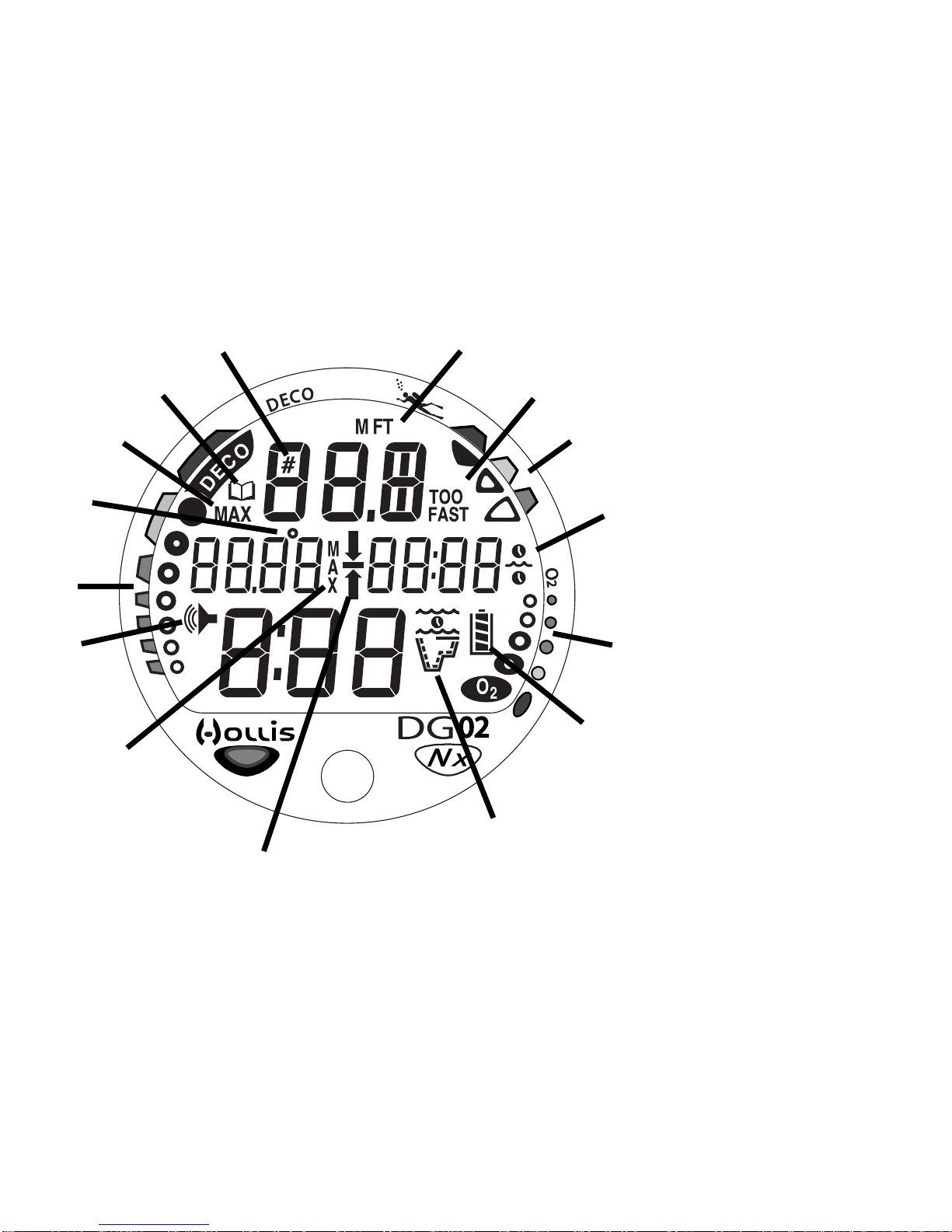

6LCD DISPLAY
Components:
a. Icon - Operating Mode
b. Icon - Battery Status
c. O2 Bar Graph
d. Icon - Time
e. Ascent Rate Indicator
f. Icon - Ascent Too Fast
g. Icon - Depth
h. Icon - Dive No.
i. Icon - Log Mode
j. Icon - Max Depth
k. Icon - Temperature
l. Tissue Loading Bar Graph
m. Icon - Alarm Set
n. Icon - Maximum Depth
o. Icon - Descend Arrow
Icon - Deco Ceiling Stop Bar
Icon - Ascend Arrow
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
7
FEATURES and DISPLAYS
8
R
E
S
P
O
N
S
I
B
L
E
D
I
V
E
R
Be a - RESPONSIBLE DIVER at all times.
INTRODUCTION
Welcome to HOLLIS and thank you for choosing the DG02 !
It is extremely important that you read this Operating Manual in sequence and
understand it completely before attempting to use the DG02.
Remember that technology is no substitute for common sense, and a dive computer
only provides the person using it with data, not the knowledge to use it.
CONTROL BUTTON
The Control Button allows you to select display options and
access specific information when you want to see it. It is also
used to enter settings and activate the Backlight.
BARGRAPHS
Tissue Loading Bar Graph (TLBG)

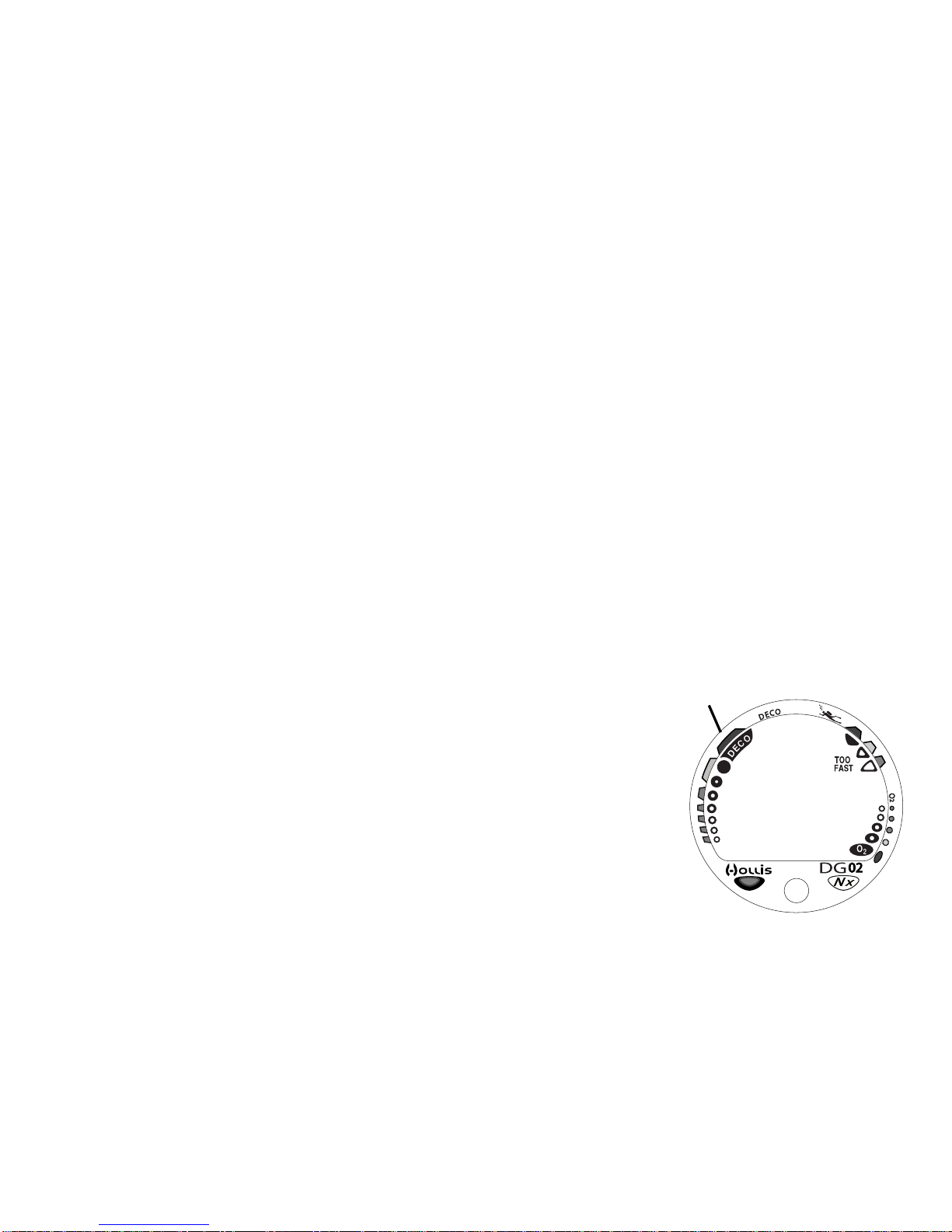

The TLBG (Fig. 1a) represents tissue loading of nitrogen, show-
ing your relative no decompression or decompression status. As
your depth and elapsed dive time increase, segments will add to
the TLBG, and as you ascend to shallower depths, the segments
will begin to recede, indicating that additional no decompres-
sion time is allowed for multilevel diving.
The TLBG represents 12 different nitrogen compartments simulta-
neously and displays the one that is in control of your dive. It is
divided into a green No Decompression (normal) zone, a yellow
Caution zone (also No Decompression), and a red Decompres-
sion (danger) zone.
While you cannot provide a guarantee against the occurrence of
decompression sickness, you may choose your own personal
zone of caution based upon age, physique, excessive weight,
etc.,toreducethestatisticalrisk.
Fig. 1 - TLBG
a
10
Oxygen Accumulation Bar Graph (O2BG)

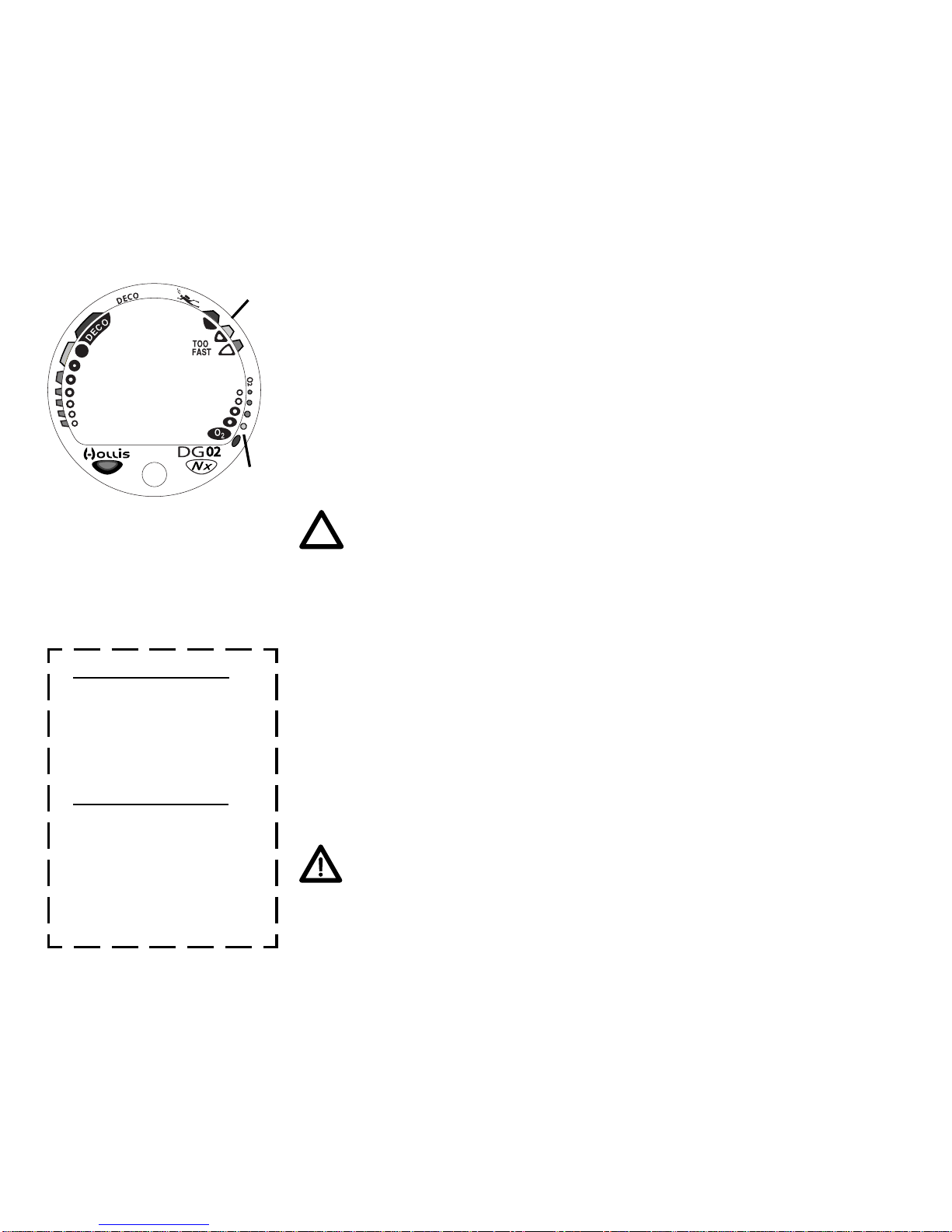

The O2BG (Fig. 2a) represents oxygen loading, showing the
maximum of either per dive or 24 hour accumulated oxygen.
As your oxygen exposure (accumulation) increases during the
dive, segments will add to the O2BG, and as loading de-
creases, it will begin to recede, indicating that additional
exposure is allowed for that dive and 24 hour period.
NOTE: Displays associated with oxygen and the
O2BG will only appear if FO2 has been set at a value
other than 'Air' (e.g., a numerical value).
Variable Ascent Rate Indicator (VARI)
The VARI (Fig. 2b) provides a visual representation of ascent
speed (i.e., an ascent speedometer). Green is a 'normal' rate,
yellow a 'caution' rate, and red is 'Too Fast'.
The segments of the VARI represent two sets of speeds which
change at a reference depth of 60 FT (18 M). Refer to the
chart for segment values.
WARNING: At depths greater than 60 FT (18 M),
ascent rates should not exceed 60 FPM (18 MPM).
At depths of 60 FT (18 M) and shallower, ascent
rates should not exceed 30 FPM (9 MPM).
Fig. 2 - O2BG and VARI
VARI
Deeper than 60 FT (18 M)
Segments Ascent Rate =
Displayed FPM MPM
0 0-20 0 - 6
1 21-50 6.5-15
2 51-60 15.5-18
3 >60 >18
60 FT (18 M) & Shallower
Segments Ascent Rate =
Displayed FPM MPM
0 0-10 0 - 3
1 11-25 3.5-7.5
2 26-30 8-9
3 >30 >9
a
b
