Model No: HDSM4001
Steam Mop
User guide
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
Contents
2
Page
Safety instructions
…………………………….………..
3
Steam mop feature diagram
………………………………....…..
6
Steam
mop assembly
……………………………….……..
7
Using
your steam mop
………………………………………
8
Storing
your steam mop
………………………………………
12
Cleaning and care
………………………………………
14
Problem solving
………………………………………
15
Guarantee
………………………………………
18
Customer
services
………………………………………
19
Spare parts
………………………………………
20
Connection to the mains supply
………………………………………
21
Thank you for purchasing your Holme Steam Mop.
With a three corner mop head for flexible cleaning and an ergonomic handle for
comfort, cleaning your floors has never been so easy.
What’s more, the detergent cleaning power breaks down dirt and stains better
than steam alone, killing 99.9% of household germs.
To get the best from your new cleaner, take a few moments to read these
instructions, and keep them in a safe place for future reference.
Should you require any further assistance, our friendly Product Care team will
be happy to help.
WARNING:
It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to
electrical parts.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
This product is intended for household use only.
Do not use outdoors.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge IF they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are
older than 8 and supervised. Keep the appliance and its’ cord
out of reach of children less than 8 years.
•Do not operate this appliance for anything other than its
intended use. This product is intended for household use
only. Do not use outdoors.
•Do not immerse in water or other liquids for cleaning.
3
Safety instructions
IMPORTANT SAFETY
INSTRUCTIONS
READ CAREFULLY AND KEEP
FOR FUTURE REFERENCE
Safety instructions
•Do not direct steam at people, animals, electrical outlets,
or equipment containing electrical components.
•Unplug from power outlet when not in use. Do not leave
steam mop unattended while plugged in.
•Do not use with damaged cord or plug.
•Do not use steam mop if it has been dropped, damaged,
left outdoors or dropped into water.
•Keep the steam mop away from water; do not allow it to
get wet. If unit is wet, do not plug unit into wall socket or
turn unit on.
•Do not handle steam mop with wet hands.
•Do not pull or carry by cord, use cord as a handle, close
door on cord, pull cord around sharp corners or edges, or
expose cord to heated surfaces.
•Do not unplug by pulling on cord.
•To protect against electrical shock do not immerse cord,
plug, or appliance in water or other liquid.
•Unplug from the mains outlet when not in use, before
putting on and taking off parts, and before cleaning.
•The use of accessory attachments not recommended by
the appliance manufacturer may cause fire, electric shock
or injury. Only use the accessories supplied by the
manufacturer.
•Do not let the cord hang over the edge of the worktop, or
touch hot surfaces.
•Never remove parts from the appliance such as the screws
and so on.
4
•The filling aperture must not be opened during use.
•Do not use appliance in an enclosed space filled with vapor
given off by oil-based paint, paint thinner, some moth
proofing substances, flammable dust, or other explosive or
toxic vapors.
•Do not use on leather, wax polished furniture or floors,
synthetic fabrics, velvet or other delicate, steam-sensitive
materials.
•Do not immerse unit in water or other liquids.
•Never put descaling, aromatic or alcoholic products into
the steam mop, as this may damage the unit.
•Close attention is necessary when used near children.
•Do not store with a wet mop pad still attached.
•Using distilled or demineralized water will maximize the
performance of your steam mop.
•Use extra care when cleaning on stairs.
•WARNING: Detergent MUST NOT be used on carpets.
•Do not use steam for space heating purposes; household
use only.
•Use on waxed or some unwaxed floors may diminish
glossiness. Do not use on unsealed wood floors. Test in an
inconspicuous area or check the care instructions from your
flooring manufacturer.
5
Safety instructions
Symbol IEC 60417-5597 (2002-10) is used on the unit to indicate
that this unit operates with hot water vapour (steam). To avoid
scalding and burns take extra care when in use.

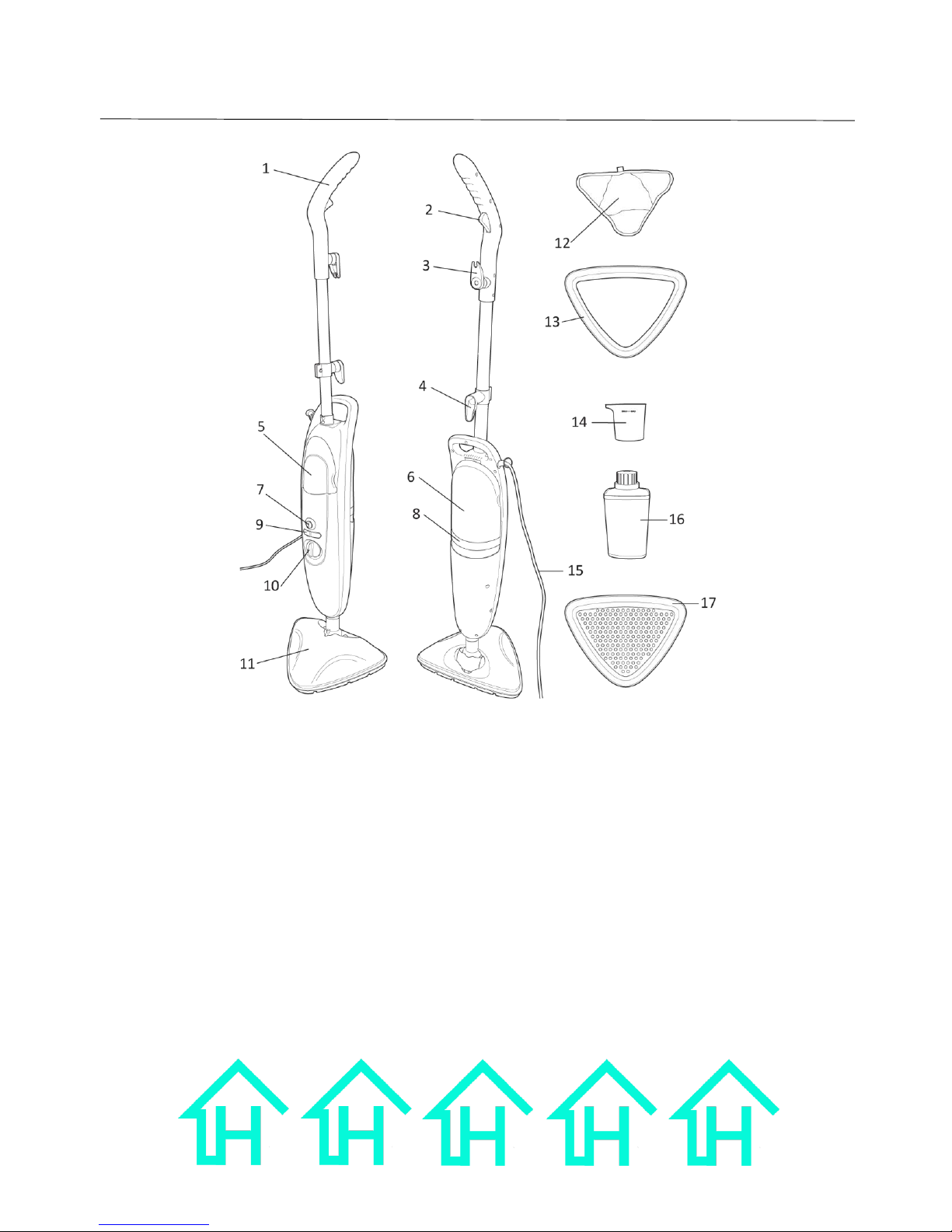

1 Handle 10 Detergent tank dial
2 Steam/Detergent release trigger 11 Mop head
3 Upper power cord grip 12 Microfibre cleaning pad
4 Lower power cord grip 13 Carpet glider
5 Detergent tank 14 Filler cup
6 Water tank 15 Power cord
7 On/Off button 16 Detergent
8 Hard water filter 17 Cooling tray
9 Indicator lights
6
Steam mop feature diagram
7
Steam mop assembly
Before using your steam mop:
Remove all packaging and lay out the separate components.
Check the steam mop after unpacking for any visual damage such as:
•Misaligned or damaged parts
•Damage to the main body and separate components
•Damage to the plug or cable.
If you can see any damage do not use the steam mop and refer to page 19.
Slot the insert on the bottom of the steam
mops body into the housing on the back of
the mop head.
Check that the mop head is the correct way
round –refer to diagram.
IMPORTANT: Ensure the stud on the insert
protrudes through the slot on the mop
heads housing.
Slot the handle into the top of the body of
the steam mop.
You may need to push the stud on the
handle inwards to fully insert the handle.
IMPORTANT: Ensure the stud on the handle
protrudes through the hole in the housing
on top of the steam mop.
8
Using: Filling the water tank
Grip the sides of the water tank and pull
upwards to remove.
Remove the cap on the top of water tank by
turning it anti-clockwise and lifting.
Fill the tank with 500ml of water using the filler
cup. Screw the cap back onto the tank by placing
in in the bottle and turning it clockwise.
Note: When you turn the tank upside down, some
water may drip out of the cap. Ensure the tank is
turned upside down over a sink before
transporting it to the steam mop.
Slot the tank back onto the steam mop.
Push down on the tank until it locks in place.
9
Using: Filling the detergent tank
Grip the sides of the detergent tank on the
front of the steam mop and pull upwards to
remove.
Remove the cap on the top of the detergent
tank by turning it anti-clockwise and lifting.
Fill the tank, using the filler cup with 30ml of detergent
& 150ml of water. Screw the cap back onto the tank by
turning it clockwise.
Again, turn the tank upside down over a sink.
IMPORTANT: Only use recommended detergent solution. Detergent must be diluted with
water as per the above instructions. Always cover food preparation areas and remove food
from all surfaces. Do not clean surfaces that come into direct contact with food.
Slot the detergent tank back onto the steam
mop. Push down on the tank until it locks in
place.
10
Using your steam mop
Fasten the microfibre cleaning pad on the base.
IMPORTANT: Never use the steam mop without
the microfibre cleaning pad fitted correctly.
Plug the steam mop into a mains socket and
turn the power on.
Press the ON/OFF button on the front of the
steam mop body in to switch the mop ON.
Press the button again to switch it OFF.
When the steam mop is turned on the power
light will illuminate.
A few seconds later the steam light will
illuminate, this shows that the steam mop is
ready to use.
IMPORTANT: Always ensure the detergent dial
is set to close when not in use.
If you wish to use the detergent, turn the
detergent tank dial to open to add detergent to
the steam.
