Holme HWM51000H Manuale utente

Washing Machine

Instruction Manual

Please read these instructions carefully and keep

them for future reference

Model Number: HWM51000H

For Customer Services, Spare Parts & Manufacturers

Guarantee Information, please call 01204 664 084

Opening times: Monday –Friday 9am –5pm

Contents

Before using your machine.....................................................................................4

Components...........................................................................................................4

Accessories............................................................................................................4

Unpacking your machine........................................................................................5

Your machine .........................................................................................................5

Before Use..............................................................................................................6

During Use..............................................................................................................6

Installation ................................................................................................................7

Adjusting the bottom cover .....................................................................................8

Dismantle the transportation bolts ..........................................................................8

Adjusting the height of the washing machine..........................................................8

Connecting the Inlet Hose ......................................................................................9

Drain Hose..............................................................................................................9

Connecting to the power supply .............................................................................9

A - Detergent Drawer............................................................................................10

B –Power Button..................................................................................................10

C - Program Knob.................................................................................................10

D -Spin Speed Button.........................................................................................11

E –Intense Button................................................................................................11

F –Start/Pause button..........................................................................................11

Program Selection..................................................................................................12

Consumption and Technical Information.............................................................13

Consumption Table...............................................................................................13

Technical data ......................................................................................................13

Washing Methods...................................................................................................14

Power Supply .......................................................................................................14

Water Connection.................................................................................................14

Preparing your laundry .........................................................................................14

Using the machine .................................................................................................15

Loading the machine ............................................................................................15

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-2-

Selecting detergent...............................................................................................15

Adding detergent ..................................................................................................15

Selecting a program..............................................................................................15

Selecting Spin Speed ...........................................................................................15

Intensity setting.....................................................................................................16

Start a washing cycle............................................................................................16

After washing........................................................................................................16

Energy saving.......................................................................................................16

Care Chart............................................................................................................17

Load guide............................................................................................................17

Cleaning and Care..................................................................................................17

Before cleaning.....................................................................................................18

Cleaning the detergent drawer .............................................................................18

Cleaning the machine...........................................................................................18

Cleaning the filter..................................................................................................18

Cleaning the water inlet valve...............................................................................19

Moving the machine..............................................................................................19

Long periods of disuse..........................................................................................19

Problem solving .....................................................................................................20

Maintenance ...........................................................................................................21

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-3-

Before using your machine

Components

Please read these instructions carefully before using this appliance. The instructions

contain important information which will help you get the most out of your appliance

and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so that you can refer to it and ensure safe

and proper use of the appliance.

If you decide to sell the appliance, give it away or leave it behind when moving

house, make sure you also pass this manual to the new owner so that they can

become familiar with the appliance and its safety warnings.

Accessories

Before installation, ensure that all of the accessories below are present. If there are

any missing accessories, please contact the customer service number at the bottom

of the page.

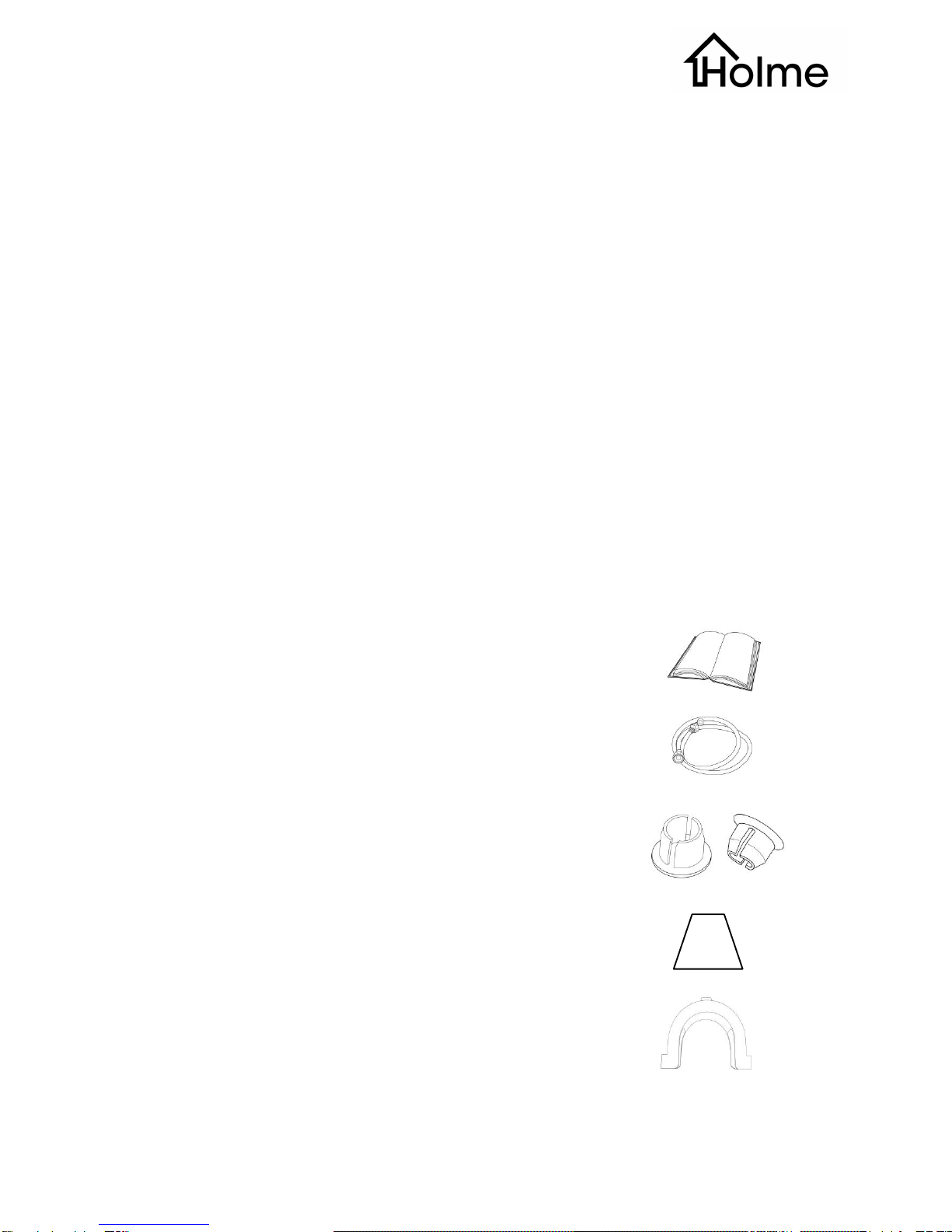

1 X Instruction booklet

1 X Inlet hose

3X Blanking plugs (Russ processing)

1 X Bottom cover

1 X drainage hose bracket

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-4-

Unpacking your machine

Remove all the packing materials including the polystyrene base to ensure the

machine is level and stable. When opening the packaging you may notice droplets of

water have gathered on the plastic bag and porthole. This is normal and is the result

of water tests in the factory.

Your machine

This diagram may be slightly different from the machine that you have

purchased. This is due to technical improvements.

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-5-

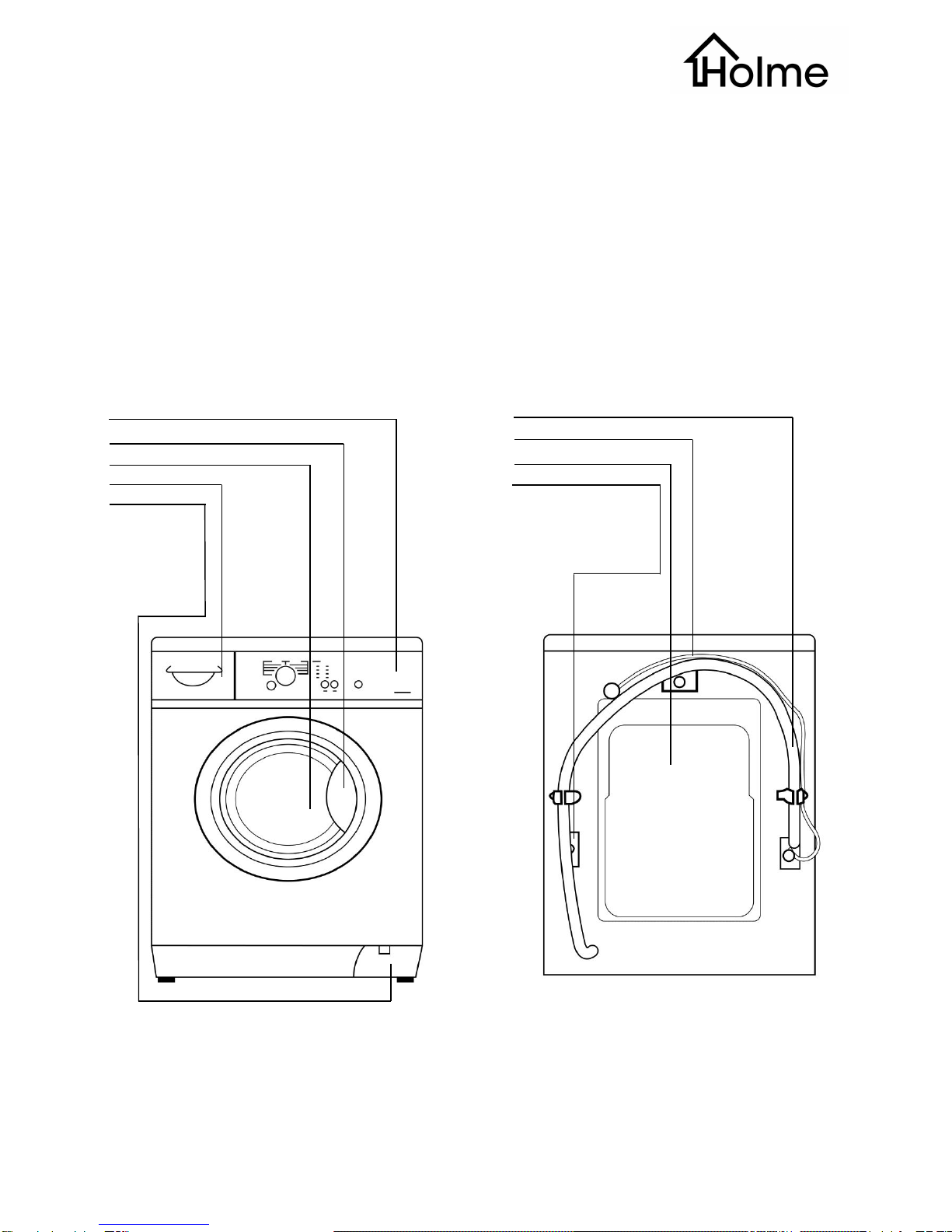

Control Panel

Door Handle

Washer Door

Detergent Draw

Filter Cover

Drain Hose

Power Cord

Back Cover

Transportation Bolts

Safety Instructions

Before Use

- Do not use any type of mains extension cable.

- Do not plug in damaged or torn plugs.

- Make sure that the transport bolts are removed.

- Use a separate earthed socket for the power supply.

- Make sure that the plug is accessible and not obstructed by the washing

machine or any other appliance.

- After user, unplug the machine by gripping the plug –do not pull the cable in an

attempt to unplug the machine.

- Make sure the fuses in the power circuit are rated at 15a.

- Keep away from heat sources and direct sunlight to prevent plastic and rubber

components from aging.

- Make sure that the power cord is not caught under or in the appliance. If the

power cord is damaged, do not use the appliance.

- Check that the hose joints and connections are firm and no water can leak out of

the appliance. If joints are loose or leaking, turn off the water supply and tighten.

If this is not possible, do not use the machine while water is leaking and contact

the number at the bottom of the page to speak to a qualified service engineer.

- When using the appliance, ensure garments bearing zips are zipped up and

loose threads on garments are fixed down or removed to prevent items

becoming tangled. If necessary, place garments into a net bag or pillow case.

- Turn off the machine after each wash program and switch it off at the mains for

your safety. Wipe clean the lower part of the porthole.

- After use, keep the door slightly open to prevent undesirable odours forming.

- The power cord should only be replaced by a G2S engineer to prevent damage

to the machine.

- Ensure the appliance is only used by persons with sufficient capabilities,

experience and knowledge. The instructions in this manual should be followed at

all times.

- Children should not use this appliance.

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-6-

Before switching the appliance on for the first time, ensure the following precautions

are taken:

During Use

When using your appliance, ensure that you do not:

- Touch or use the appliance with wet or damp hands or when barefooted. This

can lead to electric shock.

- Use flammable detergent or dry cleaning agent.

- Use any flammable sprays in close vicinity to the appliance.

- Remove or insert the plug in the presence of inflammable gas.

- Allow children or inform persons to play with the appliance or packing materials.

- Install the appliance outdoors in a damp place, or in an area which may be

prone to water leaks such as under or near a sink unit. In the event of a water

leak allow the machine to dry naturally.

- Place the appliance directly on to a carpet or directly next to a wall or furniture.

- Cover the appliance with any type of cover as this will restrict airflow into the

machine.

- Touch the washer door during the washer process as this can get hot and result

in injury.

- Place heavy objects on top of the appliance.

- Hot wash rubber materials as this will cause the garment to become damaged.

- Open the detergent distribution drawer during the wash cycle.

- Attempt to force the washer door open when the washer is in use. The door is

fitted with a self-lock device and can take up to 2 minutes to be released after

the washing cycle has ended.

- Open the door if the water level is visibly over the porthole. This can will cause

water damage to the surrounding area.

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-7-

Installation

Adjusting the bottom cover

When unwrapping the appliance from its packaging, you will find a plastic board laid

on top of the machine. Do no throw this board away. This is used to reduce the

noise emitted from the machine and should be attached to the underside of the

appliance.

Dismantle the transportation bolts

Adjusting the height of the washing machine

There are 4 adjustable feet attached to the bottom of the appliance. These are

adjusted by turning clockwise to decrease the height and anti-clockwise to increase

the height. These should be adjusted until the machine is level.

It is recommended that a spirit level is used to ensure the appliance is level.

The transportation bolts are designed for clamping

anti –vibration components inside the washing

machine during the transportation process. This is to

ensure the unit is protected during transportation.

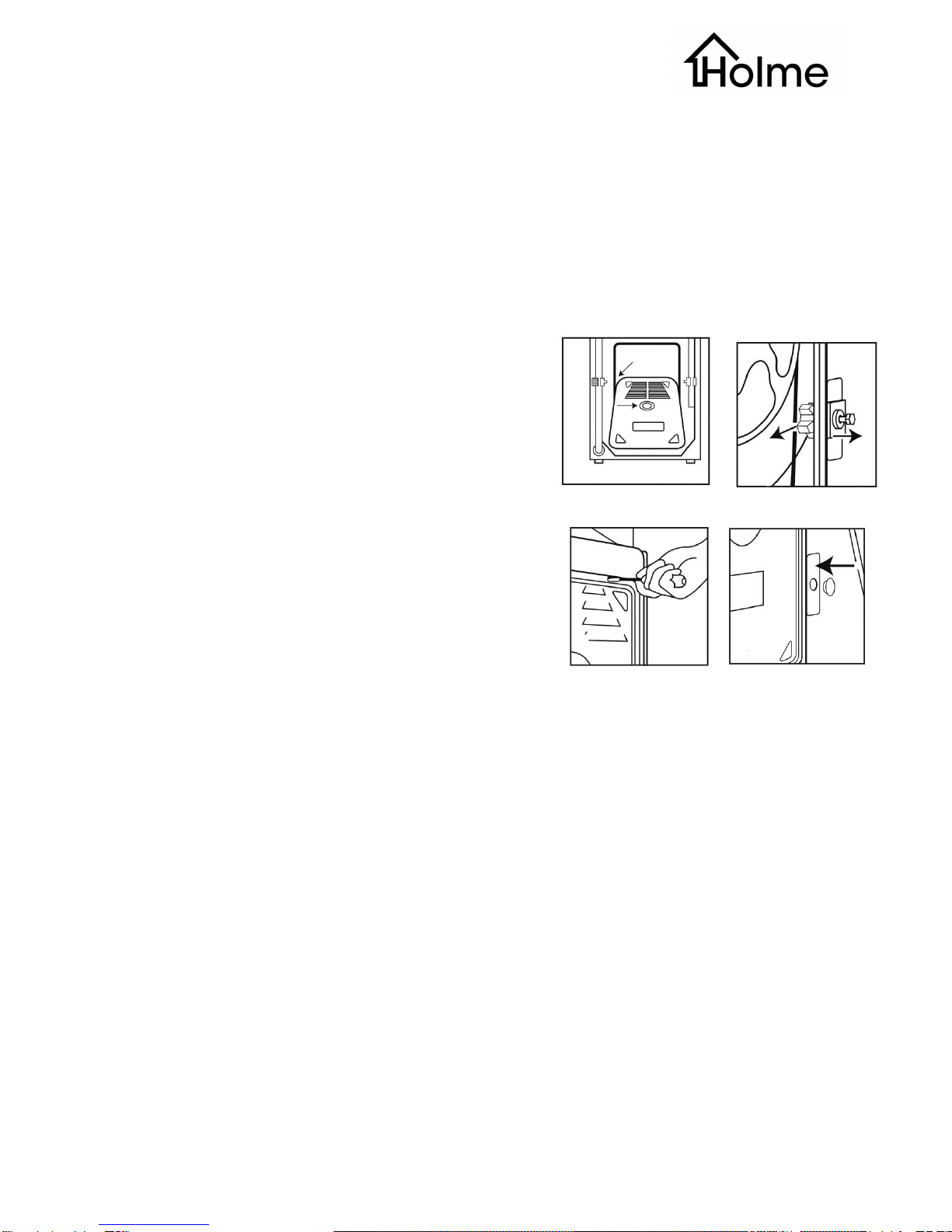

1. Remove the back cover by removing the 3

screws holding it place –see fig 1.0.

2. Remove the three bolts on the rear side and

take out the synthetic stabilisers from within

the machine –see fig 1.1.

3. Replace the back cover and replace the

screws. It may be necessary to hold the back

cover in place by gripping the vents. The back

cover should be replaced back into its original

position –see fig 1.2.

4. Fill the holes left by the bolts with the blanking

plugs –see fig 1.3.

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-8-

Fig 1.0

Fig 1.1

Fig 1.2

Fig 1.3

Connecting the Inlet Hose

Drain Hose

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-9-

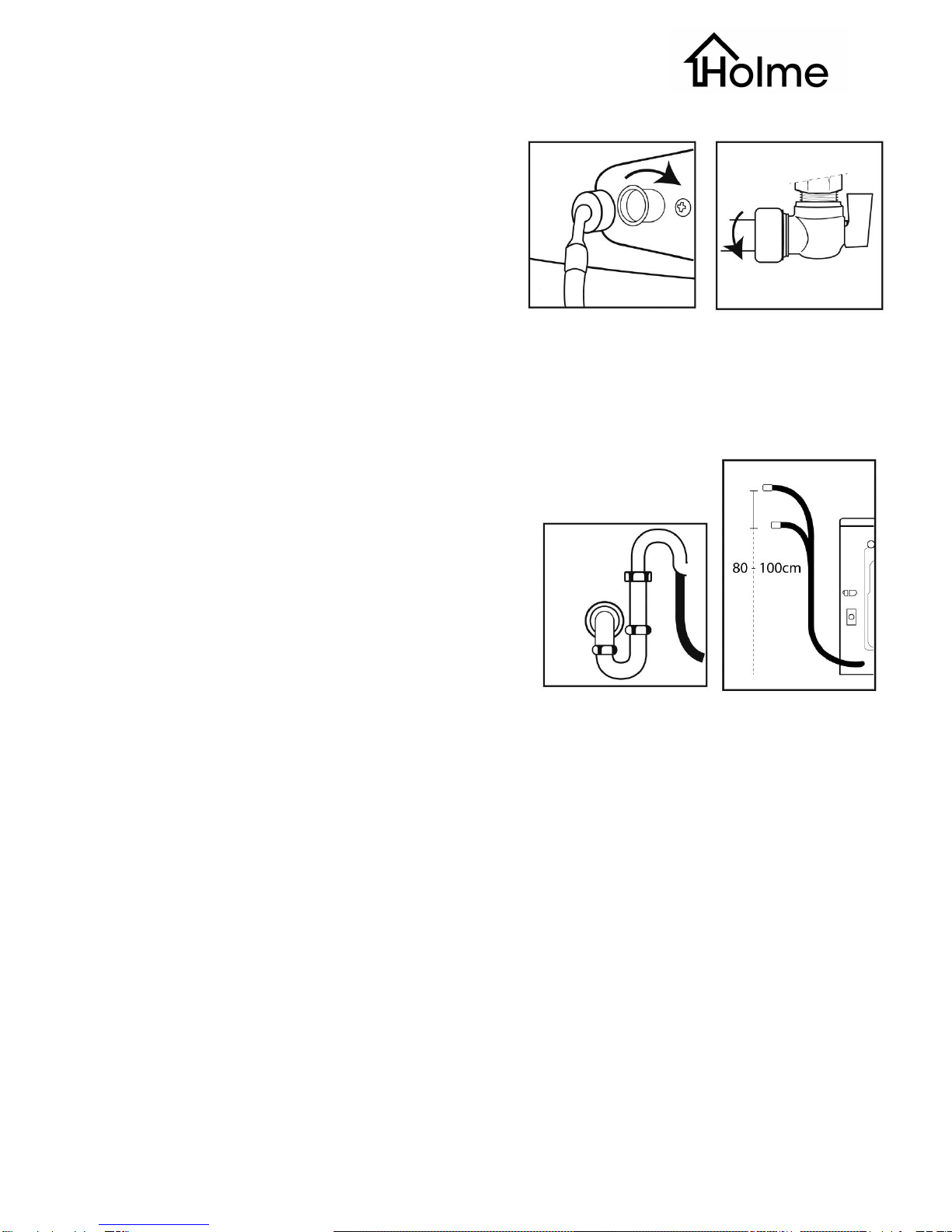

1. Connect the inlet hose to the connector on the

water inlet valve on the back of the appliance –

see fig 2.0

2. Apply the other end of the inlet hose to a tap

runs cold, fresh water –see fig 2.1.

Note: The hose supplied this this appliance

should be used. Do not reuse an old inlet hose.

1. Use the drain hose bracket supplied, to keep

the end of the drain hose secured in the

outflow pipe –see fig 3.0. Do not extend the

length of the drain hose –if a longer hose is

required contact the customer service number

below.

2. The height of the drainage outlet must be 80-

100cm –see fig 3.1. Fix the drain hose to the

clip at the back of the washing machine to

prevent it from dropping off.

Note: The drain hose should not be submerged in

water and should be securely fixed and leak free.

If the drain hose is placed on the ground or if the

pipe is at a height of less than 80cm, the washing

machine will continuously drain while being filled

(self-siphoning).

Connecting to the power supply

Before connecting to the power supply, check the following:

- The socket it adequate for the maximum power of the washing machine.

- Fuses in the circuit should be rated for no less than 15a.

- The voltage should meet the requirement.

- The power outlet should be correct for the washing machine plug.

- Connect the machine to an earthed socket outlet.

Fig 2.0

Fig 2.1

Fig 3.0

Fig 3.1

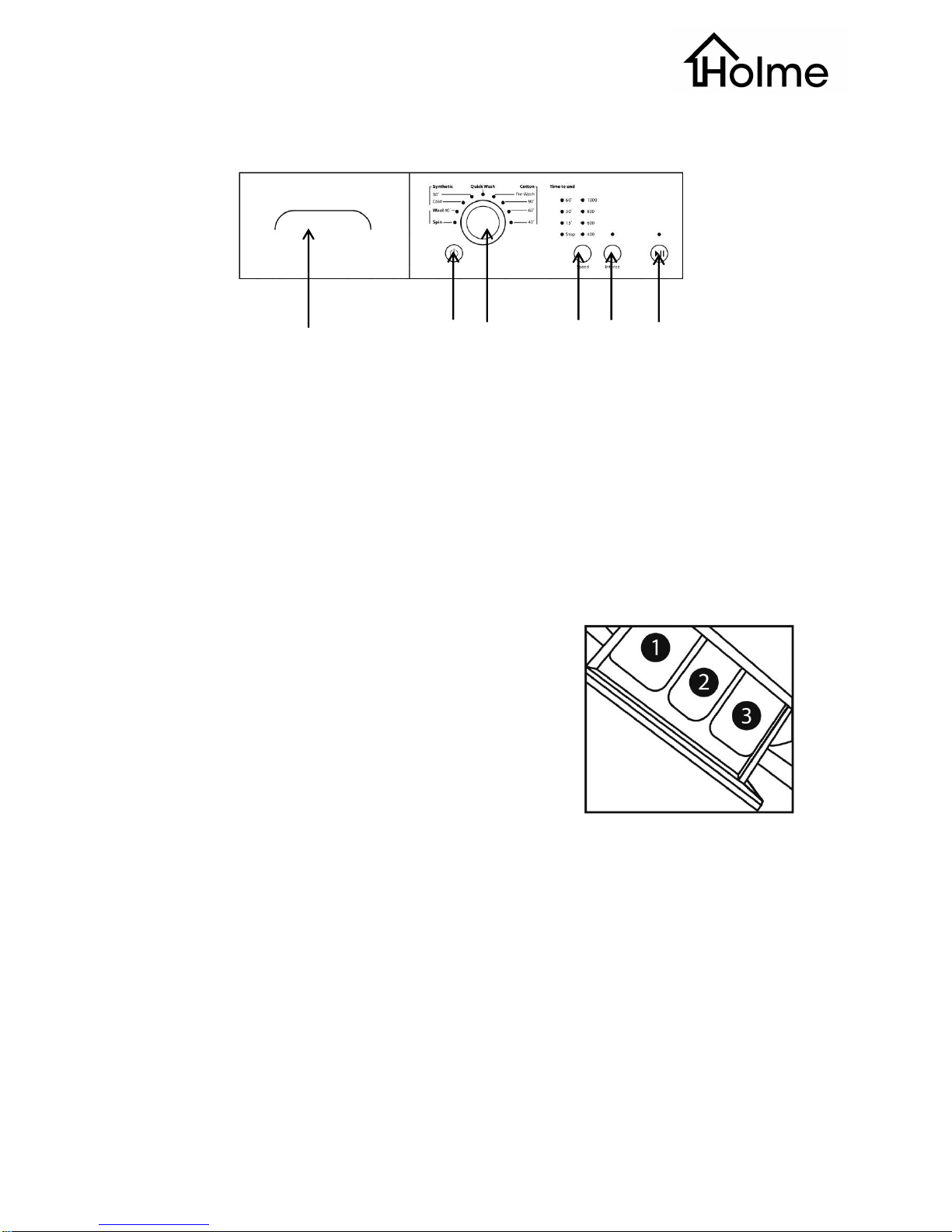

Control Panel

A - Detergent Drawer

The drawer contains three compartments:

B –Power Button

Press this button to switch on the washing machine. Press and hold for 2 seconds to

switch the machine off.

C - Program Knob

By turning the knob either clockwise or anti-clockwise, the required program can be

selected.

For Customer Services, Spare Parts & Manufacturer’s Guarantee Information please call 01204 664 084

-10-

A. Detergent drawer

B. Power Button

C. Program Knob

D. Spin Speed Button

E. Intense Button

F. Start/Pause Button

1. Main wash detergent

2. Fabric softener

3. Prewash detergent

Indice

Altri manuali Holme Rondella

Holme

Holme HWM51000 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
