Holux GPSmile 61 Manuale utente

Portable Automobile Navigation System

Product User Manual

Registered info

HOLUX and GPSmile are trademarks of HOLUX Technology, Inc.

All other trademarks elong to registered companies.

Note



The contents of this manual will e modified without further notice.



The operation temperature for the product is etween -10℃~50℃.



Operating or recharging in an environment with a temperature

over 50℃ might cause the system to malfunction. However, this

should e considered a normal phenomenon. Please do not

operate under extreme temperatures.

Safety Precautions

• The device should only e used with the supplied atteries.

• A out the attery

1. A Lithium attery is uilt into the device. To prevent fire or skin

urns, do not disassem le, pierce, impact, or expose the attery to

fire. The attery will crack, explode, or release dangerous

chemicals if placed in a fire.

• Important instructions

1. Note: Replacing with an incorrect attery may result in an explosion.

When disposing of the attery, follow the instructions. The

replacement attery must e a factory approved original.

2. Regulations must e o served when recycling or disposing of

atteries.

3. The attery should only e used in this device.

iii

Warranty Statement

• This warranty applies to parts and services that are manufactured and

sold through Holux Technology Inc. The local area covered is Taiwan;

the warranty length is one year from date of purchase (starting from the

date on the sales receipt). Under normal user operation, Holux

Technology provides free repair services.

 After repair, the replaced parts are the properties of Holux

Technology Inc.

• Holux Technology is not responsi le for providing repairs or

replacements of any software; Holux Technology does not provide any

warranty service for third party software/hardware.

• Important instructions

Note: This warranty does not cover damage or malfunction from the

elow causes: unauthorized disassem ly/modification of unit, a use or

incorrect usage, accidental and other unpreventa le causes, operation

under varia les mentioned that are different from those in this product

user manual, using parts not made or sold y Holux Technology, or

repairs done y anyone other than Holux Technology and authorized

retail/service providers.

 Expenda le parts are not covered in the warranty.

 Holux Technology is not responsi le for any program, data, or

porta le storage media damages or loss. Please contact your

local Holux Technology authorized service provider to learn more

a out geographical limitations, proof of purchase requests,

response time agreements, and other specific maintenance

service requests.

Technical Support

• If there are any questions regarding the use of this product, please

log on to the we site www.holux.com and see the FAQ.

Maintenance Service

HOLU Technology, Inc.

+886-3-6687000

We Site: www.holux.com

Contact your nearest dealer, for further support.

HOLU Technology, Inc.

www.holux.com

Table of Contents

Safety Precautions............................................................ii

Warranty Statement .........................................................iii

Technical Support............................................................iv

Maintenance Service........................................................iv

Preface...............................................................................1

Precautions and Notices ..................................................1

Important Notice............................................................2

First time use.....................................................................3

Package Contents .........................................................3

Basic Operation ................................................................4

Introduction ...................................................................4

Front View............................................................................ 4

Rear View............................................................................. 4

Accessories ...................................................................5

Cradle................................................................................... 5

Optional Accessories......................................................... 5

Getting Started ..................................................................6

Install Cradle..................................................................6

Remove Cradle ..............................................................7

Install/ Remove Battery...................................................... 8

Device connection Diagram .........................................9

Charging Battery (Optional) ............................................ 11

Preface

We appreciate your purchase of the HOLUX car navigation.

Please read all instructions thoroughly for a full understanding of the

products’ features.

Precautions and Notices

• For your own safety, do not operate the controls of the product while

driving.

• Use this product prudently. The product is intended to e used only

as a navigation aid. It is not for precise measurement of direction,

distance, location or topography.

• The calculated route is for reference only. It is the user's

responsi ility to follow the traffic signs and local regulations along the

roads.

• GPS is operated y the United States government, which is solely

responsi le for the performance of GPS. Any change to the GPS

system can affect the accuracy of all GPS equipments.

• When you are inside a tunnel or uilding, GPS positioning is not

availa le.

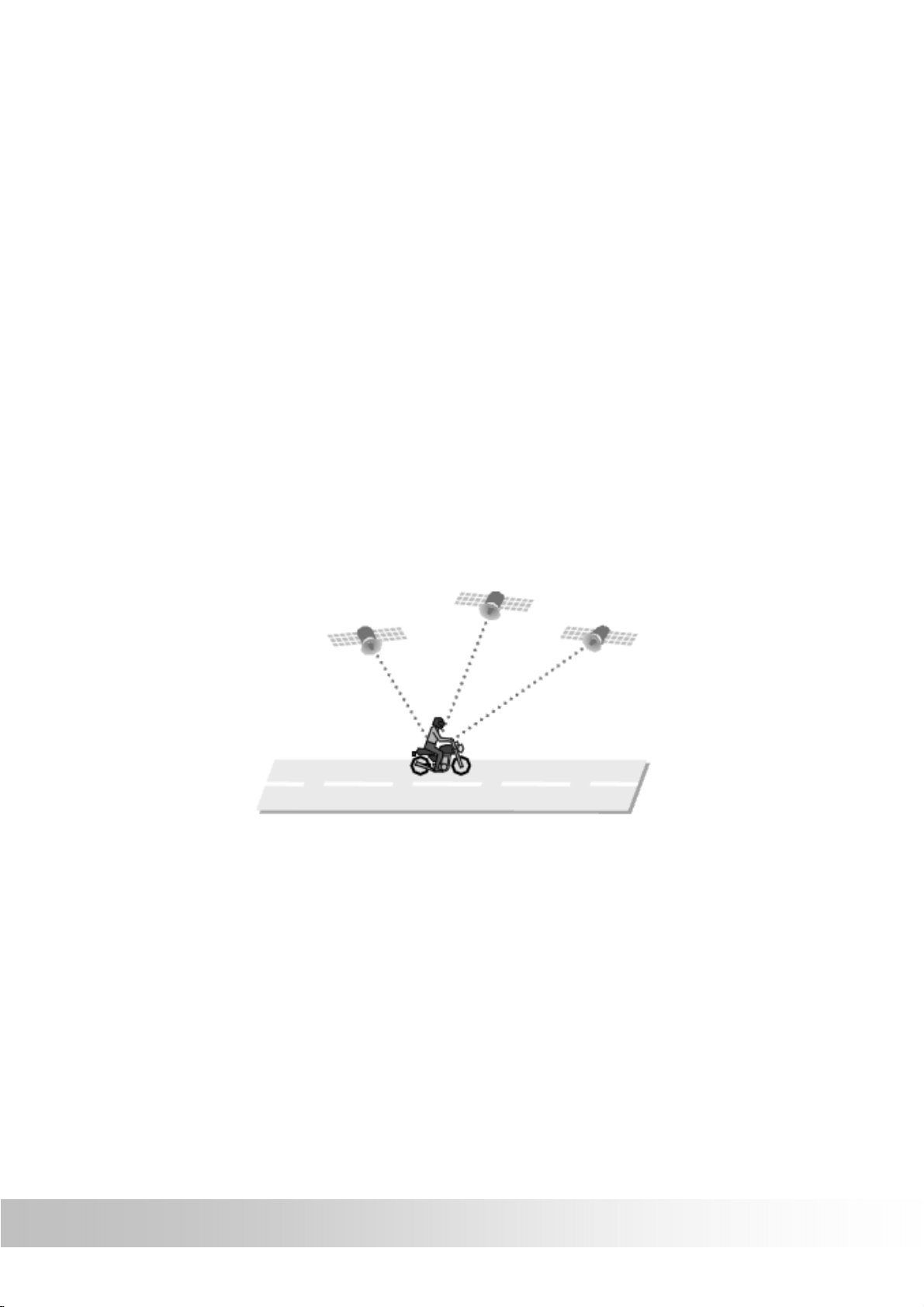

• A minimum of 4 GPS satellite signals is needed to determine current

GPS position. Signal reception can e affected y situations such as

ad weather or dense overhead o stacles (e.g. trees and tall

uildings).

• Other wireless devices in the vehicle might interfere with the

reception of satellite signals and cause the reception to e unsta le.

Without the written consent of HOLUX Technology, Inc, this manual,

including the product and the software, may not e duplicated, transmitted,

recorded or saved on storage devices. Furthermore, it shall not e

translated under any circumstances into any other languages.

Important Notice

Please thoroughly read this manual of operating instructions and

explanations. Only use original factory approved atteries and accessories

to prevent unexpected damage. If the correct procedures were not followed

for operation or incompati le accessories were connected, this is a

violation of the warrantee agreement and will automatically void the

warrantee. This may also cause personal safety issues.

First time use

Package Contents

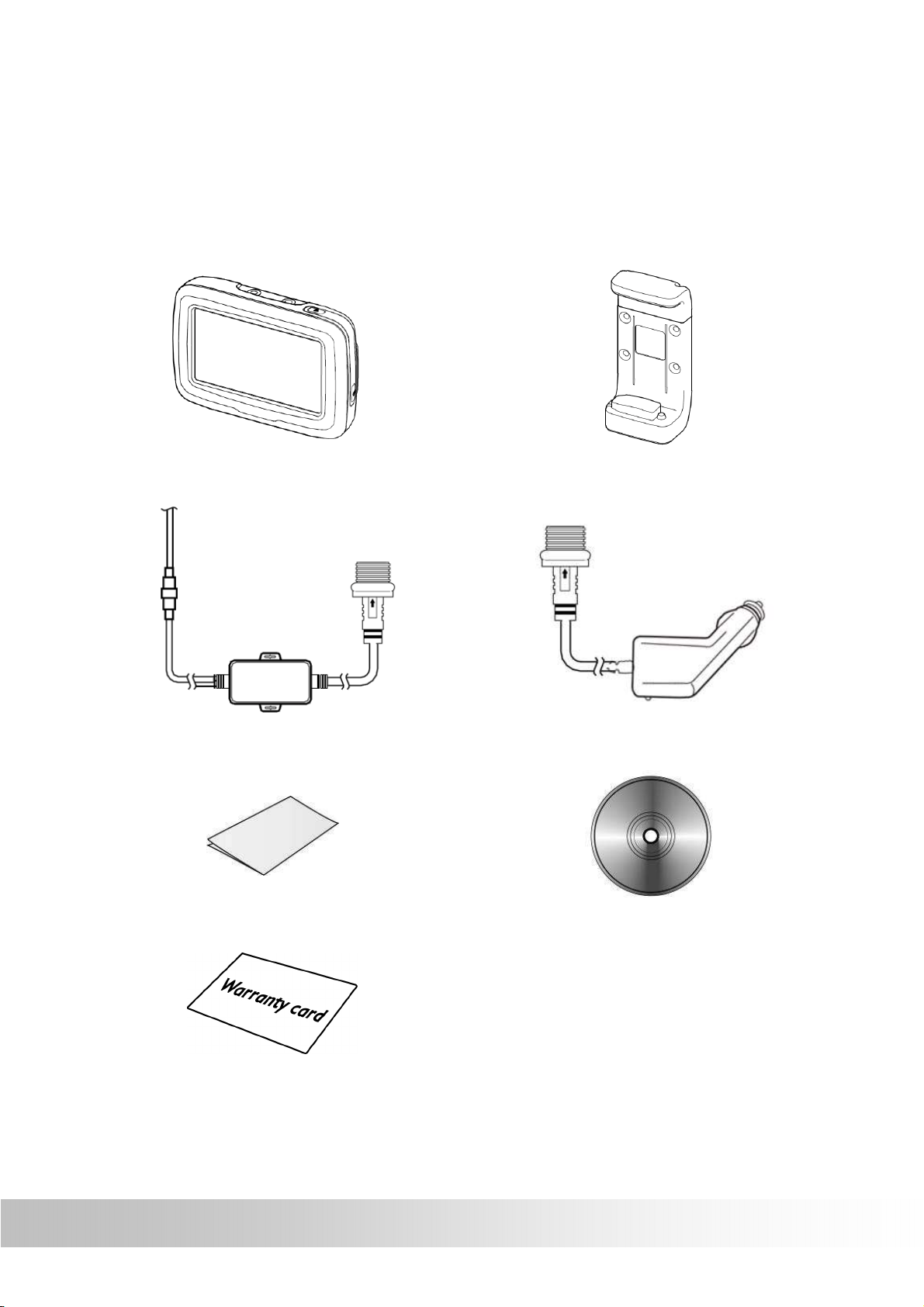

Your product should include the following accessories:

Device Cradle

DC-DC Adapter Car Charger

Quick Guide CD-ROM

Warranty Card

Basic Operation

Introduction

Front View

Rear View

Main menu utton

4.3’’ LCD

touch screen

Power utton

Micro SD card slot

(Under attery cover)

Mini-USB connector

(Under attery cover)

Batter

cover

Accessories

Cradle

Optional Accessories

Extension UART ca le Bluetooth headset

I/O

interface

I/O

cap

Screw

Release utton
