MODEL

CP9BLS

900mm

Pyramid Stainless Steel

Canopy

Manual

Installation and Operation

Canopy Installation and Operation Manual

Home Appliances –March 2012

Dear Customer,

We thank you for choosing this quality appliance and hope you enjoy many years of

reliable service.

Please ensure this manual is read carefully before installation and use. Keep this

manual in a safe and accessible location should future reference be required.

Regards

Home Appliances

CONTENT

2 …………………………………………………. Notice

Canopy Installation and Operation Manual

Home Appliances –March 2012

3 …………………………………………………. Caution

4 …………………………………………………. Feature

5-8 ……………………………………………….. Installation

9 ………………………………………………….. Notice of installation

10 ……………………………………………..….. Safety Warning

11-16 …………………………………………..… Use

17 ………………………………………………… Maintenance

NOTICE

1. Thank you for choosing our canopy rangehood. Please read the instruction

manual carefully before use.

2. The installation work must be undertaken by a qualified and competent fitter.

3. The manufacturer disclaims all liability for any damage or injury caused as a

result of not following instructions for installation contained in the following

text.

The cooker hood is used on 220/240v, 50Hz.

Canopy Installation and Operation Manual

Home Appliances –March 2012

SAFETY WARNINGS

Installation of this Integrated Canopy Rangehood must be carried by a

qualified and competent installer.

The manufacturer disclaims and liability for any damage or injury caused as a

result of not following instruction of installation contained in this instruction

manual.

This Integrated Canopy Rangehood is not intended for use by young children

or infirm persons without supervison.

Young children should be supervised to ensure they do not play with this

Integrated Canopy Rangehood.

To avoid possible electric shock this Integrated Canopy Rangehood should be

unplugged before any maintenance or cleaning is carried out.

This Integrated Canopy Rangehood cannot be installed in an external

environment.

The Grease Filters should be cleaned at least once a month to avoid the risk

of fire.

Canopy Installation and Operation Manual

Home Appliances –March 2012

Flambe cooking cannot be carried out under the Integrated Canopy

Rangehood and is not recommended for use over Barbeques.

Ducting must be independent from any other form of ducting of other

household heating sources.

Ducting into wall cavities is prohibited unless the cavity has been designed for

this purpose

Lit gas burner should never remain uncovered or on when there is no pan

present due to the risk of fire.

Adequate ventilation of the room is required when the cooker hood is used at

the same time as appliances burning gas or other fuels.

(2)FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined

design.

2. Equipped with a large power low noise electric motor and centrifugal leaf, it

produces strong suction, low noise, non stick grease filter and easy to clean.

3. With the isolated low voltage circuit board control, 12vAC input, the lights are

therefore safer.

4. Special wind tunnel construction and oil collector design, free dirt will be

absorbed in a second.

Canopy Installation and Operation Manual

Home Appliances –March 2012

(3). Installation

If the model without Glass:

3.1 The cooker hood should be placed at a

distance of 65-75cm (26-30inch) from the

cooking surface for the best effect. See Pic 1.

3.2 Install the hook on a suitable place once the

installation height is fixed, and keep it in line. The

fixed position of the inside chimney bracket is

the place of chimney. See Pic 2.

3.3 Fix one-way valve on the hood and connect

the extensible pipe to the one-way valve. See Pic 3.

3.4 Put the cooker hood on the hook. See Pic 4.

3.5 Use clamp to fix the T-piece valve on the extensible pipe. See Pic 5.

3.6 Fix plate on the outer chimney, and be sure that the inside chimney can be

adjusted the height in it freely, See Pic 6.

Canopy Installation and Operation Manual

Home Appliances –March 2012

3.7 Install the chimney and screw the T-piece metal outlet to the inside chimney, See

Pic 7 and 8.

3.8 Adjust the height of the inside chimney to the position of the inside chimney

bracket and fix on it by screw,after ajusting the position,fix the body with safety screw.

See Pic 9.

Note: The two safety vents are positioned on the back casing, with diameter

of 6mm.

Canopy Installation and Operation Manual

Home Appliances –March 2012

Canopy Installation and Operation Manual

Home Appliances –March 2012

If the model with Glass:

3.1 The cooker hood should be placed at a

distance of 65-75cm (26-30inch) from the

cooking surface for the best effect. See Pic 1.

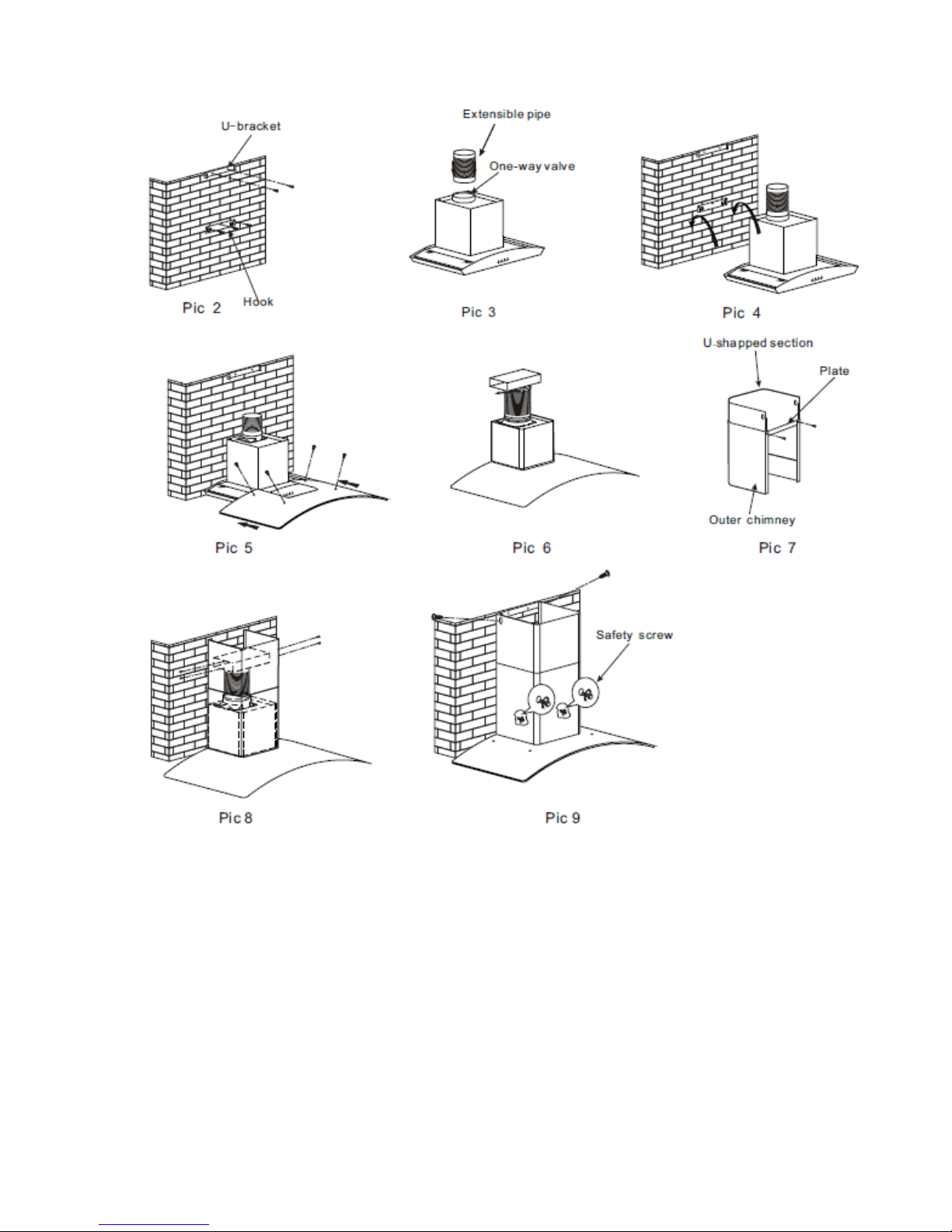

3.2 Install the hook on a suitable place once the

installation height is fixed, and keep it in line. The

fixed position of the inside chimney bracket is

the place of chimney. See Pic 2.

3.3 Fix one-way valve on the hood and connect

the extensible pipe to the one-way valve. See

Pic 3.

3.4 Put the cooker hood on the hook. See Pic 4.

3.5 Put the glass according to the lead direction

and way on the cooker hood, and then use the screws to fix the glass. See Pic 5.

3.6 Use clamp to fix the T-piece valve on the extensible pipe. See Pic 5.

3.7 Fix plate on the outer chimney, and be sure that the inside chimney can be

adjusted the height in it freely, See Pic 6.

3.8 Install the chimney and screw the T-piece metal outlet to the inside chimney, See

Pic 7 and 8.

3.9 Adjust the height of the inside chimney to the position of the inside chimney

bracket and fix on it by screw,after ajusting the position,fix the body with safety screw.

See Pic 9.

Note: The two safety vents are positioned on the back casing, with diameter

of 6mm.

Canopy Installation and Operation Manual

Home Appliances –March 2012
