Home Decorators Collection WSFP59ECHD-2 Manuale utente

THANK YOU

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this fireplace console. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you

for choosing Home Decorators Collection!

Model # WSFP59HD-1

WSFP59ECHD-1

WSFP59ECHD-2

USE AND CARE GUIDE

59IN ROSEMONT FIREPLACE

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 6 p.m., EST, Monday-Friday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

Table of Contents

Table of Contents..........................................................2

Safety Information.........................................................2

Warranty.........................................................................2

Pre-Assembly ................................................................2

Planning Assembly .......................................................................2

Tools required...............................................................................2

Hardware Included ....................................................................... 3

Package Contents ........................................................................ 3

Assembly.......................................................................5

Care and Maintenance................................................ 15

Safety Information

Please read and understand these instructions before assembling

and using this console. Save these instructions for future reference.

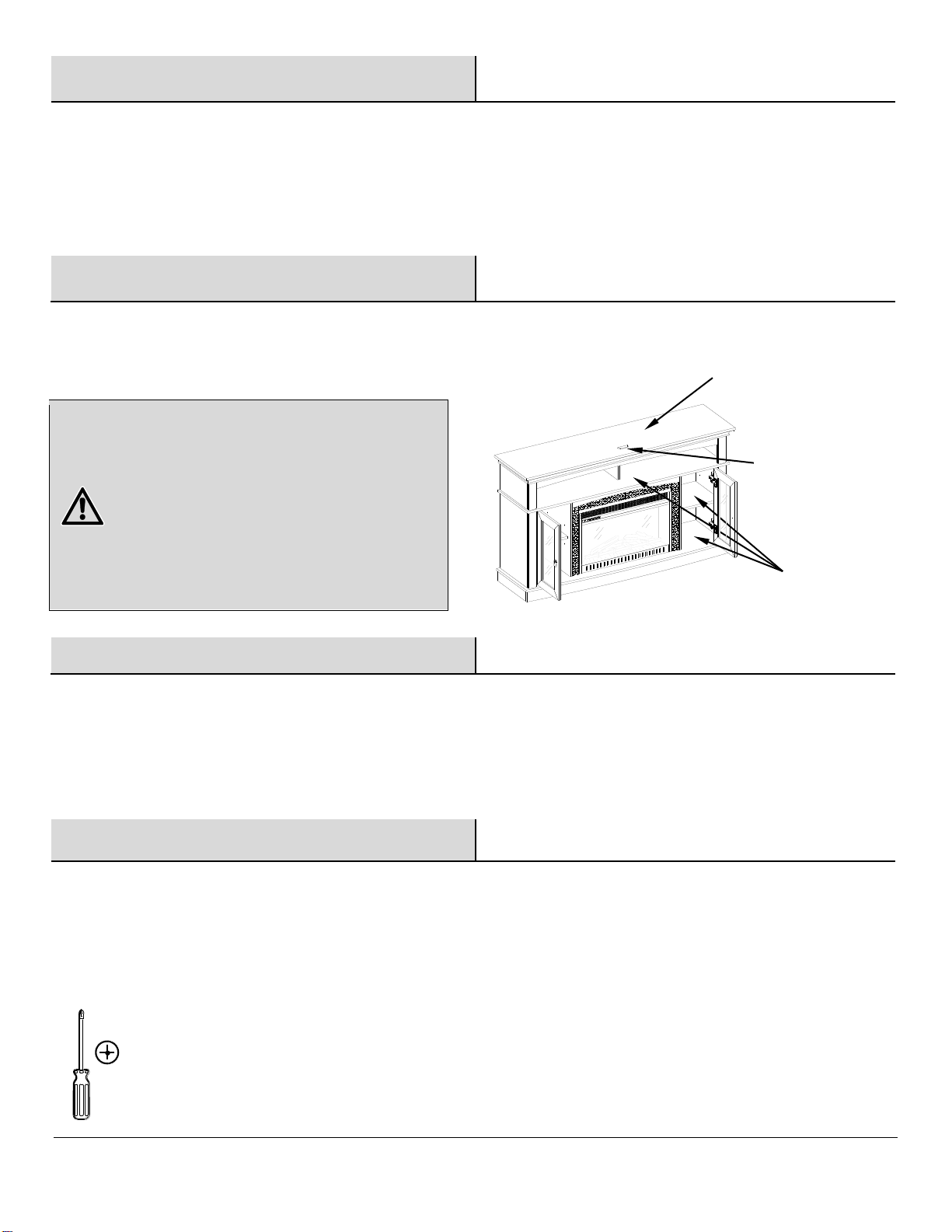

MAXIMUM RECOMMENDED WEIGHT LOADS

WARNING: This unit is not intended for use with CRT TVs.

Use only with flat panel TVs and audio/video equipment meeting

recommended size and weight limits. Never use with larger/heavier

than recommended flat panel TVs or equipment. To avoid

instability, place flat panel TV in the centre of the unit; the base of

the television must be able to rest on the supporting surface

of the unit without over-hanging the edges. Improperly

positioned flat panel TVs, or flat panel TVs or other equipment that

exceed recommended size and weight limits could fall off or break

the unit, causing possible serious injury.

Warranty

We are confident that you will be delighted with this purchase. Should this product be defective in workmanship or materials, or fail under normal use,

we will repair or replace it for a period of up to one (1) year from date of purchase.

This warranty gives you specific rights and you may also have other rights which vary from state to state.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HomeDepot.com/homedecorators.

Pre-Assembly

PLANNING ASSEMBLY

Compare all parts with the Hardware Included and Package Contents list. If any part appears missing or damaged, do not assemble this product and

contact the Customer Service Team at 1-800-986-3460.

TOOLS REQUIRED

Phillips

screwdriver

(not provided)

Maximum load 22.7 kg / 50 lb MAXIMUM LOAD 50 LB (22.7 kg)

Fits up to most 177.8 cm / 70 in flat panel TVs

Maximum load 61.2 kg / 135 lb

Place TV behind the stopper

3 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Pre-Assembly (continued)

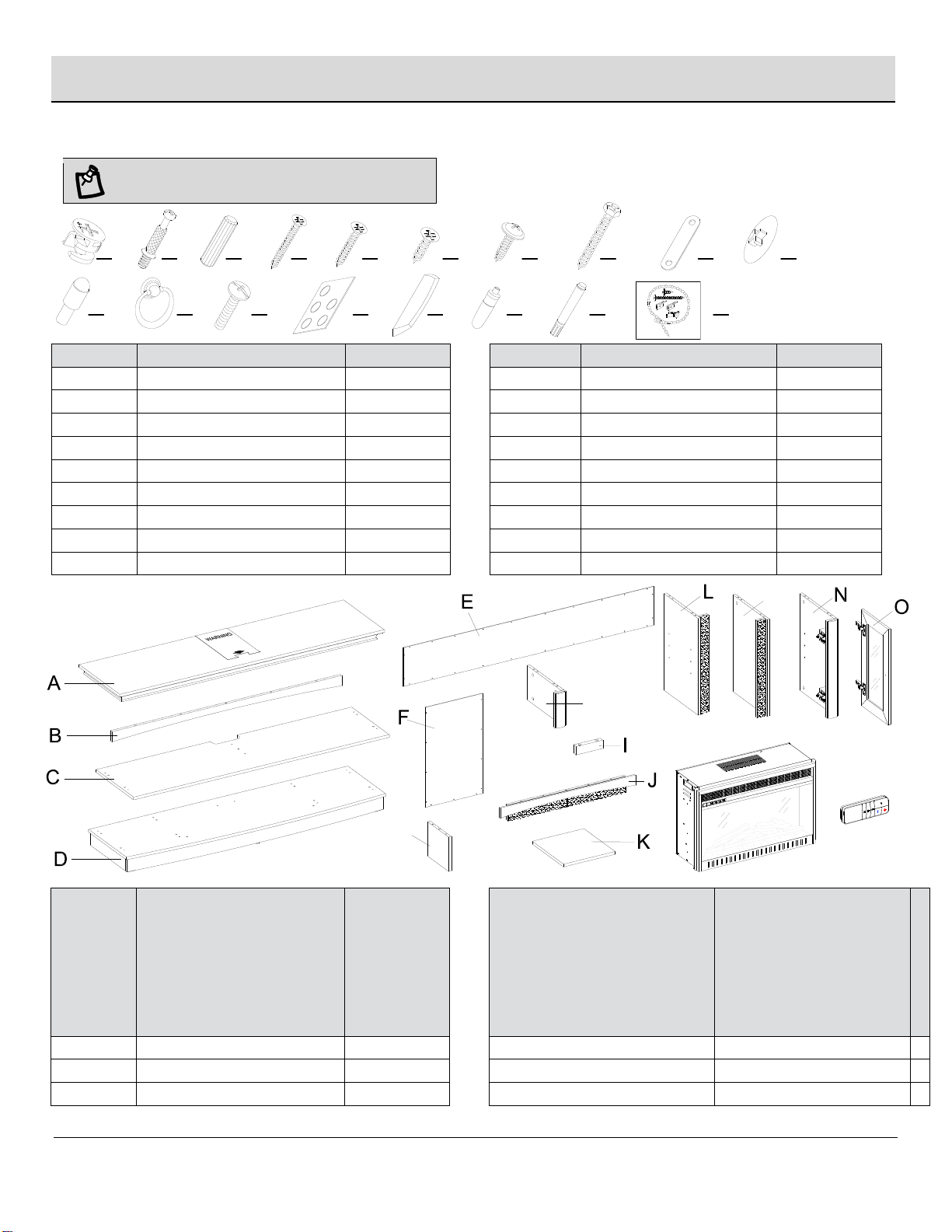

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part

Description

Quantity

Part

Description

Quantity

Cam lock

30 + 1 extra

Cam lock cover

30 + 1 extra

Cam bolt

30 + 1 extra

Shelf pin

8 + 1 extra

Wood dowel

34 + 1 extra

Handle

Long screw

4 + 1 extra

Handle bolt

Short screw

4 + 1 extra

Rubber bumper

4 + 1 extra

Metal plate screw

8 + 1 extra

Acrylic stopper

Back panel screw

46 + 2 extra

Glue

Bolt

2 + 1 extra

Touch-up pen

Metal plate

Tipping restraint hardware kit

PACKAGE CONTENTS

Part

Description

Quantity

Part

Description

Top panel

Middle crossbar assembly

Top front stretcher

Adjustable shelf

Center shelf

Lower left partition panel

LL MAXIMUM LOAD 50 LB (22.7 kg)

AA MAXIMUM LOAD 50 LB (22.7 kg)

BB MAXIMUM LOAD 50 LB (22.7 kg)

CC MAXIMUM LOAD 50 LB (22.7 kg)

DD MAXIMUM LOAD 50 LB (22.7 kg)

EE MAXIMUM LOAD 50 LB (22.7 kg)

FF MAXIMUM LOAD 50 LB (22.7 kg)

GG MAXIMUM LOAD 50 LB (22.7 kg)

HH MAXIMUM LOAD 50 LB (22.7 kg)

II MAXIMUM LOAD 50 LB (22.7 kg)

JJ MAXIMUM LOAD 50 LB (22.7 kg)

KK MAXIMUM LOAD 50 LB (22.7 kg)

MM MAXIMUM LOAD 50 LB (22.7 kg)

NN MAXIMUM LOAD 50 LB (22.7 kg)

OO MAXIMUM LOAD 50 LB (22.7 kg)

PP MAXIMUM LOAD 50 LB (22.7 kg)

QQ MAXIMUM LOAD 50 LB (22.7 kg)

RR MAXIMUM LOAD 50 LB (22.7 kg)

Base

Lower right partition panel

Upper back panel

Lower side panel

Lower back panel

Door

Upper partition panel

Fireplace insert

Upper side panel

Remote control with battery

Firebox support

5 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly

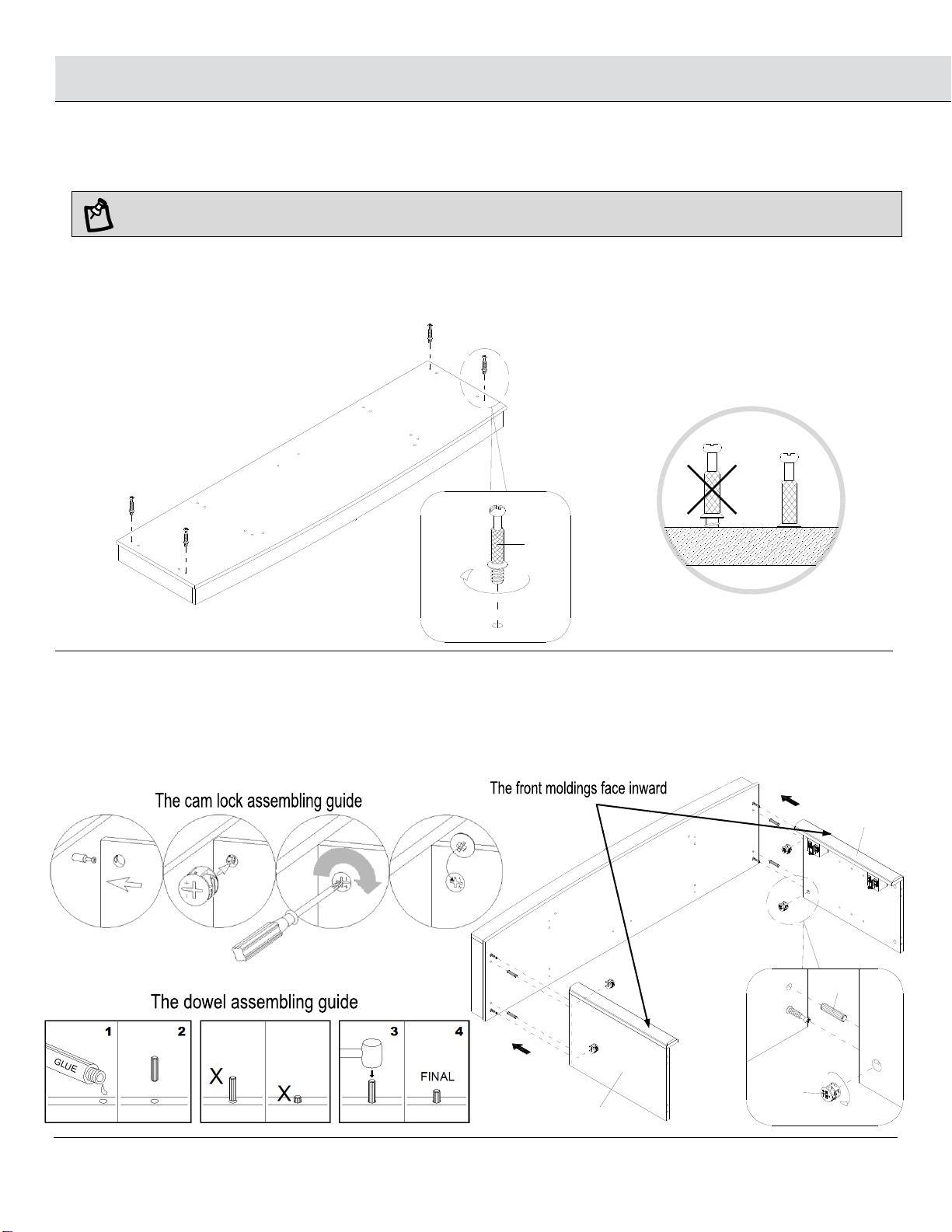

Screwing the cam bolts

NOTE: Do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make the

assembly easier.

□Unpack the unit and confirm that you have all the hardware and required parts listed. Assembly the unit on a carpeted floor or the empty

carton to avoid any scratch.

□Securely screw four cam bolts (BB) into the designated small holes on the base (D). Fully tighten with a phillips screwdriver.

Attaching the lower side panels

□Insert two wood dowels (CC) into the inner holes of each lower side panel (N) and attach them to the base (D) by using four cam locks

(AA), as shown cam lock system operation.

NAA

Assembly (continued)

Attaching the lower partition panels

□Insert six wood dowels (CC) into the inner holes of the lower partition panels (L and M) and attach them to the base (D) by using four

long screws (DD).

Screwing the cam bolt

□Securely screw eleven cam bolts (BB) into the designated small holes on the center shelf (C). Fully tighten with a phillips screwdriver.

7 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly (continued)

Attaching the middle crossbar assembly

□Align and attach the middle crossbar assembly (J) to the center shelf (C) by using two wood dowels (CC) and three cam locks (AA).

Installing the center shelf assembly

□Insert ten wood dowels (CC) into the top inner holes of the lower panels (L, M and N).

□Ask for assistance to position the center shelf (C) onto the inserted wood dowels (CC). Attach the center shelf (C) in place by engaging

eight cam locks (AA).

Assembly (continued)

Screwing the cam bolt

□Stand last assembly upright.

□Securely screw six cam bolts (BB) into the designated small holes on the center shelf (C). Fully tighten with a phillips screwdriver.

Installing the upper side and partition panel

□Insert five wood dowels (CC) into the inner holes of the upper side panels and partition panel (H and G ) and attach them to the center

shelf (C) by using six cam locks (AA).

CBB

9 HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly (continued)

Screwing the cam bolt to top panel

□Securely screw nine cam bolts (BB) into the designated small holes on the top panel (A). Fully tighten with a phillips screwdriver.

Installing the top front stretcher

□Align and attach the top front stretcher (B) to the top panel (A) by using two wood dowels (CC) and three cam locks (AA).

Assembly (continued)

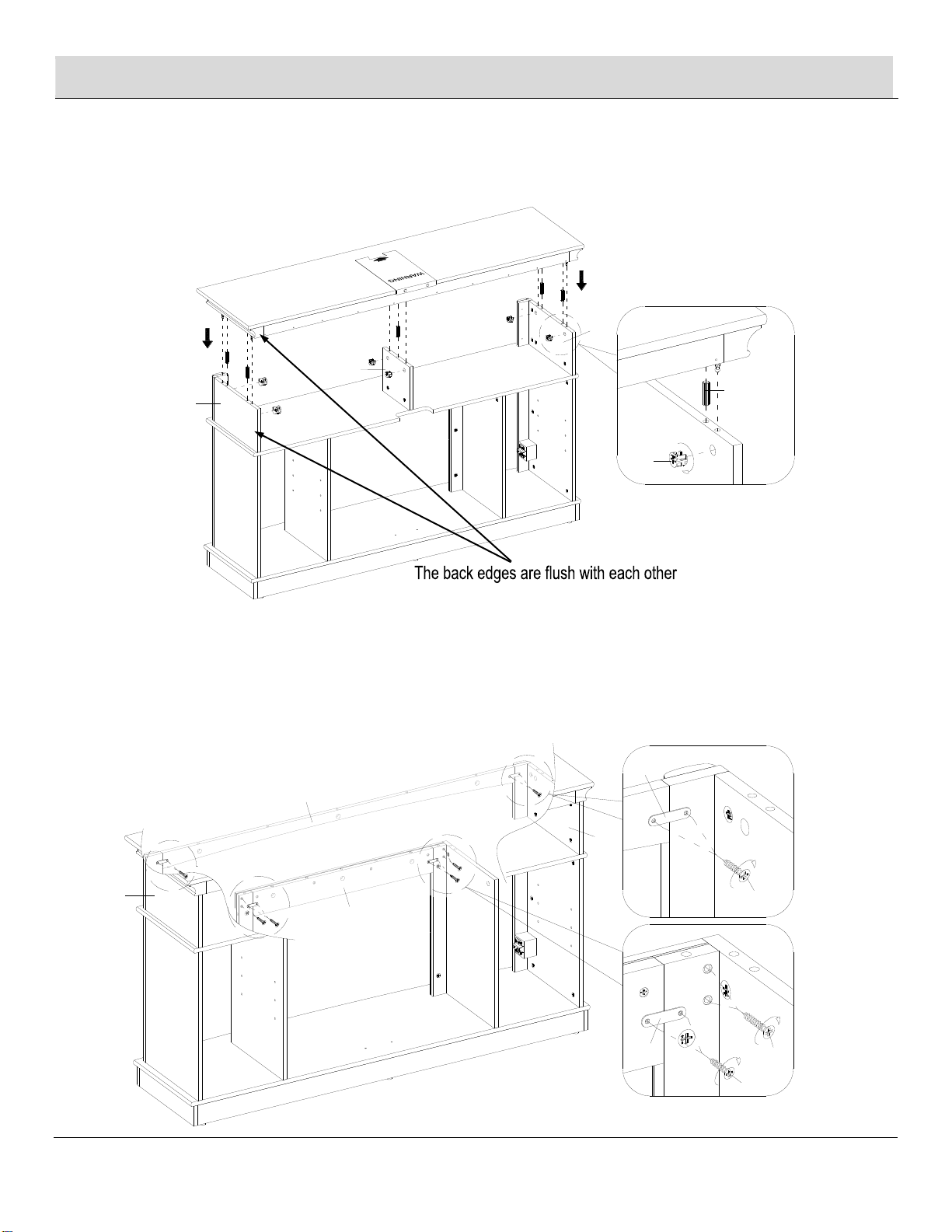

Attaching the top panel

□Insert five wood dowels (CC) into the inner holes of the upper side panels and partition panel (H and G ). Position the top panel (A) onto

the inserted wood dowels (CC) and fasten it in place with six cam locks (AA).

Installing the metal plate

□Fasten the middle crossbar assembly (J) to the front molding of lower partition panels (L and M) by attaching two metal plates (II) at the

joints, using two screws (FF) in each. Proceed to secure the front stretcher of middle crossbar assembly (J) in place by using two short

screws (EE)per each end. As shown.

□Fasten the top front stretcher (B) to the upper side panels (H ) by attaching two metal plates (II) at the joints, using two screws (FF) per

metal plate.
