Home Decorators Collection 22842 Manuale utente
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this lighting fixture. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Item #1001-844-654
#1002-263-760
Model #22842
USE AND CARE GUIDE
2 Light LED Bath Vanity
TULIANNE
(CHROME FINISH)
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
2 HOMEDEPOT.COM.MX
Please contact 01-800-004-6633 for further assistance.
Table of Contents
Table of Contents..........................................................2
Safety Information.........................................................2
Limited Warranty...........................................................3
Pre-installation ..............................................................4
Tools required for assembly & installation (not included)........4
Hardware Included...................................................................5
Package Contents ....................................................................6
Assembly ....................................................................... 7
Installation ..................................................................... 8
Maintenance................................................................ 10
Care and Cleaning ...................................................... 10
Troubleshooting.......................................................... 10
Service Parts ............................................................... 11
Safety Information
□ Before you begin, make sure you carefully read and understand the instructions in this manual. Please follow the instructions in the
order presented in this manual and observe all warnings and cautions.
WARNING: To reduce the risk of fire, consult a qualified
electrician before installation.
WARNING: Before beginning installation, turn off electricity at
the circuit breaker box or the main fuse box.
WARNING: Be careful not to damage or cut the wire insulation
(covering) during fixture installation. Do not permit wires to
contact any surface having a sharp edge. To do so may damage
or cut the wire insulation, which could cause serious injury or
death from electric shoc
k
.
WARNING: If a dimmer control switch is used with this fixture,
obtain professional advice to determine the correct type to use
as well as the electrical rating required.
CAUTION: All electrical connections must be in agreement
with local codes, ordinances, or the National Electric Code
(NEC). Contact your municipal building department to learn
about your local codes, permits and/or inspections.
CAUTION: Consult a qualified electrician before
installation.
WARNING: Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into
an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician
for help.
3 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Limited Warranty
WHAT IS COVERED
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of five (5) years from date
of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this
product is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product
at the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,
alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or
used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product
as a result of an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to faulty material or
workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is
considered normal wear and tear.
WHAT IS NOT COVERED
The manufacturer does not warrant and specially disclaims any warranty, whether express or implied, of fitness for a particular purpose,
other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential
or incidental loss or damage, including but not limited to any labor / expense costs involved in the replacement or repair of said product.
Contact the Customer Service Team at 1-800-986-3460 or visit www. HOMEDEPOT.COM/HOMEDECORATORS.
4 HOMEDEPOT.COM.MX
Please contact 01-800-004-6633 for further assistance.
Pre-installation

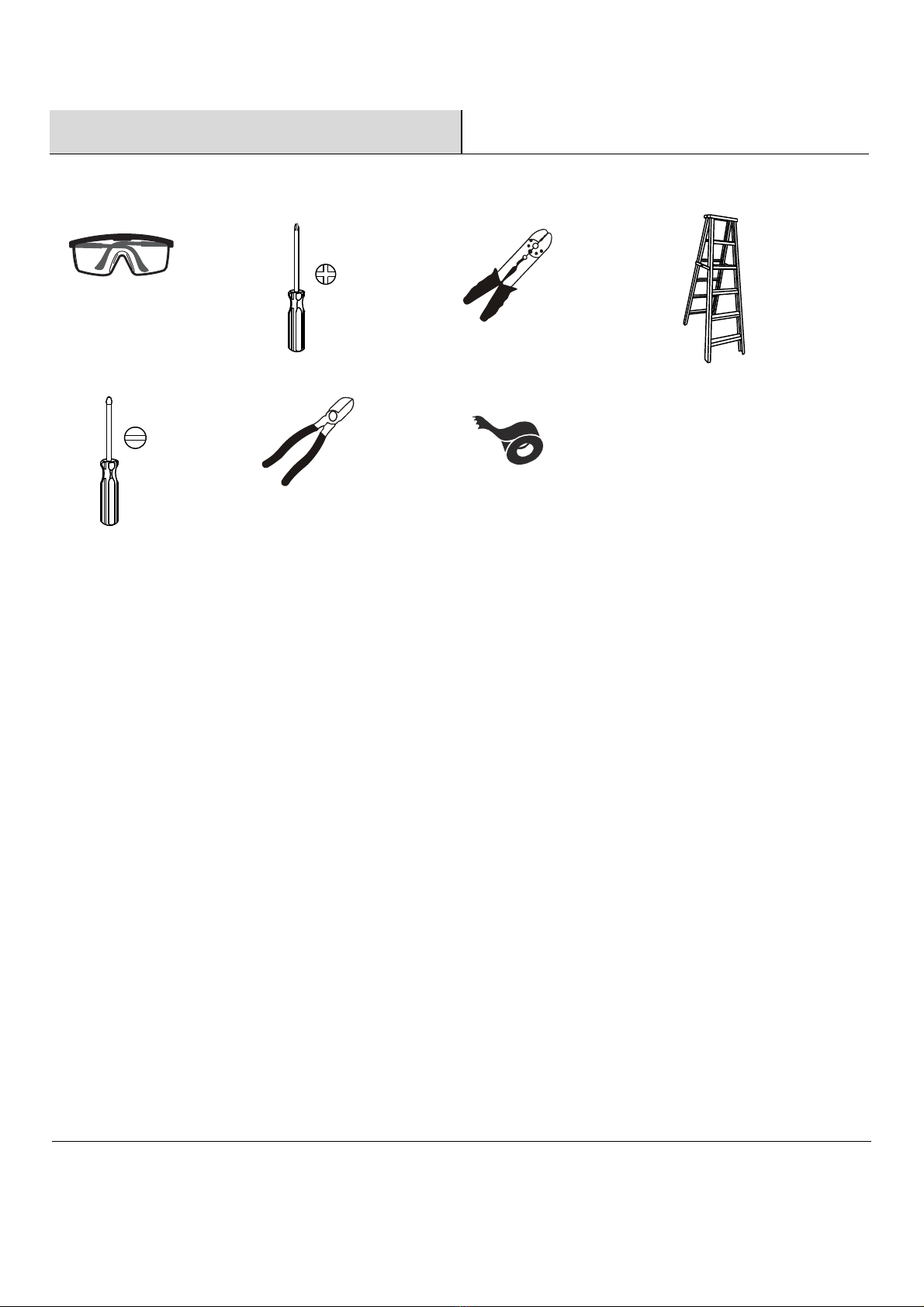

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION (NOT INCLUDED)
Safety
goggles
Phillips
screwdriver
Flathead
screwdriver
Wire
stri
pp
ers
Step
ladder
Wire
cutters
Electrical
ta
p
e
5 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Pre-installation (continued)

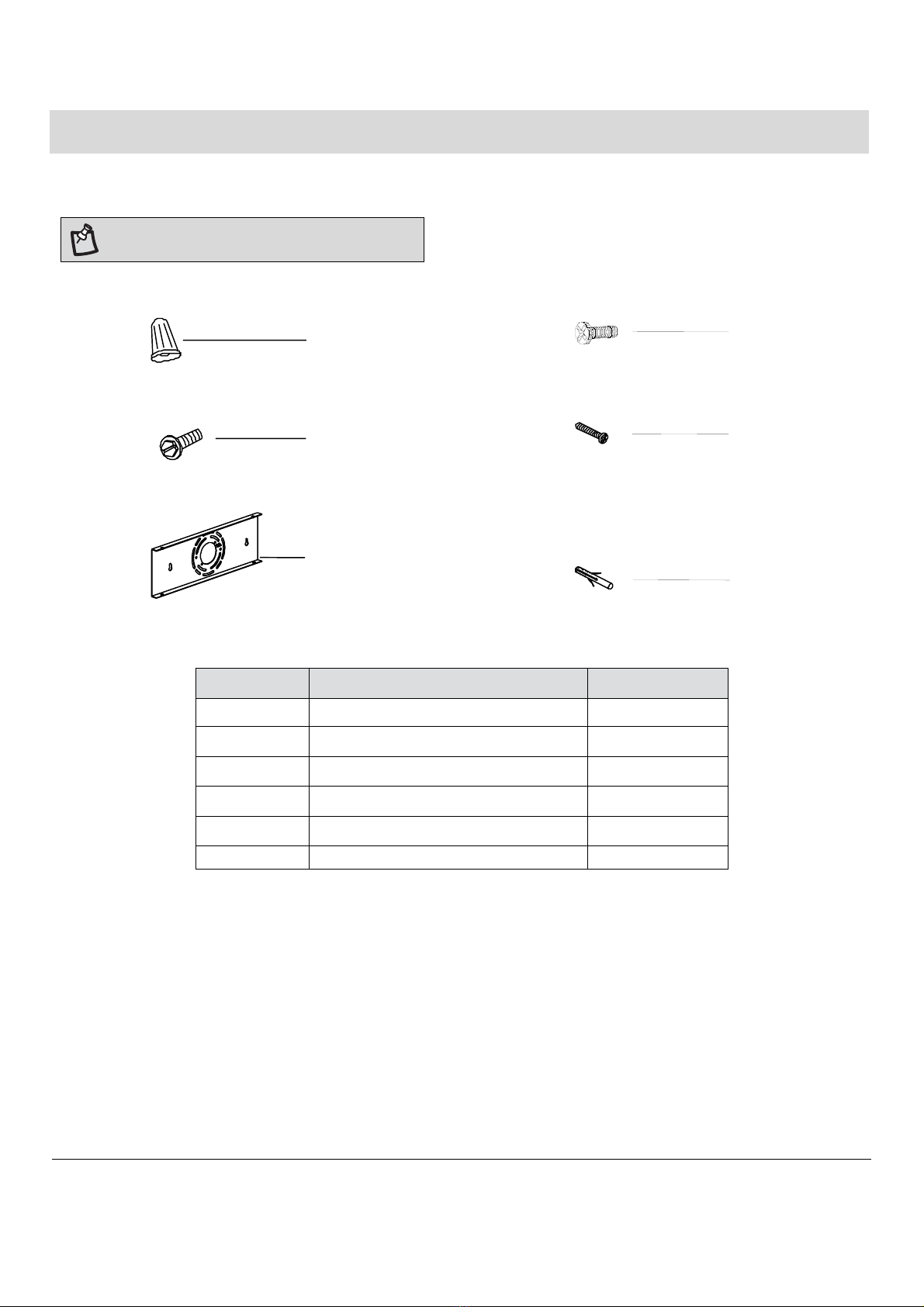

HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
Part Description Quantity
AA Wire connectors 3
BB Outlet box screws 2
CC Ground screw 1
DD Wood screws 2
EE Mounting plate 1
FF Plastic anchors 2
AA
CC DD
FF
BB
EE
6 HOMEDEPOT.COM.MX
Please contact 01-800-004-6633 for further assistance.
Pre-installation (continued)
PACKAGE CONTENTS
Part Description Quantity

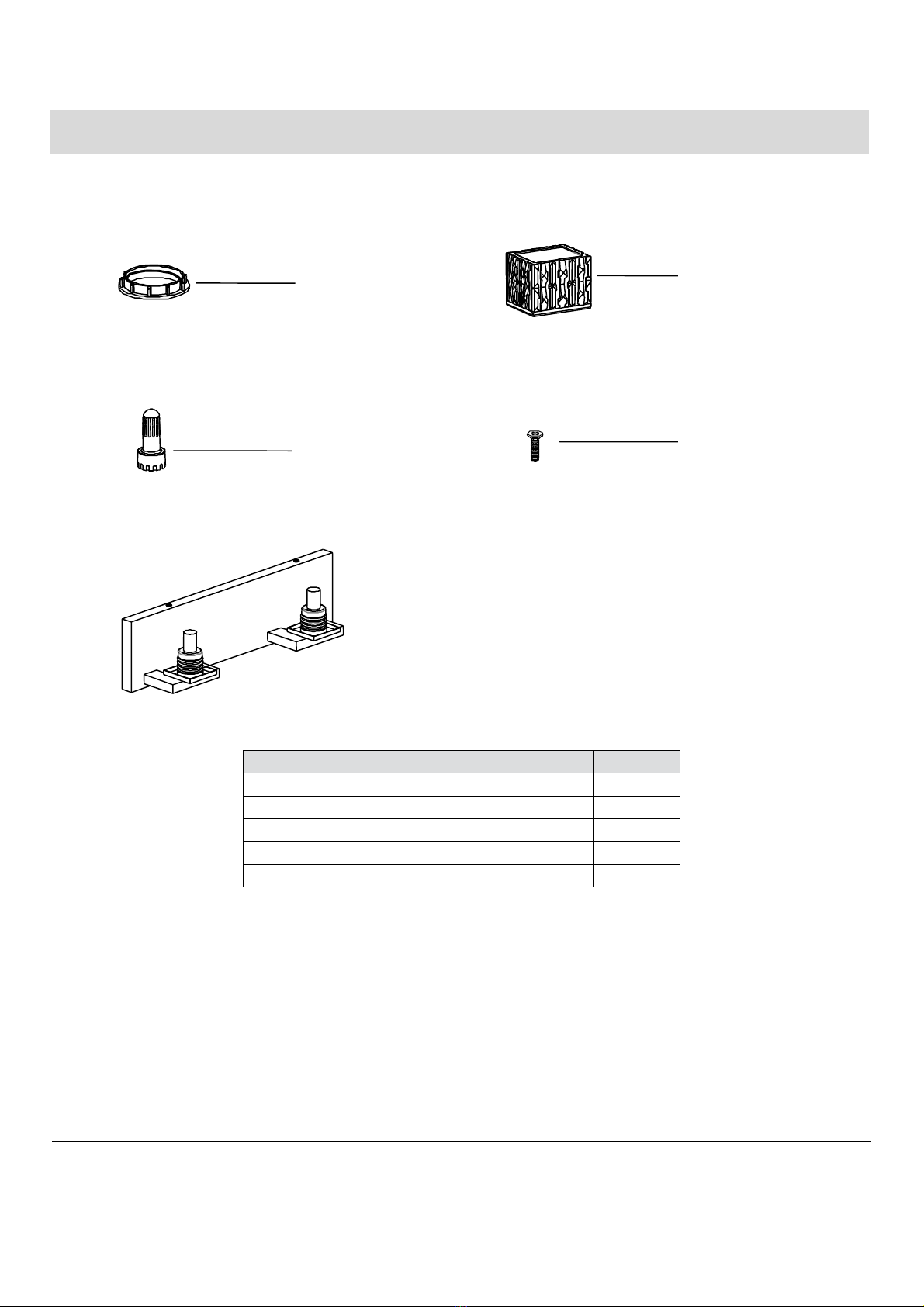

A Screw shells 2
B Spanner 1
C Glass shades 2
D Screws 4
E Fixture body 1
A
C
B D
E
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Assembly
1 Attaching the glass shade

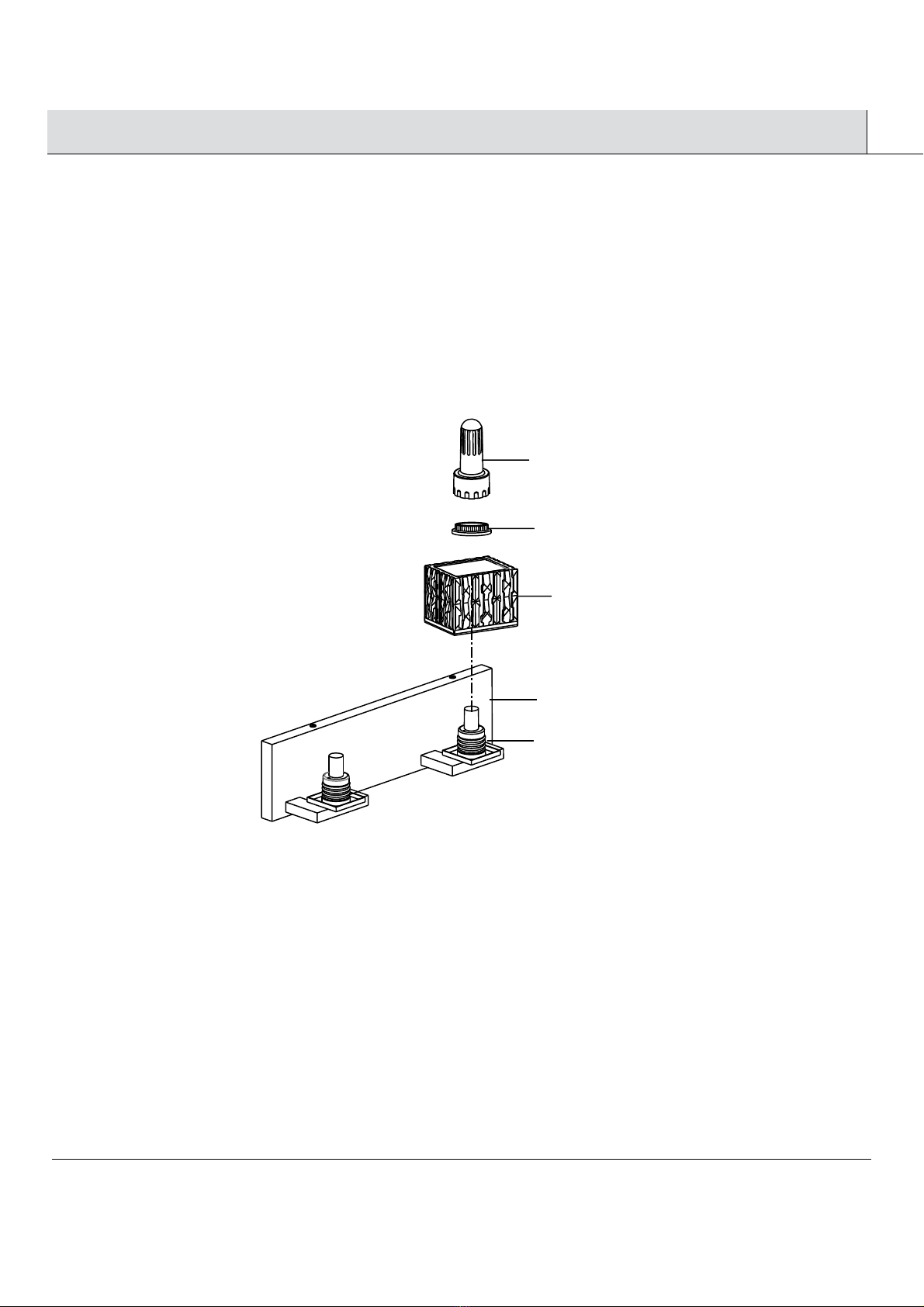

□ Carefully unpack your new fixture and lay out all the parts on a clear area. Take care not to lose any small parts necessary for
installation.
□ Remove the screw shell (A) from the fixture.
□ Place the glass shades (C) over the socket of the fixture body (E), fasten with screw shells (A) using the included spanner (B).
C
A
B
E
Socket
8 HOMEDEPOT.COM.MX
Please contact 01-800-004-6633 for further assistance.
Installation
1 Removing the mounting plate 2Positioning the mounting plate

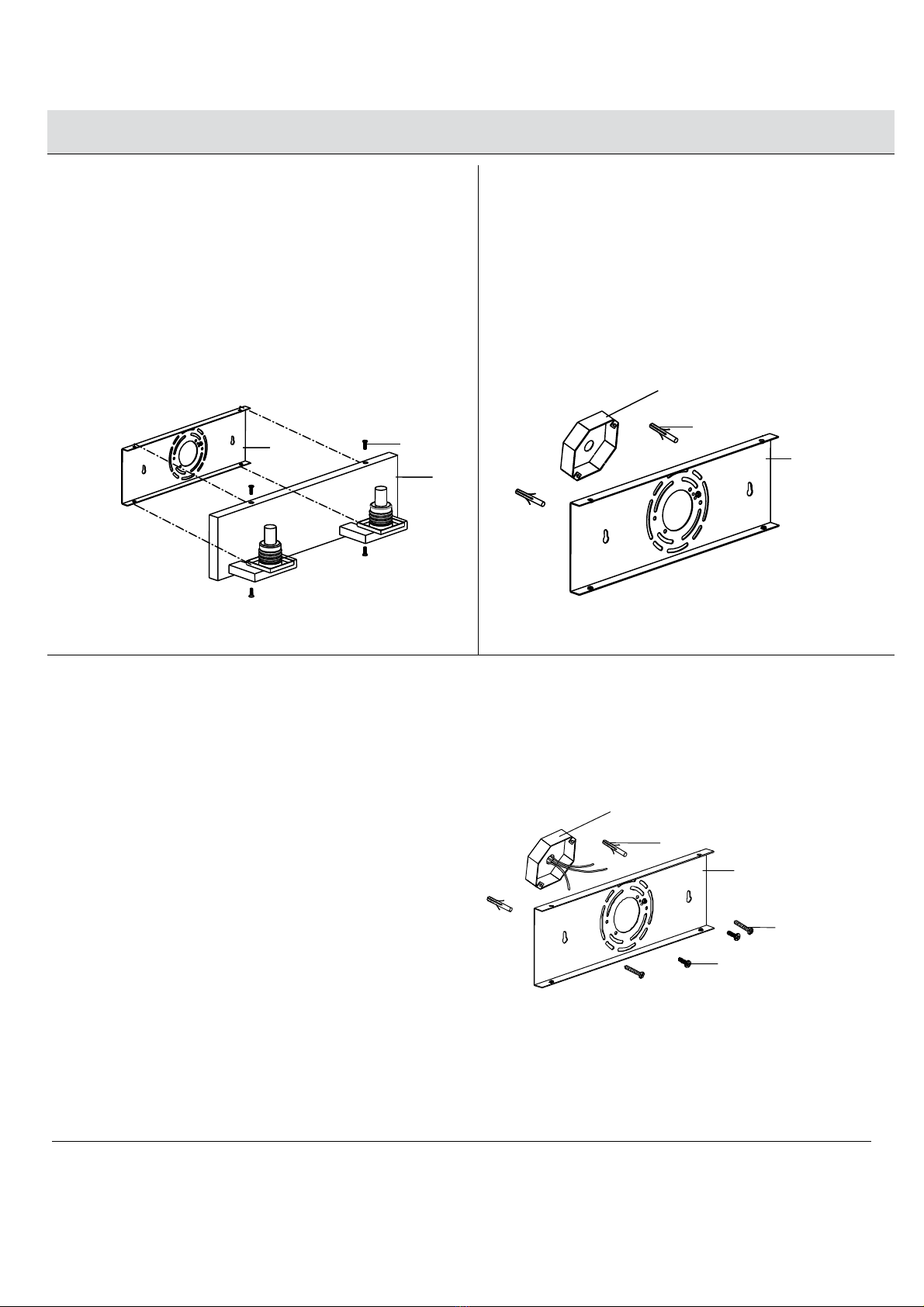

□ Prior to installation, remove the mounting plate (EE) by
removing the screws (D) from the fixture body (E).
□ Position mounting plate (EE) on the wall, and mark location
of the two mounting holes.
□ Drill the holes on the wall, insert the plastic anchors (FF)
into the wall.
3 Installing the mounting plate
□
A
ttach the mounting plate (EE) to the outlet box using the
outlet box screws (BB) and the wood screws (DD). The side of
the mounting plate marked “GND” must face out.
FF
EE
DD
BB
Outlet Box
FF
EE
Outlet Box
D
E
EE
9 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Installation(continued)
4
Connecting the wires
NOTE: If you have electrical questions, consult your local
electrical code for approved grounding method.

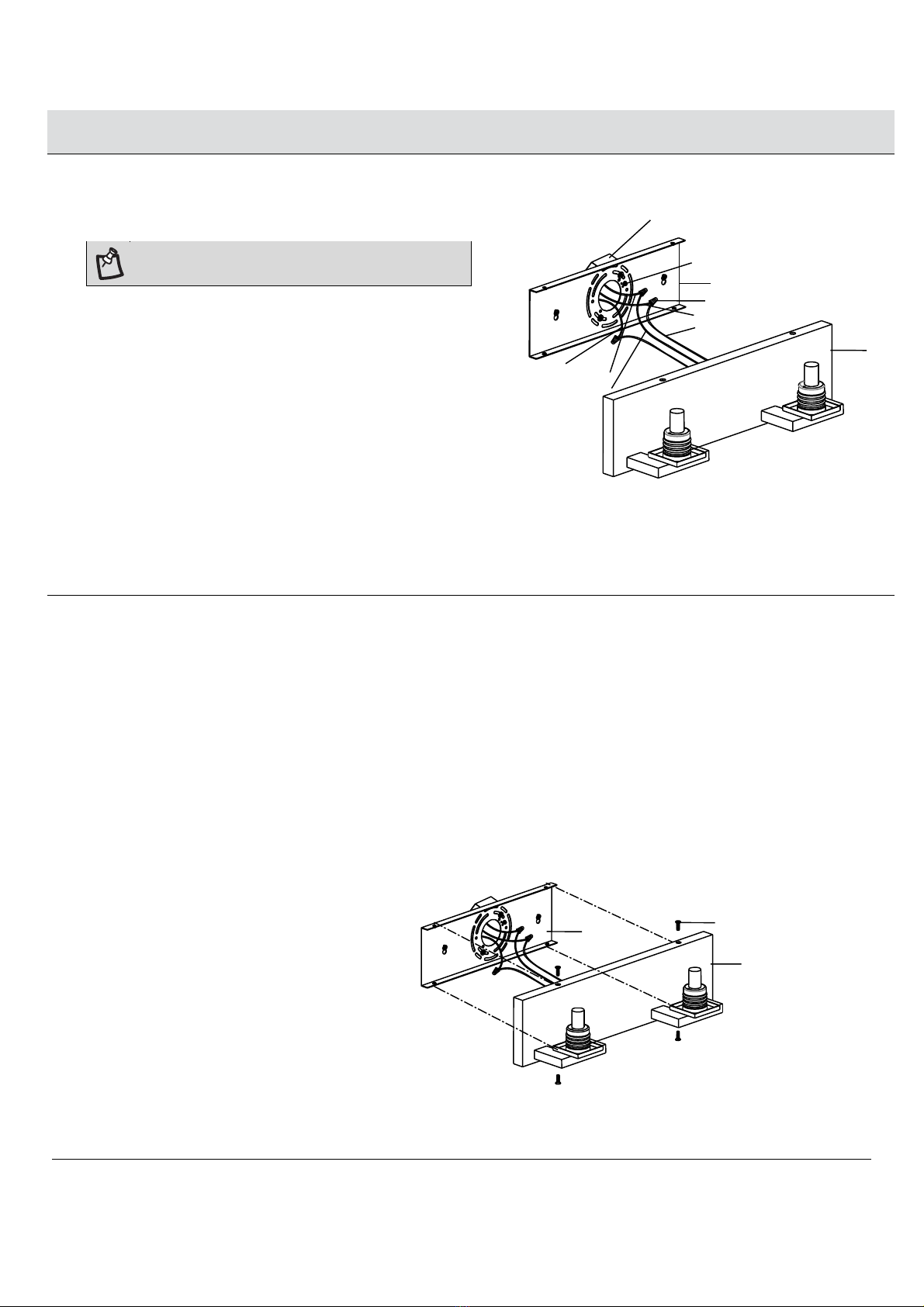

□ Connect the white wire from the fixture to the white wire from
the outlet box, and the black wire from the fixture to the black
wire from the outlet box. Cover the two wire connections
using the two provided wire connectors (AA). Wrap the two
wire connections with electrical tape for a more secure
connection. If your outlet box has a ground wire (green or bare
copper), connect fixture’s ground wire to it using the wire
connectors (AA). Otherwise connect the copper ground from
the fixture to ground screw (CC) on the mounting plate (EE).
5 Placing the fixture body to the
mounting plate
□ Place fixture body (E) over mounting plate (EE) and secure
with screws (D).
□ The installation is complete. Turn on the power at the circuit
breaker or fuse box. Turn the light switch on to activate the
fixture.
Ground wire
E
CC
EE
Outlet Box
AA
White wire
White wire
Black wire
Black wire
D
E
EE
10 HOMEDEPOT.COM.MX
Please contact 01-800-004-6633 for further assistance.
Maintenance
□ Shut off the main power supply before performing any maintenance on the light.
□ Wipe with damp cloth or use window cleaner. Do not use abrasives.
Care and Cleaning
□ To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the glass
and surface of the fixture.
□ To clean the inside of the fixture, first disconnect power to the fixture by turning off the circuit breaker or by removing the fuse at
the fuse box. Next, use a dry or slightly dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and
interior surface of the fixture.
□ Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft cloth to dust or wipe carefully
Troubleshooting
Problem Possible Cause Corrective Action
The bulb will not light.
The power is off. Make sure the power supply is
on.
There is a faulty wire
connection. Check the wiring.
There is a faulty switch. Test or replace the switch.
The fuse blows or circuit breaker
trips when the light is turned on.
There are crossed wires or the
power wire is grounding out. Check the wire connections.
