HOMEBASIX 4672713 Manuale utente

SKU# 4672713

35" Wall Mount Electric LED

Fireplace with Remote Control

Operating Instructions

Please Read And Save These Instructions

One Year Limited Warranty

IMPORTANT INSTRUCTIONS

WARNING!

When using electrical appliances, basic precautions

should always be taken to minimize the risk of fire, electric shock, personal

injury and property damage. Please adhere to the following precautions and

instructions.

INSTRUCTIONS FOR USE AND CARE

1. Read all instructions carefully before using the heater.

2. This heater is hot while in operation. To avoid injury, never touch a hot

surface. Keep all combustible materials, such as furniture, pillows,

bedding, papers, clothes and curtains, clear of the heater by at least 3

feet (0.9 m).

3. Extreme caution is necessary when any heater is used by or near

children and whenever the heater is left operating and unattended.

4. Always unplug the heater while not in use.

5. Do not operate the heater with a damaged cord or plug. If the heater

malfunctions, or even has been dropped or damaged in any manner,

return the heater to a service facility for examination, electrical or

mechanical adjustment, or repair.

6. Do not use the heater outdoors.

7. This heater is not intended for use in bathrooms, laundry areas and

similar moist indoor locations. Never place heater where it may fall into a

bathtub or any other water container.

8. Do not run cord under carpeting. Do not cover cord with throws, rugs,

runners or the like. Keep cord away from traffic areas where it can be

tripped over.

9. CAUTION: This appliance has a polarized plug (one blade is wider

than the other). To minimize the risk of shock, this plug is intended

to fit only one way in a polarized outlet. If the plug does not fit fully

in the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician. DO NOT attempt to defeat this safety feature,

because it could lead to an electric shock hazard.

10. This heater consumes 12.5 amps during operation. To prevent

overloading a circuit, do not plug the heater into a circuit that already has

other appliances working.

11. CAUTION: It is normal for the plug to feel warm to the touch,

however a loose fit between the AC outlet (receptacle) and plug may

cause overheating and distortion of the plug. Contact a qualified

electrician to replace a loose or worn outlet.

12. To disconnect the heater, first switch the controls to the “O”off position,

then remove the plug from the outlet. Never pull by the cord.

13. Do not insert or allow foreign objects into the outlet grill as this may cause

an electric shock or fire, or it could damage the heater.

14. Proper ventilation air must be provided to prevent combustion. Do not

use on soft surfaces, like a bed, where the outlet grill may become

blocked.

15. A heater has hot elements inside. Do not use it in the areas where

gasoline, paint, or flammable liquids are used or stored.

16. Use this heater only as described in this manual.Any other uses not

recommended by the manufacturer may cause fire, electric shock, or

personal injury.

17. CAUTION: Using an extension cord may overheat and cause a risk

of fire. However, if you have to use an extension cord, the cord shall

be No.14 AWG minimum size and rated not less than 1875 watts.

18. The output of this heater can be intense enough to burn exposed skin.

Use of this heater is not recommended for persons with reduced

sensitivity to heat.

19. Keep out of reach of children and do not allow them to operate this

appliance,

Children should be supervised to ensure that they do not play with the

appliance.

20. Make sure the connection cord does not touch any hot surfaces.

21. Do not cover the appliance.

22. Do not use if you have wet hands.

23. If you have to leave, even for a short moment, please stop the appliance.

24. Never use accessories that are not recommended or supplied by the

manufacturer. It could cause danger to the user or damage to the

appliance.

25. Do not lift the appliance by the front glass panel. You should only

handle the heater by the casing when transporting.

26. Do not use this heater in small rooms when they are occupied by persons

not capable of leaving the room on their own, unless constant supervision

is provided.

SAVETHESEIMPORTANTINSTRUCTIONS

FOREASYREFERENCE.

ELECTRICAL RATINGS

This product is rated 12.5 amps (1500W) at 120V, 60 Hz.

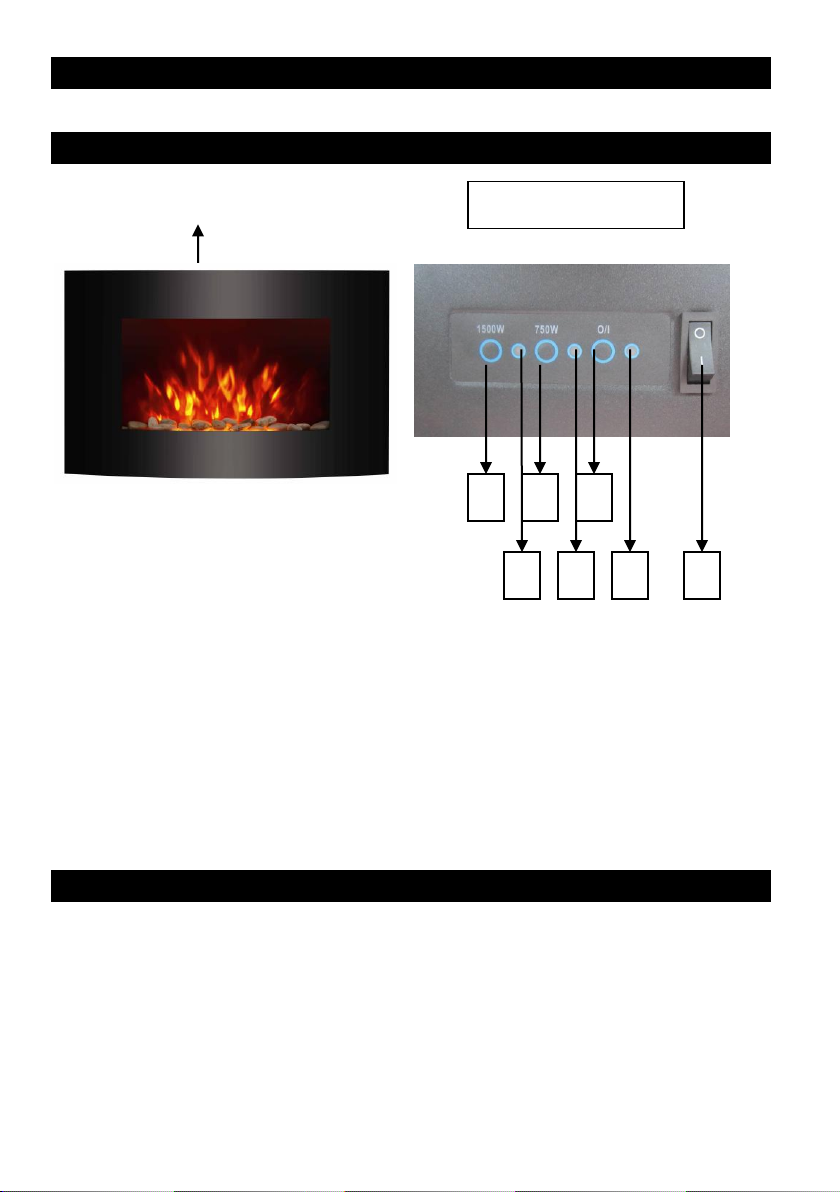

FEATURES

1. 1500W indicator light

2. 1500W button

3. 750W indicator light.

4. 750W button

5. Flame indicator light

6. Flame ON/OFF button

7. Power switch

PACKAGE CONTENTS

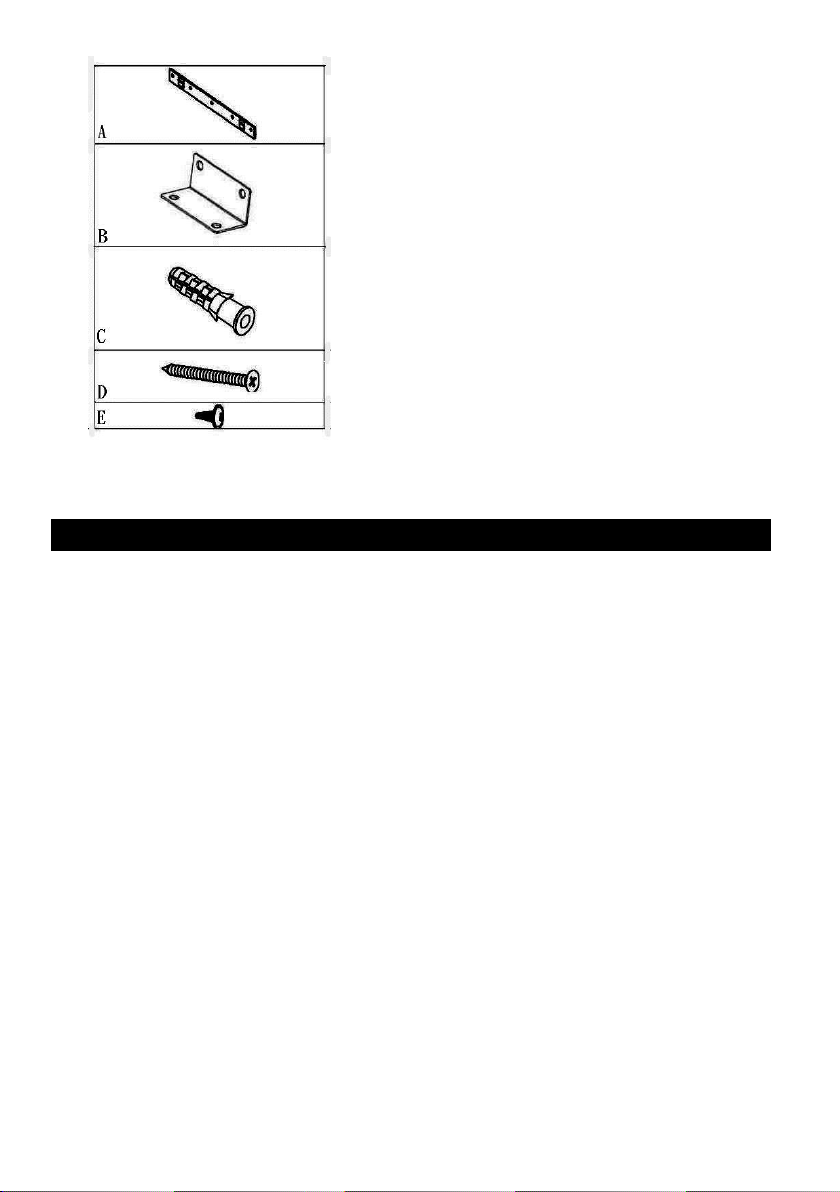

- Electric LED Fireplace Heater

- Hardware Includes:

1 x Mounting bracket (A)

1 x Bottom fixed bracket (B)

7 x Wall anchors (C)

7 x Screws (D) for bracket & plate

2 x Screws (E) for fixed plate

Flame effect

Air outlet

Control panel

- Remote Control (2pc AAA batteries not included)

- Operation Instruction

INSTALLATION

1. Choose a wall location to attach the mounting bracket (A) in the desired

location. Use a level to align the bracket and mark the five holes with a

pencil.

2. Drill five holes in the wall. Insert the five wall anchors (C) into the holes

using a hammer.

3. Attach the mounting bracket (A) to the wall, fastening the five screws (D)

4. Install bottom fixed bracket (B) on the mid-bottom fireplace. Fasten with

two screws(E).

5. Hang the electric LED fireplace heater on the mounting bracket (A) to mark

the bottom fixed bracket(B) wall side two holes with a pencil..

6. Take down electric LED fireplace heater and drill two holes, then insert two

wall anchors (C) into the holes using a hammer.

7. Lift the electric LED fireplace heater on the mounting bracket (A) and

fasten the bottom fixed bracket(B) with two screws(D).

8. Take down the front glass panel and place the pebbles along the light unit

in the desired position. Then hang the front glass panel to the electric LED

fireplace heater.

Notice:

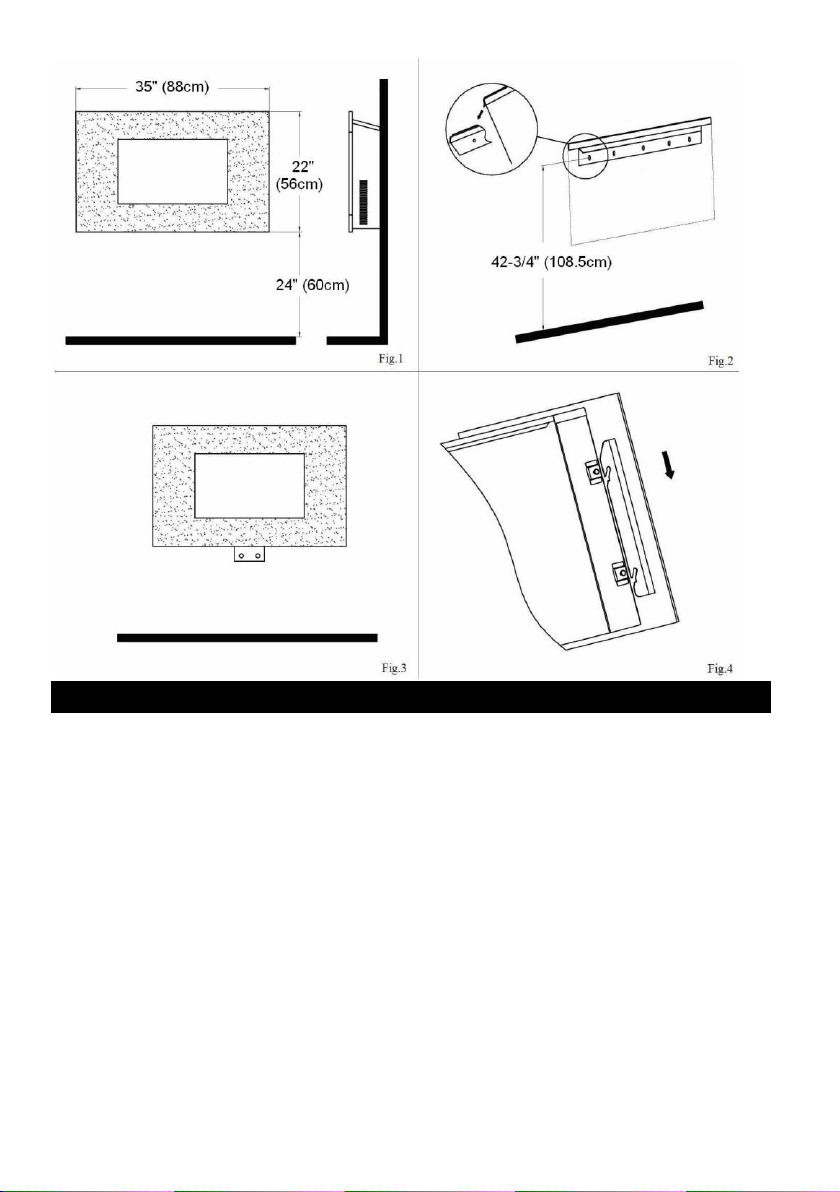

* Keep the appliance at least 12 “(30cm ) from walls and any other thing, to

permit a good air circulation.

* This appliance is designed to be permanently fixed to a wall at a minimum

height of 12”(30cm). The mounting bracket must fit horizontally and the

cable routed to the bottom right of the heater.

* A height of 24”(60cm) from bottom of heater to floor is recommended for

optimum viewing of fuel bed（see Fig.1 for recommend fixing dimensions

from floor at 42-3/4”(108.5cm)）.

* Keep top of heater at least 40” (100cm) away from ceiling or other objects

for optimum heat ventilation.

* Carefully lift the heater up ensuring that the top rear ledge of heater

engages the mounting bracket (see Fig.2 in circle) and is sitting centrally.

* Mark the bottom fixed bracket holes position ensuring that is rotated up.

(see Fig.3).

* Place and secure the front glass panel in front of the fire by aligning the

slots in the brackets at each side of the glass panel with the lugs on the

sides of the heater (see Fig.4.).

OPERATION

The appliance can be operated either by the switches located on the top

right hand side of the fireplace or by the supplied remote control.

Manual Operation

The switches are located at the top right hand side of the fireplace .The

power switch must be switched on first.

Press the flame O/I button once to turn on the appliance and activate

fire effect.Ared indicator light will appear to show that the function is ON.

Press the flame O/I button for 3 seconds to initiate the flame color

changing mode.

Press the 750W button once for the lowest heat setting; press twice to

switch off the heat setting.

Press the 1500W button once for the highest heat setting; press twice to

switch off the heat setting.

Continuously press flame O/I button to set your desired flame colors.

Remote Operation

The power switch located at the top right hand side of the fireplace must

be first switch on.

It takes some time for the receiver to respond to the transmitter. Do not

press the buttons more than once within two second intervals for correct

operation.

Press the ON/OFF button once on the remote control to turn the

appliance and fire effect ON/OFF.

Press the 750W button once for the low heat settings; press twice to

switch off the heat setting.

Press the1500W button once for the high heat settings; press twice to

switch off the heat setting.

Press COLOR button to set your desired flame colors.

Note: Be sure to aim your remote control within the frame of the

glass panel to ensure solid responses.

MAINTENANCE

Warning: Before any maintenance and/or cleaning the exterior of the

fireplace, disconnect the unit form the power supply and leave until

cooled off.

Remote control battery replacement: this remote control uses 2 x 1.5V

AAA battery. Make sure the batteries are installed correctly in the

remote control.

This product does not use a standard bulb for its flame effect. The

appliance uses an electronically controlled LED system to create the

flame effect therefore no parts need to be replaced. There are no

user-serviceable parts on this appliance. Under no circumstances

should the appliance be serviced by any one other than a qualified

electrician.

SAFETY FEATURES

Overheat Safety Feature

This heater is equipped with a overheat safety feature. When the heaters

internal components reach a certain temperature that could cause

overheating and possible fire, the heater will automatically shut off.

WARNING

To avoid injury from unexpected starting or electrical shock, do not plug the

power cord into a source of power during unpacking and assembly. The cord

must remain unplugged whenever you are adjusting/assembling the heater. If

any part is missing or damaged, do not attempt to use or plug in the power

cord until the missing or damaged part is correctly replaced. To avoid electric

shock, use only identical replacement parts when servicing double-insulated

tools.

RESET INSTRUCTIONS

This heater is equipped with an automatic Safety Shutoff Switch for overheat

protection, which is activated as the internal temperature exceeds normal

operating temperatures.

IF THE HEATER SHUTS DOWN

1) TURN IT OFF

2) UNPLUG IT AND WAIT 15 MINUTES

3) PLUG IN AND TURN ON

IF YOUR HEATER FAILS TO OPERATE

Be sure it is plugged in and that the electrical outlet is working.

Check for any obstruction. If you find an obstruction, turn the heater OFF.

Unplug the heater and wait at least ten minutes for cool-down. Carefully

remove the obstruction. Re-plug the heater in and restart it as described in

OPERATION section.

If you still notice the same defect, detach the plug from the outlet and have

the appliance checked by service personnel only.

CLEANING AND STORAGE

We recommend that the heater be cleaned at least once a month and before

storage.

Turn the heater OFF and unplug it.Allow it to cool before handling and

storing.

Use a dry cloth to clean the external surfaces of the heater.

DO NOT USE WATER, WAX, POLISH OR ANY CHEMICAL SOLUTION.

Clean your heater by the above-mentioned steps, then pack the heater in

its original container and store it in a cool dry place.

This heater is not disassembled.

Under normal use and circumstances, the motor is factory lubricated and

will require no further lubrication.

The glass panel should be cleaned carefully with a soft cloth. DO NOT

use proprietary glass cleaners.

SPECIFICATIONS

Voltage: 120V, 60Hz

Current: Maximum 12.5 Amps

Power: 1500 Watts

Limited One-Year Warranty

HomeBasix warrants this product to be free of defects in material and

workmanship for the applications specified in the Owner's Manual for a

period of one year from date of purchase. This warranty only applies to

the original purchaser of this product.

This warranty excludes damage, accidental or otherwise, to the unit not

caused by a defect in material or workmanship.

The warranty also excludes damage caused by misuse, tampering,

modification, misassembly, repairs or alterations, or failure to adequately

Indice

Altri manuali HOMEBASIX Camino da interno

HOMEBASIX

HOMEBASIX TNP-2008I-E3 Manuale utente

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
