USER MANUAL FOR YOUR
DWI600
60 cm Fully
integrated full height electronic
dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 26/07/12
2
Contents
Environmental note 3
Important safety information 4 – 6
Specifications 7 – 10
Product and aperture dimensions 7
Product specifications 8
Electricaldetails 8
Description of the appliance 9
Controlpanel 10
Usingyourdishwasher 10 - 27
Before first use 10
Filling with dishwasher salt 10 – 11
Setting the water softener level 12
Fillingwithrinseaid 13
Settingtherinseaidlevel 14
Filling with dishwasher detergent 15 – 16
Loading the upper basket 16
The knife rack 17
Thecupshelves 17
Adjusting the upper basket 18
Loadingthelowerbasket 19
The cutlery basket 19 - 20
Loading dishes and cutlery 20 - 22
Program tables 22-24
Setting a wash program 24 – 25
Changingawashprogram 25
Addingmoredishes 25
At the end of a wash program 25 - 26
Delay start function 26 – 27
3 in 1 function 27
Saving energy using your dishwasher 27 - 28
Cleaning and maintenance 28 – 31
Aftereverywash 28
Doorseals 28
Cleaning the control panel 28
Cleaningthedoor 28-29
The filter system 29
Cleaning the filters 30
Cleaningthesprayarms 31
Error code failure system 32 – 34
General troubleshooting 34 – 37
Installation 37 - 48
Aperture requirements 37 – 38
Installationstages 38
Preparing and connecting the furniture door 39 – 41
Adjusting the tension of the door spring 42
Connecting to the mains water supply 43
Connecting to the water outlet 43 - 44
Connecting to the power supply 44
Applying the condensationstrip 45
Positioningthedishwasher 46
Levelling the appliance 47
Securing the dishwasher 48
Installing the decorative plinth 48
Before first use 49
Technicaldata 50
Contact details 52
ENVIRONMENTAL NOTE
Note
: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that we use are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
3
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost inmportance to us. Please
make sure that you read this instruction booklet before
attempting to install or use the appliance. If you are
unsure of any of the information contained in this
booklet, please contact the Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
registered engineer or one of our authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged, the appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged as this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 10
and page 48 of this manual.
4
5
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic
washloads. If you use your dishwasher in any other way or it is
incorrectly used, then the manufacturer accepts no liability for
any damage that might be caused and any guarantee will be
void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents, rinse aid and salt that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the upper basket or on the knife rack.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.
6
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility
Directive and subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number …………………………………….
Serial Number …………………………………….
Date of Purchase …………………………………….
Specifications

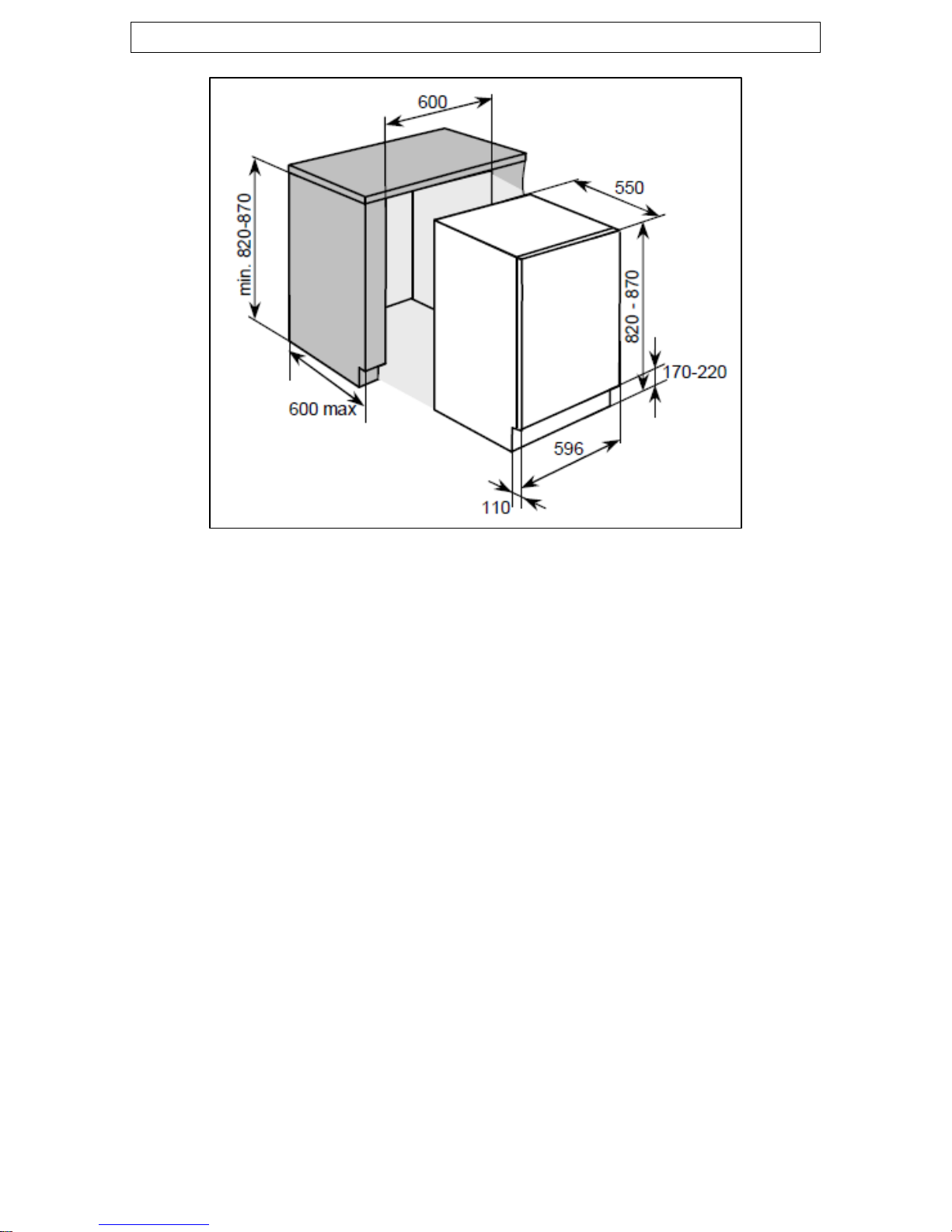

Product dimensions
Height: 820 – 870 mm
Width: 596 mm
Depth: 550 mm
Aperture dimensions
Height: 820 – 870 mm (MIN)
Width: 600 mm
Depth: 600 mm
7
8
Product specifications
o12 Place settings
o7 programs: Normal
Intensive
Economy
Rapid
Glass
Rinse
Soak
o6 temperatures: 40°C, 45°C, 50°C, 55 °C, 65°C, 70°C
oLED display
oWater consumption (normal program): 14 litres/cycle
oNoise level: 55 dB
oDelay start
o3 in 1 function
oResidual drying
oConcealed heating element
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oHeight adjustable upper basket
oAdjustable feet
Energy efficiency details
Energy efficiency class: A
Washing performance class: A
Drying performance class: A
Power consumption
Off mode: 0.00 kWh
Left on mode: 0.75 kWh
Electrical details
Rated voltage: 220 - 240 Vac 50 Hz
Supply connection: 13 A (double pole switched fused outlet
with 3 mm contact gap)

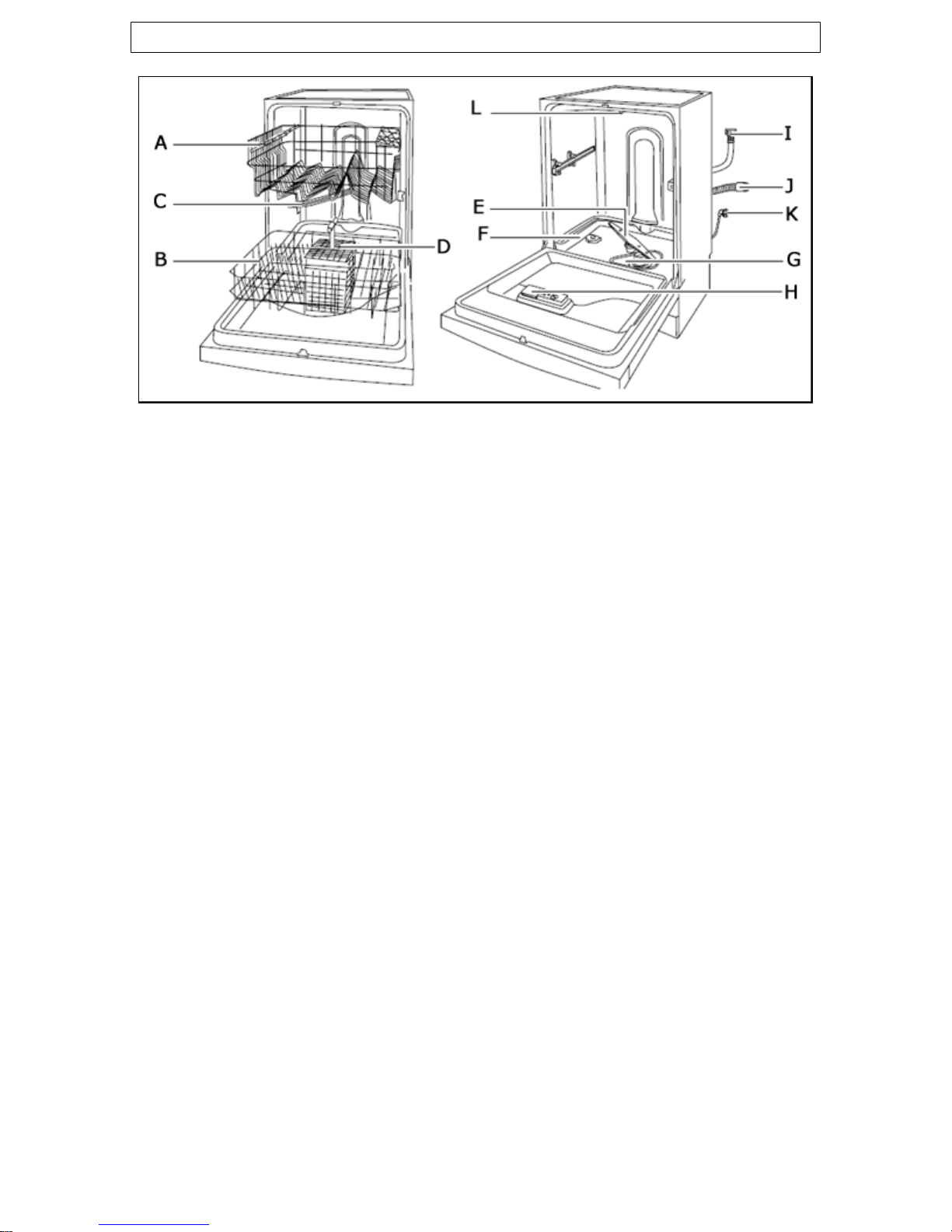

Description of the appliance
A) Upper basket
B) Lower basket
C) Middle spray arm
D) Cutlery basket
E) Lower spray arm
F) Salt container
G) Filter assembly
H) Detergent and rinse aid dispenser
I) Water inlet hose
J) Drain hose
K) Power supply cord
L) Top spray arm
9

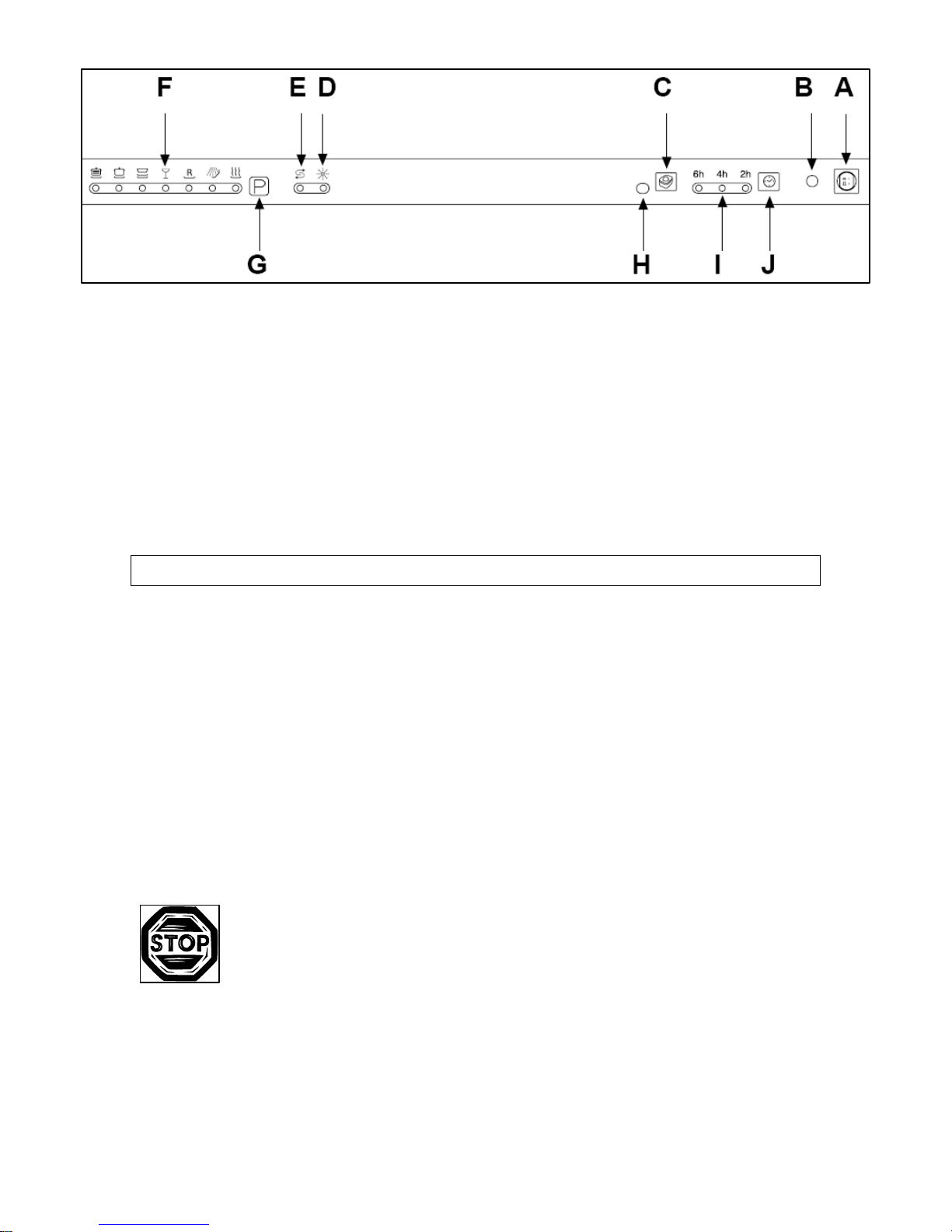

Control panel
A) ON/OFF button
B) Power indicator
C) 3 in 1 button
D) Rinse aid indicator
E) Salt indicator
F) Program indicators
G) Program button
H) 3 in 1 indicator
I) Delay start indicator
J) Delay start button
Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions contained
within this booklet.
oIf you are filling the salt container for the first time, fill it with
tap water and then fill with specialist dishwasher salt. After this
you should set the water softener level.
oFill the rinse aid dispenser and then set the rinse aid dosage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher. If any other type of
salt is used in the appliance (in particular table salt),
it will damage the water softener.
oIdeally you should fill the water softener with salt and then run a
wash program. This will help to clear any salt that may have
overflowed from the water softener during the salt filling process
and therefore prevent the formation of rust.
10
