ASSEMBLY INSTRUCTIONS

HANDLE AND SWITCH KIT, UP03794

FOR BACKPACK BLOWERS

DISCONNECT SPARK PLUG BEFORE PERFORMING

MAINTENANCE, ADJUSTMENT,LUBRICATION AND STORAGE.

The new handle and switch kit consists of (1) right control

handle, (1) left control handle, (1) electrical leads with termi-

nals and throttle cable and (1) switch.

Steps for removal of old handle and switch are as follows:

1. Remove frame from volute housing.

2. Remove shroud, outer volute housing, blower fan, and

inner volute housing.

3. Disconnect old electric leads.

NOTE: Lead from new handle and switch will be con-

nected in same manner as old (Example: white lead to

ignition module and black lead to ground).

4. Remove throttle cable from carburetor.

Disassemble handle assembly. Discard old handle, switch, and

electric lead and terminals.

IMPORTANT

Do not discard trigger, throttle latch, (2) plastite screws, bolt

and wing nut. These parts will be used to assemble new

handle and switch.

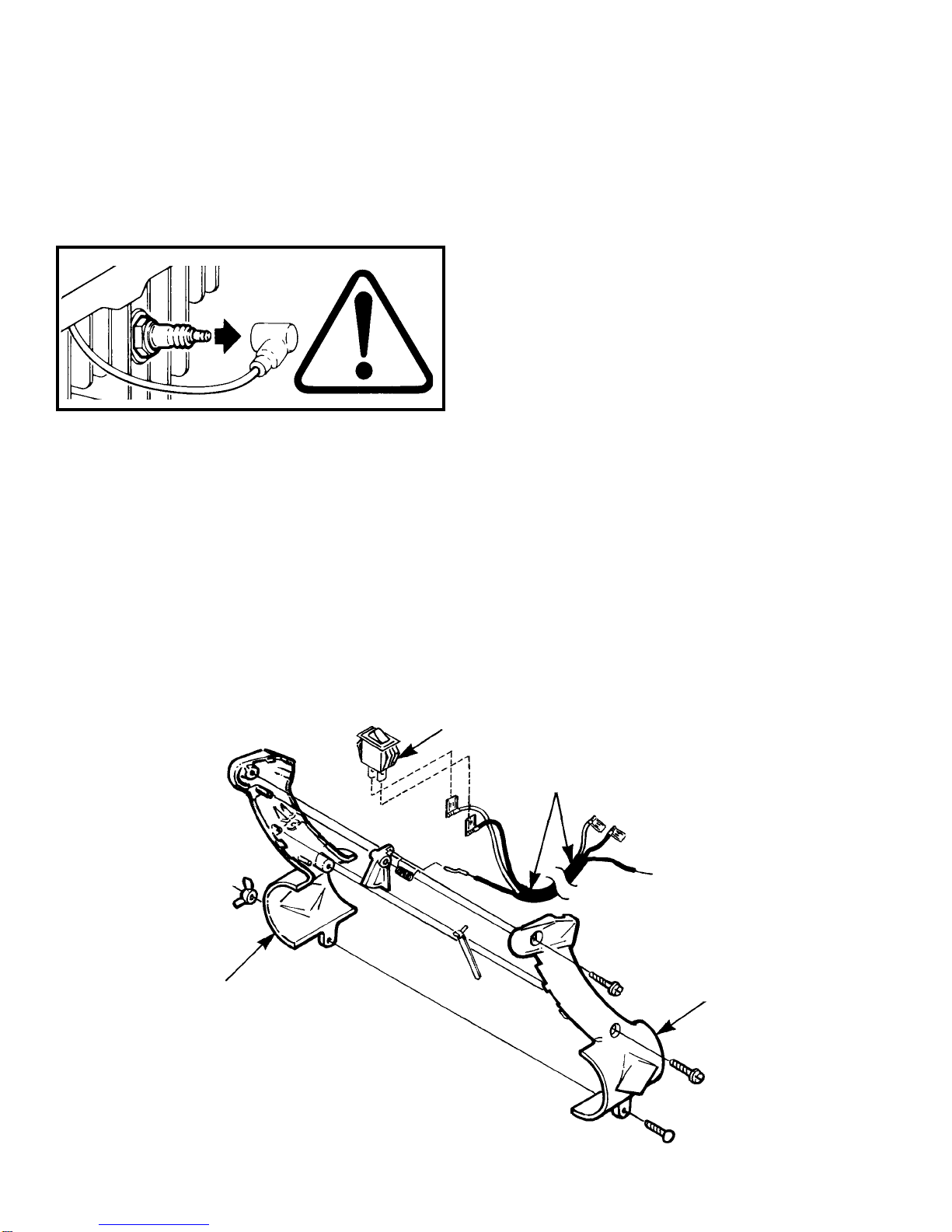

Refer to illustration before assembly of kit. Assemble kit using

trigger, throttle latch, throttle cable, screws, bolt and wing nut

from old handle assembly. Connect white electrical lead to the

ignition module and the black lead to ground. Attach throttle

cable to carburetor. Reinstall inner volute housing, blower fan,

outer volute housing, shroud and frame.

SWITCH

(02497)

ELECTRICAL LEAD with TERMINALS

andTHROTTLE CABLE

(PA00666)

CONTROL HANDLE-

Left (03923)

CONTROL HANDLE-

Right (03922)
