Honeywell SS431P Manuale utente
Installation Instructions for the
ISSUE 1
SS431P Hall Effect Sensor
PK 80076
HONEYWELL Sensing and Control
WARNING
PERSONAL INJURY
• DO NOT USE these products as safety or
emergency stop devices, or in any other
application where failure of the product could
result in personal injury.
Failure to comply with these instructions could
result in death or serious injury.
SOLDERING/ASSEMBLY
Leads must be adequately supported during any
forming/ shearing operation to ensure that the leads
are not stressed inside the plastic case.Recom-
mended PC board wave soldering temperature is
250 to 260oC (482 to 500oF) for 3 seconds
maximum.
ABSOLUTE MAXIMUM RATINGS*
Supply voltage -1 to +30 VDC
Voltage externally
applied to output +30 VDC max. (OFF only)
-0.5 VDC min. (OFF or ON)
Output ON current 50 mA max.
Storage Temperature -65 to +160°C (-85 to +320°F)
Magnetic flux No limit. Circuit cannot be
damaged by magnetic
overdrive.
*Absolute maximum ratings are the extreme limits that
the device will withstand without damage to the device.
However, the electrical and mechanical characteristics
are not guaranteed as the maximum limits (above
recommended operating conditions) are approached, nor
will the device necessarily operate at absolute maximum
ratings.
NOTICE
Interruption of power to a bipolar or latching
device may cause the output to change state when
power is restored. If a magnetic field of sufficient
strength is present, the sensor output will be in the
condition dictated by the magnetic field.
NOTE: The SS431P is a 2-wire, current output
sensor.
OPERATING CHARACTERISTICS
Min. 25°C
Target Max. Remarks
Supply voltage 3.8 24 VDC
ICC Operate 11 15 20 mA
ICC Released 46 9mA
ICC Ratio (Op/Rel) 2.0 2.5 4.0 mA
Output switching time
Rise, 10 to 90%
Fall, 90 to 10%
30 µs
30 µs
VCC = 12 V. RL= 300 Ω,
CL= 33 nF, CS= 330 pF
Operating Temperature -55 to +160°C (-67 to +320°F)
MAGNETIC SPECIFICATIONS
Temperature Range -40°C 0°C 25°C 85°C 125°C 150°C
Max. Operate Gauss 70 65 60 60 65 70
Min. Release Gauss -70 -65 -60 -60 -65 -70
Min. Differential Gauss 15 15 15 12 12 10
SS431P Hall Effect Sensor
ISSUE 1
PK 80076
2 Honeywell •Sensing and ControlFor application help: call 1-800-537-6945

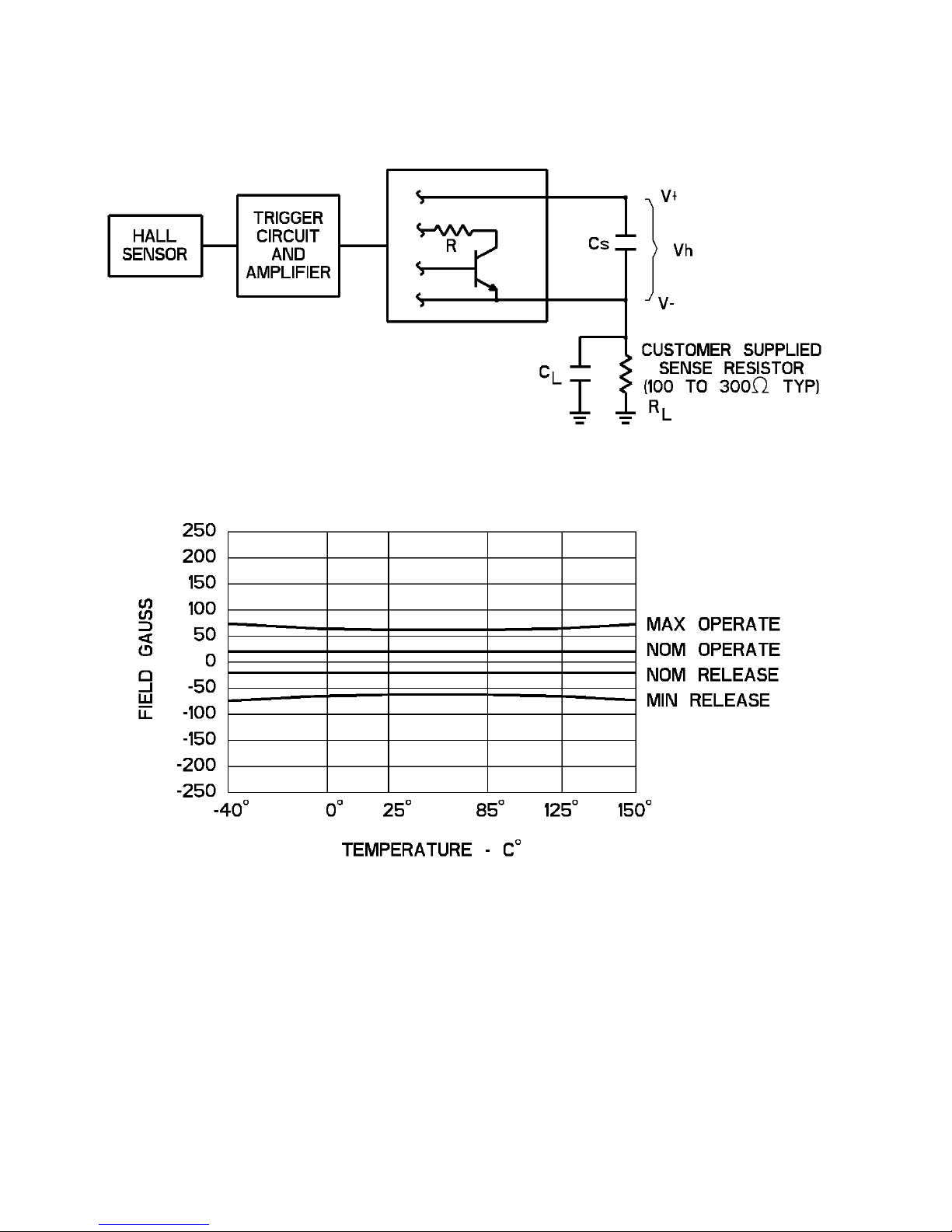

BLOCK DIAGRAM
GAUSS VS. TEMPERATURE
SS431P Hall Effect Sensor
ISSUE 1
PK 80076
For application help: call 1-800-537-6945Honeywell •Sensing and Control 3

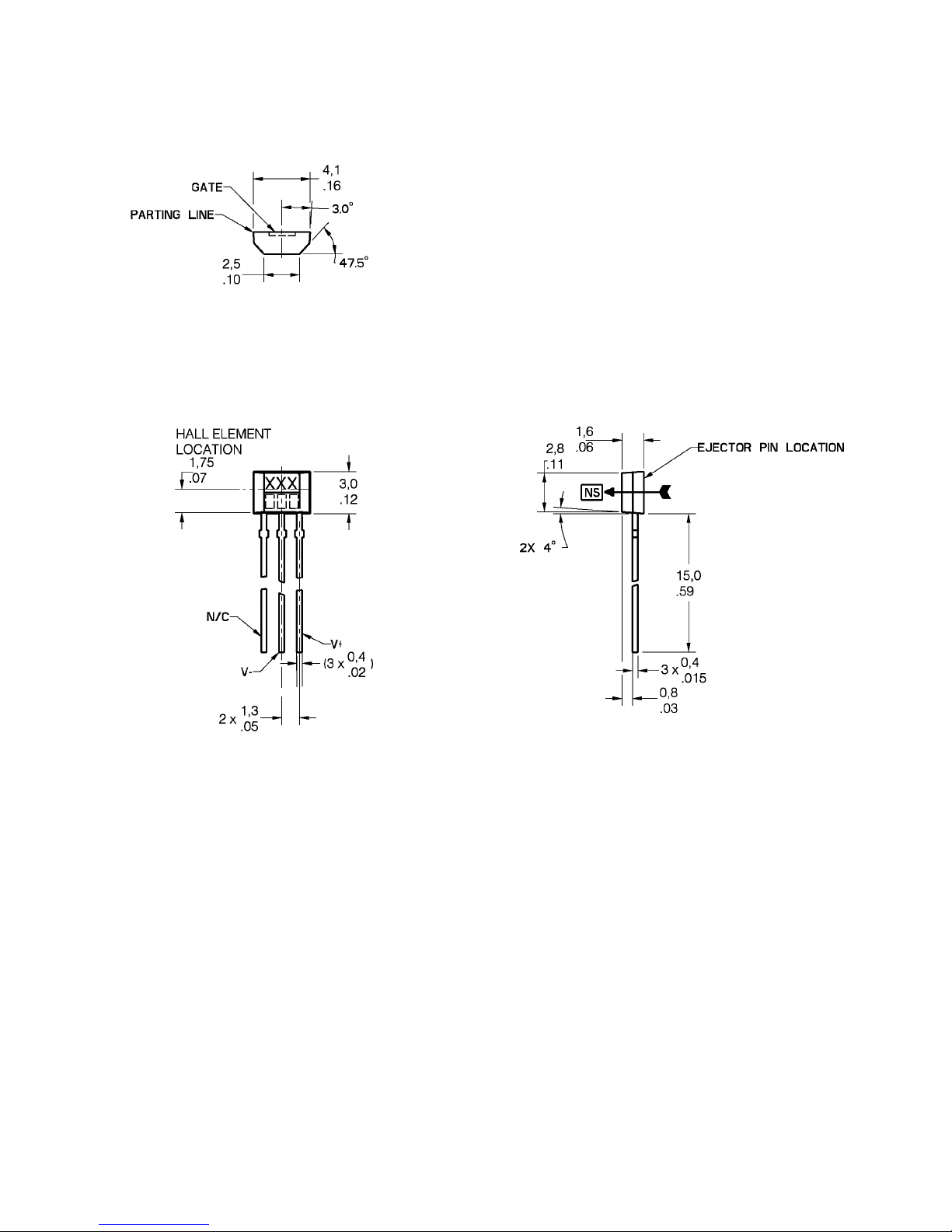

MOUNTING DIMENSIONS (for reference only)
NOTES
1.Magnetic flux used to operate the sensor must be
in the direction and location shown (this assumes
the convention that the direction of the external
flux of a magnet is from the north to the south
pole of the magnet.
2.The magnetic field strength (gauss) required to
cause the sensor to change state (operate and
release) will be as shown on page 1. To test the
sensor against the specified limits, the sensor
must be placed in a uniform magnetic field.
3.Part dimensions do not include flash. Flash is
limited to .005” max.
4.Lead dimension refers to location of lead
centerlines as they exit the plastic package.
SS431P Hall Effect Sensor
ISSUE 1
PK 80076
Honeywell Inc.
11 West Spring Street
Freeport, Illinois 61032
PrintedwithSoyInk
on 50%Recycled Paper
PK 80076-1-EN IL50 GLO 698 Printed in USA
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as
being free of defective materials and faulty
workmanship. Contact your local sales office for
warranty information. If warranted goods are
returned to Honeywell during the period of
coverage, Honeywell will repair or replace without
charge those items it finds defective. The foregoing
is Buyer’s sole remedy and isin lieu of all other
warranties, expressed or implied, including
those of merchantability and fitness for a
particular purpose.
For application assistance, current specifications,
pricing or name of the nearest Authorized
Distributor, contact a nearby sales office. Or call:
1-800-537-6945 USA
1-800-737-3360 Canada
1-815-235-6847 International
FAX
1-815-235-6545 USA
INTERNET
http://www.honeywell.com/sensing/
Specifications may change without notice. The
information we supply is believed to be accurate
and reliable as of this printing. However, we assume
no responsibility for its use.
While we provide application assistance,
personally and through our literature, it is up to the
customer to determine the suitability of the product
in the application.
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Honeywell:
SS431P
