Honeywell CL30XC Manuale utente
Portable Evaporative Air Cooler
INSTRUCTION MANUAL
Read and save these instructions before use
Model: CL30XC
With Remote
www.ushainternational.com
This page is intentionally left blank
SECTION PAGE
1. THANK YOU .........................................................................................................
2. USER TIPS ...........................................................................................................
4. PARTS DESCRIPTION ........................................................................................
5. USE & OPERATION .............................................................................................
6. CLEANING & MAINTENANCE .............................................................................
7. TROUBLESHOOTING GUIDE .............................................................................
8. TECHNICAL SPECIFICATIONS ...........................................................................
9. ELECTRICAL WIRING DIAGRAM ........................................................................
2
3
5
7
8
14
16
18
18
INDEX
1
Read all instructions carefully before setting up and operating the unit, and please keep
this instruction manual for future reference. This manual is designed to provide you with
important information needed to setup, operate, maintain, and troubleshoot your cooler.
Failure to follow these instructions may damage and/or impair its operation and void the
warranty.
Fill Water ......................................................... .................... ...............
Function Buttons .................................................................................................
Room Cooling and Humidifying ...........................................................................
Remote Control ...................................................................................................
.... ............ 13
Control Panel ..................................................................................................... 8
9
11
12
3. SAFETY INSTRUCTIONS ....................................................................................
2
THANK YOU
Dear Customer,
Congratulations!
You are now the proud owner of an Usha Honeywell Evaporative Air Cooler.
Innovatively designed, using only the highest quality material and components, your
Usha Honeywell Air Cooler is designed for years of trouble free performance.
Please read this Instruction Manual carefully before using the product and keep it
carefully after reading for future reference.
For optimum cooling performance from your unit, please ll the tank with water & ice,
if available, to increase the cooling power.
Best Wishes
USER TIPS
3
Pump
Water
Honeycomb Cooling Media

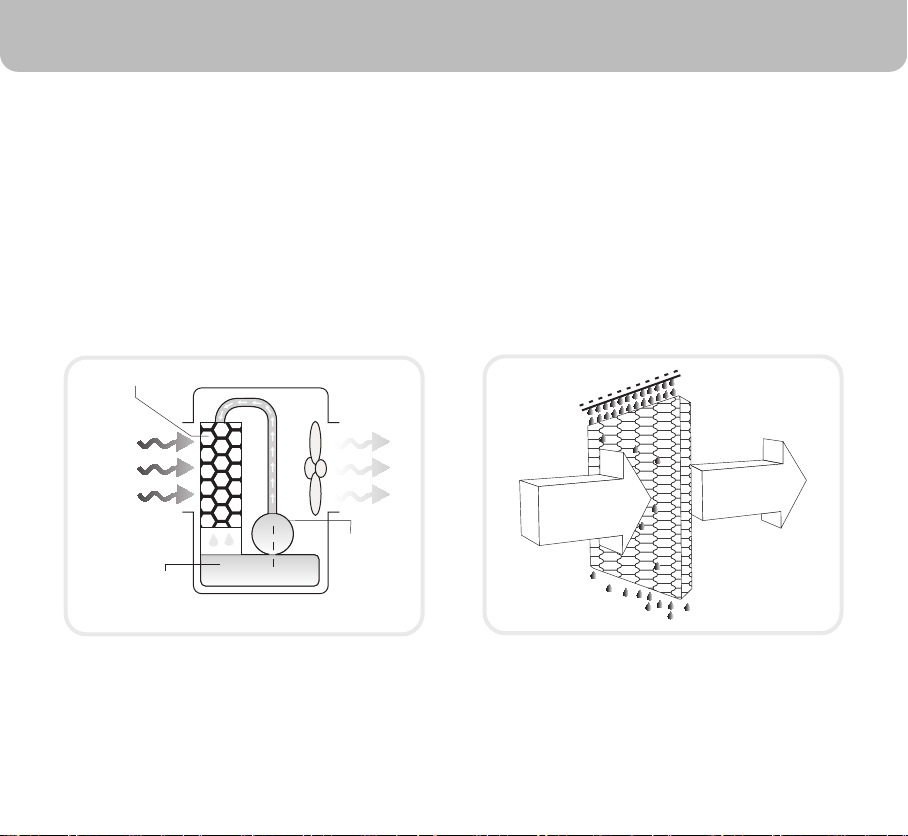

Evaporative Air Cooling Mechanism
Warm and
dry air
Cold and
humid air
Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This
breeze drops the temperature and has a relaxing cooling effect.
The evaporative air cooler cools the air by means of the evaporation of water. When water
evaporates into the air, the result is a mixture of air and water molecules. This chemical change
requires heat which is taken from the water molecules, resulting in cooler air propelled from the
unit.
NATURAL ENERG Y EFFICIENT COOLING ..
The recommended maximum relative humidity level is 60% or
less, which allows a noticeable temperature decrease. The
temperature decrease will be greater in drier climates because
higher evaporation occurs when humidity is low.
NOTE
4
USER TIPS
The evaporative air cooler should not be used in enclosed
spaces. It must be kept level and there must be water in the
water tank. The room should have doors and windows opened to
allow free air ow. The evaporative air cooler works best when
placed near an open window, so that outside air is drawn into the
evaporative air cooler, the air circulates in the room, then exits via
the door. The maximum cooling eect is felt when a person is in
the ow of air coming out of the evaporative air cooler.
The evaporative air cooler can also be used to humidify dry air
during cool weather. To be used for humidication the windows
and doors should be closed to allow the humidied air to accumu-
late. The evaporative air cooler is not an air conditioner as it does
not use a compressor or refrigerant gas.
When the product is used for the rst time the Honeycomb
cooling media will have an odour which will dissipate within a week
of initial use.
Room with open windows & door
Room with closed windows & door
READ AND SAVE THESE INSTRUCTIONS:
When using electrical appliances, basic safety precautions should always be followed:
SAFE TY RU LES
230 V AC, 50 Hz
SHOCK HAZARD
Always unplug the product before relling the water tank.
•
Always unplug the appliance from the power source before
cleaning, servicing or relocating the unit.
•
Remove the power cord from the electrical receptacle by
grasping and pulling on the power cord plug-end only, never
pull the cord.
•
DO NOT use the product in areas where gasoline, paint or
other ammable goods and objects are stored.
•
WATER LEVEL INDICATOR
When using the ''COOL'' setting, please check the water tank
to ensure it is full. Operation of this unit on the ''COOL'' setting
with an empty tank may result in damage to the water pump.
•
5
DO NOT run power cord under carpeting, or cover it with
rugs or runners. Keep the cord away from areas where it
may be tripped over.
•
•Your unit runs on 230 V AC, 50 Hz current. Check the household
voltage to ensure it matches the appliance's rate specication.
•Before operating the product remove it from its packaging and
check it is in good condition.
•DO NOT operate any product with a damaged cord or plug.
We recommend not to use an extension cord with this
appliance.
may cause motor damage.
This appliance is not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
•
When the unit is not in use always store in a dry area.
•
This product is not intended for use in wet or damp locations.
•
DO NOT let children play with this appliance, packaging or
plastic bags.
•
DO NOT leave the appliance operating unattended for any
extended period of time.
•
DO NOT operate with the Honeycomb media removed as this
will overload and damage the motor.
•
DO NOT insert or allow objects to enter any ventilation or
exhaust opening as this may damage the product and could
cause an electrical shock or fire.
•
DO NOT attempt to repair or adjust any electrical or mechanical
functions of the cooler, as this may void the warranty.
•
DO NOT cover the air inlet or outlet on the appliance as this
•
FLOOR LEVEL
If the unit is damaged or it malfunctions, do not continue to
operate it. Refer to the troubleshooting section and /or please
seek professional advice.
•
Place the unit on a level floor.
•
Never locate the product where it may fall into a bathtub or
other water container. DO NOT use in bathrooms or outdoors.
•
6
Always grip the side handles to move the unit.
•
SAFETY INSTRUC TIONS
7
6
Control Panel
Handle
Louvers
Left Side Panel
Water Tank
Power Cord
Power Plug
Casters
Back Grill
Front Panel
Water Level Indicator
Remote Control
Latch
Right Side Panel
Water Fill Door
Drainage Tube / Cap
1
2
3
4
5
6
7
8
Ice Compartment Lid
9
10
11
12
13
14
15
16
17
Water Regulator
Remote
18
19
PART S DES CRIPT ION
1
11
12
17
14
15
16
13
2
4
3
5
8
9
18
10
ACCESSORIES:
Remote Control ( Batteries not included)
7
8

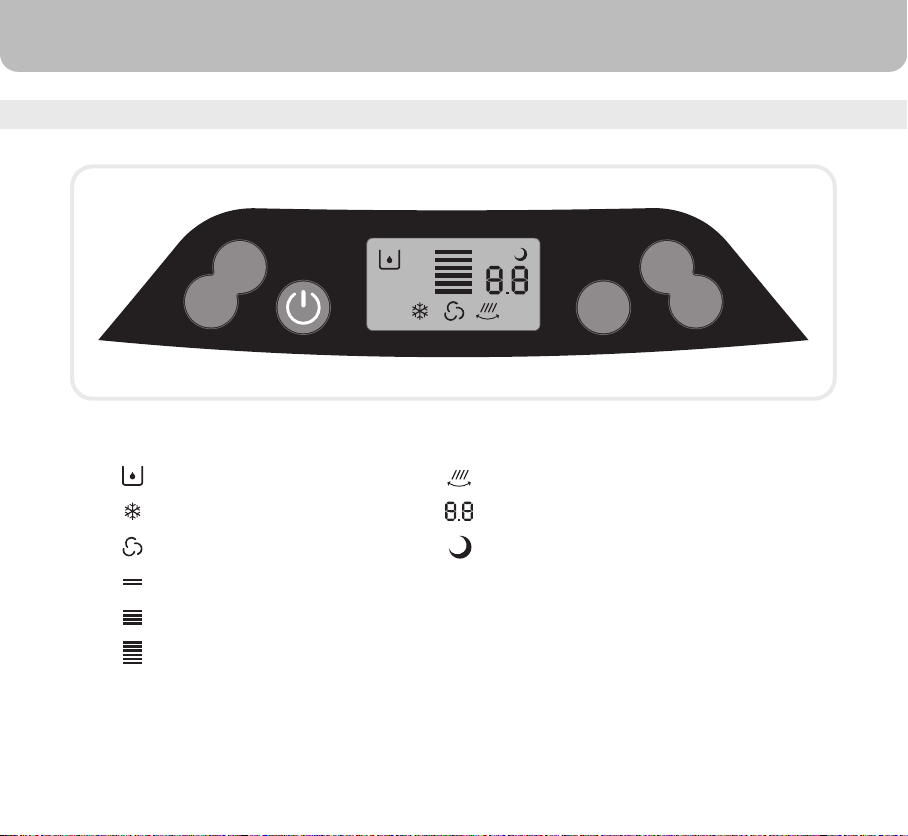

CONTROL PANEL
USE & OPERATION
Low water level in tank
Cool
Fan operating
Low speed
Medium speed
High speed
Swing
Time delay set
COOL
FAN
SLEEP
TIMER
SWING
Icons on LCD
Sleep
