Honeywell MM14CHCS Manuale utente

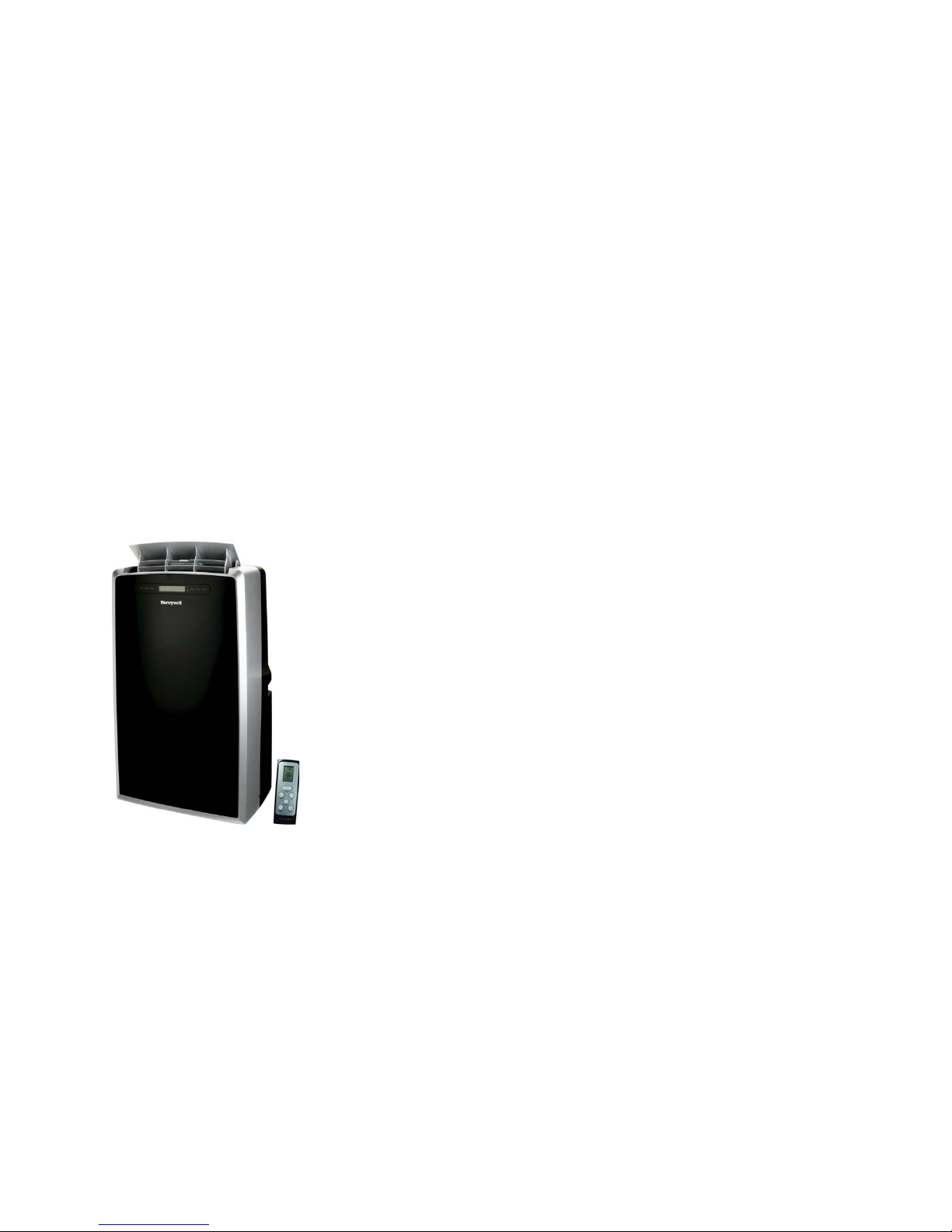

MM14CHCS Honeywell Portable Air Conditioner and Heater

(14,000 BTU Cooling and 12,000 BTU Heating, LCD Display, Single Hose, Black & Silver Color)

Product Features:

•Cooling up to 550 square feet*

•Heating up to 400 square feet

•4-in-1 functions: Cooling, Heating, Fan and Dehumidification

•14,000 BTU Cooling Capacity

•12,000 BTU Built-in Heat Pump

•Built-in Dehumidifier, remove up to 95 pints / 24 hours

•Feather-touch LCD controls

•Latest no-drip technology using an auto-evaporation system

•Environmentally friendly R410A refrigerant

•24 hr. energy saving programmable timer

Product Description:

Quietly cool or heat the air with the sleek Honeywell MM14CHCS Portable Air Conditioner and Heater

which not only cools but also heats and dehumidifies the air. With a 14,000 BTU cooling capacity and a

12,000 BTU heating capacity the unit delivers optimal cooling to spaces up to 550 square feet* and

heating up to 400 square feet. Unlike a fixed AC, this unit requires no permanent installation and four

caster wheels provide easy mobility between areas. The electronic control panel is user friendly and all

the functions can be operated by the remote control. The Auto-Evaporation System allows for hours of

continuous operation with no water tray to drain. This model comes with everything needed to get

going including an easy-to-install window venting kit. The window vent can be removed when the unit is

not in use.

Meijer.com

The product comes with a 5 -year limited warranty. Our obligation under this warranty is to provide free

parts and labor one year from purchase date, 5 years on all parts of the sealed system consisting of the

compressor, evaporator, condenser and factory connected refrigerant tubing.

Product Features:

Feather-touch LCD Controls – The Honeywell MM14CHCS Portable AC and Heater is built with advanced

touch control LCD electronic panels and each function starts in less than 3 seconds with the touch of any

Control Panel button.

Auto-Evaporation System - Honeywell MM14CHCS is equipped with a patented auto evaporative

system which sends the condensate moisture to the outside through the air exhaust hose, eliminating

the need for a drainage tank.

Easy Installation, no professional help required - The MM14CHCS offers a flexible air-conditioning

solution which can be easily set up and put into operation anywhere. The only requirements are an

electrical plug and an outlet for the flexible air exhaust hose.

R410A Refrigerant – The MM14CHCS uses environmentally friendly Honeywell R410A refrigerant. R-

410A is an ideal non-ozone depleting, long-term replacement for R-22.

Dehumidification, Heating & Fan - The MM14CHCS is a multi-function air conditioner which can also

work as a heater, dehumidifier or fan. It can be set to dehumidify the air and the fan speed can be set to

low, medium or high to suit your needs.

ADDITIONAL FEATURES:

•1 to 24 hours Automatic Shutoff Timer

•Dehumidification Capacity of 95 pints / 24 hours

•Adjustable temperature

From 61°F to 90°F for cooling

From 61°F to 77°F for heating

•Powerful Air Flow 265 CFM (7.5 CMM)

•Digital LCD Display

•Single 3.94 ft. exhaust hose

•Window Bracket Adjustable from 19.9 to 47.25 inches

•Minimum Noise level of 54 dBA

What’s In the Box?

•1 Honeywell MM14CHCS Portable Air Conditioner and Heater

•Installation Accessories

•Instruction Manual

•Remote control

Meijer.com

Specifications & Dimensions MM14CHCS

Dimensions and Capacity:

Cabinet Depth (in.): 15.79

Cabinet Height (in.): 34.02

Cabinet Width (in.): 19.92

Weight (lbs.): 74.96

General Features:

24 Hour Timer: Yes

Color Family: Black

Control Type: Electronic

Cord Length (ft.): 3

Exhaust Hose Included: Yes

Electronic Control Panel: LCD

General Warranty: Limited 1 year parts and labor for unit and

additional 4 year parts for sealed system

Power Cord Included: Yes

Remote Control: Yes

Rolling Casters: Yes

Room Coverage in Sq. Ft.: 550 (cooling), 400 (heating)

Sleep Mode: No

Window Vent Kit Included: Yes

Filtration:

Filter Type: Washable filter

Certifications:

ADA Compliant: Yes

UL Listed: Yes

Power and Performance:

Air Discharge: Top

Capability: Cooling+Heating

Cooling Amperage: 10.8

Cooling BTU: 14000

Cooling Wattage: 1200

Heating Amperage: 10.8

Heating BTU: 12000

Heating Wattage: 1200

Maximum Air Flow (CFM): 265

No. of Fan Only Speeds: 3

Rated Amps (Receptacle): 10.8

Voltage: 115V~60Hz

Lowest Sound Level (Decibels): 54

*Approximate cooling areas as per BTU cooling chart available on energy star website http://www.energystar.gov . Cooling area

with a Portable Air Conditioner depends on several factors related to room insulation, exposure to sun, exhaust space etc.

Meijer.com
