User Manual

Read and save these instruction before use

CAUTION! ALWAYS UNPLUG YOUR TREE FROM ITS POWER

SOURCE BEFORE ASSEMBLING OR DISASSEMBLING.

LED

THANK YOU

EN 2

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

When using electrical products, basic precautions should always be followed

including the following:

Thank you for purchasing the 5ft Honeywell Frances Cashmere Color Changing LED

tree. This tree assembles in minutes and is decorated with LED light sets. This tree

has 4 lighting options, Warm White Color Steady On, Multicolor Steady On, Color

Changing and off. These functions can be changed by using the control box.

Do not use this product outdoors.

This seasonal use product is not intended for permanent installation or use.

Do not mount or place near gas or electric heaters, fireplace, candles or other

Do not secure the wiring of the product with staples or nails, or place on sharp

Do not let lamps rest on the supply cord or on any wire.

Unplug the product when leaving the house, when retiring for the night, or if left

This is an electric product not a toy!—To avoid risk of fire, burns, personal injury

should not be played with or placed where small childrenand electric shock it

Do not use this product for other than its intended use.

Do not hang ornaments or other objects from cord, wire, or light string. Hang

Do not close doors or windows on the product or extension cords as this may

Do not cover the product with cloth, paper or any material not part of the product

ornaments only on the tree itself.

present and the product should be discarded.

This product employs overload protection (fuse). A blown fuse indicates an overload

or short-circuit situation. If the fuse blows, unplug the product from the outlet. Also

unplug any additional strings or products that may be attached to the product. Replace

rating) and check the product. If the replacement fuse blows, a short-circuit may be

Read and follow all instructions that are on the product or provided with the product.

SAVE THESE INSTRUCTIONS.

This product is equipped with push-in type lamps. Do not twist lamps.

similar sources of heat.

hooks or nails.

unattended.

can reach it.

damage the wire insulation.

when in use.

the fuse as per the user servicing instructions (follow product marking for proper fuse

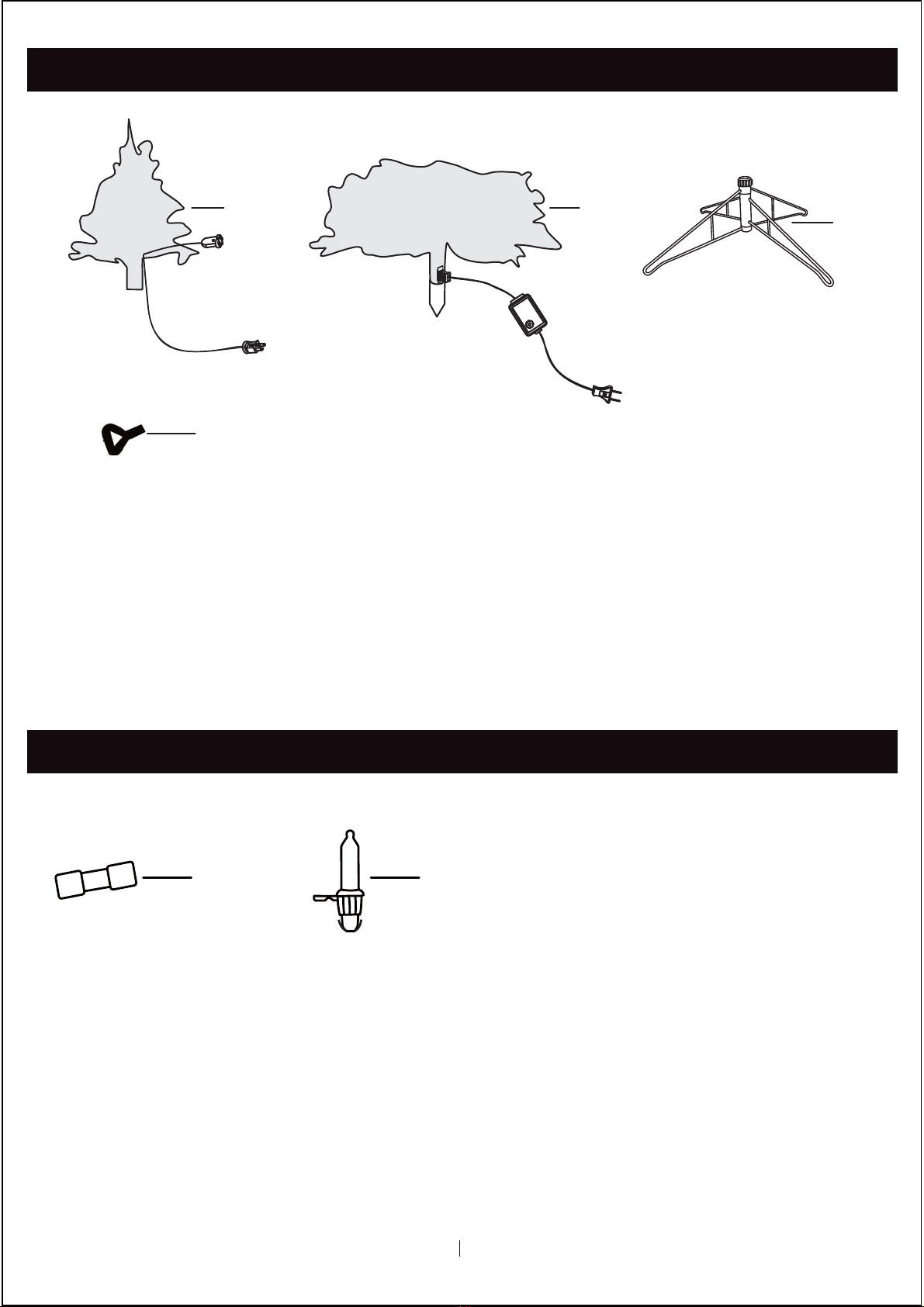

PACKAGE CONTENT

OTHER COMPONENTS

E F

Replacement lamp

Fuse

(2 pieces)

(8 pieces)

EN 3

Installation kit:

Tree Base

Bottom Section

Screw

Top Section

(1 set)

1)Warm White Color1)Warm White Color

2)Multicolor Steady2)Multicolor Steady

4)OFF4)OFF

3)Color Changing3)Color Changing

WL605-A-1B

SteadyOn

INSTALLATION

EN 4

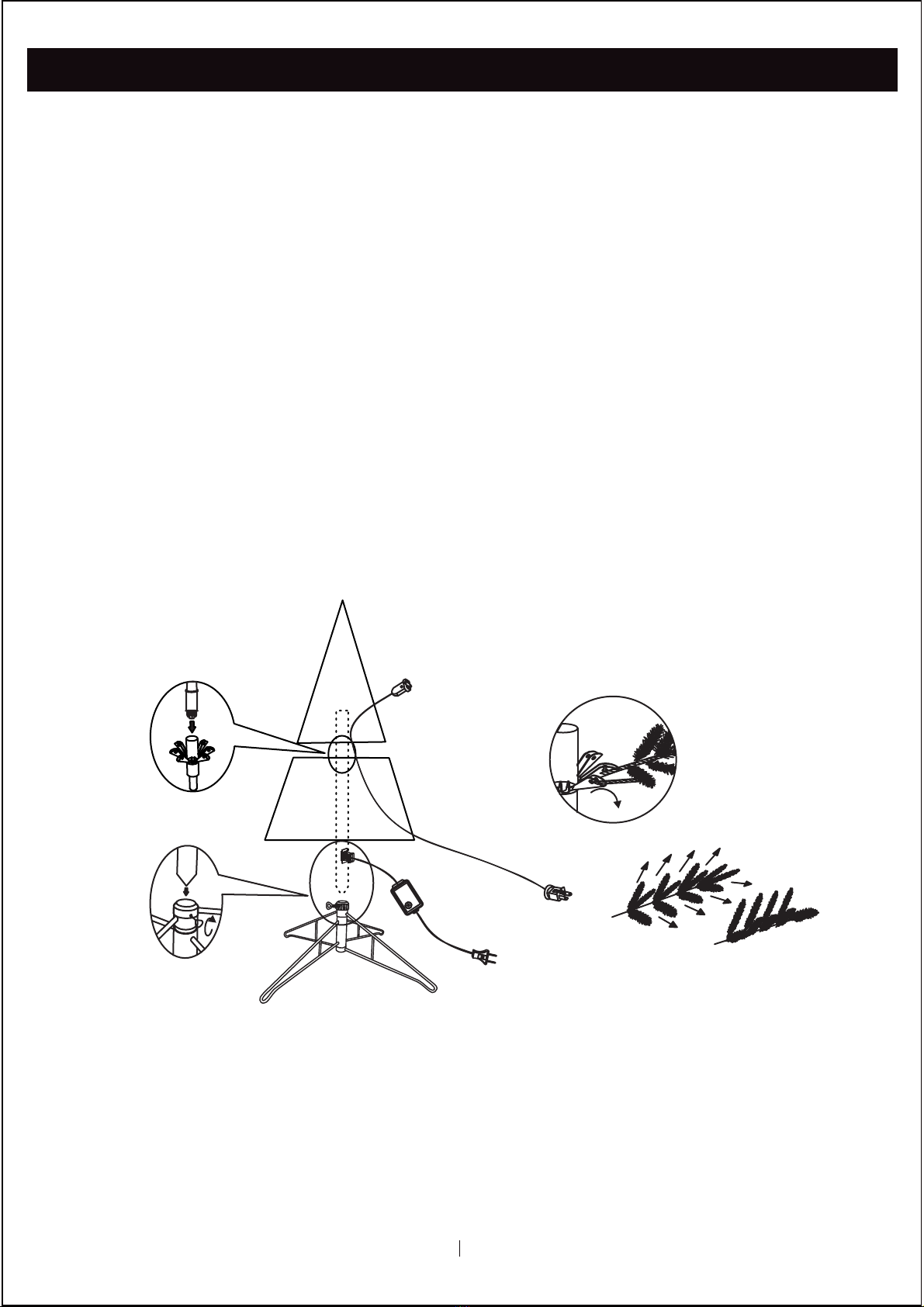

Note: Before you start to assemble your tree, please choose a location near an

electrical wall outlet. Place the tree stand on a level surface.

Please remove protective covers from the base of the pole from each section.

1. Unfold the tree base to a 90 degree angle.

2. Carefully insert bottom section (B) of tree into tree base and tighten the screw (see Fig. 1).

3. Insert the top section (A) of the tree into the bottom section (B) (see Fig. 2).

Plug 1

Tree base

Fig. 1

Note: There is a tree top connector on the top section (A).

Tree top connector

5. Shape the branches. Starting with tips closest to the pole, shape one tip to the right,

one to the left and one along the centre of the main stem. Repeat pattern for each

4. Allow the branches to fall into place or gently pull branches up and out. When

adjusting branches be sure that all wires are free of branch hinges (see Fig. 3).

6. Plug the well-connected power supply cord plug 1 from the bottom section (B) into

electrical outlet. The plug 2 is for tree top lights. Plug the power supply cord plug 2

branch (see Fig. 4).

into electrical outlet.

Control

box

Control

box

.7 Please note this tree comes with a control box for easy illumination and changing

This tree is Color Changing, the 4 lighting options available are : 1) Warmfunctions.

White Color Steady On, 2) Multicolor Steady On, 3) Color Changing and 4) Off.

Fig. 2

Fig. 3

Fig. 4

Plug 2

side

view

side

view

1)Warm White C olor

1)Warm White Color

2)Multicolor Steady2)Multicolor Steady

4)OFF

3)Color Changing3)Color Changing

WL605-A-1B

SteadyOnSteadyOn

TROUBLESHOOTHING

USER SERVICING INSTRUCTIONS

EN 5

Loose branches

If a branch of the tree falls off, follow the steps below to reinstall it with a spare bolt.

1. Place the branch into the slot of the bracket.

pliers (not included) to crimp the bolt. (See Fig. A)

2. Insert a spare bolt through the hole and use diagonal

Fig. A

CAUTION! ALWAYS UNPLUG YOUR TREE FROM ITS POWER

SOURCE BEFORE ATTEMPTING EITHER FUSE OR LAMP REPLACEMENT.

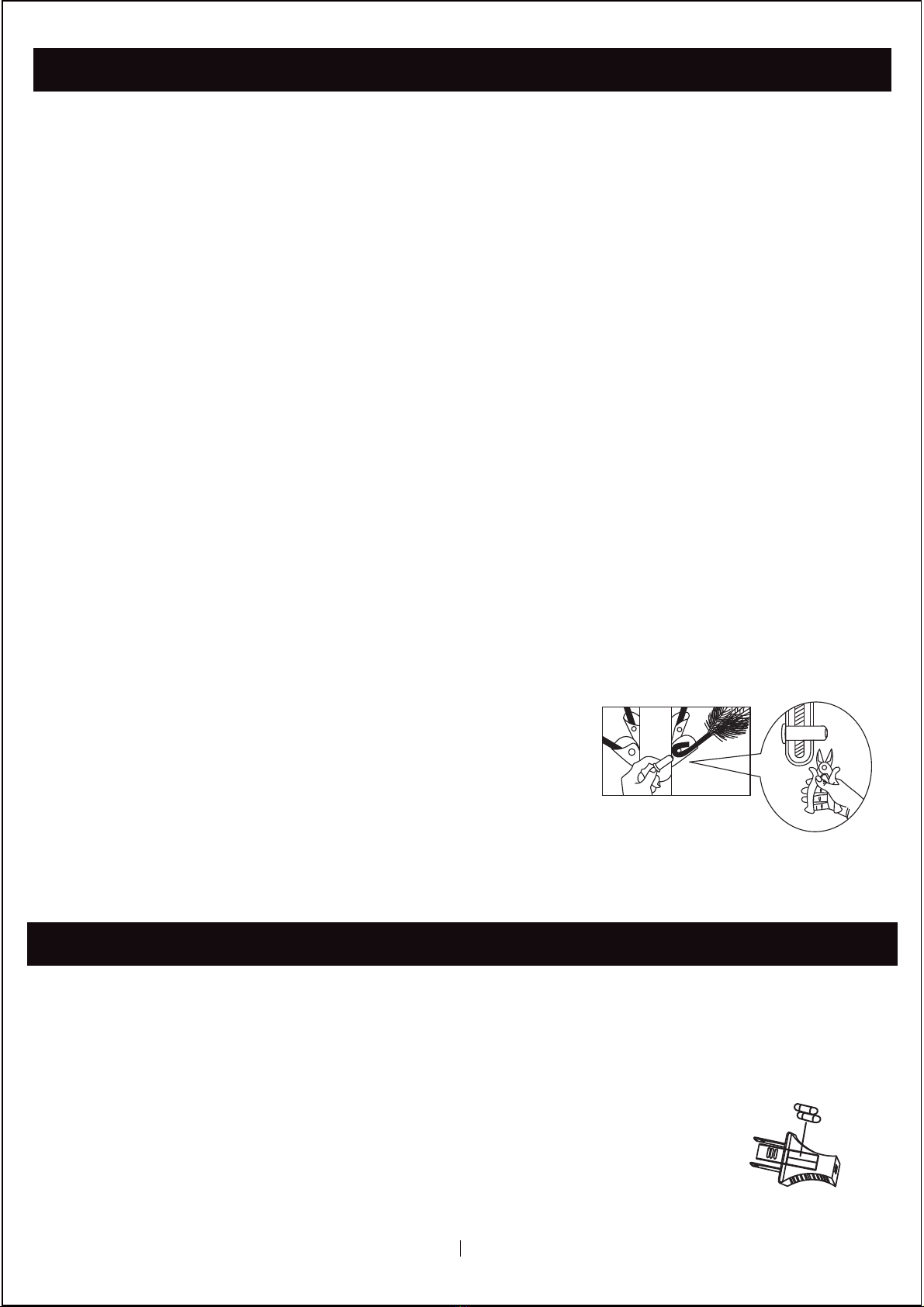

Replace the fuse:

A) Replace the fuse of the power cord from the bottom section (B).

1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug

2. Open fuse cover. Slide open fuse access cover on top of attachment plug towards

3. Remove fuse carefully.

4. Risk of fire. Replace fuse only with 3 Amp, 125 Volt fuse (provided

by pulling on cord.

blades.

with product).

3. If you are still experiencing problems with the tree, please contact us at 866-205-9854.

If any lights do not work on your pre-lit tree, please check the following before

1. If entire tree or a section of the tree does not light:

a) Make sure the end connector of the power cord is well connected to the

c) Check that there is power at the electrical outlet.

d) Check fuses in tree’s plugs and replace if necessary (see Replace the fuse below).

b) Check that each section of the tree is well connected.

calling customer service:

bottom section (B).

2. If a strand of lights still does not work:

replacement lamp (provided).replace lamp with a

a) Check that all lamps are tightly fitted inside the lampholders and that no lamps are

broken or missing. Replace any broken or missing lamps with replacement lamps

provided (see Replace the lamp below). If all lamps are firmly in the lampholders,

slightly twist the lamps from side to side to ensure proper connection.

b) If the lights still do not work, carefully remove each lamp one by one out of the

problem light string. Pull the lamp AND plastic base straight out of lampholder. Do

not twist lamps while removing from lampholders. Check the two wires at the bottom

of the lampholder. Each wire should be aligned properly on the lampholder to ensure

a proper connection in the lampholder. If one wire is missing or too short, please

USER SERVICING INSTRUCTIONS (CONTINUED)

EN 6

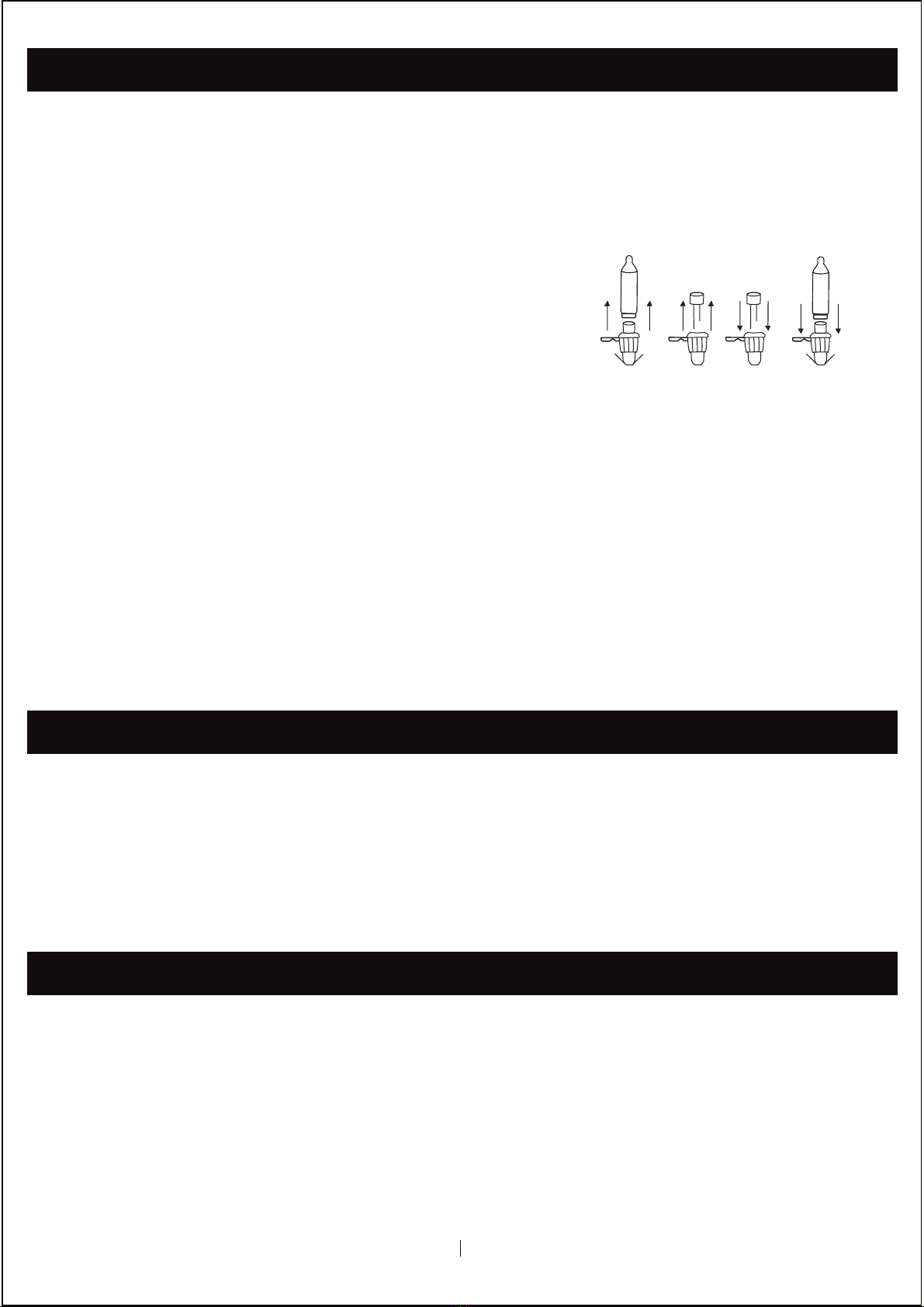

Replace the lamp:

1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug

2. Unlock the burned out LED lamp by lifting the hook.

4. Replace lamp with only 3.0 Volt, 0.06 Watt, LED type lamp (provided with

5. Lock the hook of lamp base by pushing lock down into the tab.

3. Pull lamp and plastic base straight out of lampholder.

product). Always match the hook to the tab.

CAUTION:

1. To reduce the risk of overheating, replace burned-out lamps promptly. Use

The LED lamp has polarity. Do not3.0 Volt, 0.06 Watt LED lamps only.

deliberately change the direction of the LED lamp in the lamp holder.

2. Risk of fire. This product does not contain lamp shunts, which allow the

product to operate if one lamp burns out. Replace lamps only with the

Hook

Tab

Unlock Lock

by pulling on cord.

spare lamps provided with this product.

5. Close fuse cover. Slide closed the fuse access cover on top of attachment plug.

should not be removed. Discard product if the attachment plug is damaged.

6. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that

B) Replace the fuse of the tree top connector power cord plug 2:

1. Grasp plug and remove from the receptacle or other outlet device. Do not unplug

5. Close fuse cover. Slide closed the fuse access cover on top of

2. Open fuse cover. Slide open fuse access cover on top of attachment plug towards

3. Remove fuse carefully.

4. Risk of fire. Replace fuse only with 3 Amp, 125 Volt fuse (provided

that should not be removed. Discard product if the attachment plug is damaged.

6. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse)

by pulling on cord.

blades.

with product).

attachment plug.

3A. MAX

USE ONLYUSE ONLY

125V FUSE

OPEN

USE CONTINUED)R SERVICING INSTRUCTIONS (

USE AND CARE INSTRUCTIONS

FCC STATEMENT

EN 7

If the new lamp base does not fit in lampholder, follow the steps below before step 4:

a) Pull the reflector out.

e) Insert the reflector into the base.

b) Remove the base of burned out lamp by straightening lamp leads and gently pull

c) Thread leads of new lamp through holes in old base with one lead in each

d) After lamp is fully inserted into base, bend each

lead up, like other lamps in the light set so that the

leads will touch the contacts inside the

lampholder (always match the long lead of new

CAUTION

a) To reduce the risk of electric shock, use only with the power-supply cord provided or

with a cord set intended for indoor use.

b) Do not use a cracked, frayed, or damaged cord. Inspect the cord periodically.

c) Do not abuse cord - Do not carry product by the cord or yank or pull it to disconnect

d) Disconnect the product from the outlet when not in use.

e) Do not overload. Connect other lighting strings or tree toppers end-to-end up to a

maximum of 216 watts (1.8 Amps) total. Do not interconnect low-voltage products.

from the outlet.

lamp out.

hole.

lamp to the hook of lamp base).

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Warning:Please note that changes or modiﬁcations of this product is not

expressly approved by the party responsible for compliance could void the user's authority

to operate the equipment.

a) Before using or reusing, inspect product carefully. Discard any products that have cut,

damaged, or frayed wire insulation or cords, cracks in the lampholders or enclosures,

b) When storing the product, carefully remove the product from wherever it is placed

loose connections, or exposed copper wire.

to avoid any undue strain or stress on the product conductors, connections, and wires.

c) When not in use, store neatly in a cool, dry location protected from sunlight.

FCC STATEMENT CONTINUED)(

EN 8

Made in Cambodia

The Honeywell Trademark is used

under license from Honeywell

International Inc.

Honeywell International Inc. makes

no representations or warranties

with respect to this product.

This product is manufactured by

Dongguan Newone Trading Co.,Ltd.

Dongguan Newone Trading Co., Ltd.

1001 Room, No.273, Jinxiu Road,

Changan Town, Dongguan City,

Guangdong Prov., China

866-205-9854

NOTE:This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

●

Reorient or relocate the receiving antenna.

●

Increase the separation between the equipment and receiver.

●

Connect the equipment into an outlet on a circuit different from that to which the receiver

●Consult the dealer or an experienced radio/TV technician for help.

STORAGE: Disassembled tree can be stored in its original box. Store tree in a cool, dry place

where the temperature does not exceed 100°F (38°C).

MODEL NO. HW_T12331

ONE PLUG® U.S. Patents: US8,454,186, US8,454,187, US8,936,379, US9,044,056,

US 9,140,438, US 9,179,793, US9,222,656, US 9,243,788, US 10,194,764,

US 10,433,604, US 10,578,289, US 10,721,981, US 11,006,687, US 11,013,355,

US 11,419,374. Other Patents Pending.

See for a complete list of patents.https://www.williscorporation.com/about.html#p6

is connected.

TXUSA Corporation

1919 Akron Peninsula Road, Akron, Ohio 44313

866-205-9854

customersupport hw willis com tw_@ . .

Indice

Altri manuali Honeywell Albero di pino artificiale

Honeywell

Honeywell W14L0688 Manuale utente

Honeywell

Honeywell HW-T12342 Manuale utente

Honeywell

Honeywell HW-T12351 Manuale utente

Honeywell

Honeywell HW-T12322 Manuale utente

Honeywell

Honeywell HW-T12303 Manuale utente

Honeywell

Honeywell HW T12321 Manuale utente

Honeywell

Honeywell HW-T12304 Manuale utente

Honeywell

Honeywell HW-T12323 Manuale utente

Honeywell

Honeywell HW-T12312 Manuale utente

Honeywell

Honeywell HW-T12332 Manuale utente

Honeywell

Honeywell HW-T12311 Manuale utente

Honeywell

Honeywell HW-T12341 Manuale utente

Honeywell

Honeywell HW-T12333 Manuale utente

Honeywell

Honeywell W14L0694 Manuale utente

Honeywell

Honeywell HW T12301 Manuale utente

Honeywell

Honeywell HW-T12334 Manuale utente

Honeywell

Honeywell HW-T12313 Manuale utente

Honeywell

Honeywell HW-T12302 Manuale utente

Honeywell

Honeywell HW-T12352 Manuale utente

Honeywell

Honeywell HW-T12353 Manuale utente

Manuali Albero di pino artificiale popolari di altre marche

Trim a Home

Trim a Home TY-S6-250L Manuale utente

Polygroup

Polygroup TG7600NVQC03 Manuale utente

Sears

Sears Donner & Blitzen M44814 Manuale utente

BETHLEHEM LIGHTING

BETHLEHEM LIGHTING 6.5’ Tinsel Tree Manuale utente

Home Accents Holiday

Home Accents Holiday TG76P3D93L08 Manuale utente

Polygroup

Polygroup TG76M3S45C02 Manuale utente

Polygroup

Polygroup TG90P3693L00 Manuale utente

Costway

Costway CM23595US Manuale utente

Polygroup

Polygroup TV46M3ADVC05 Manuale utente

Home Accents Holiday

Home Accents Holiday TG76P4C15D03 Manuale utente

Polygroup

Polygroup TV46P7001X00 Manuale utente

Holiday Living

Holiday Living TV40EH339C01 Manuale utente

Polygroup

Polygroup TGC000NY1C00 Manuale utente

CASARIA

CASARIA DBGB001 Manuale utente

Alpine

Alpine CRD100L-WT Manuale utente

Home Accents Holiday

Home Accents Holiday TG76M3W89C00 Manuale utente

CASARIA

CASARIA 104006 Manuale utente

Polygroup

Polygroup TG70P3D94D00 Manuale utente
