Honeywell HercuLink Manuale utente

Industrial Measurement and Control

HercuLink™

User Manual

Doc. No.: 62-86-25-11

Release: 3

Last Revision Date: 8/02

ii HercuLink™ - User Manual Release 3

8/02

Notices and Trademarks

Release 3 August 2002

Warranty/Remedy

Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Contact

your local sales office for warranty information. If warranted goods are returned to Honeywell during the period of

coverage, Honeywell will repair or replace without charge those items it finds defective. The foregoing is Buyer's sole

remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a

particular purpose. Specifications may change without notice. The information we supply is believed to be accurate

and reliable as of this printing. However, we assume no responsibility for its use.

While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the

customer to determine the suitability of the product in the application.

CE Conformity

This product conforms with the protection requirements of the following European Council Directive: 89/336/EEC,

the EMC directive and 73/23/EEC, the Low Voltage Directive. Conformance of this product with any other “CE Mark”

Directive(s) shall not be assumed.

Attention

The emission limits of EN 50081-2 are designed to provide reasonable protection against harmful interference when

this equipment is operated in an industrial environment. Operation of this equipment in a residential area may cause

harmful interference. This equipment generates, uses, and can radiate radio frequency energy and may cause

interference to radio and television reception when the equipment is used closer than 30 m to the antenna(e). In

special cases, when highly susceptible apparatus is used in close proximity, the user may have to employ additional

mitigating measures to further reduce the electromagnetic emissions of this equipment

Industrial Measurement and Control

Honeywell

1100 Virginia Drive

Fort Washington, PA 19034

HercuLink and HercuLine are trademarks of Honeywell

Palm is a trademark of Palm Inc.

Other brand or product names are trademarks of their respective owners.

Release 3 HercuLink™ - User Manual iii

8/02

About This Document

Abstract

This manual describes the installation, set up, and operation of HercuLink PDA software for use with

Honeywell actuators.

References

The following list identifies all documents that may be sources of reference for material discussed in this

publication.

Document Title Doc ID

HercuLine 2000 Series Actuator Specification 61-86-03-14

HercuLine 2000 Series Actuator Model Selection Guide 62-86-16-21

ModbusRTU Serial Communications User Manual 51-52-25-66

ModbusRTU Serial Communications User Manual

Configuration/Remote Calibration Interfaces for HercuLine

Actuators

51-52-25-103

HercuLine 2000 Series Actuator Installation, Operation and

Maintenance Manual

62-86-25-10

10260S HercuLineSmart Actuator Installation, Operation and

Maintenance Manual

62-86-25-08

11280S HercuLineSmart Actuator Installation, Operation and

Maintenance Manual

61-86-25-09

Contacts

World Wide Web

The following lists Honeywell’s World Wide Web sites that will be of interest to our customers.

Honeywell Organization WWW Address (URL)

Corporate http://www.honeywell.com

Industrial Measurement and Control http://www.honeywell.com/imc

Telephone

Organization Phone Number

United States and Canada Honeywell 1-800-423-9883 Tech. Support

1-888-423-9883 Q&A Faxback

(TACFAQS)

1-800-525-7439 Service

Symbol Definitions

iv HercuLink™ - User Manual Release 3

8/02

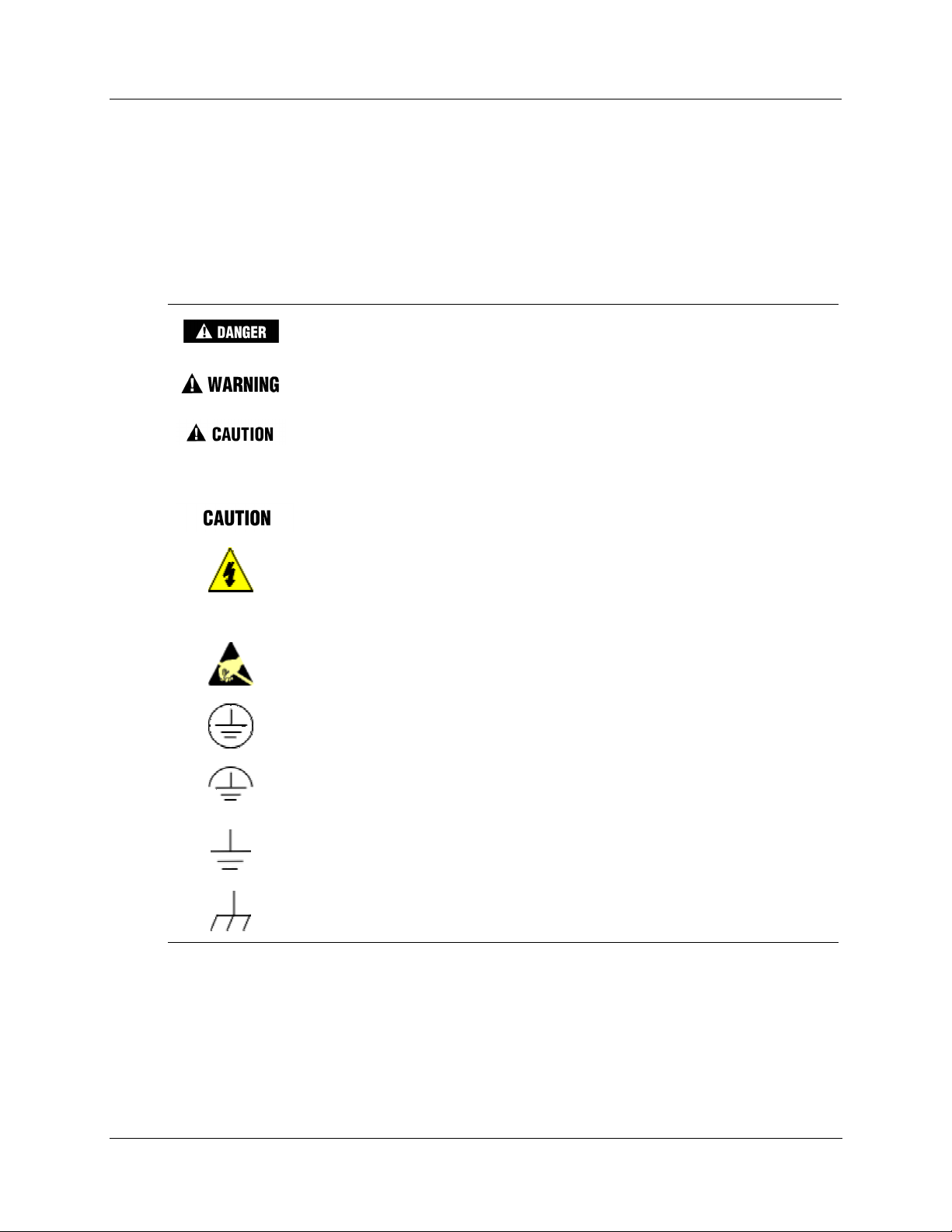

Symbol Definitions

The following table lists those symbols that may be used in this document to denote certain conditions.

Symbol Definition

This DANGER symbol indicates an imminently hazardous situation, which,

if not avoided, will result in death or serious injury.

This WARNING symbol indicates a potentially hazardous situation, which, if

not avoided, could result in death or serious injury.

This CAUTION symbol may be present on Control Product instrumentation

and literature. If present on a product, the user must consult the

appropriate part of the accompanying product literature for more

information.

This CAUTION symbol indicates a potentially hazardous situation, which, if

not avoided, may result in property damage.

WARNING

PERSONAL INJURY: Risk of electrical shock. This symbol warns the user of a

potential shock hazard where HAZARDOUS LIVE voltages greater than 30 Vrms,

42.4 Vpeak, or 60 Vdc may be accessible. Failure to comply with these

instructions could result in death or serious injury.

ATTENTION, Electrostatic Discharge (ESD) hazards. Observe precautions for

handling electrostatic sensitive devices

Protective Earth (PE) terminal. Provided for connection of the protective earth

(green or green/yellow) supply system conductor.

Functional earth terminal. Used for non-safety purposes such as noise immunity

improvement. NOTE: This connection shall be bonded to protective earth at the

source of supply in accordance with national local electrical code requirements.

Earth Ground. Functional earth connection. NOTE: This connection shall be bonded

to Protective earth at the source of supply in accordance with national and local

electrical code requirements.

Chassis Ground. Identifies a connection to the chassis or frame of the equipment

shall be bonded to Protective Earth at the source of supply in accordance with

national and local electrical code requirements.

Contents

Release 3 HercuLink™ - User Manual v

8/02

Contents

PDA Interface.......................................................................................... 1

Overview.......................................................................................................................1

Why use a PDA?....................................................................................................................1

Preparation ...................................................................................................................1

HercuLink Main Menu...................................................................................................3

Communication.............................................................................................................4

Configuration ................................................................................................................5

How to configure your actuator ..............................................................................................6

Configuration Examples: Input Group ....................................................................................6

Calibration ....................................................................................................................8

Input Calibration .....................................................................................................................8

Motor Calibration..................................................................................................................11

Current Output Calibration ...................................................................................................15

Position Sensor Calibration..................................................................................................18

Upload ........................................................................................................................21

Download....................................................................................................................24

Maintenance ...............................................................................................................26

Manual Position ..........................................................................................................29

Index ..................................................................................................... 31

Contents

vi HercuLink™ - User Manual Release 3

8/02

Tables

Table 1 Configuration Set Up Group details ................................................................................................................5

Release 3 HercuLink™ - User Manual vii

8/02

Figures

Figure 1 PDA connection to actuator ............................................................................................................................2

HercuLink

Overview

Release 3 HercuLink™ - User Manual 1

8/02

HercuLink

Overview

Why use a PDA?

You can operate your actuator remotely with an approved PDA running HercuLink software. Advantages:

• Upload/download configurations from/to the actuator to the PDA. If configuring multiple actuators

similarly, configure one and re-use it in the others.

• Upload performance/maintenance data to your PC to track and schedule maintenance.

Preparation

Perform these steps to use a PDA with your acuator.

Step Action

1 Install PDA desktop software on your PC.

Your PDA came with software to be installed on your PC. Ensure that it is installed on your PC.

2 Install HercuLink software on your PC

3 Run HercuLink Install program (on CD).

4 Hot sync PC and PDA to download HercuLink to PDA.

5 At the actuator disconnect all wires going to any active master Modbus device.

Communication problems will occur if the actuator is simultaneously connected to any active

master Modbus device and the PDA. To locate your actuator’s Modbus terminals, see your

actuator manual’s wiring section.

6 Connect PDA to actuator

Starting at the PDA and working toward the actuator, connect as follows:

1. Serial interface cable

2. B & B Electronics RS-422/485 to Palm converter (model 485BAT3). Set DIP switches to 485

and Echo OFF.

3. Turck cable (part # RK4T)

See Figure 1.

7 Configure Communications. See page 4.

HercuLink

Preparation

2 HercuLink™ - User Manual Release 3

8/02

TD B+

TD A-

RD B+

RD A-

GND

Blue

Brown

Black

Turck cable

PDA

B&B

Converter

ctuator

Serial

interface

cable

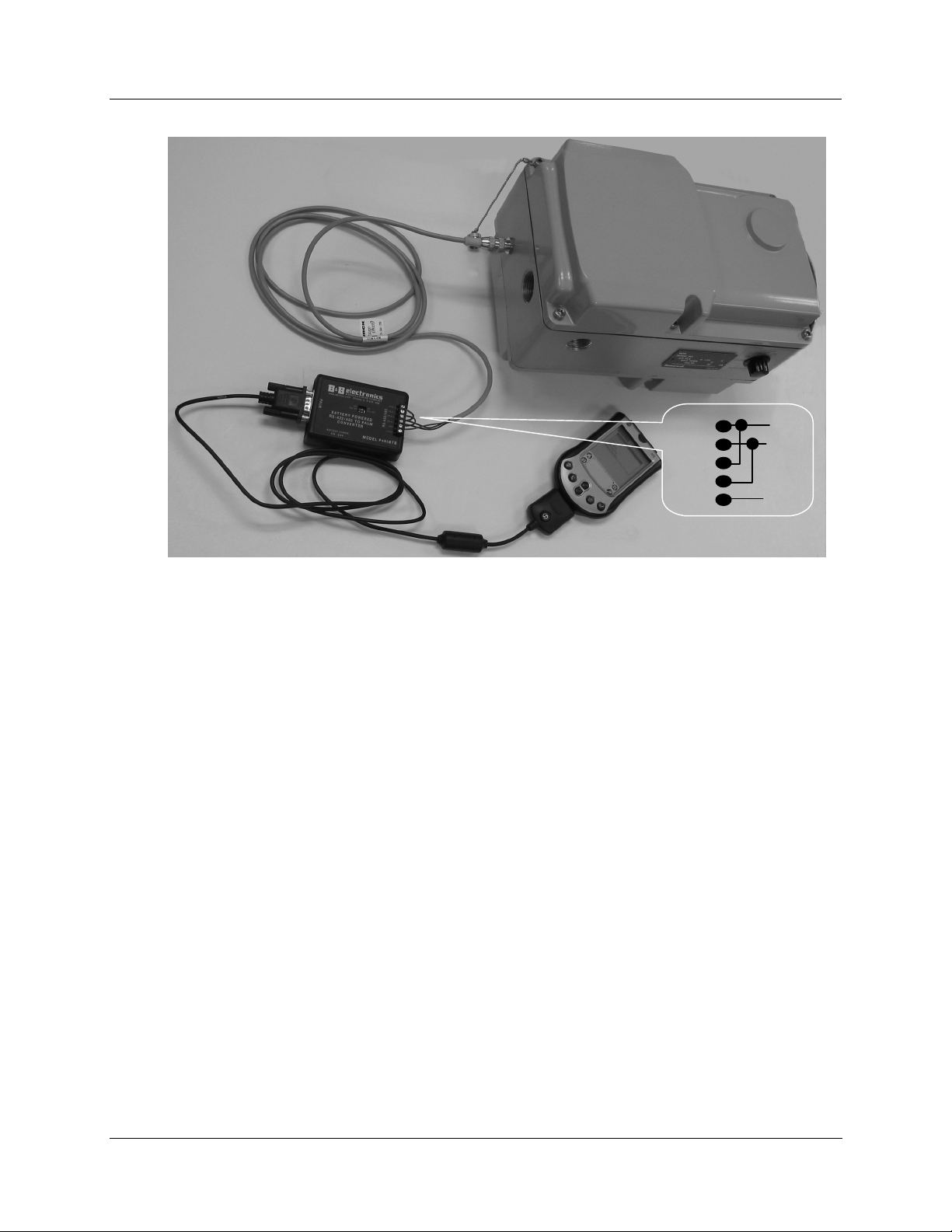

Figure 1 PDA connection to actuator

The actuator can be configured and calibrated remotely with a PDA running the HercuLink application.
