Honeywell McDonald's HEMS II Manuale utente

McDonald’s HEMS II

End User Operations Manual

McDonald’s HEMS II page 2

Table of Contents

Overview………………………………………………………………………...3

Navigation to Login Page from local or remote personal computer.…..……4

Local Personal Computer & Remote Personal Computer Login …………..5

Panel Face Mounted Display Local Login…..………………………………..6

Home Page……………………………………………………………………....7-12

HVAC Units…………………………………………………………………….13

Schedules & Holidays………………………………………………………….14-17

Data Logging and Trended Points…………………………………………….18

Electrical Demand Limiting Adjustments…………………………………….19

Lighting Photocell Adjustments………………………………………………..19

Embedded Touch Screen “Operating Instructions” Link…………………....20-27

HEMS II System Drawings & Sequence of Operations……………………....28-37

McDonald’s HEMS II page 3

Overview

McDonald’s HEMS II Energy Management Control System & User Interface

The McDonald’s HEMS II energy management and control system runs on a WEB -201™(Java Application

Control Engine). The WEB -201 is a compact, embedded controller/server platform. It combines integrated

control, supervision, data logging, alarming, scheduling and network management functions with Internet

connectivity and web serving capabilities in a small, compact platform. The WEB -201 makes it possible to

control and manage external devices over your local network or the Internet and present real-time information

to users in web-based graphical views.

The HEMS II system is complete in a 36” X 24” X 4” stainless steel panel with a local touch screen operator

interface display. All system set points and changes can be made from this local display. With internet access

provided to the HEMS II, all information and set points are available remotely from any PC browser interface.

The system is designed to monitor and/or control the following items:

(3) Roof Top Mounted HVAC Units.

Freezer/Cooler Temperatures and associated Door Opened/Closed status.

Outdoor air temperature.

HVAC Unit Space Temperatures, Discharge Air (supply) Temperatures and Room Temperature Set

Points.

Electrical Demand and Electrical Consumption.

Parking Lot Lights, Exterior Signage Lights, Customer (Dining Area) Lights.

Employee/Kitchen Lights and Play Place Lights (if present).

Outdoor Light Level from a Photocell.

Your installed system may have additional points of control or monitoring that are not covered or included in

this document.

Additional points could be:

Drive through heater control.

Kitchen equipment monitoring.

Interface to your security system for status.

Water heater control.

Additional Roof Top Mounted HVAC/Units.

Bulk CO2 levels near beverage and CO2 storage tanks.

Or additional monitoring & control points that have been customized for your facility.

McDonald’s HEMS II page 4

Navigation to Login Page from Local or Remote Personal Computer location

To begin: First open your internet browser and enter the WEBs Unit IP address in

the "address bar". The WEBs Unit IP address will be furnished to you by the

installer of the system. Additionally, you may consider installing a short cut icon on

your personal computer Desk Top that will direct you to the IP address of your

system.

Open internet

browser and enter

store IP address here:

McDonald’s HEMS II page 5

Navigation to Login Page from Local or Remote Personal Computer location

The Login Page is where you enter your username (user) and password (pass). Then

click the login icon. Please wait until the booting process completely loads, once it

does, it will automatically route you to the Home Page. Note that the first time you

access your system from any browser it could take several minutes to load the Home

Page. Subsequent access to the system, from the same Personal Computer will load

the Home Page must faster.

McDonald’s HEMS II page 6

Below is the default Login Page from the Local Touch Screen located on the front

of panel after unit has been powered “ON”or after the blank screen has been

touched and unit returns to normal operation mode from power saving standby

mode.

The Login Page will be automatically populated with the Username & Password.

Touch the Login icon once and the system will automatically route you to the Home

Page.

McDonald’s HEMS II page 7

Home Page

The Home Page will display your systems current conditions with any active alarms.

McDonald’s HEMS II page 8

Home Page – continued

This area of Home Page shows the following:

1. Your store number and physical location.

2. Current outside air temperature. By touching or clicking on the CYAN colored area you will be

directed to a trend log of accumulated outside temperature data. See page 18 of this document for

more information on this.

3. Current time and date in the control system.

4. By touching or clicking on “Operating Instructions” icon you will be presented with a complete

description and use of each section of displays and completed system electrical drawings and

written sequence of operations. See pages 20-27 and 28-37 of this document for more information

on this.

McDonald’s HEMS II page 9

Home Page – continued

This area of Home Page shows the following:

1. Current electrical peak demand and current electrical (KWH) consumption for the current month and

current year. By touching or clicking on any CYAN colored area you will be directed to a trend log of

accumulated electrical data. See page 18 of this document for more information on this.

2. Current electrical demand set point. See page 19 of this document for more information this.

3. Energy Demand Limiting: When active the box will say Active and the background will be RED. When

Inactive the box will say Inactive and the background will be YELLOW. When Active the temperature set

points for all HVAC Units will be automatically raised 3°F (when in cooling mode) or lowered 3°F (when in

heating mode). HVAC Units automatically switch between Cooling/Heating modes to maintain room

temperatures. Active condition exists when current electrical demand is within 2.5% of electrical demand set

point.

4. By touching or clicking on Electrical icon you will be directed to another page for set point adjustments. See

page 19 of this document for more information on this.

McDonald’s HEMS II page 10

Home Page – continued

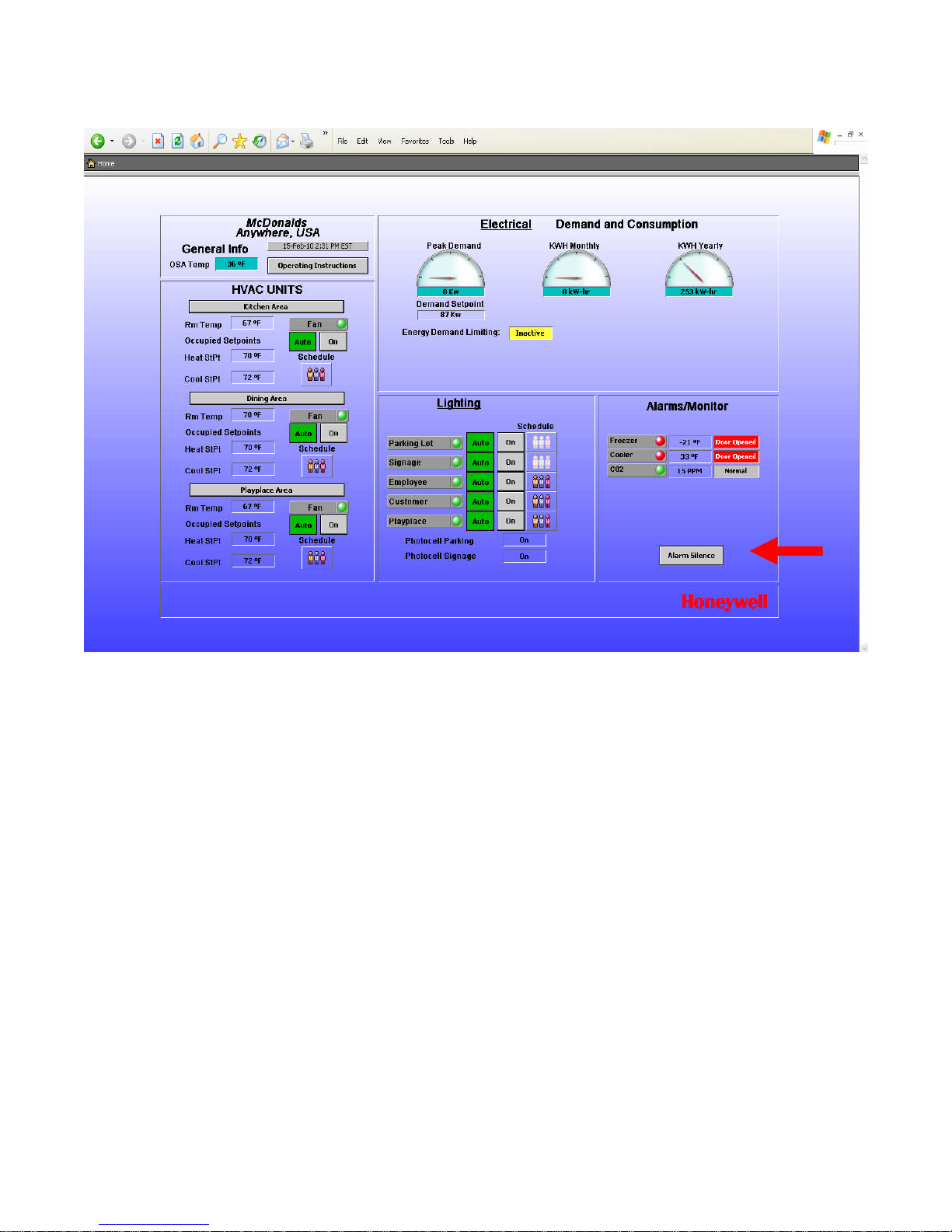

This area of Home Page shows the following:

1. Current freezer and cooler temperatures. By touching or clicking on any numeric value you will be directed

to a trend log of accumulated freezer or cooler temperature data. See page 18 of this document for more

information on this. RED bullet light (next to Freezer or Cooler) indicates an alarm condition. No alarm

condition and the light will be GREEN. If freezer temperature is 25°F or greater for 5 minutes or more an

alarm condition will exist. If cooler temperature is 42°F or greater for 5 minutes or more and alarm condition

will exist. When in an alarm condition an internal panel alarm horn will sound continuously. Pressing the

Alarm Silence icon causes the internal alarm horn to stop temporarily, yet will start up again if alarm

condition exists after another 5 minutes.

2. Current status of freezer and cooler doors. RED bullet light (next to Freezer or Cooler) indicates an alarm

condition. No alarm condition and the light will be GREEN. With freezer or cooler doors closed the

nomenclature to the right will indicate Door Closed with a gray background color. With freezer or cooler

doors open for more than 5 continous minutes the nomenclature will read Door Opened with a RED

background and the internal panel alarm horn will sound continuously. Pressing the Alarm Silence icon

causes the internal alarm horn to stop temporarily, yet will start up again if alarm condition exists after

another 5 minutes.

3. Current bulk C02 reading in parts per million (PPM). RED bullet light (next to CO2) indicates an alarm

condition. GREEN indicates unit is OK. When in alarm condition for more than five minutes (CO2 reading

at 15,000 PPM or greater) an internal panel alarm horn will sound continuously and the NORMAL

nomenclature to the right will change to ALARM with a RED background color. Pressing the Alarm Silence

icon causes the internal alarm horn to stop temporarily, yet will start up again if alarm condition exists after

another 5 minutes. CO2 point information and alarming is an option for the HEMS II panel and may or may

not be included with your system based on what was ordered.
