Honeywell HRDE4X4 Manuale

Document 900.0344 – 02/06 – Rev 1.00

HRDE4X4 Front Panel Operator Guide

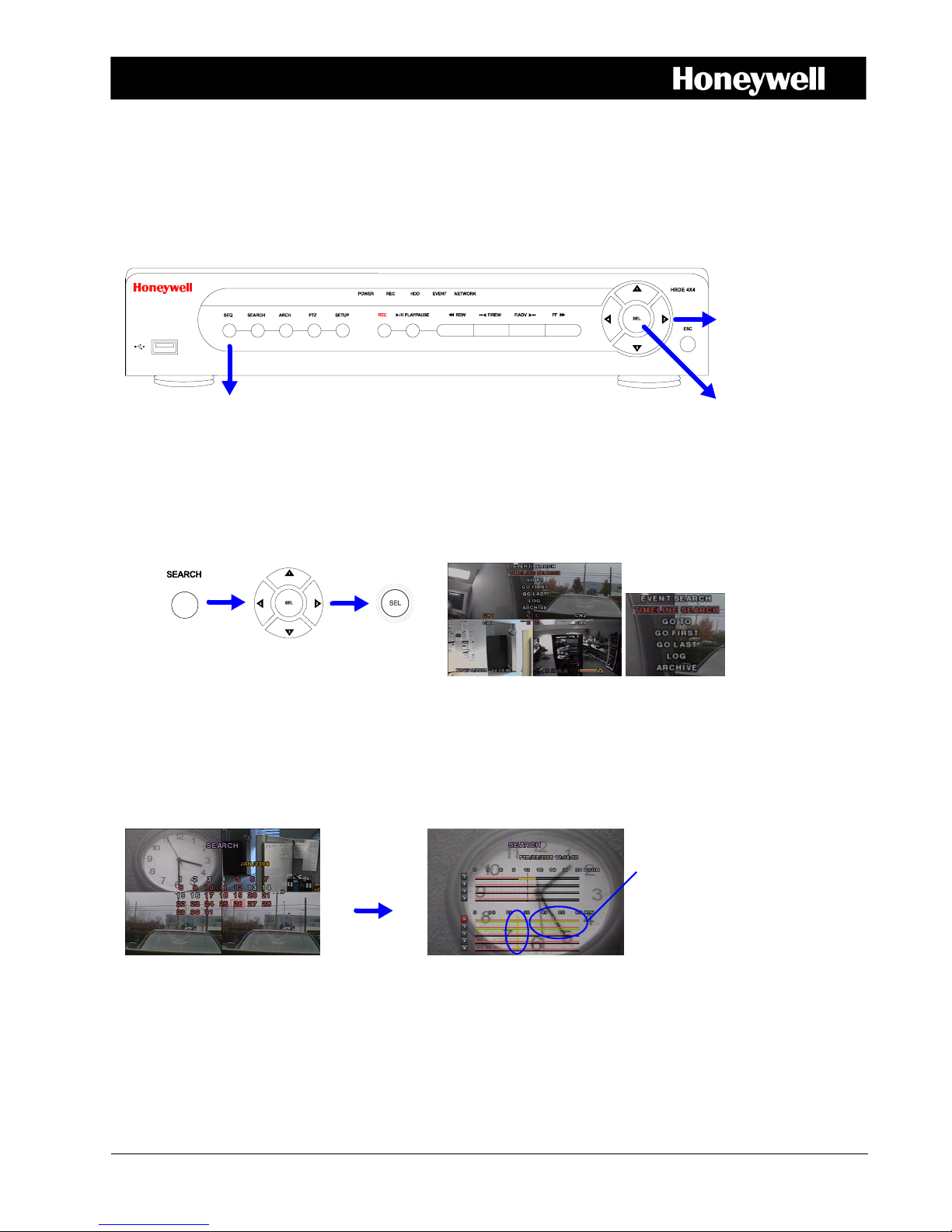

1 Easily Monitoring Live Video and Audio

2 Quick Search to Find Incident Video

3 Using Timeline Search

Only audio from the selected camera will

be heard. The Audio Out connection on

the back of the unit must be connected

to an amplified speaker to hear audio.

In single channel view only:

Press SEQ to automatically cycle

through each camera view.

Press SEQ again to stop cycling.

Press numbered arrow

key 1 – 4 to select and

display camera 1 – 4.

Press SEL to display 4

(quad) cameras

Press

Timeline Search is easiest.

Use Go To if you know the approximate incident time.

Use Event Search for motion or alarm video.

Use arrow keys

to select the

search method

To change the month, press

__REW,FF``. Days colored

red have saved video.

Use arrow keys to select the

day to play. Press SEL.

Use arrow keys to move

the vertical yellow bar to

the Hour and Minute to

play back. Press SEL.

Red line = Video recorded

Green line = Audio recorded

Video Systems

www.honeywellvideo.com

+1.800.796.CCTV (North America only)

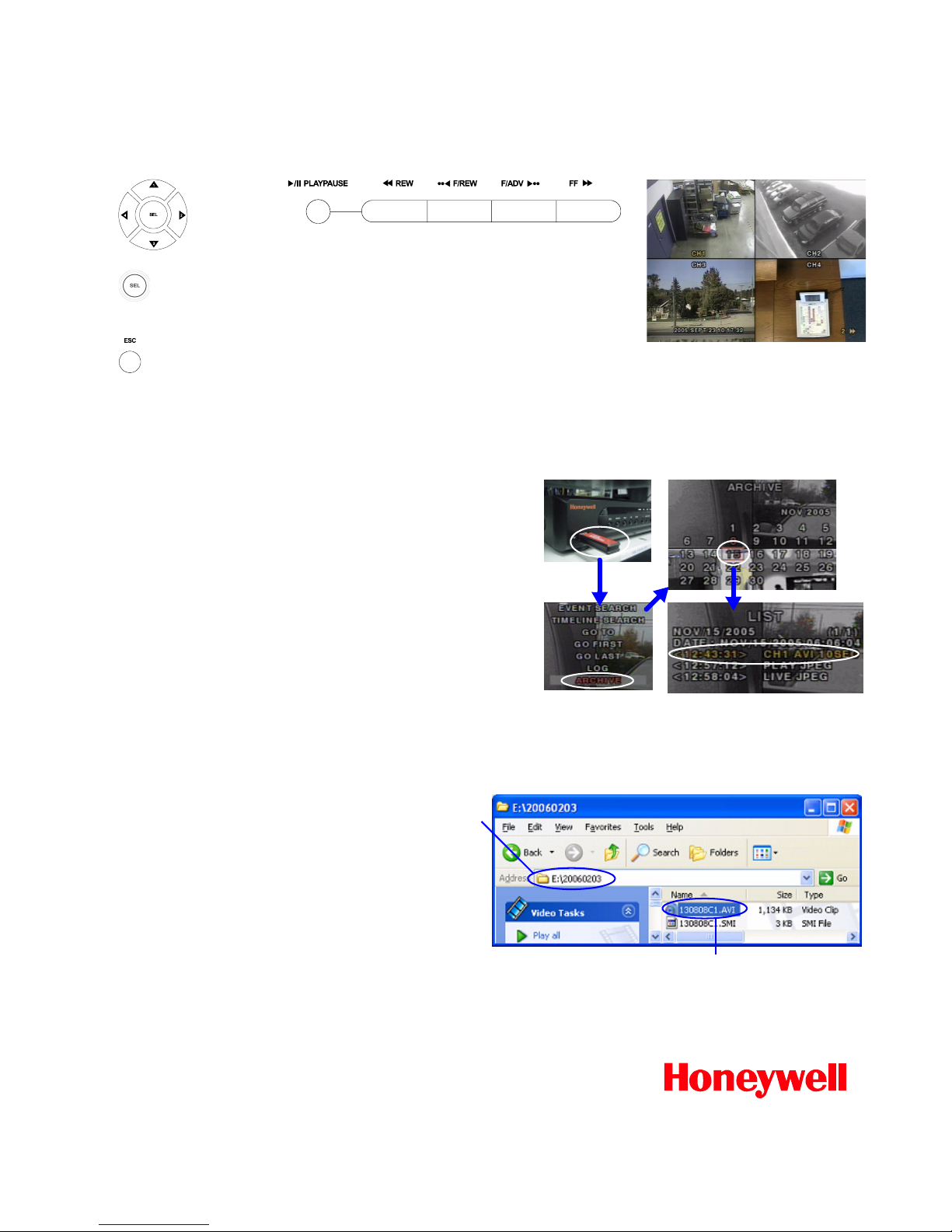

4 Playback Video and Audio

5 A. Mark Evidence for Archiving B. Copy to USB Memory Stick

6 Play and Review Evidence AVI on Microsoft® Windows XP/2000

Play Cameras in

Quad (4). Camera

displayed with yellow

lettering plays audio.

Back to Search

Select one

camera to

play. Audio is

only heard for

that camera.

nPlay/Pause video

o,rFast forward/reverse

Click to toggle speed 2 – 16x

Speed shows at the bottom of the monitor

Audio only plays in lowest (`) speed

p, qIn Pause: Advance/Reverse 1 image

In Play: Jump 1 minute forward/reverse

oqr

5A Locate an incident (steps 2, 3, 4).

Display a single camera to Archive.

Press ARCH, select STILL or VIDEO.

You will see the message VIDEO OK.

Press ESC to return to the Search screen.

5B Put USB Memory stick in the front panel.

Select ARCHIVE search and press SEL.

Select the day of the incident and press SEL.

Highlight the clip/still image name.

Press SEL to play.

Press ARCH, select YES to save.

When finished you will see the message SAVE SUCCESS.

Put the USB Stick in a Windows PC.

Double-click the AVI file to launch it.

Use Windows Media Player to play the clip.

The folder uses a YearMonthDay name

(20060203 = 2006 February 03).

The file uses a HourMinSecCamera name

(130808C1 = Starts at 13:08:08 Camera 1).

Playback using VCR-like controls.

Single images are saved in JPG format and

can be viewed with Internet Explorer.

AVI files are played with Windows Media Player.

It may be necessary to install a CODEC on your PC to play clips.

See the User Manual or contact technical support for assistance

installing CODECs, in North America call 1.800.796.CCTV.
