Honeywell Dolphin CN80 Manuale utente

Dolphin™ CN80

Quick Start Guide

CN80-A7-EN-QS Rev A

3/18

Out of the Box

Make sure that your shipping box contains these items:

• Dolphin CN80 mobile computer

(Model CN80L0N or CN80L1N)

• Rechargeable 3.85 VDC Li-ion battery

• Stylus and tether

•Handstrap

• Product documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Note: CN80L0N models do not include a WWAN radio.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ or microSDHC™ memory cards with

Dolphin mobile computers for maximum performance and

durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

Mobile Computer Features

CN80 Model with 6603ER Imager

Scan

Button

Microphone

Power

Button

Battery Status /Notification LED

Microphone

Receiver Speaker

Touch Panel

Scan Button

I/O Connector

Aux

Button

Keyboard

(model dependent)

Speakers

Scan Status LED

Camera Lens and

Flash

Battery

Scan Button

Battery Latch

Imager (LED / Laser Aperture)

microSIM/

microSD Card

Door

Laser Safety

Label Location

Volume Buttons

Stylus

Hand Strap

Microphone

IMEI Label

Location on

Model

CN80L1N

Pressure Sensor

CN80 Model with EX20 Near/Far Imager

Scan

Button

Microphone

Power

Button

Battery Status /Notification LED

Microphone

Receiver Speaker

Touch Panel

Scan Button

I/O Connector

Aux

Button

Keyboard

(model dependent)

Speakers

Scan Status LED

Camera Lens and

Flash

Battery

Scan Button

Battery Latch

Imager (LED / Laser Aperture)

Laser Safety

Label Location

Volume Buttons

microSIM/

microSD Card

Door

Stylus

Hand Strap

Microphone

Pressure Sensor

Install a microSIM Card / Install a microSD Card

Always power off the computer before attempting to

install or remove a card.

SIM 1

Phone feature is available only on CN80L1N models.

When using a UICC card for NFC Secure Element NFC link

encryption, install the card in SIM slot 1.

SIM 2

SIM 2 feature is available only on CN80L1N models.

3 4 5

microSD

Format the microSD card before initial use.

3 4 5

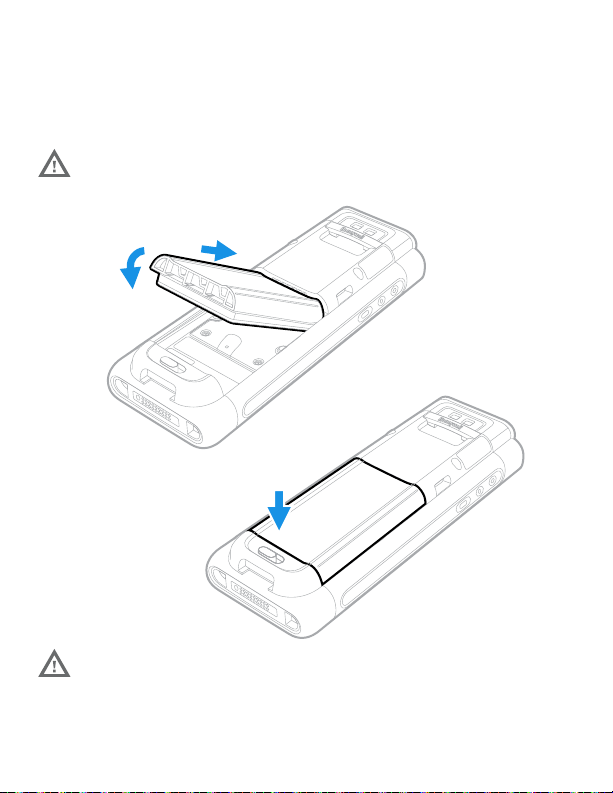

Install the Battery

The CN80 mobile computer ships with a Li-ion 3.85 VDC, 22.3

watt-hour battery manufactured for Honeywell International

Inc.

Use only Honeywell Li-ion battery pack model

CW-BAT (SKU CX80-BAT-EXT-WRLS1).

Ensure all components are dry prior to placing the

battery in the computer. Mating wet components may

cause damage not covered by the warranty.
