INSTALLATION GUIDE / OWNER’S MANUAL
HE220, HE260 Humidifier
and Installation Kit
(INSTALL KIT SOLD SEPARATELY)
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 2
IMPORTANT
Please read these instructions and keep them in your records.
WELCOME
To the comfortable world of humidified air. When you use your Honeywell humidifier,
notice that your skin is not as dry, and that your scratchy throat and irritated nasal
passages that aggravate allergies and asthma are steadily improving.
You have also taken the first step in reducing the zapping you create when you walk on
your carpet and then touch your TV, computer, metal door knob or your pet. Your
furniture and woodwork are also benefitting from the difference that humidified air
makes.
Congratulations! You have just made a great investment in improving the comfort of
your home.
APPLICATION
This kit contains your new Honeywell HE220 or HE260 Humidifier, H8908 Humidistat
and all the accessories required for replacement installation. Installation Kit for new
install sold separately (HKIT2A1001).
INSTALLATION
Preparing for the Installation
Be sure to identify all the required (Table 1) accessories (included) and make sure the
appropriate tools are available before beginning the installation.
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
3 69-2630ES—03
Included With Humidifier
Required Tools
Tools required for installation include:
• Tin snip.
• Screwdriver.
• Adjustable or open-end wrench.
• Drill, punch or awl.
•Level.
Table 1. Included Accessories.
Quantity Accessory
1 Pressure switch
1 H8908 Humidistat
1 bag Saddle Valve Assembly:
Saddle valve and top clamp (1)
Threaded bottom clamp (1)
Bolts (2)
Rubber gasket (1)
Brass insert (1)
Plastic bushing (1)
Brass compression ring (1)
Brass compression nut (1)
1 Plug-in transformer
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 4
Determining Best Location for Humidifier
CAUTION
Temperature and Static Pressure Hazard.
Can cause property or equipment damage.
Locate humidifier where ambient temperature is between 32°F (0°C) and
160°F (71°C).
Do not install humidifier where freezing temperatures could occur.
Be sure supply plenum static pressure is no greater than 0.4 in. wc and water
pressure is no greater than 124 psi.
• Select a location for the humidifier on the supply (warm air stream) plenum. See
Fig. 1.
• Select a location that cannot damage the air conditioner A-coil during installation.
• Do not locate the humidifier on the furnace body.
• Allow adequate clearance in front of and above the humidifier so you can easily
remove the cover to perform routine maintenance.
— Mount the humidifier at least 3 in. (78 mm) above the furnace body to allow
adequate space for the solenoid valve and drain line.
— Mount the humidifier in a conditioned space to prevent freezing.
Fig. 1. Typical humidifier installation locations.
Selecting Water Supply Location
• Use either hard or soft water in the humidifier and either hot or cold water. The
water flow rate, with the humidifier running, is 3.5 gal/hr (13 liters/hr) to flush the pad
and provide moisture for evaporation.
M12808A
HORIZONTAL
DOWN
FLO
LOWBOY
RETURN
RETURN
RETURN
HIGHBOY
RETURN
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
5 69-2630ES—03
• Make sure that the 20 ft (6.2m) of feed water tubing provided is adequate to connect
the water supply (saddle valve) with the humidifier solenoid valve.
Locating Closest Floor Drain
• Select location with access to a floor drain to provide drainage for air conditioner
condensation and humidifier drainage.
• If you do not have a drain available, we recommend that you install the Honeywell
Whole House Drum or Disk Humidifier. Make sure that the 10 ft (3.1m) of drain
tubing is adequate to reach from the humidifier drain connection to the floor drain.
Selecting Location for Humidistat
• Select a location for the humidistat on the return plenum or on the wall in the living
space.
— Mounting on the return plenum is the easiest installation for the control wiring
circuit.
For return duct mounting, the humidistat should be mounted upstream from the
humidifier or bypass so that it is properly sensing the relative humidity of the living
space. Locate the control at least 8 in. (203 mm) upstream from the humidifier in the
return air duct. (See Fig. 2.)
Fig. 2. Selecting duct location for humidistat.
Locating Closest 120V Electrical Outlet
• Select location with access to an outlet. If not available, contact an electrician to
have one installed.
• Make sure that the humidifier cord is adequate to reach from the humidifier to the
outlet.
• Make sure that the 20 ft (6.2m) of thermostat wire is adequate to reach from the
humidifier solenoid, to the pressure switch, to the humidistat.
ALTERNATE LOCATION
RETURN
AIR
RETURN
AIR
6 in. (152 mm)
MINIMUM 15 in. (381 mm)
MINIMUM
BEST
LOCATION
RETURN AIR DUCT M12831
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 6
Installing the Humidifier
WARNING
Hazardous Voltage
Can cause personal injury or equipment damage.
Do not cut or drill into any air conditioning or electrical accessory.
CAUTION
Sharp Edges Installation Hazard.
Can cause personal injury.
Wear gloves and safety glasses.
1. Turn off power to the air handing system at the circuit breaker.
2. Draw a level line on the plenum in the location
chosen for the humidifier. (Leveling assures optimal humidifier performance.)
3. Locate the template (form number 69-2521 included in the box). For the
HE220 model, cut out the template along the dotted line.
4. Tape the template in position and trace around the template.
5. Remove the template and carefully cut the rectangular opening.
6. Disassemble the humidifier; remove the cover and take out the humidifier pad
assembly. See Fig. 3.
Fig. 3. Disassembling humidifier.
M12304A
WATER
FEED NOZZLE
FRAME
HUMIDIFIER
HOUSING
WATER
FEED TUBE
HUMIDIFIER
PAD ASSEMBLY
COVER
SIDEWALL
BY-PASS SIDEWALL
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
7 69-2630ES—03
7. Make sure the humidifier housing is
level, then position it in the opening
so the plastic tabs are in place on the
lower sheet metal edge of the open-
ing. Use pliers, as necessary, to flat-
ten cut edges. See Fig. 4.
8. Secure the humidifier housing to the
opening at the top and bottom using
sheet metal screws.
9. Use the 6 in. (155 mm) starter collar
as a template to mark the opening for
the bypass.
Fig. 4. Installing humidifier on duct.
10. Carefully cut the opening for a 6 in. (155 mm) starter collar. See Fig. 5. Use a
drill, punch or awl to start the cut in the middle of the circle. Cut in an outward
spiral to assist in controlling the cut.
Fig. 5. Cutting bypass opening.
DUCT
LEVEL
SHEET METAL
SCREWS (4)
PLASTIC
TABS (2)
OPENING
TO AIR DUCT
STARTING
HOLE
6 IN. ROUND TEMPLATE
M20172
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 8
11. Assemble the summer shutoff
damper into the starter collar.
Verify that the damper rotates
freely between the open and
closed positions. Make sure the
handle is accessible. Mark the
damper Closed position as Sum-
mer and the Open position as
Winter. See Fig. 6.
12. Remove liner to expose foam
adhesive. Position starter collar
over opening.
13. Slide one end of the flexible duct-
ing over the starter collar and
secure with one of the connecting
straps.
Fig. 6. Installing the starter collar.
14. Insert the plain collar
into the humidifier port
and secure with sheet
metal screws. Con-
nect the flexible duct-
ing over the collar and
secure with a con-
necting strap. See Fig.
7.
15. Seal the duct connec-
tions with duct tape
(not included).
16. Reinstall the humidi-
fier pad assembly in
the humidifier hous-
ing.
17. Hinge the cover in
place and secure with
the thumbscrew
located at the bottom
of the cover. Fig. 7. Connecting bypass ducting.
SUMMER
WINTER
M20173
M20785
PLAIN COLLAR
HUMIDIFIER PORT
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
9 69-2630ES—03
Connecting the Plumbing
Use hot or cold water and either hard or softened water in the humidifier.
1. Shut off the water.
CAUTION
Chemical Hazard.
Can cause personal injury or equipment damage.
Do not use any line connected to an air conditioner.
Do not use gas line.
2. Use the self-piercing saddle valve (included) to tap into the water supply line at
the location selected. See Fig. 8. If tapping into galvanized pipe, drain line and
pre-drill 3/17 in. tap for saddle valve.
NOTE: The saddle valve is not designed to regulate water flow. The valve is
either open or closed.
IMPORTANT
To prevent debris from clogging the solenoid in-line filter, be sure to install the
saddle valve handle pointing toward the ceiling.
Fig. 8. Installing the saddle valve.
M20175
SCREW DRIVER
WATER LINE
HE220, HE260 HUMIDIFIER AND INSTALLATION KIT
69-2630ES—03 10
3. Use 1/4 in. (6 mm) OD tub-
ing and connect the saddle
valve to the inlet side of the
solenoid valve on the
humidifier (see Fig. 9).
a. Place the brass com-
pression nut over the
tubing.
b. Install brass insert into
end of tubing.
c. Slide the plastic com-
pression ring over the
tubing. (Discard copper
compression ring pro-
vided with valve.)

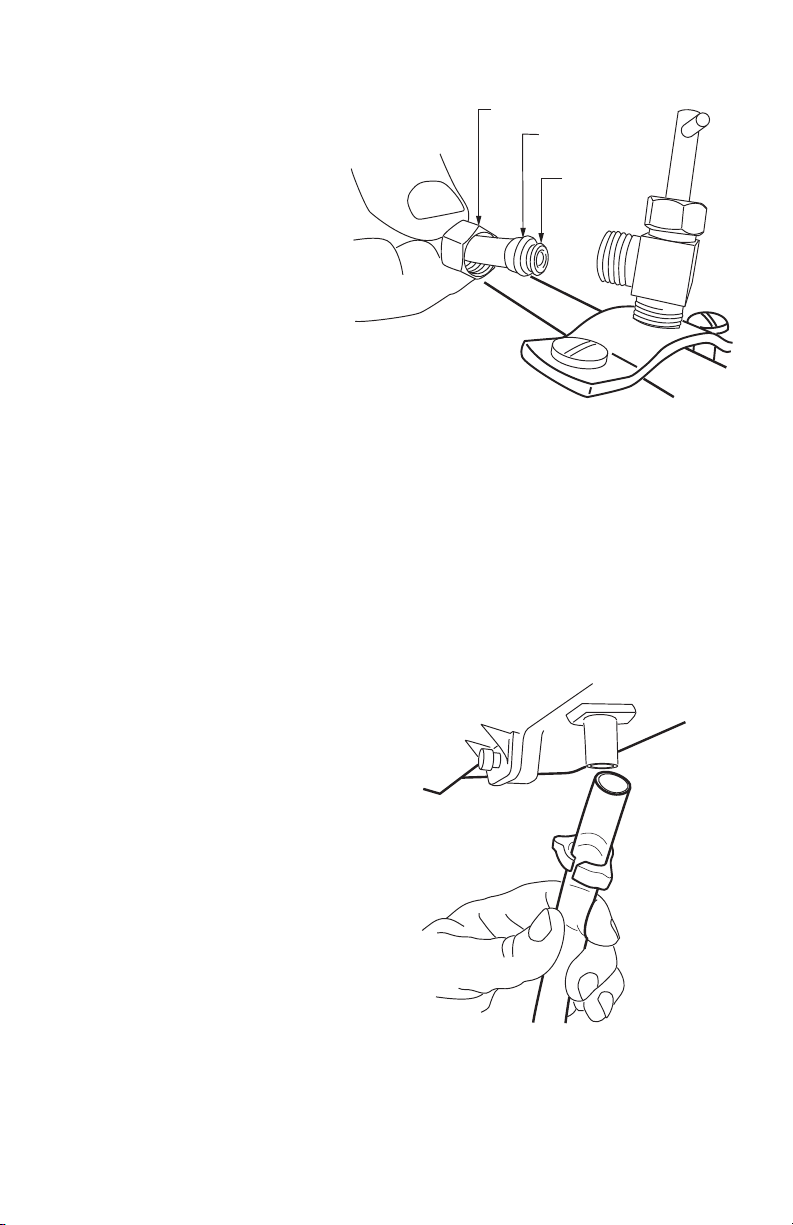

Fig. 9. Installing feed tubing.
NOTE: To prevent leaking, use plastic (Delrin) sleeve rings with plastic tubing.
Use copper sleeve rings only with copper tubing.
d. Insert the tubing into the solenoid valve fitting and support the valve while
tightening the compression nut.
NOTE: Do not over-tighten the compression nut. Moderate tightness prevents
leaking.
e. Repeat steps a. through d. for solenoid valve fitting.
f. Secure tubing with clamps provided.
4. Connect a 1/2 in. (13 mm) drain tube
to the humidifier drain fitting and run
to the floor drain (see Fig. 10).
a. Slide the drain clamp over the
tubing.
b. Push the tubing over the drain
nipple on the humidifier.
c. Hand-tighten the clamp around
the tubing to secure the humidi-
fier drain.
d. Fasten the drain tubing (can use
duct tape) along the route to pre-
vent movement and ensure
downward slope for correct drain-
age.
NOTE: Cut tubing to correct length so
the tubing terminates at the
drain.
Fig. 10. Installing the drain tubing.
M20176
BRASS COMPRESSION NUT
PLASTIC
COMPRESSION RING
BRASS INSERT
M20177
Altri manuali per HE220
5
Questo manuale è adatto per i seguenti modelli
1
Indice
Lingue:
Altri manuali Honeywell Umidificatore
Honeywell
Honeywell HWM910 - ENVIRACAIRE Warm Moisture 2 Gallon... Manuale utente
Honeywell
Honeywell HWM2030 - 3 Gallon Warm Mist Humidifier Manuale utente
Honeywell
Honeywell HUL535WC Manuale utente
Honeywell
Honeywell HCM300T - Quiet Care 3.0 Gallon Ultraviolet Tower... Manuale utente
Honeywell
Honeywell HH950E Manuale utente
Honeywell
Honeywell HUL535 Series Manuale utente
Honeywell
Honeywell HCM-750 Istruzioni per l'installazione
Honeywell
Honeywell BH-860E Manuale utente
Honeywell
Honeywell HCM-350 - Germ Free Cool Mist Humidifier Manuale utente
Honeywell
Honeywell HH210E Manuale utente
Honeywell
Honeywell enviracaire Elite HE265A Manuale utente
Honeywell
Honeywell HE360A - Whole House Powered Humidifier Manuale utente
Honeywell
Honeywell HCM-5300E Manuale utente
Honeywell
Honeywell DH835 Manuale utente
Honeywell
Honeywell HE250A1005 Manuale utente
Honeywell
Honeywell TrueEASE HE100 Manuale operativo
Honeywell
Honeywell HWM330 - Quicksteam Warm Moisture Humidifier Manuale utente
Honeywell
Honeywell HM509VPIAQ - TrueSTEAM 9 GPD Humidifier PRO... Manuale utente
Honeywell
Honeywell HWM705 Series Manuale utente
Honeywell
Honeywell hul570 series Manuale utente
