Honeywell Dolphin 7800 Manuale utente

Dolphin™7800

with Android™2.3.4 Mobile Device Platform

Quick Start Guide

78-AND-QS Rev B

10/12

Aller à www.honeywellaidc.com pour le français.

Vai a www.honeywellaidc.com per l'italiano.

Gehe zu www.honeywellaidc.com für Deutsch.

Ir a www.honeywellaidc.com para español.

Para Português, acesse www.honeywellaidc.com.br.

Перейти на русскоязычный сайт www.honeywellaidc.com.

Pro češtinu jdi na www.honeywellaidc.com.

Türkçe için lütfen www.honeywellaidc.com sayfasını ziyaret ediniz.

Pre slovenčinu choď na www.honeywellaidc.com.

Idźna stronę: www.honeywellaidc.com po quick start w języku polskim.

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications

and other information contained in this document without prior notice, and the reader

should in all cases consult HII to determine whether any such changes have been made.

The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor

for incidental or consequential damages resulting from the furnishing, performance, or

use of this material.

This document contains proprietary information that is protected by copyright. All rights

are reserved. No part of this document may be photocopied, reproduced, or translated

into another language without the prior written consent of HII.

Web Address: www.honeywellaidc.com

Out of the Box

Verify that your carton contains the following items:

• Dolphin 7800 mobile computer (terminal)

• 1GB, 2GB, or 4GB industrial grade microSD™ card (pre-installed)

• Main battery pack

• Quick Start Guide

If you ordered accessories for your terminal, verify that they are also included

with the order. Be sure to keep the original packaging in case you need to

return the Dolphin terminal for service.

Memory Card Specifications

Applications on your 7800 Android terminal utilize the microSD card to store

files and application data. To avoid errors or possible data loss, do not

operate the device without a memory card installed.

Honeywell recommends the use of Single Level Cell (SLC) industrial grade

microSD or microSDHC™ memory cards with Dolphin terminals for maximum

performance and durability. Contact a Honeywell sales representative for

additional information on qualified memory card options.

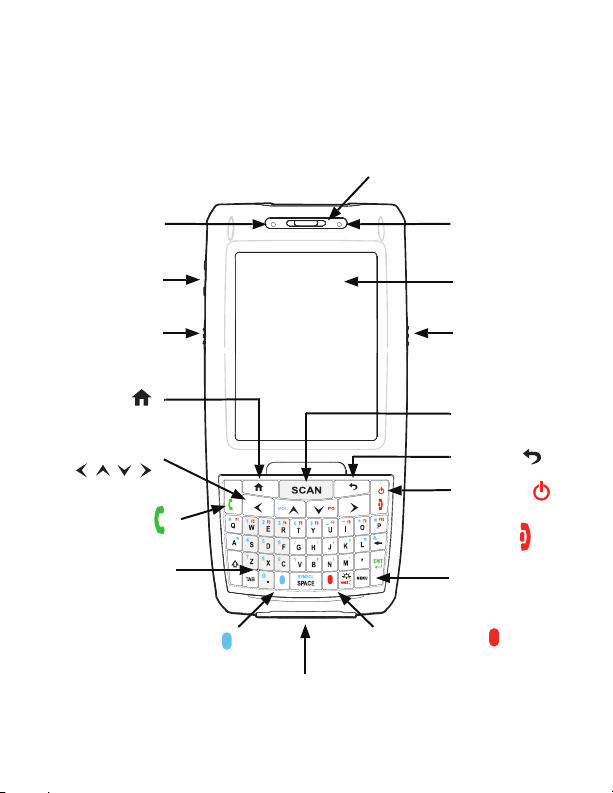

Front Panel

Note: Your Dolphin model may differ from the model illustrated in this guide;

however, the features noted are standard for all 7800 Android models

unless otherwise indicated.

Front Speaker

General

Notification LED

Touch Panel

Display

SCAN Key

Blue Modifier Key

Power Key

End Call

Microphone

Red Modifier Key

Navigation Keys

Volume Control

Buttons

Right Scan/

Image Button

I/O Connector

Charge

Indicator LED

Left Scan/

Image Button

Back Key

Home Key

Send Call

MENU Key

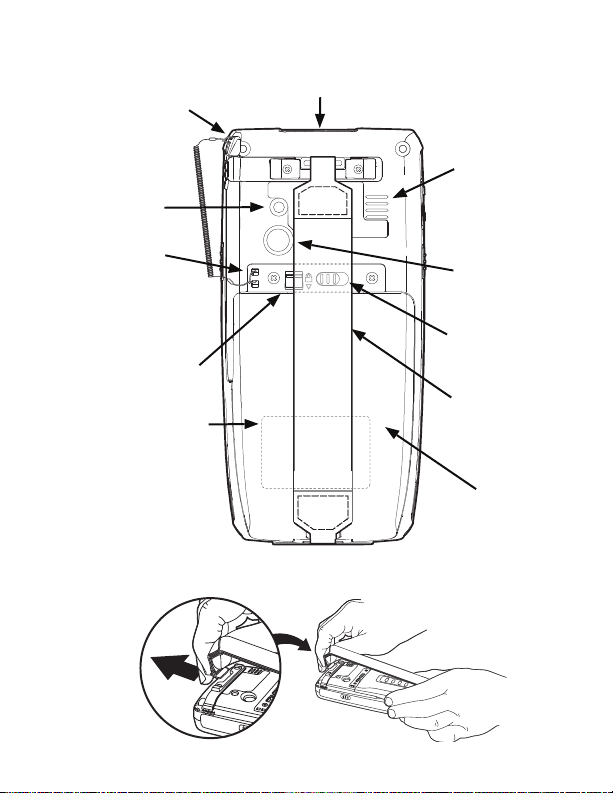

Back Panel

Releasing the Hand Strap

Scan/Imaging Engine Window*

Rear Speaker

Camera Flash

Color Camera

Lens

Battery Pack

SIM/Memory Card Socket,

with microSD card

pre-installed

(located under battery)

Stylus Tether/

Lanyard Slot

Battery Release

Button

Battery Lock

Stylus/Stylus Slot

Hand Strap

* LED and Laser Aimer

Aperture

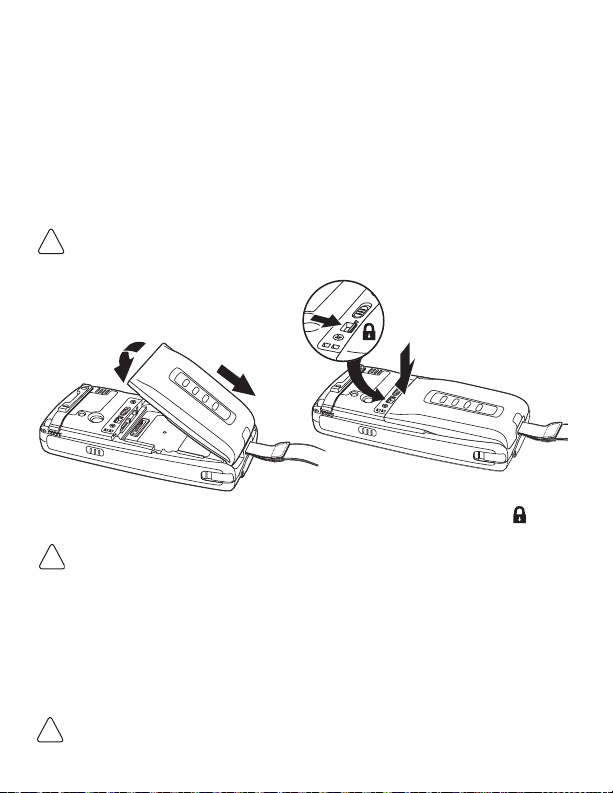

Installing the Battery Pack

Dolphin 7800 model terminals are designed for use with standard battery

pack model 7800-BTSC (Li-ion 3.7 V, 8.9 watt hour) and extended battery

pack models 7800-BTXC and 7800-BTXCW (Li-ion 3.7 V, 14.8 watt hour)

manufactured for Honeywell International Inc.

The Dolphin 7800 is shipped with the battery packaged separately from the

terminal. Perform the steps illustrated below to install the battery.

Ensure all components are dry prior to placing the battery in the

terminal. Mating wet components may cause damage not covered by

the warranty.

Note: The terminal does not power ON unless the battery is locked .

We recommend use of Honeywell Li-ion battery packs. Use of any non-

Honeywell battery may result in damage not covered by the warranty.

Once the battery is installed, connect the terminal to one of the Dolphin 7800

charging peripherals to charge the battery pack.

Dolphin 7800 Android model terminals are designed for use with the following

7800 charging devices and cables: 7800-HB, 7800-CB, 7800-MB, 7800-MC,

and 7800-USB. The 7800 Android model does not support Ethernet.

We recommend use of Honeywell peripherals, power cables, and power

adapters. Use of any non-Honeywell peripherals, cables, or power

adapters may cause damage not covered by the warranty.

Charging the Dolphin

Dolphin terminals ship with the battery significantly discharged of power.

Charge the battery with a Dolphin charging device for a minimum of 4 hours

for the standard battery and 6 hours for the extended battery.

Note: Charge the Dolphin terminal for at least 24 hours prior to initial use to

ensure the internal backup battery is fully charged.

Ensure all components are dry prior to mating terminals/batteries with

peripheral devices. Mating wet components may cause damage not

covered by the warranty.

HomeBase (Model 7800-HB)

The 7800-HB charger is designed for use with Dolphin 7800 model terminals,

standard battery pack model 7800-BTSC (Li-ion 3.7V, 8.9 watt hour), and

extended battery pack models 7800-BTXC and 7800-BTXCW (Li-ion 3.7V,

14.8 watt hour) manufactured for Honeywell International Inc. Use only a UL

Listed power supply, which has been qualified by Honeywell with output rated

at 12VDC and 3 amps with the device.

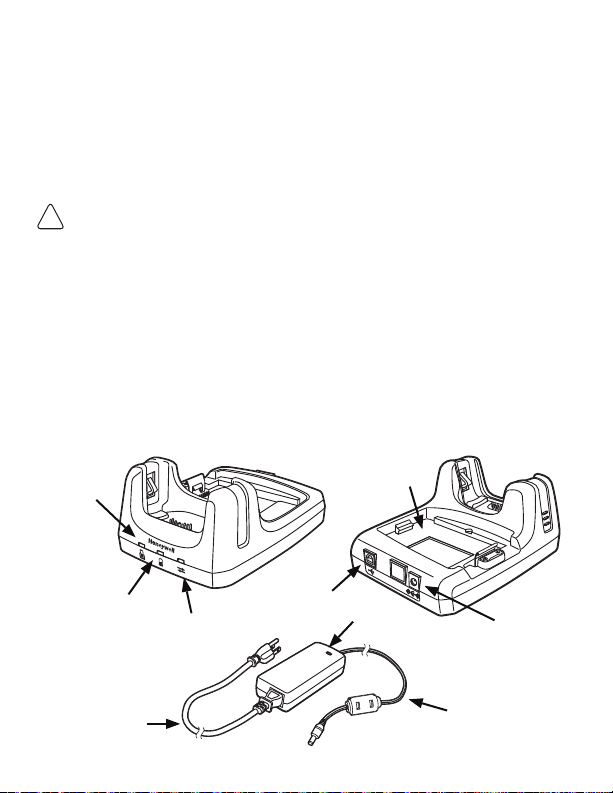

HomeBase Parts

AUX Battery Well

AUX Battery

LED COMM

LED

Power/Dock

LED

DC Power

Jack

USB Port

AC Power Cord

Power

Adapter

Power Cable

HomeBase LED Indicators

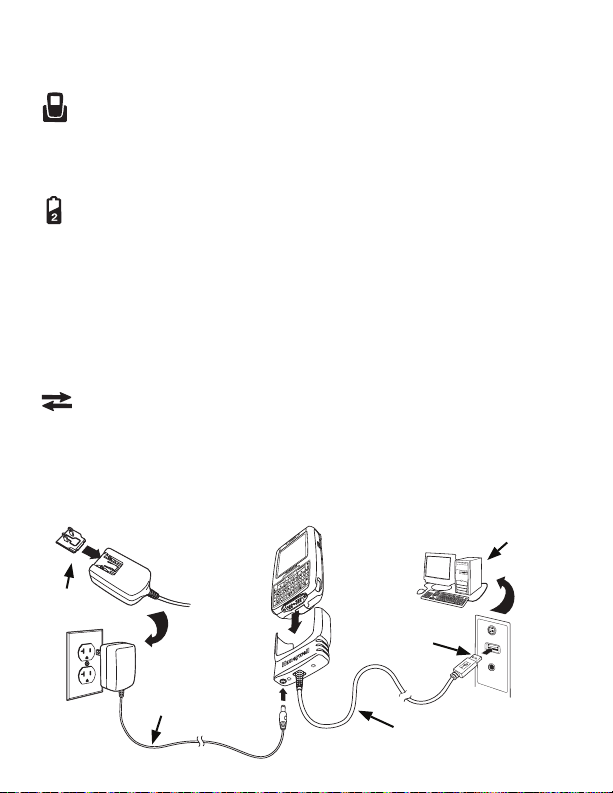

Charging/Communication Cable (Model 7800-USB)

Use only a UL Listed power supply, which has been qualified by Honeywell

with output rated at 5VDC and 3A with the device.

Red The HomeBase has power but no terminal is docked.

Green The HomeBase has power and the terminal is properly

seated in the base.

Orange The auxiliary battery is charging.

Green The auxiliary battery has completed charging and is

ready for use.

Red

Flashing

The internal temperature of the auxiliary battery is too

hot or there is a battery error. Charge the auxiliary

battery in a cooler environment or replace the battery

with a new Honeywell battery.

Green A USB connection is established with the host

workstation.

COMM Cable

Computer

USB

Power Adapter

Cable

Plug

Adapter

Suspend Mode

Suspend Mode turns the touch screen off and locks the terminal. To save

battery power, the terminal enters Suspend Mode when the device is inactive

for a programmed period of time. To adjust the timeout limit, tap the Apps

Launcher > Settings > Display > Screen Timeout.

1. Press and release the Power key to toggle the terminal in or out of

Suspend Mode.

2. Drag to the right on the touch screen to unlock the terminal.

Note: You should always place the terminal in suspend mode when replacing

the battery pack.

Silent Mode and Airplane Mode

1. Press and hold the Power key for approximately 5 seconds.

2. Tap Silent Mode or Airplane Mode on the Phone Options menu to

toggle the mode ON or OFF.

Note: When Airplane Mode is turned on,

shows on the status bar.

Removing the Battery Pack

1. Press and release the Power key to enter Suspend Mode, then

release the hand strap.

2. Unlock the battery.

3. Wait three seconds, then slide the battery release button away from the

stylus slot.

4. Remove the battery.

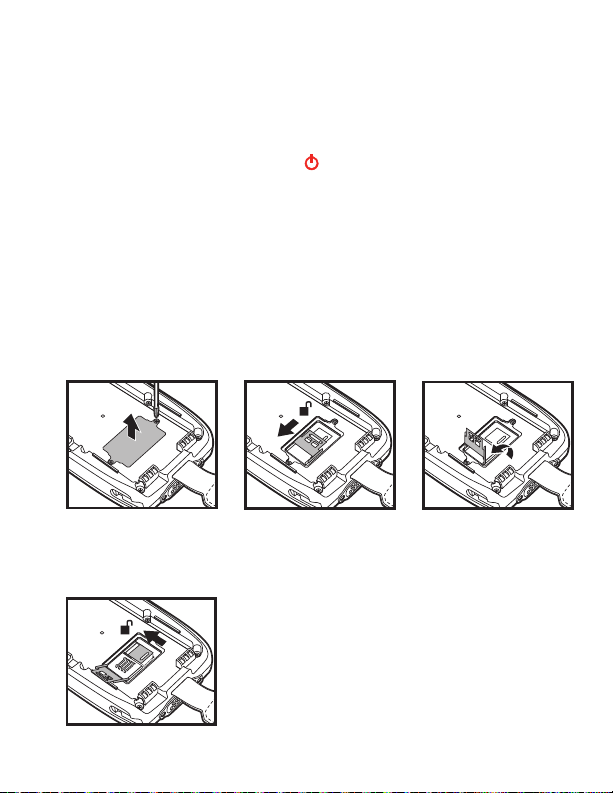

Installing the SIM Card and/or Replacing the Memory Card

Note: To prevent possible data corruption, you should unmount the microSD

card before removing the card from the terminal. To unmount the card,

tap the Apps Launcher

> Settings

> Storage > Unmount SD card.

1. Press and release the Power key to enter Suspend Mode.

2. Release the hand strap and remove the battery pack.

3. Remove the screws and the protective shield covering the SIM/memory

card socket.

4. Unlock the SIM card latch by sliding the latch toward the stylus slot.

5. Lift the latch to reveal the SIM socket and the memory card latch.

Note: If a SIM card is installed, remove the card to reveal the memory

card latch.

If you are not replacing the memory card, skip to step 10.

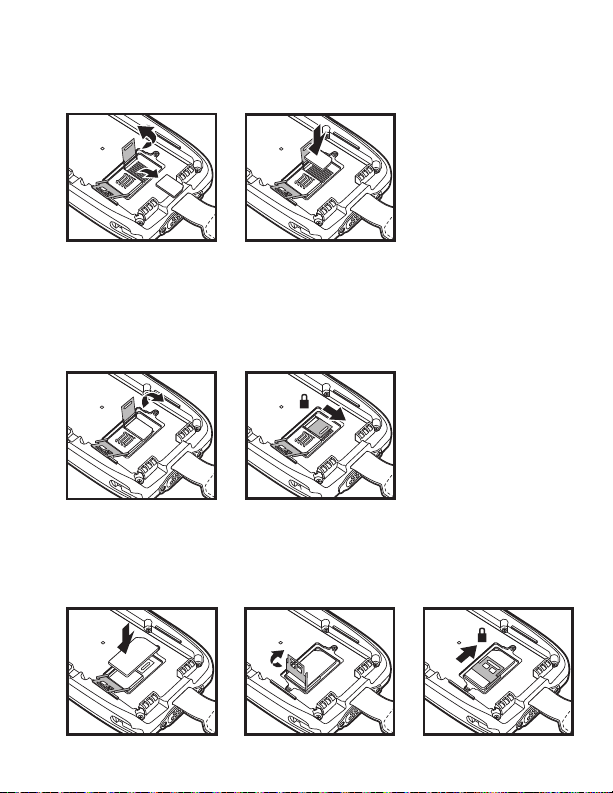

6. Unlock the memory card latch by sliding the latch toward the top of the

terminal.

345

7. Lift the latch and remove the memory card.

8. Insert the new microSD or microSDHC card.

Note: To avoid application errors or possible data loss, do not operate the

device without a memory card installed. Contact a Honeywell sales

representative for additional information on qualified memory card

options.

9. Close and lock the memory card latch.

10. Insert the SIM card. Align the chamfered corner of the card with the

chamfered corner of the socket.

11. Close and lock the SIM card latch.

9a9b

10 11b11a
