Honeywell 8675i Manuale utente
8675i
Rugged Compact Wearable Scanner
Quick Start Guide
8675i-EN-QS-01 Rev A
2/22
1
Out of the Box
Make sure that your shipping box contains these items:
• Honeywell 8675i Rugged Wearable Compact Scanner
• Rechargeable battery
• Product Documentation
If you ordered accessories for your device, verify that they are
also included with the order. Be sure to keep the original
packaging in case you need to return the device for service.
!
Before you attempt to use, charge or replace the
battery in the device, carefully read all labels, markings
and product documentation provided in the box or
online at sps.honeywell.com. To learn more about
Battery Maintenance for Portable Devices, go to
honeywell.com/PSS-BatteryMaintenance.
Avant d’essayer d’utiliser, de charger ou de remplacer
la batterie de l’appareil, lisez attentivement toutes les
étiquettes, marquages et documentation du produit
fournis dans la boîte ou en ligne à sps.honeywell.com.
Pour en savoir plus sur l’Entretien de Batteries pour
Appareils Portables, consultez-le honeywell.com/
PSS-BatteryMaintenance.
2
Device Features
Battery
Scanner
Battery
Latches
Scan/Battery
Status LED
Scan/Bluetooth
Status LED
Scan
Trigger
NFC Touch
Point
Strap Loop
Triggered
Ring
Scan
Status
LEDs
Strap Buckle
Release
Latch
3
Charging the Battery
The 8675i rugged compact wearable scanner ships with a
partially charged battery. The battery must be fully charged
before first use. The following charging stations are available for
the device and must be purchased separately:
• MB8-BAT-SCN10
• MB24-BAT-SCN10
•MB4-SCN10
• MB12-SCN10
•MB1-SCN10
We recommend the use of Honeywell accessories
and power adapters. Use of non-Honeywell
accessories or power adapters may cause damage
not covered by the warranty.
Ensure all components are dry prior to mating the
computers and batteries with peripheral devices.
Mating wet components may cause damage not
covered by the warranty.
4

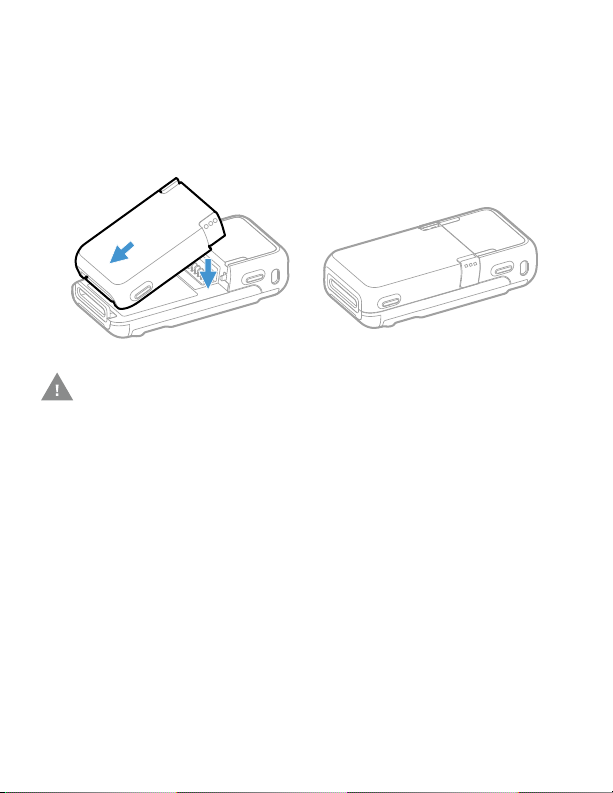

Install the Battery
The device ships with a 3.85V, 570 mAh battery
manufactured by Honeywell International Inc.
Use only Honeywell battery model BAT-SCN10.
5

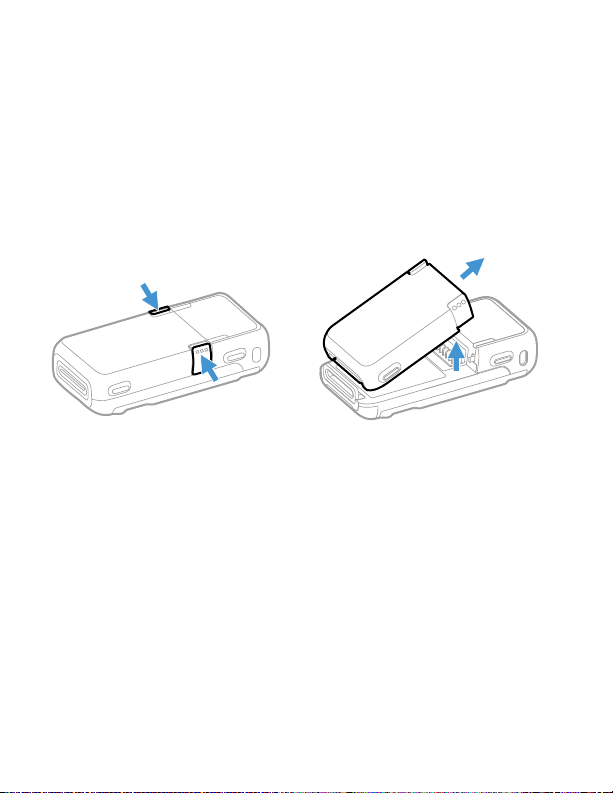

Replace the Battery
Note: The battery should be replaced in an environment free
from excessive dust or particulate to avoid an internal
buildup of dust in the unit.
When the battery is low, the 8675i beeps, vibrates, and the
Battery LED flashes. To replace the battery, squeeze the battery
latches and lift up on the battery.
Replace the battery by aligning it with the back of the device and
snapping it in to the device.
6

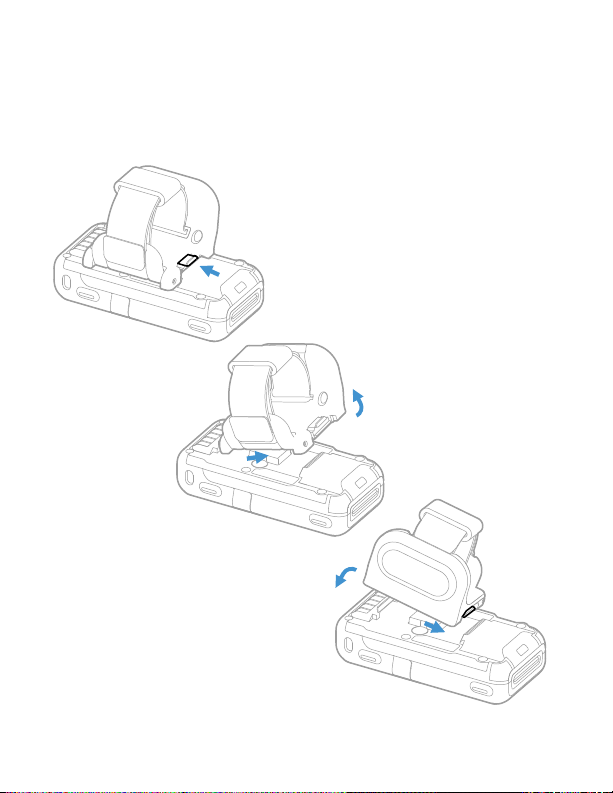

Right or Left Handed Operation
To release the finger trigger, turn over the device. Press the
Release Latch on the bottom. Rotate the trigger and snap it into
place to change the operation to the correct hand.
7

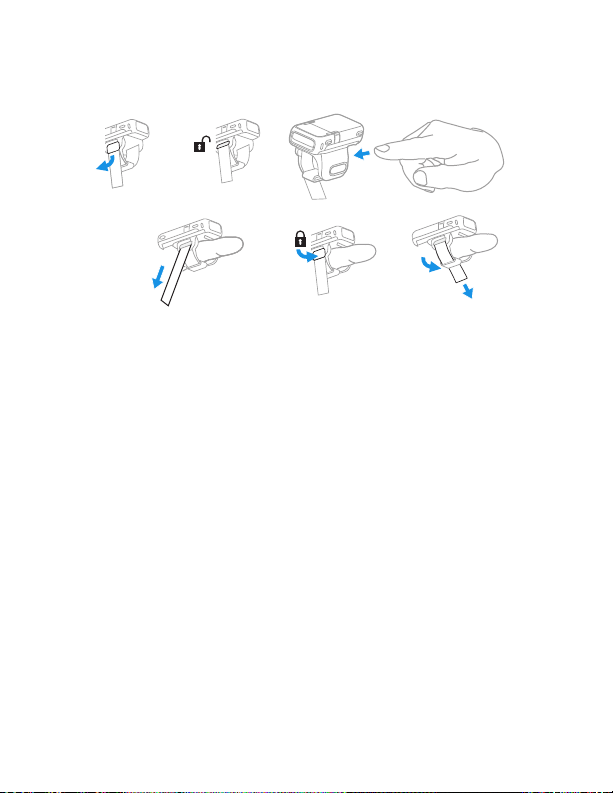

Attach the Device to Your Finger
Lift up on the Strap Buckle to unlock the strap. Insert your finger
through the Trigger Ring. Pull the excess strap down. Press
down on the Strap Buckle. Pull the excess strap through the
Strap Loop.
Power Up the Device
Press the trigger to power up the device.
8

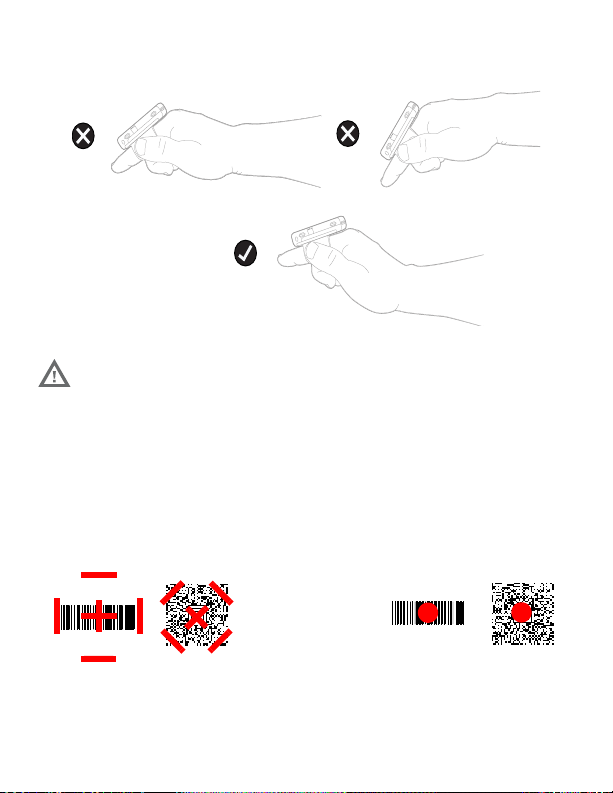

Wrist Position When Scanning
How to Scan a Barcode
The 8675i scanner has a view finder that projects a bright laser
aiming pattern. This aiming pattern should be centered over the
barcode, but it can be positioned in any direction for a good
read.
!
Warning: Do not stare directly into the laser beam.
SR Models: FR Models:
9
Connect the Device via Bluetooth®
Pair with a PC or Laptop Bluetooth Serial Port: Host
Reconnect Mode
The 8675i can pair with host Bluetooth devices such as personal
computers, laptops, and tablets. In this mode, the host will
continually attempt to connect with the device. If the device and
the host become disconnected, the host will manage the
reconnection.
1. Scan the Host Reconnect Mode barcode, below.
2. Set your host device so it searches for other Bluetooth
devices. (Refer to your host device’s User’s Guide for pairing
instructions.)
3. When your host device has located the 8675i, you can select
it from the list displayed.
Note: Refer to the 8675i User’s Guide if your host device displays
a PIN.
Host Reconnect Mode
